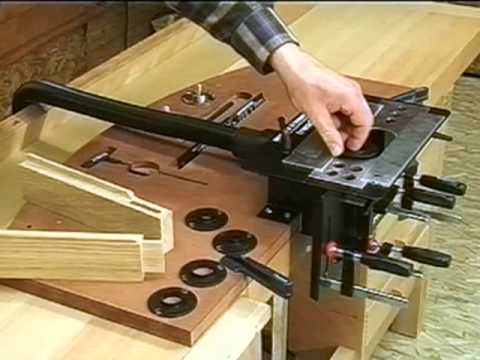

Trend Mortise & Tenon Jig for Plunge Routers

Create professional-grade mortise and tenon or dowel joints with the Trend Mortise & Tenon Jig.

Delivering precision and versatility to woodworkers of all skill levels, this jig is an essential tool for crafting cabinets, chairs, and tables.

Requirements (not included)

Router Bit: 5/8in (15.9mm) diameter Straight Plunge bit

Features

• Perfectly Fitting Joints: Achieve seamless mortise and tenon joints with one simple setup.
• Versatile Design: Adjustable for compound angles up to 45°, ideal for complex projects.
• Reversible Templates: Create both rounded and square tenon ends with ease.
• Wide Compatibility: Works with timber thicknesses from 12mm to 47mm and tenon sizes of 4.8mm to 16mm.
• CNC Precision: Durable plates and body ensure flawless, repeatable results.
• Dowel Joint Capability: Use templates for accurate dowelling applications.

The jig includes five plastic guide bushes, one steel guide bush, a guide-bush collar for mortising, and four F-clamps. Compatible with Trend and non-Trend routers. The addition of a Trend Unibase ensures universal adaptability.

Perfect for woodworkers of all levels, the Trend Mortise & Tenon Jig combines innovation with simplicity, enabling you to create strong, precise joints every time.

A Trend Dust Kit is available for this jig.

Specifications

Material Thickness Capacity: 12mm - 47mm

Tenon Thickness Capacity: 4.8mm - 16mm

Maximum Tenon Width: 90 mm

Maximum Tenon length: Approx. 25 mm

Maximum Mortise Length: 90 mm

Angle tilt compound: -10 degree to 45 degrees
