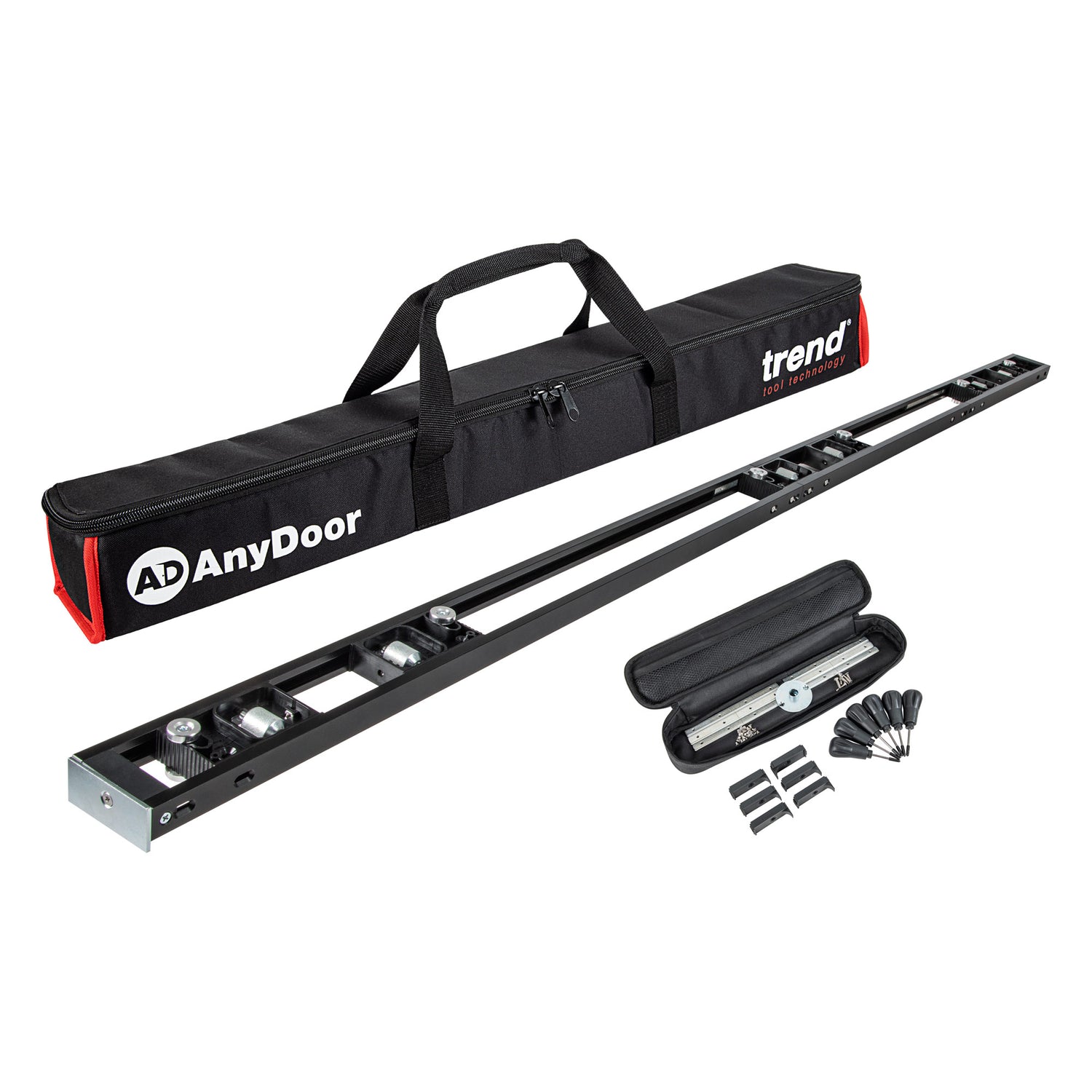

Trend AnyDoor Hinge Router Jig in Carry Bag

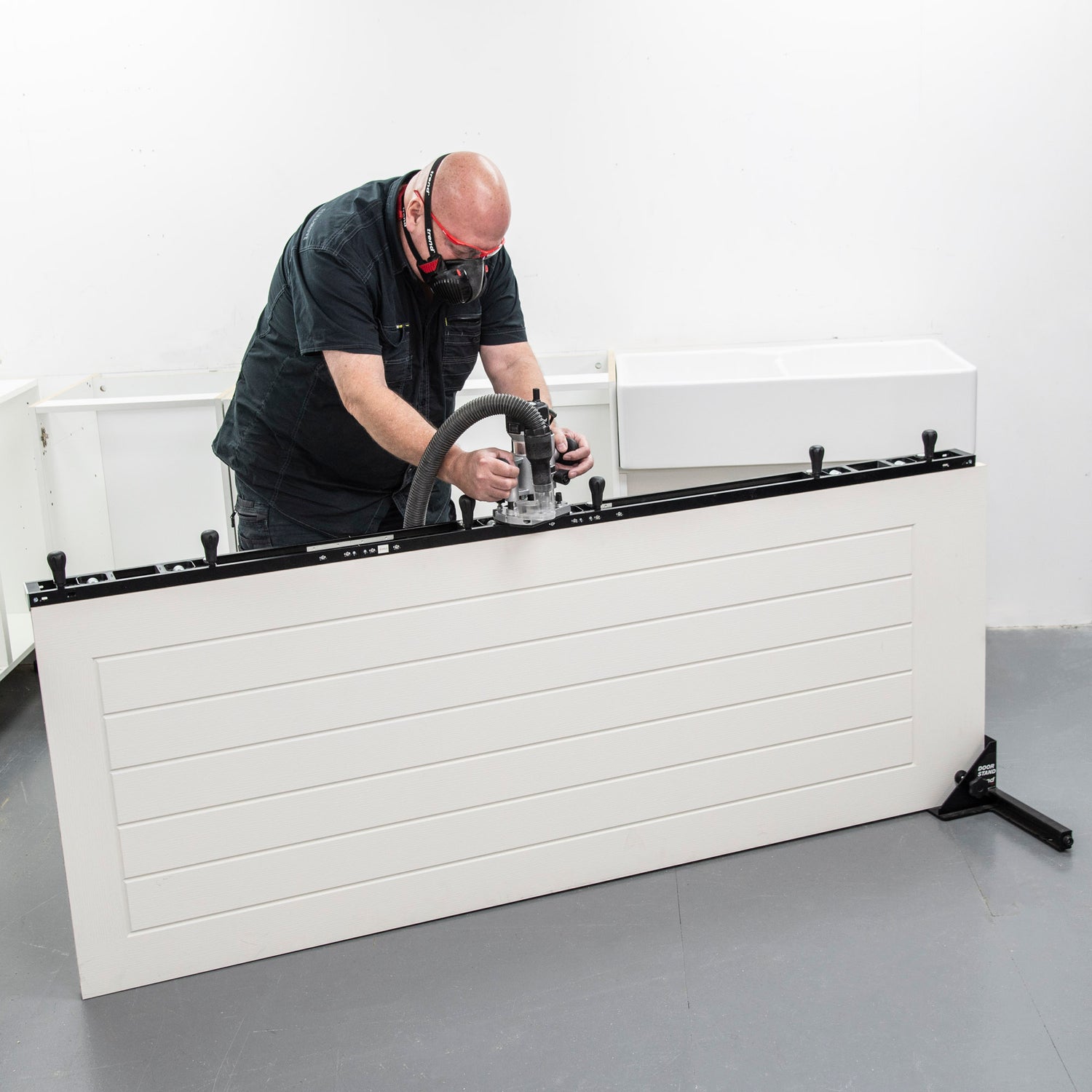

The Trend AnyDoor Hinge Jig is a fully adjustable, modular routing jig designed to quickly and accurately recess square and 12.7mm radius hinges in timber doors & frames.

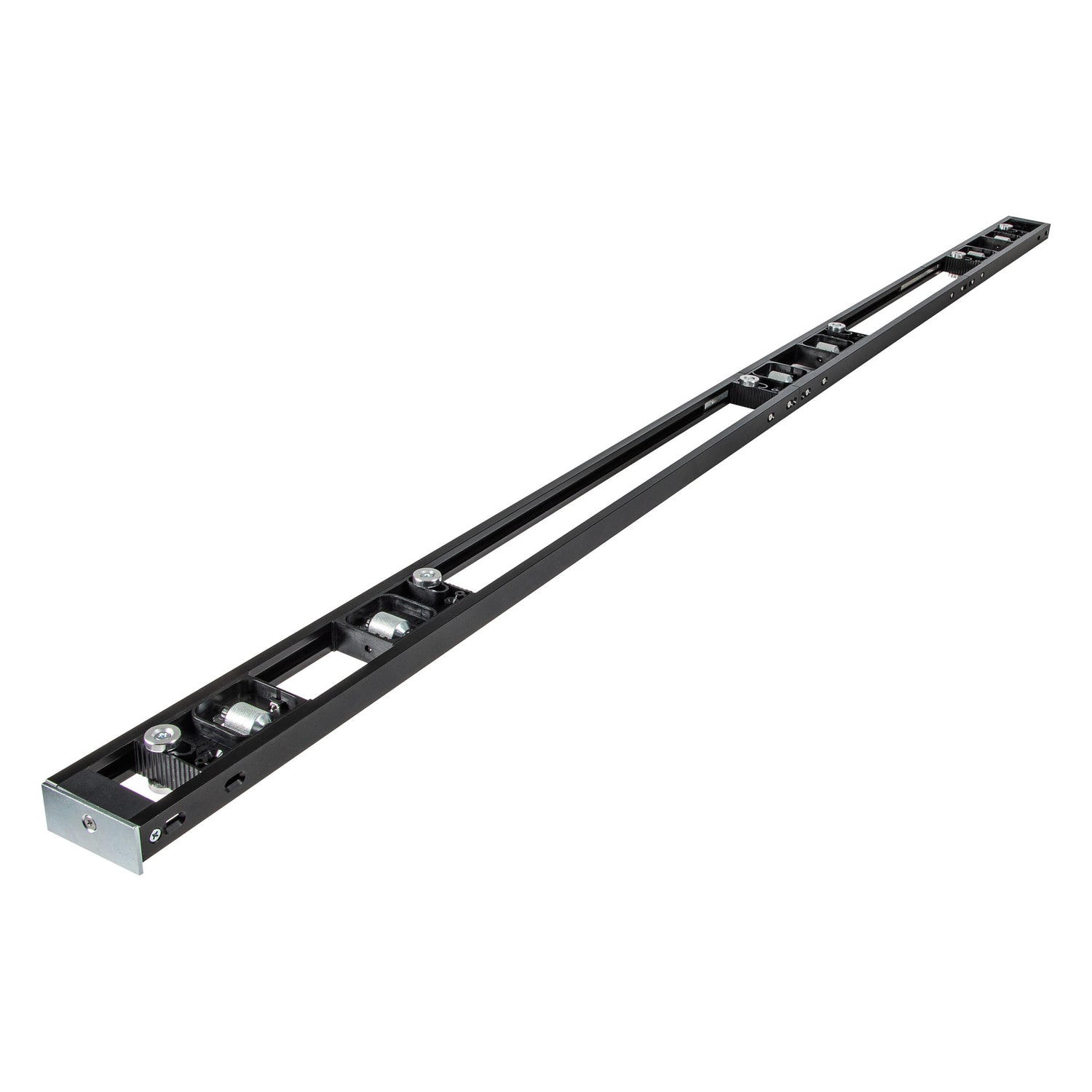

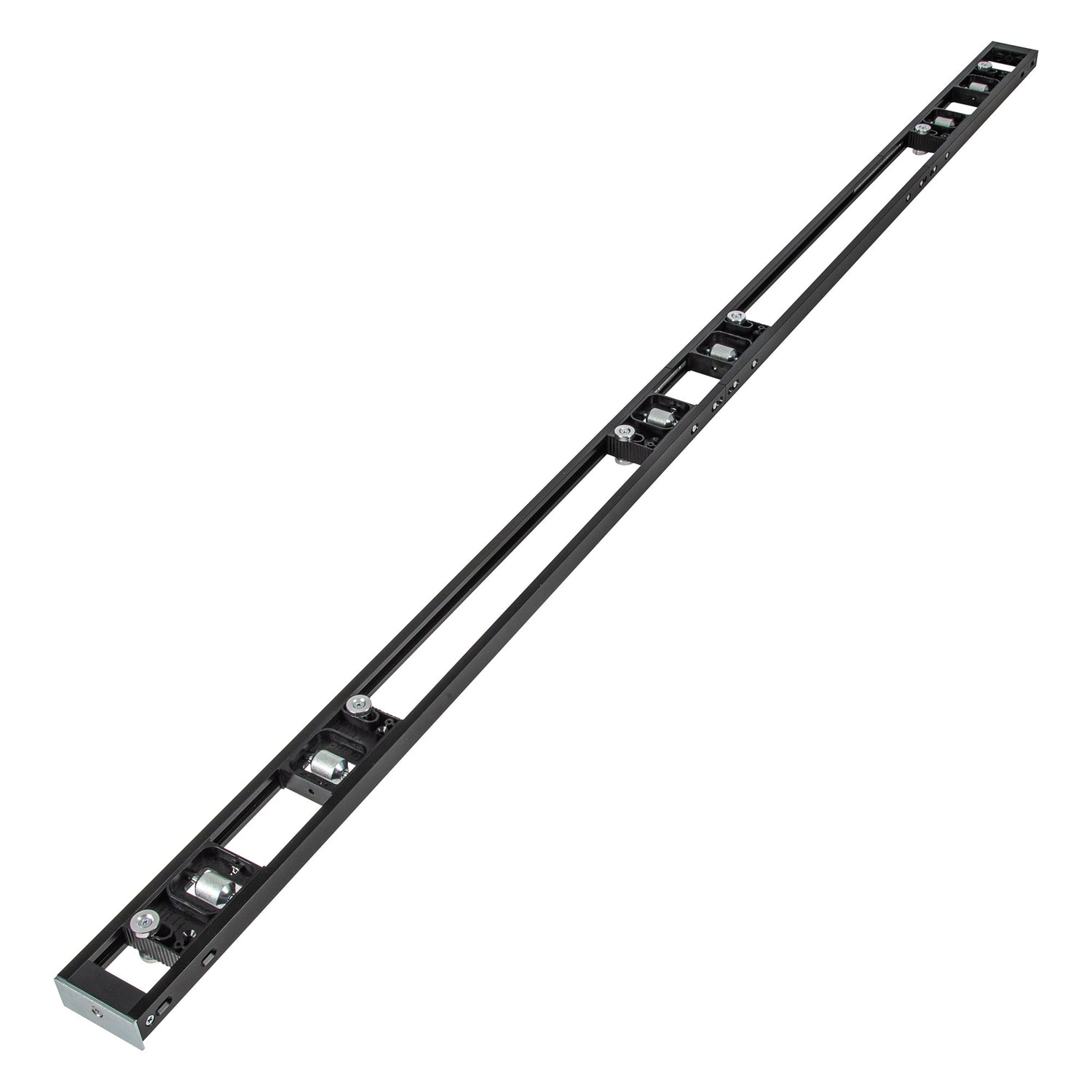

The AnyDoor Hinge Jig features a patented Modular Rail Construction that offers exceptional flexibility and adjustability for hinge installations. This unique design allows the jig to be adjusted from 760mm to 2340mm right out of the box, accommodating both full-height and custom smaller doors. Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails are available for doors larger than 2340mm.

The patented Twin-Rail System provides unlimited hinge positions within the rail, with the included Bradawls enabling the jig to be secured quick and easily. Able to freely match existing hinge positions within the rail, the AnyDoor system eliminates the headache of dealing with existing hinge positions. This means it can be used to fit a new door in an old frame, making it ideal for renovation work.

Features

• Lightweight Anodised Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
• Adjustable Edge Guides have presets to accommodate 19mm, 26mm and 30mm hinge leaf widths, or can be custom set to any leaf width between 12.7mm and 35mm.
• Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free thumb-turn locking mechanism for fast, accurate hinge positioning.

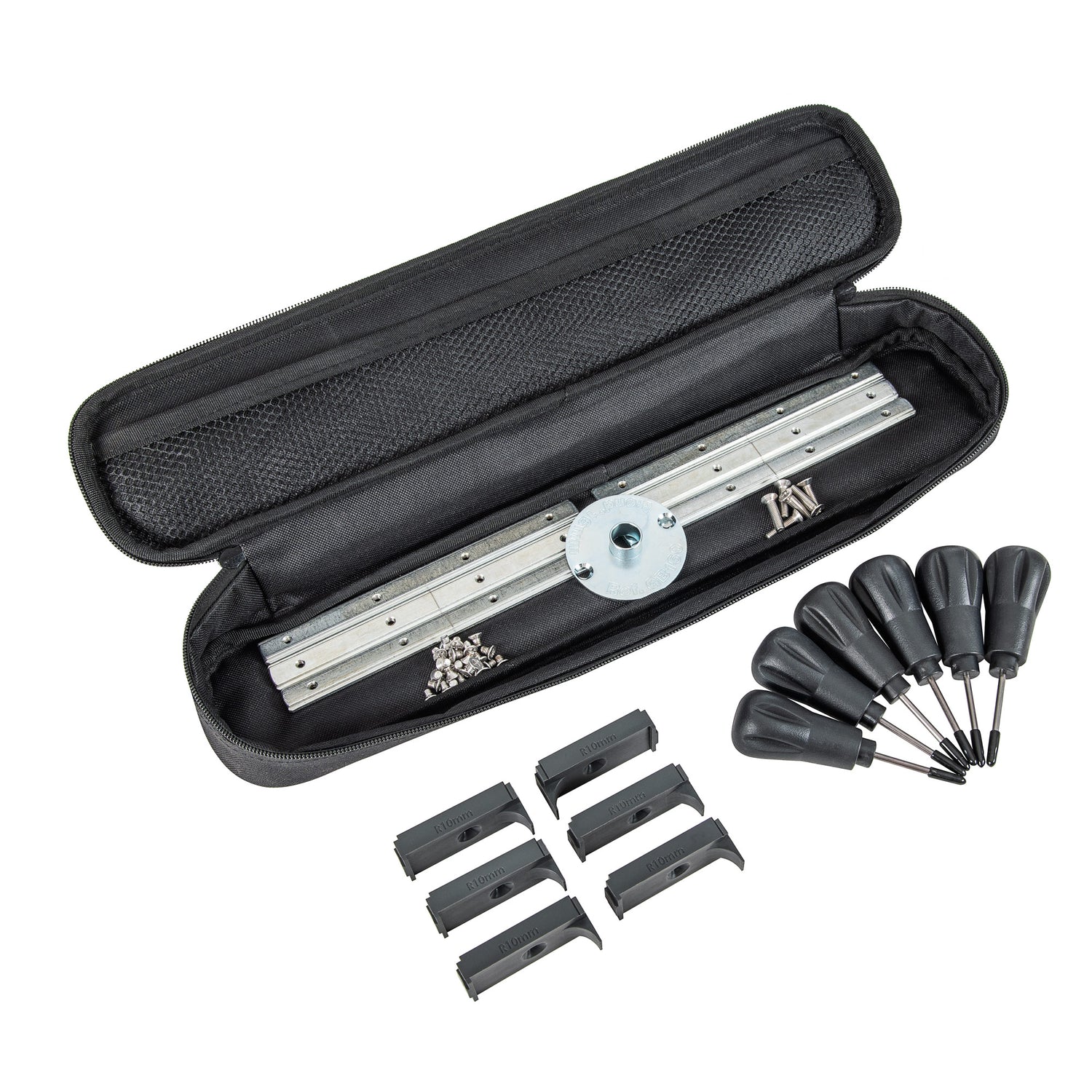

• Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) wood screws for maximum stability.
• Expansion rails are available for doors larger than 2040mm.
• End Block Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
• 25mm Rail Depth allows jig to be used against fixed door stops.
• Includes 16.0mm Guide Bush.

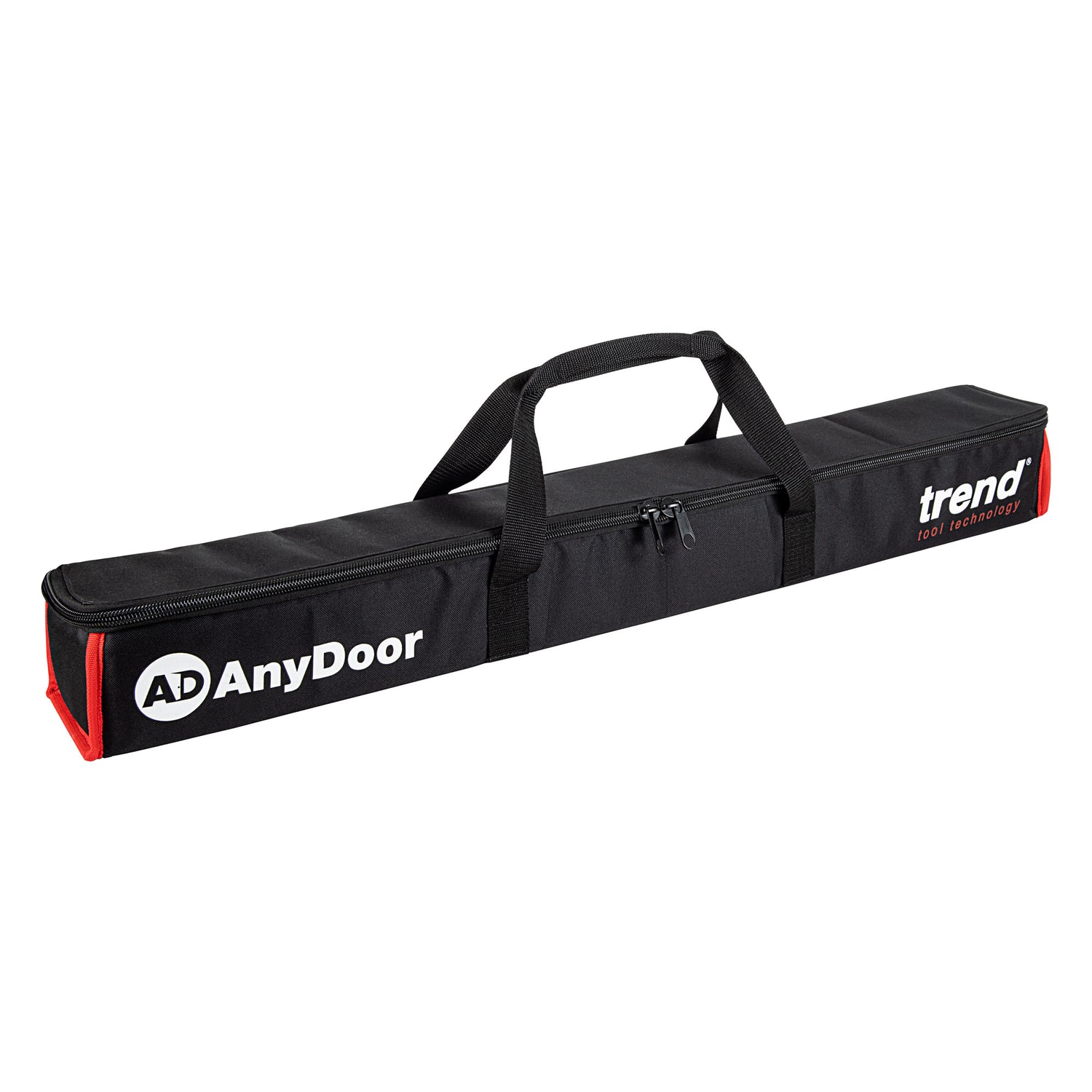

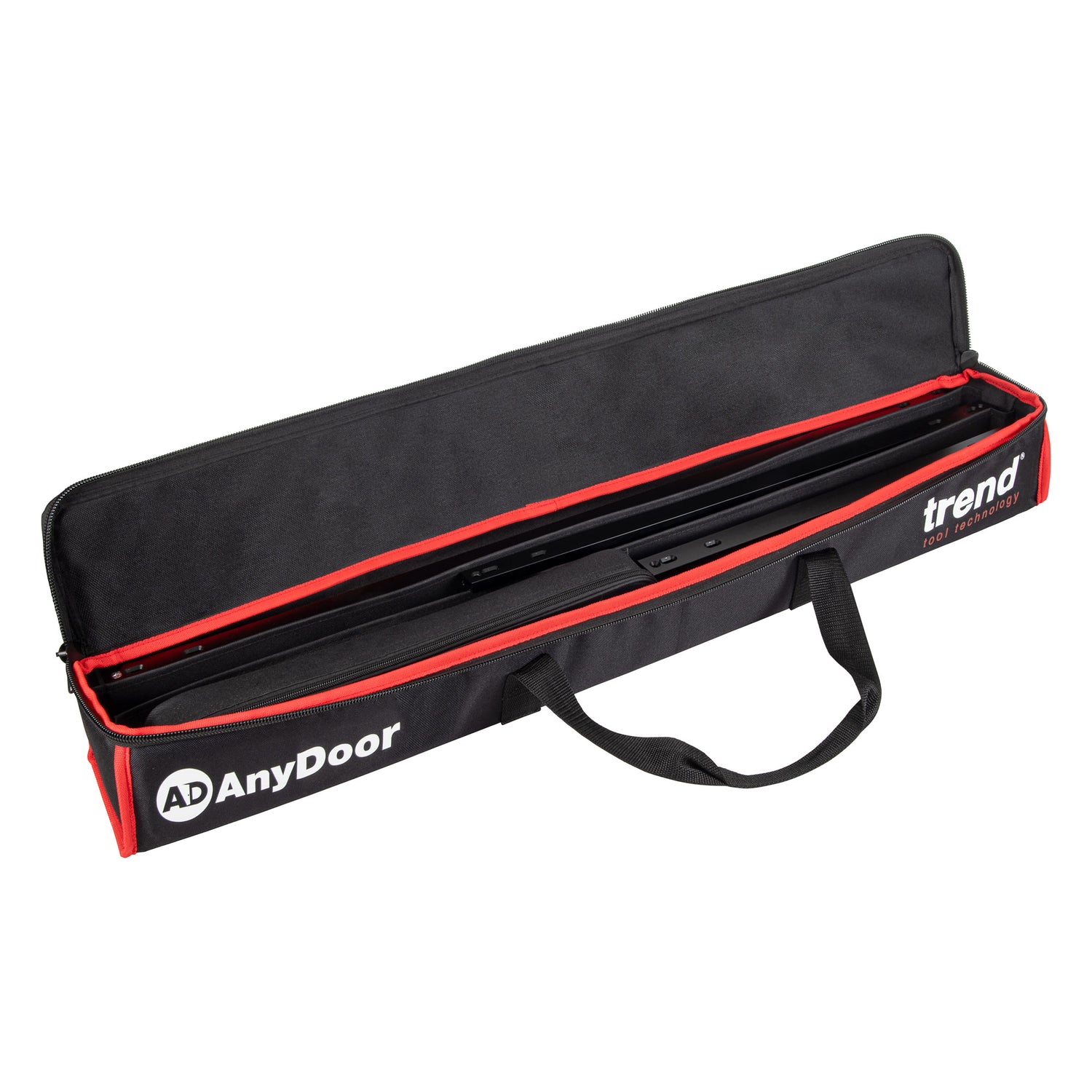

• Tough Carry Bag stores pre-built jig sections to minimise assembly time.

Specifications

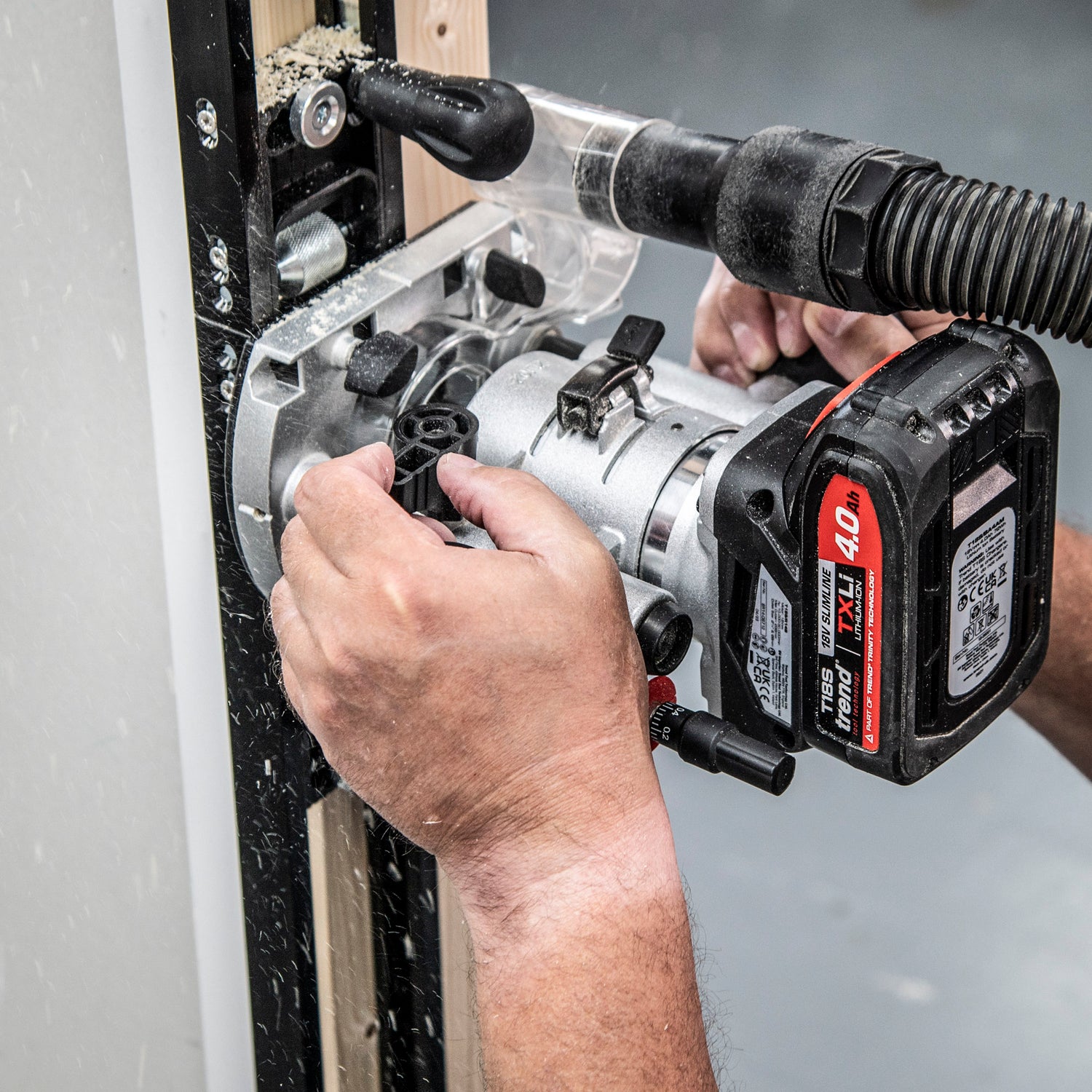

Requires: 12.0mm long-reach 1/4in or 8mm Shank Router Bit and Plunge Router

Door Height compatibility: 760mm to 2340mm (length can be expanded by purchasing extra rails)

Hinge Radius compatibility: 12.7mm

Rail Depth: 1in (25mm)

Hinge leaf width compatibility: 12.7 – 35mm, with 19mm, 26mm & 30mm presets

Steel End Plate thickness: 1/8in (3mm)

Guide Bushing: 16mm Diameter (included)

Packaged Size: 150 x 140 x 940mm
