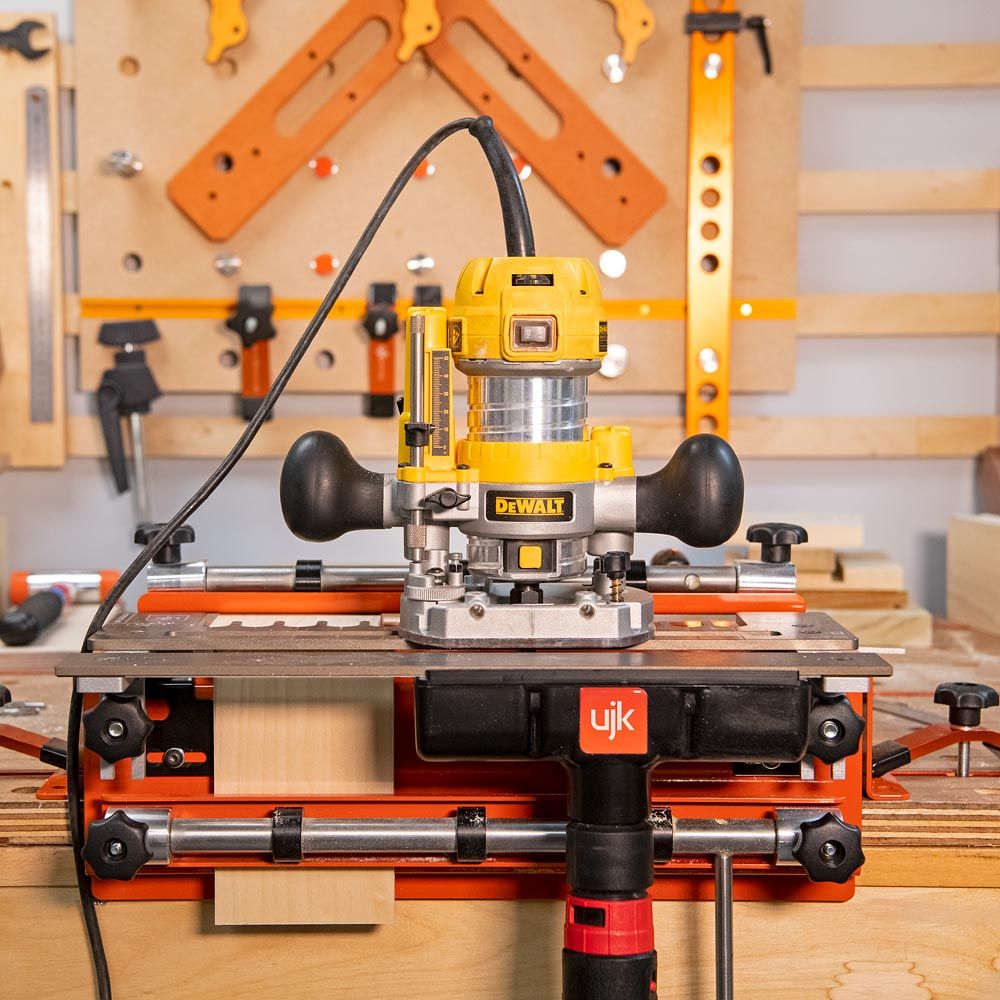

UJK Universal Dovetail Router Jig

Produce six different joints, with unrivalled accuracy – straight out of the box!

UJK Universal Dovetail Jig can produce:

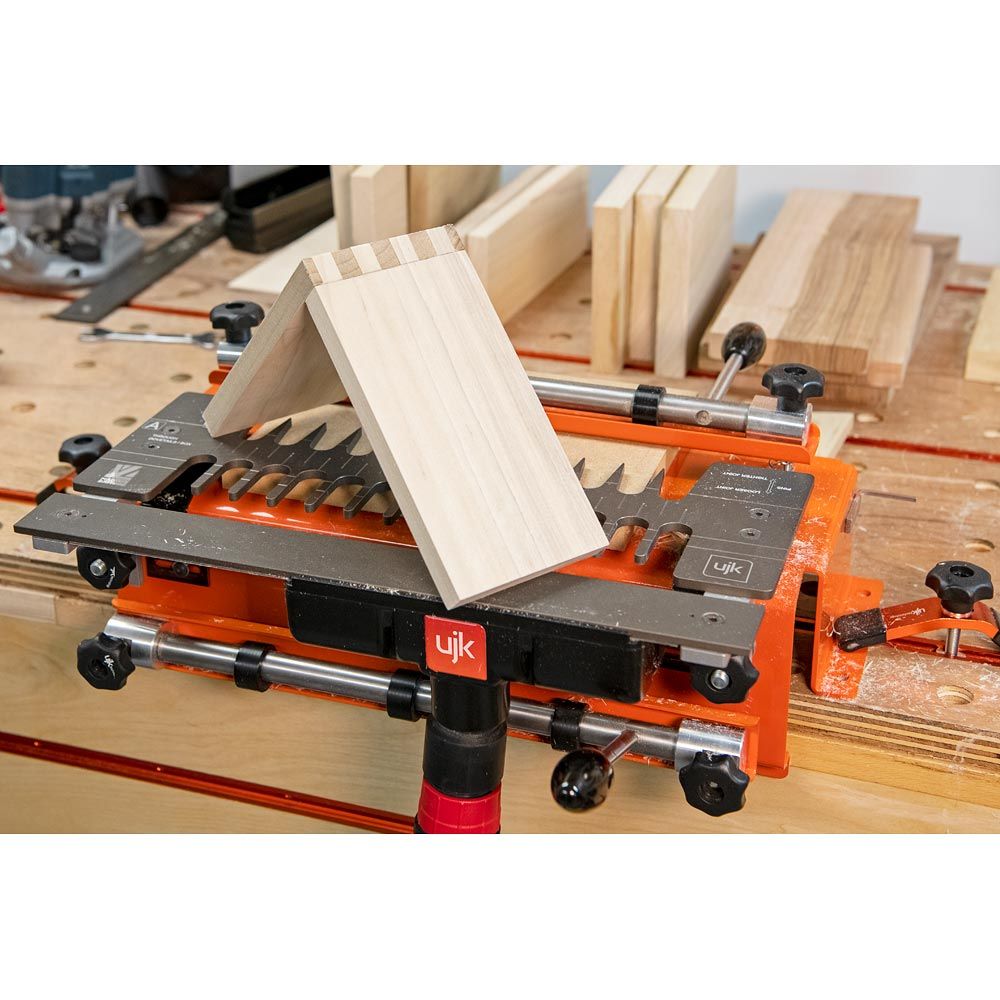

1. Half blind dovetails

2. Box/finger joints

3. Through dovetails

4. Sliding dovetails

5. Groove/housing joints

6. Corner dovetail rebates

The base of this jig is a heavy gauge steel pressing with other parts precisely CNC machined; a combination of accuracy and strength. The super hard anodised finish on the finger templates ensures long term accuracy. The jig features a stabiliser bar located in front of the comb, which provides a much greater surface area to support your router’s base.

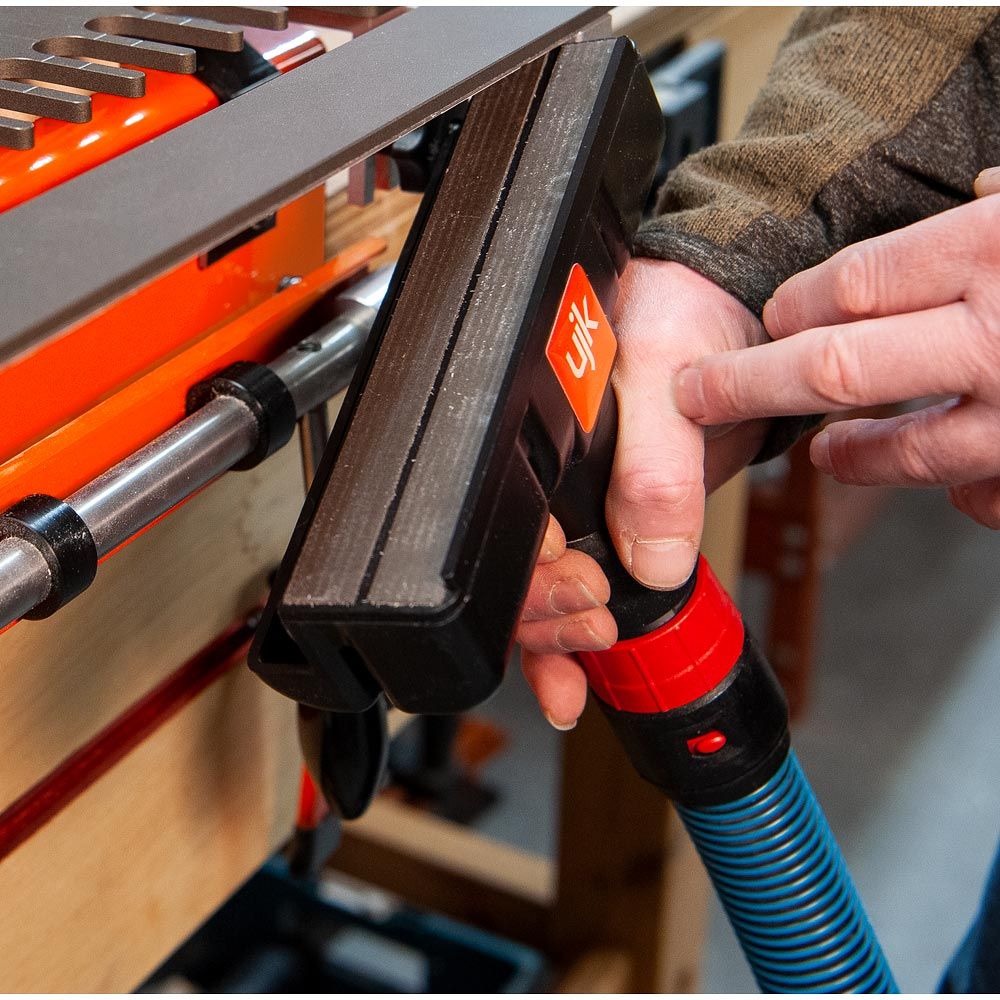

The UJK Universal Dovetail Jig also incorporates a greatly improved dust extraction outlet. Held in place by a strong magnetic strip, the outlet is easily detached when loading workpieces in your jig.

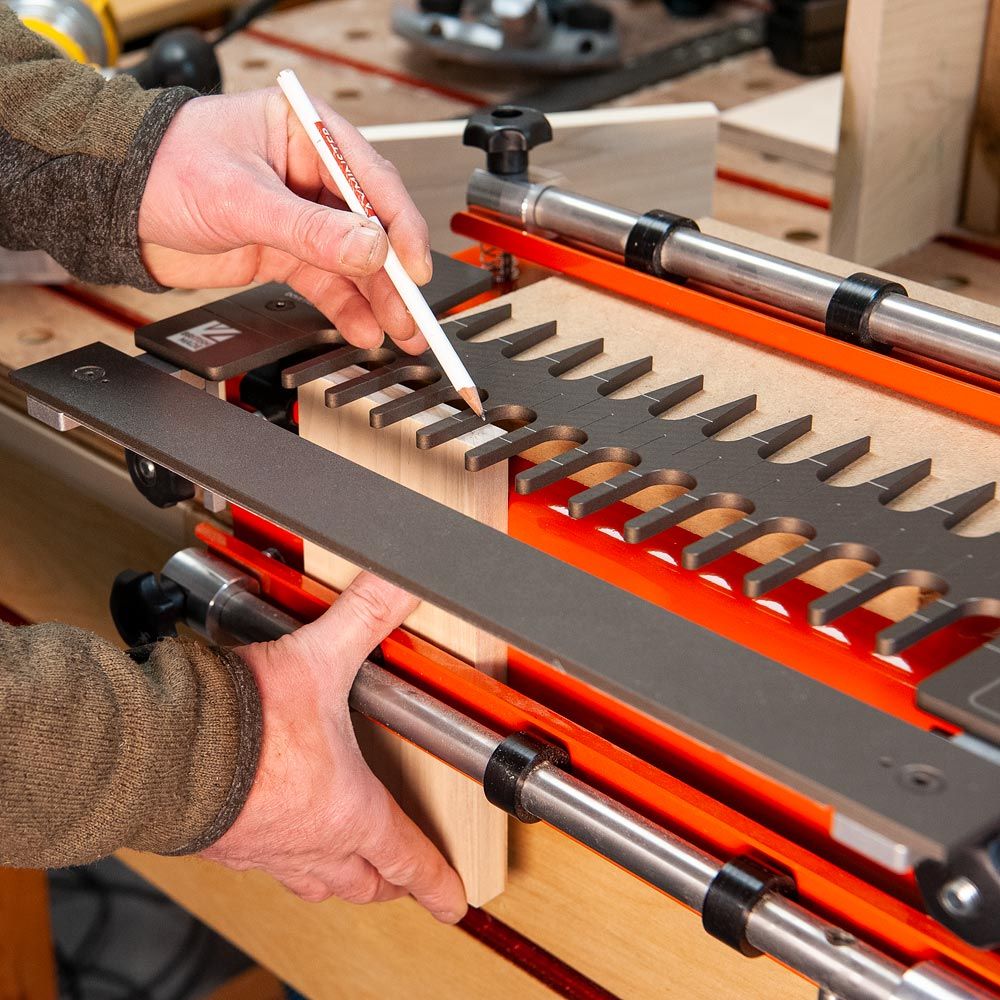

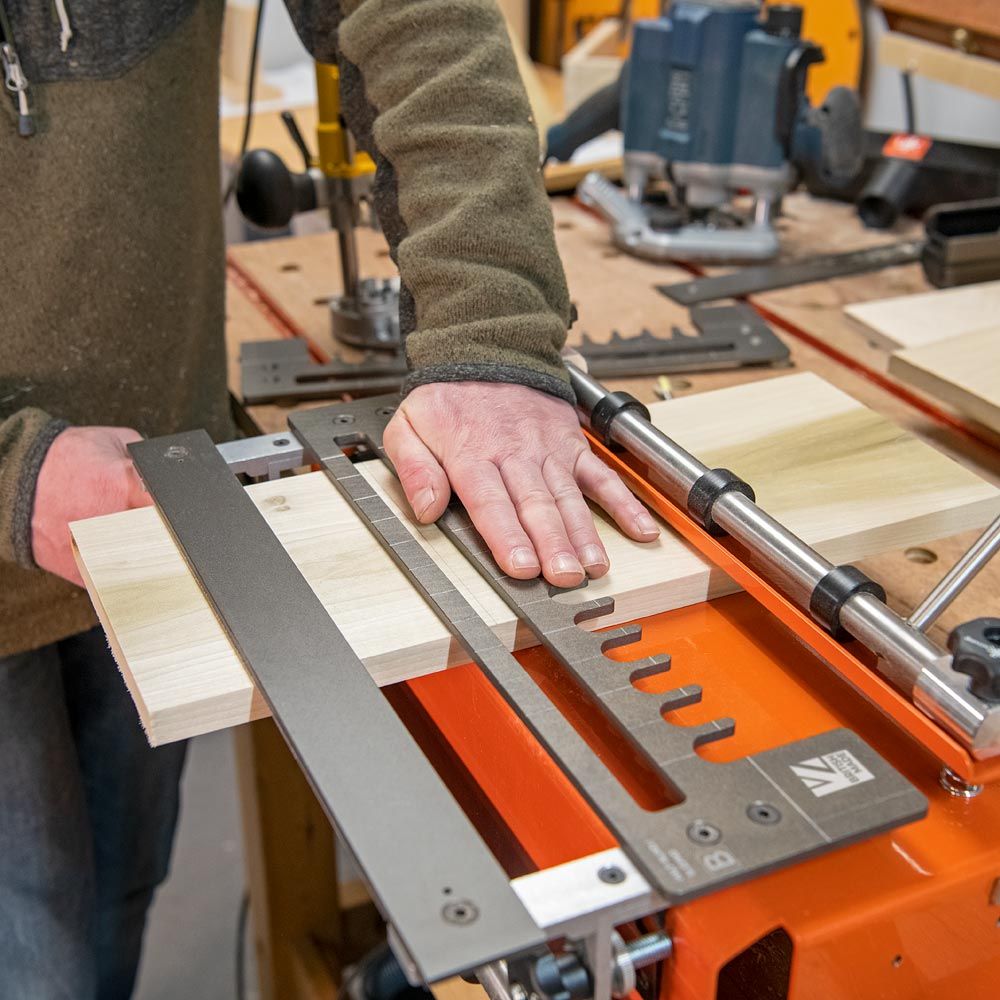

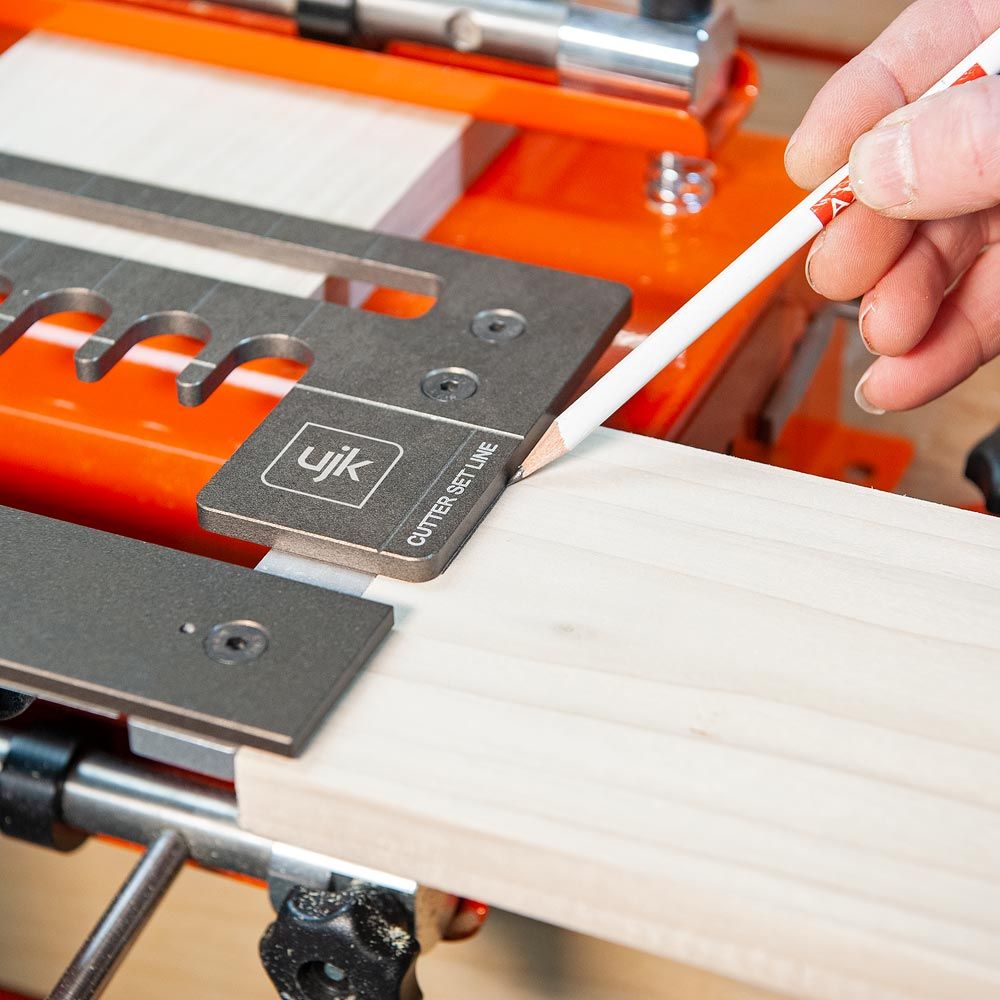

Set-up and use is simple. An 11mm offset at each end of the template greatly speeds up initial marking. Fast cam action clamps, hold your workpieces quickly and securely.

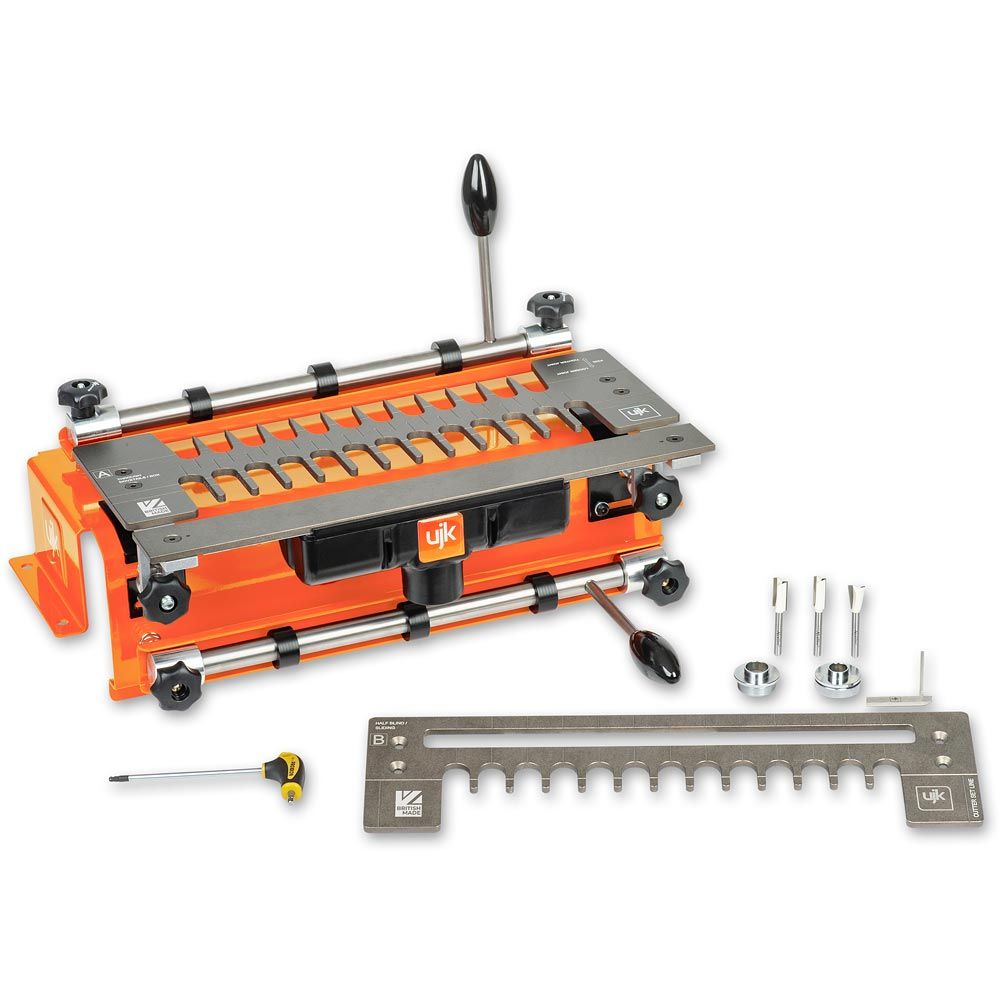

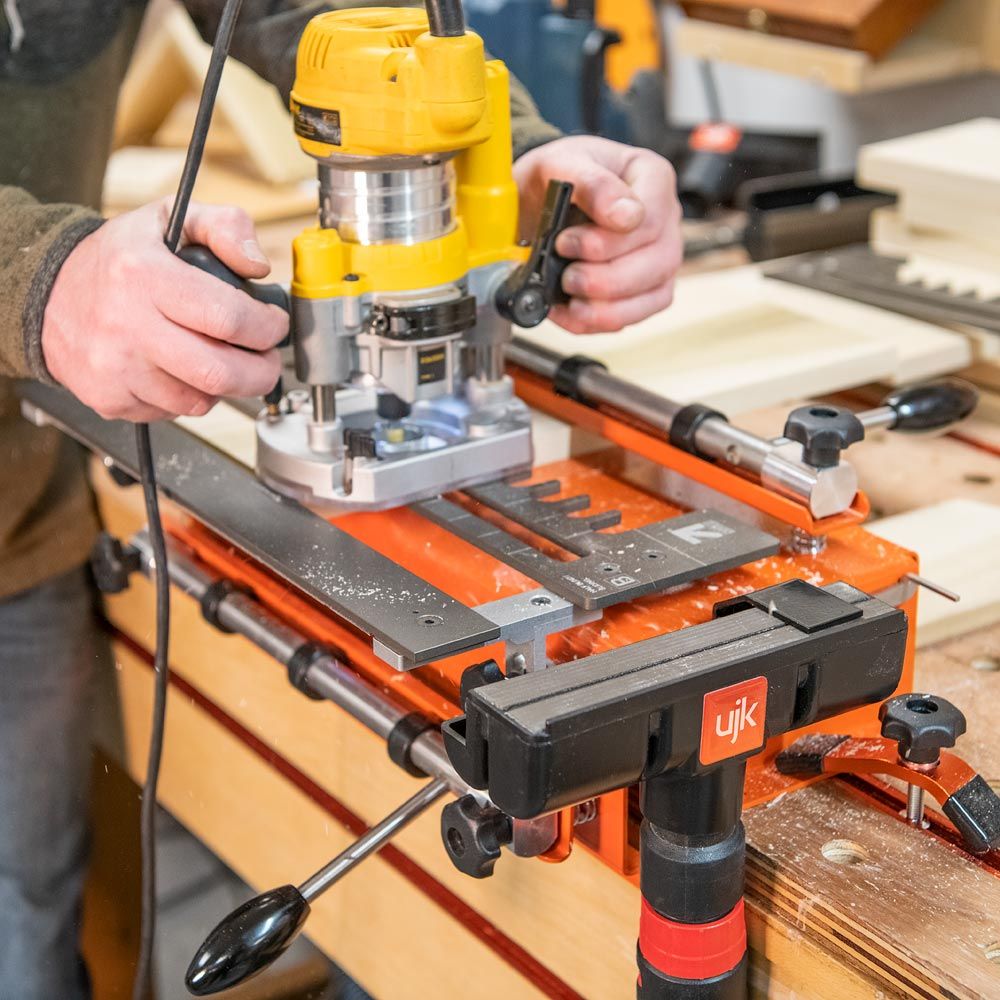

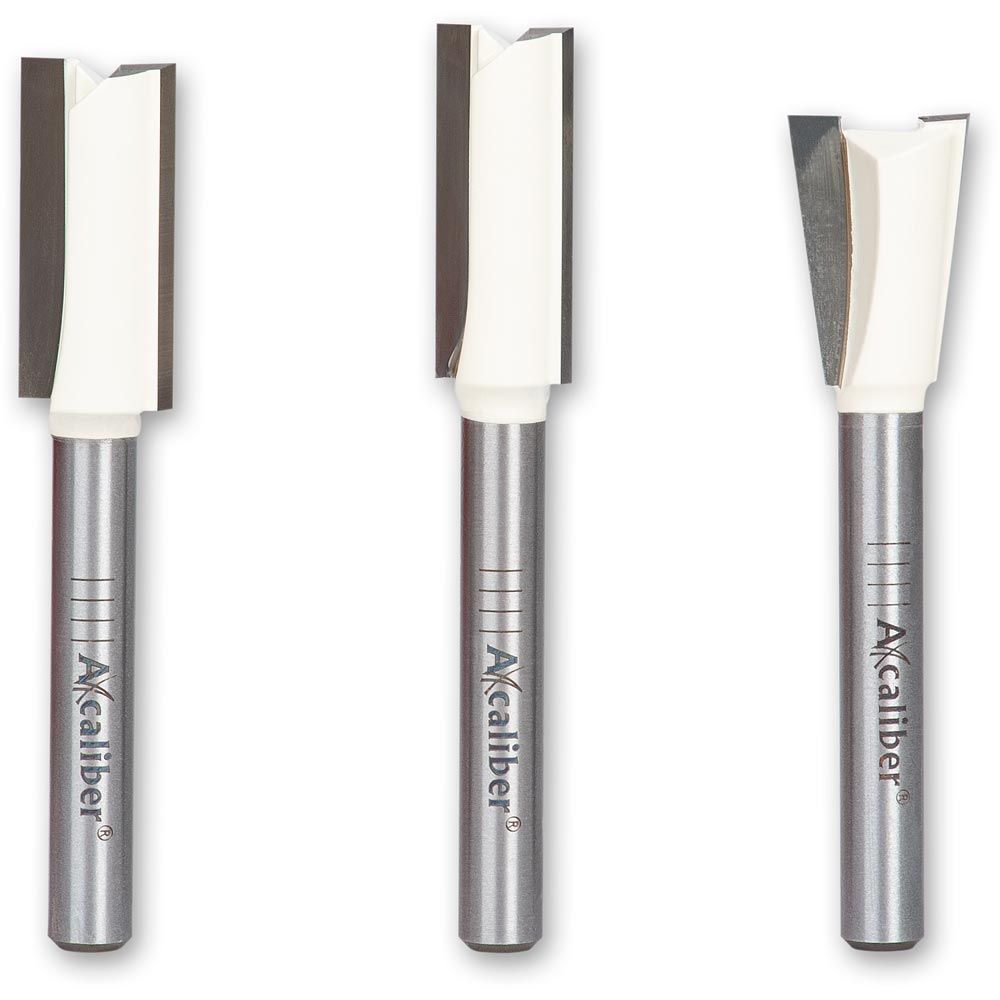

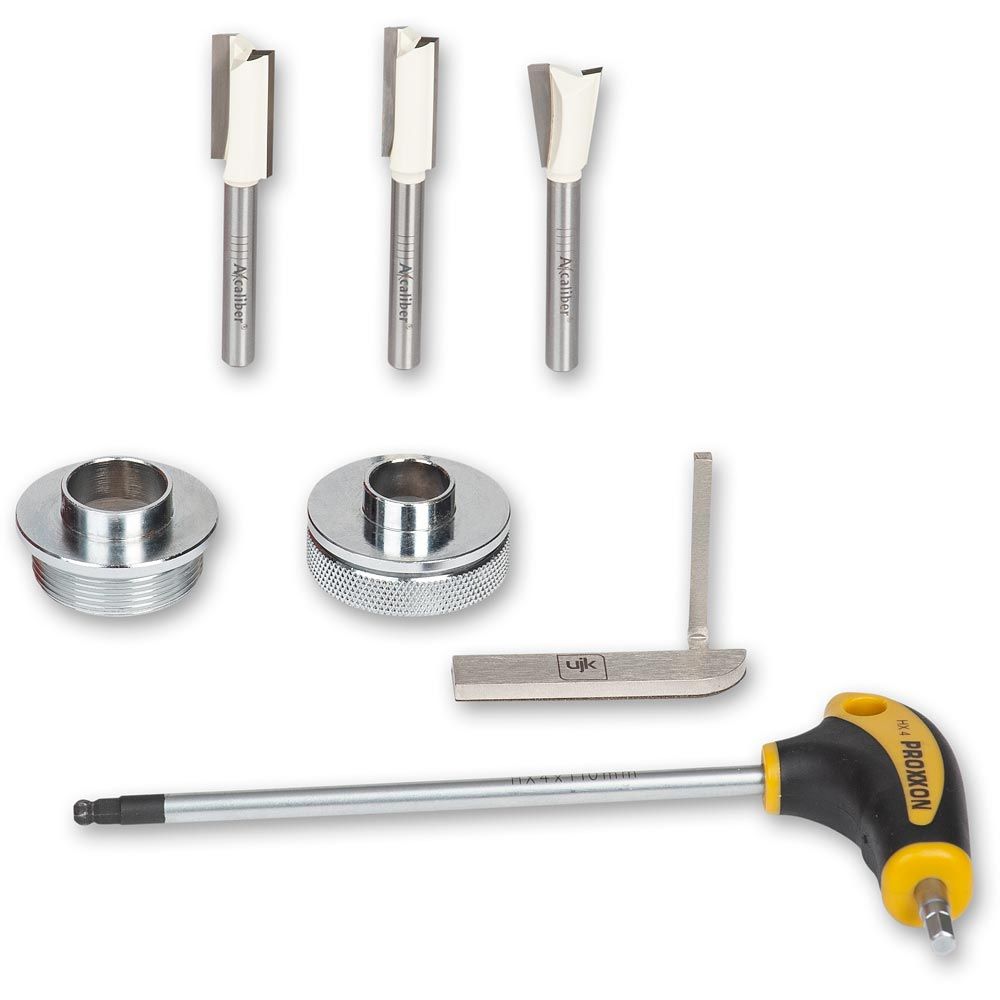

The jig can be used with any router that will take 1/4in, 8mm or 1/2in shank cutters. The jig comes with three 1/4in shank Axcaliber precision ground TCT router cutters; a matched pair for dovetailing (7 degree dovetail and straight) and a 12.5mm straight cutter. Also included are two American style threaded guide bushes and full instructions.

Material capacity: 300mm width, 6–25mm dovetail thickness.

An additional UJK guide bush adaptor to suit your router can be purchased separately if required. An 8mm- 1/4in sleeve is also supplied.

UJK’s Universal Dovetail Jig is made in the UK.
