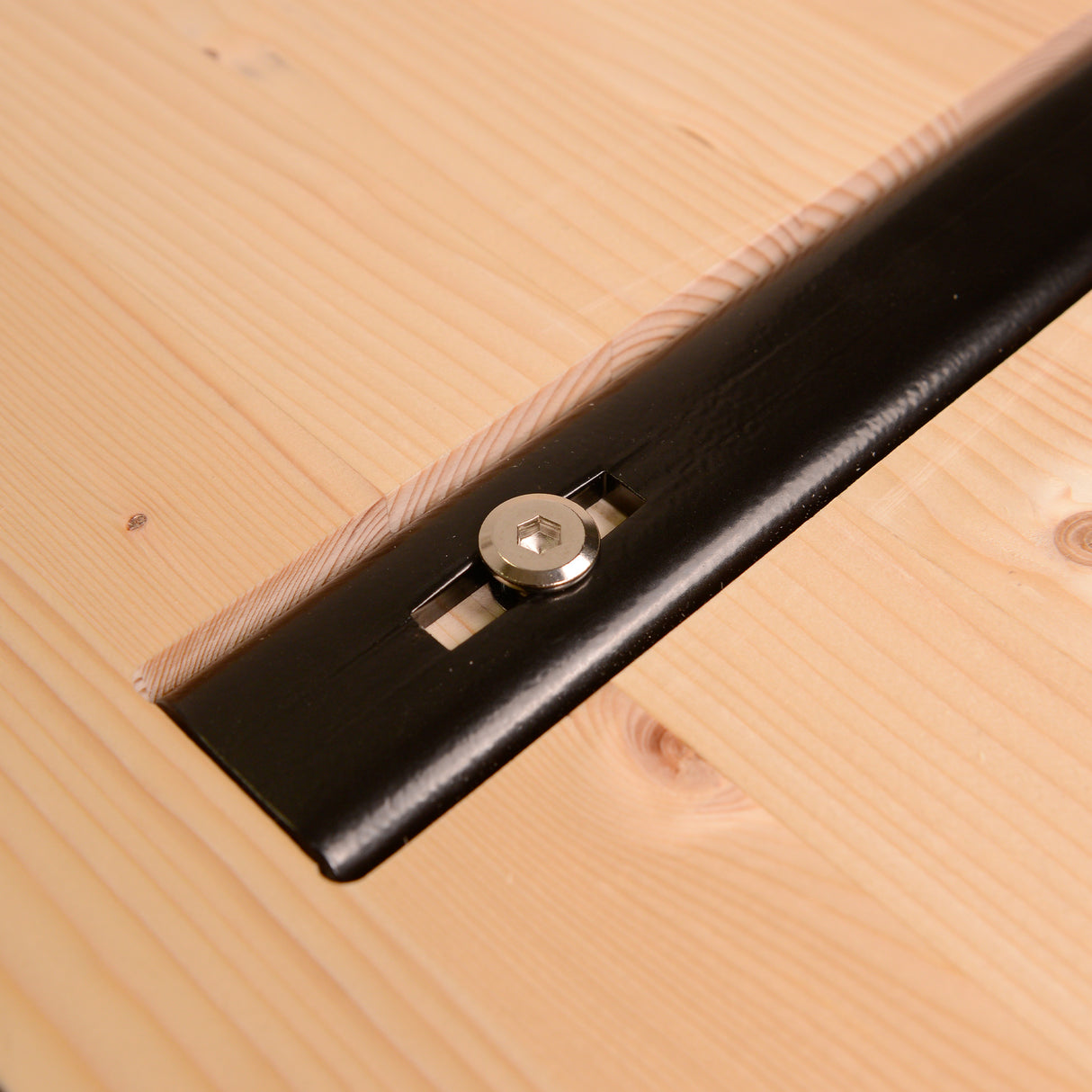

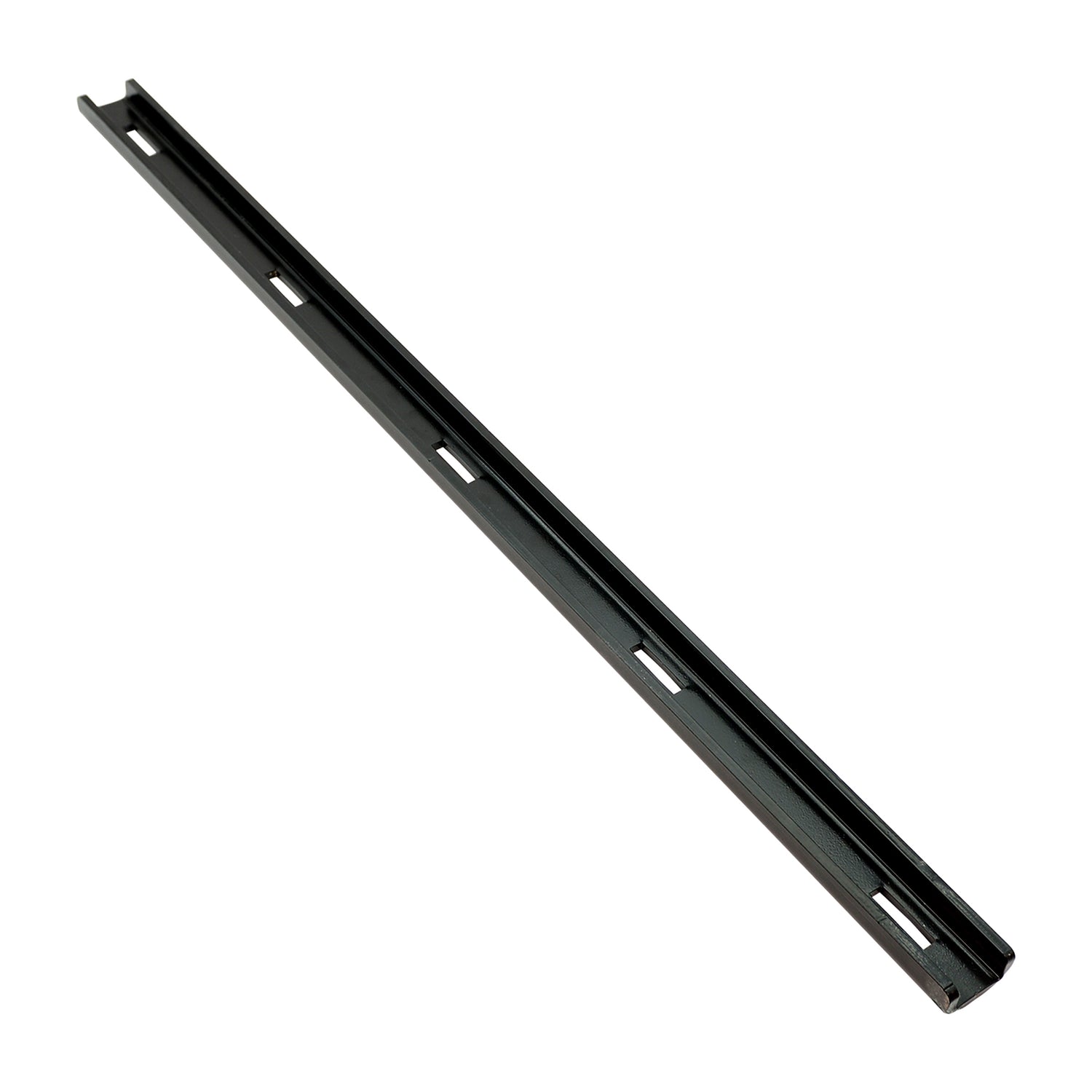

Table Reinforcement Steel C Channel

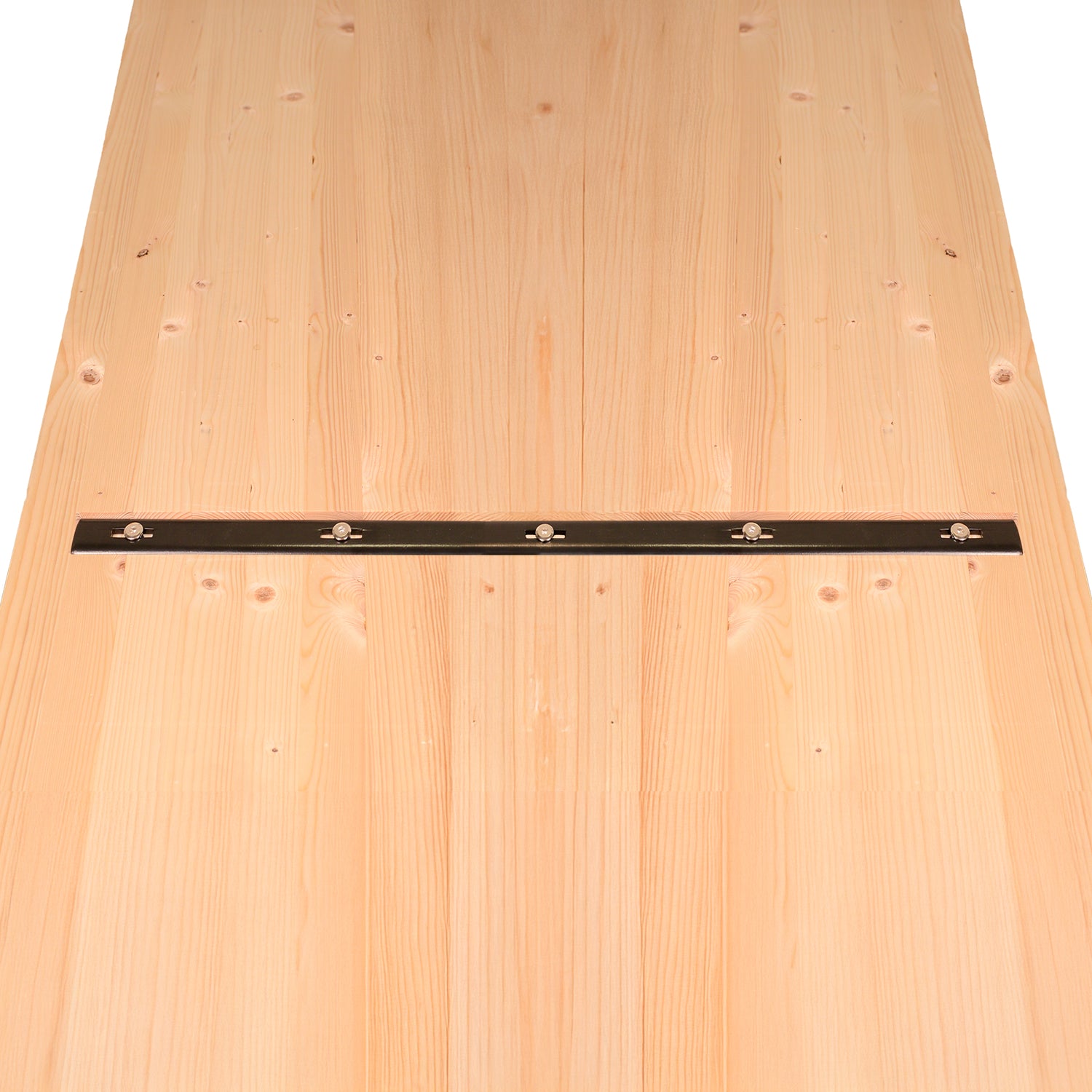

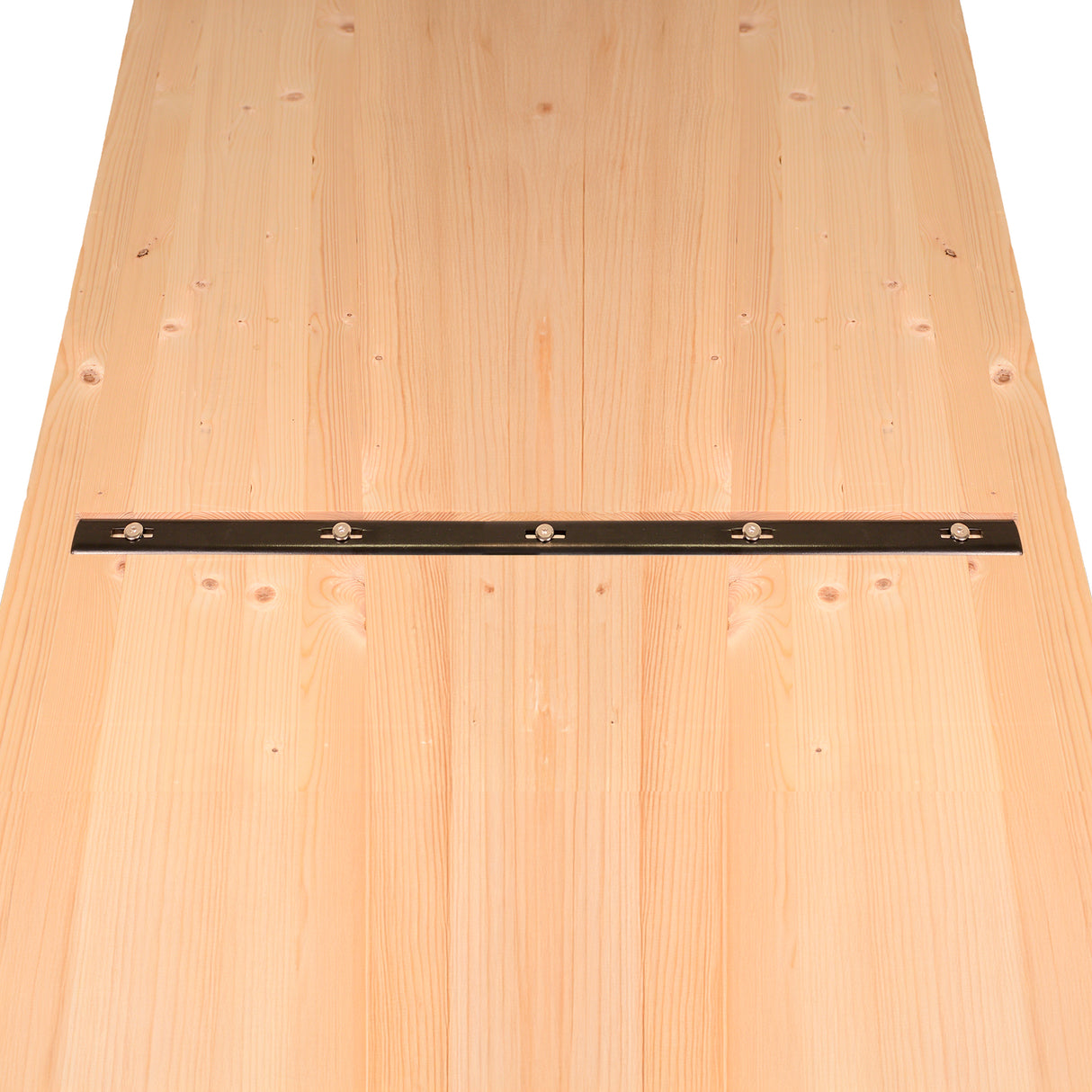

Prevent table tops and large panels from warping over time.
The channel comes in lengths of 800, 900 ,1000,1100 and 1200. If you are require a size that does not match up to any of these you can easily cut them to length using a metal saw.

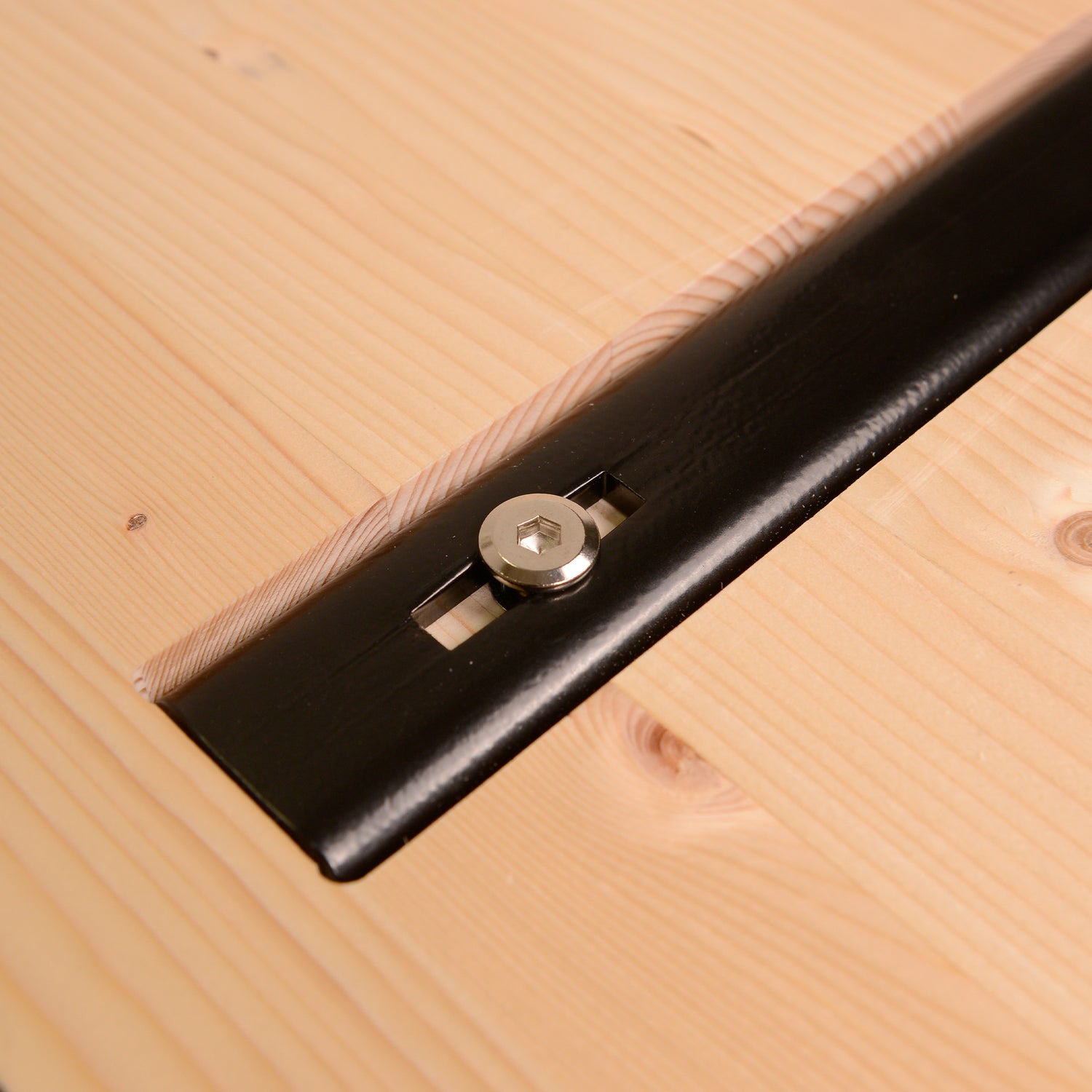

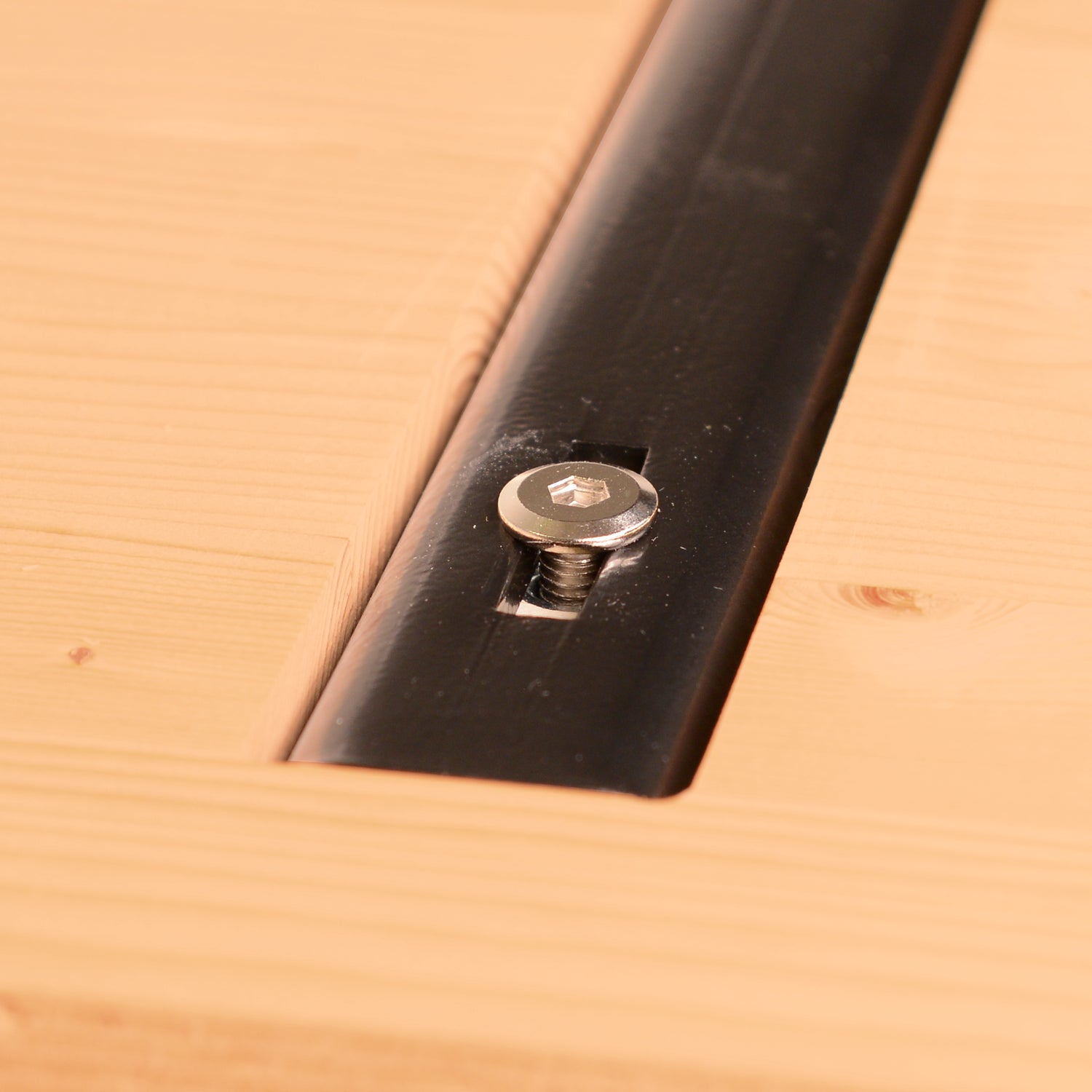

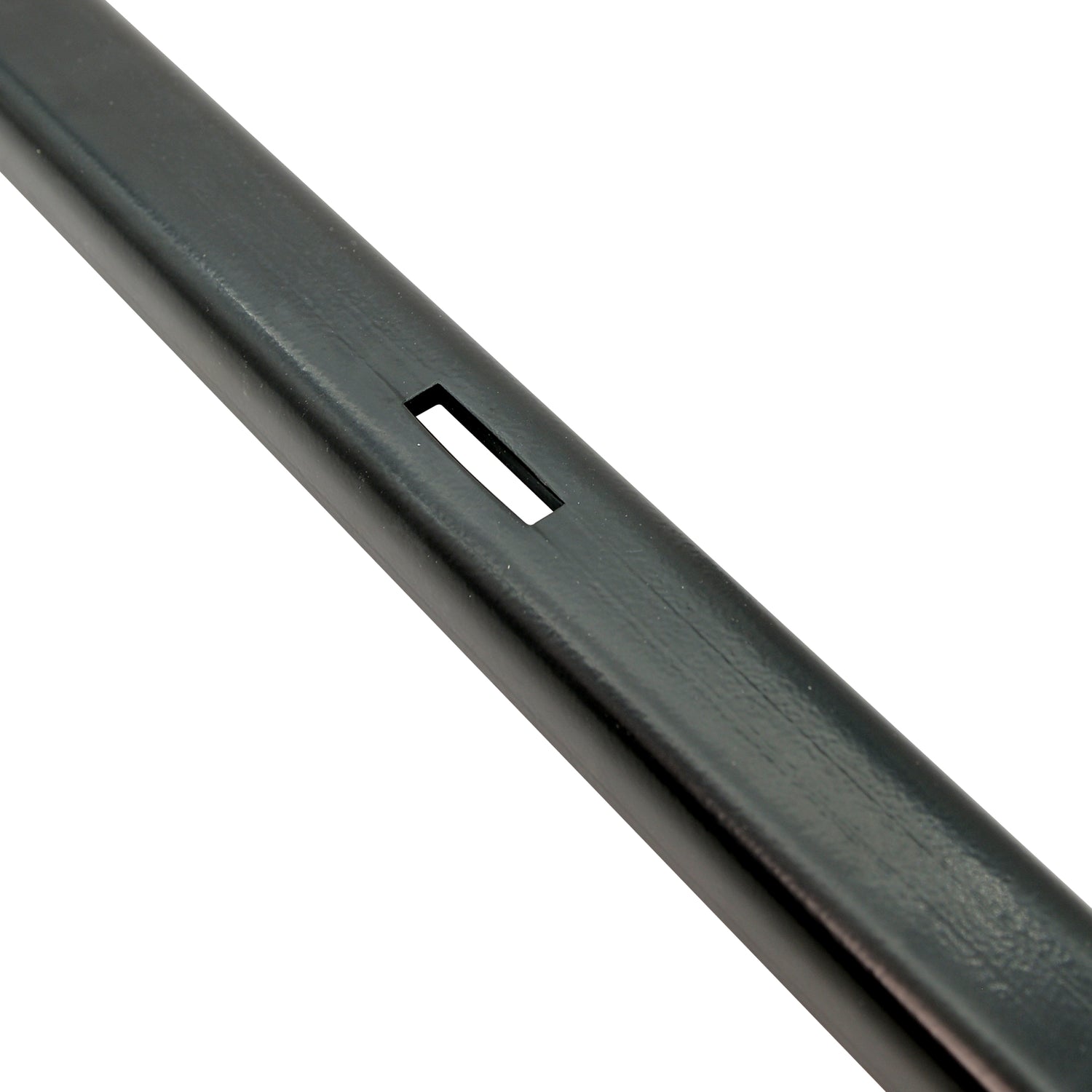

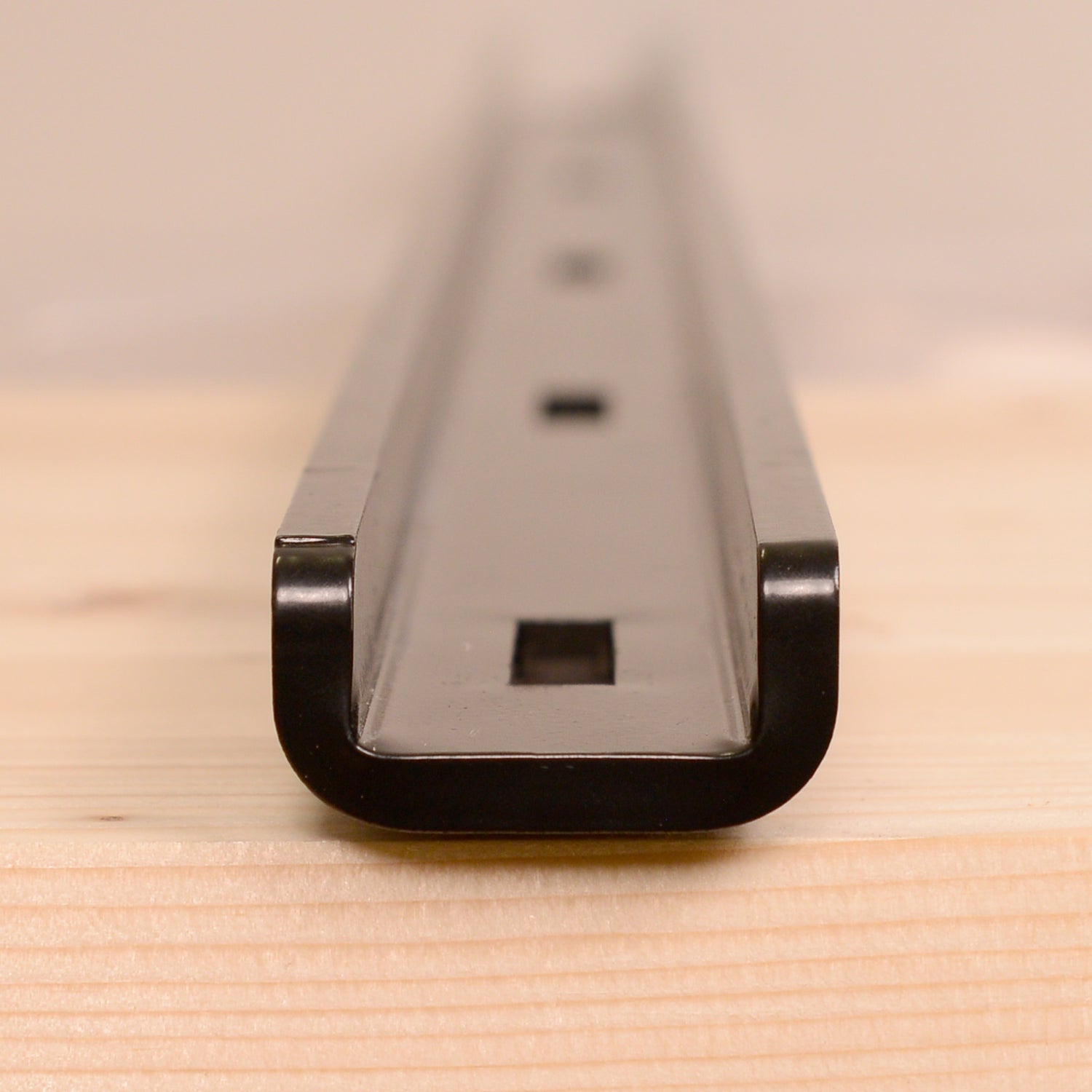

The channel has been powder coated black to give a hard wearing finish and features fixing slots to allow for seasonal timber movement. Please note: C Channels are NOT to be used with green/wet timber. Timber must be below 15% moisture content.
Specifications:
Dimensions (OD)-
- 5mm Thickness
- 40mm Width
- 20mm Height

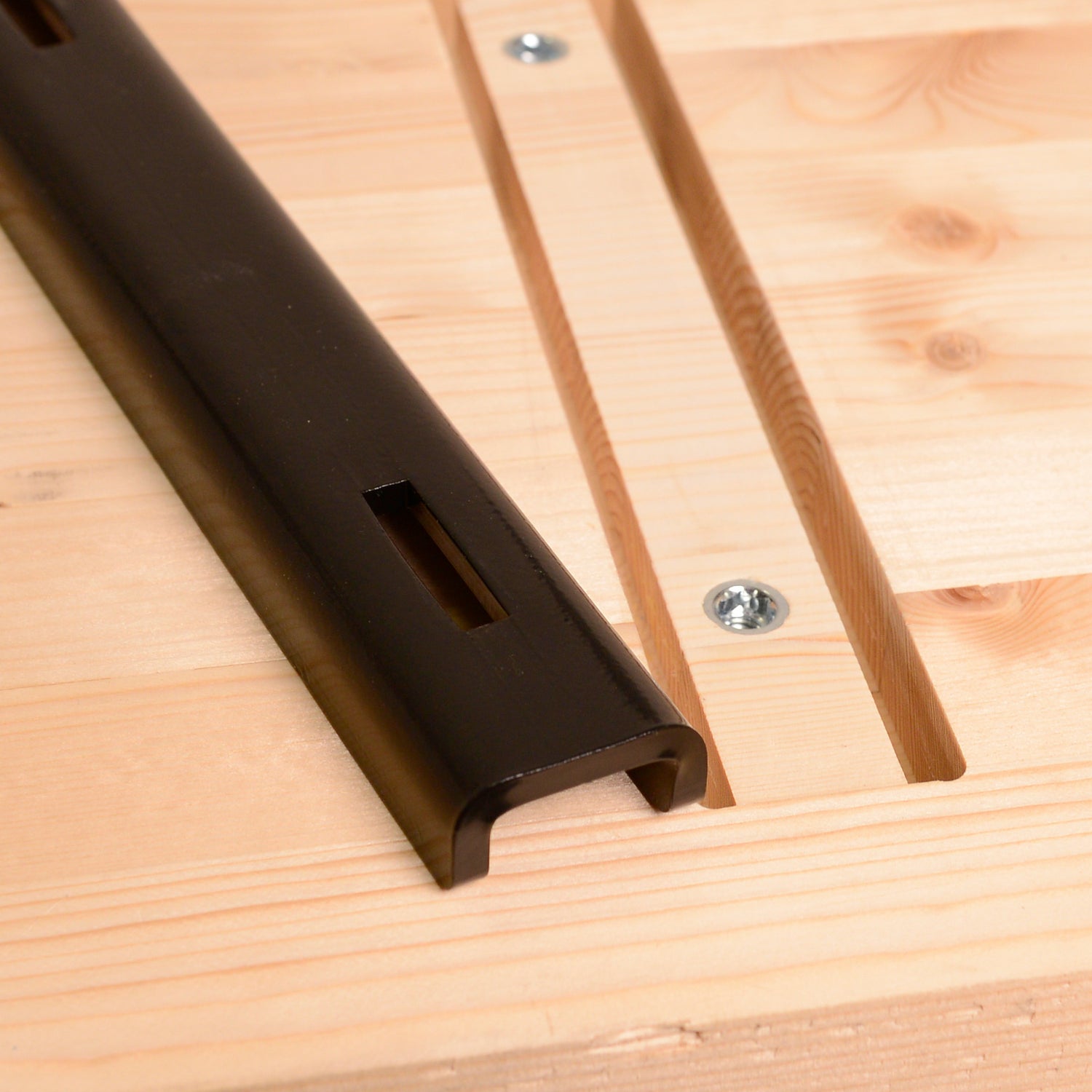

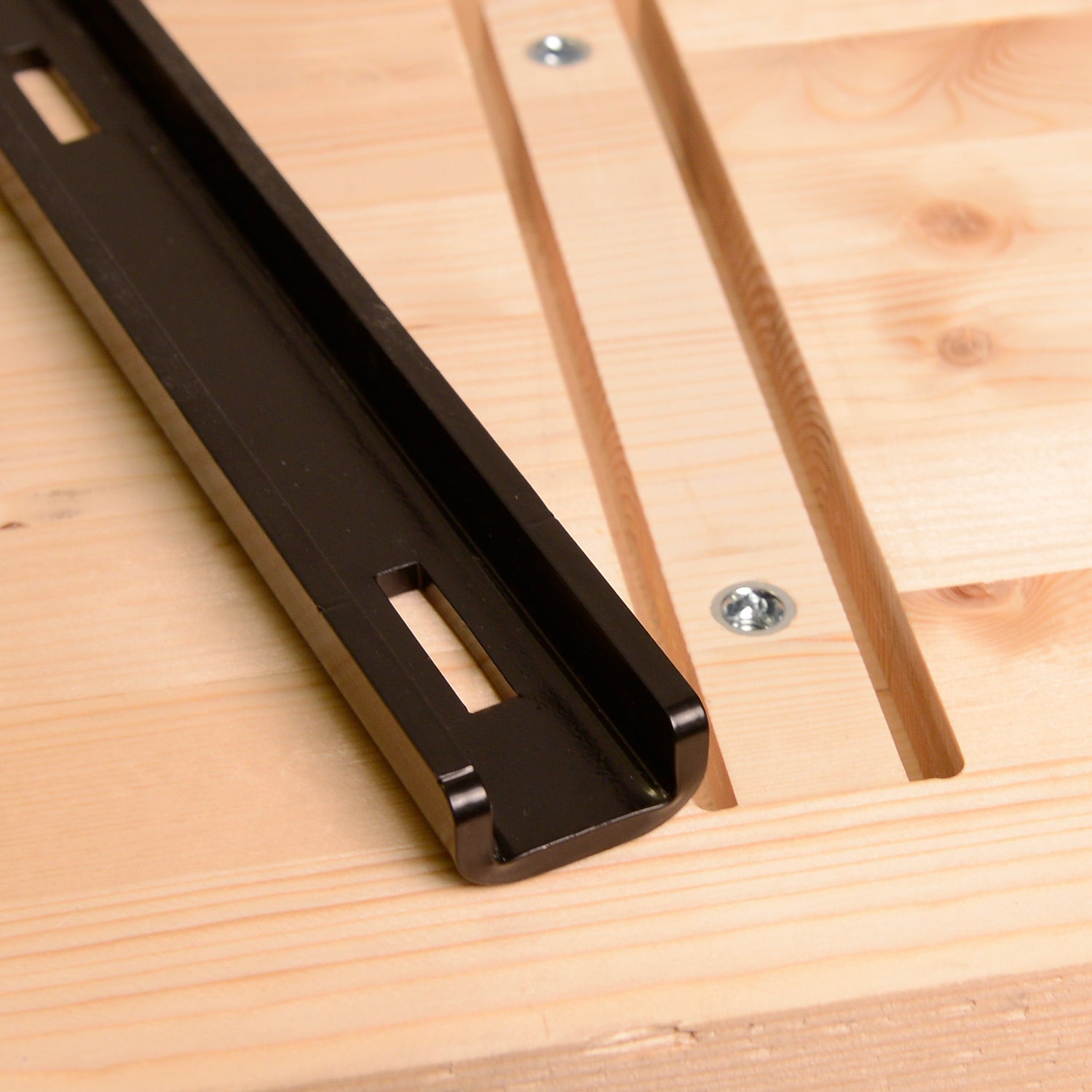

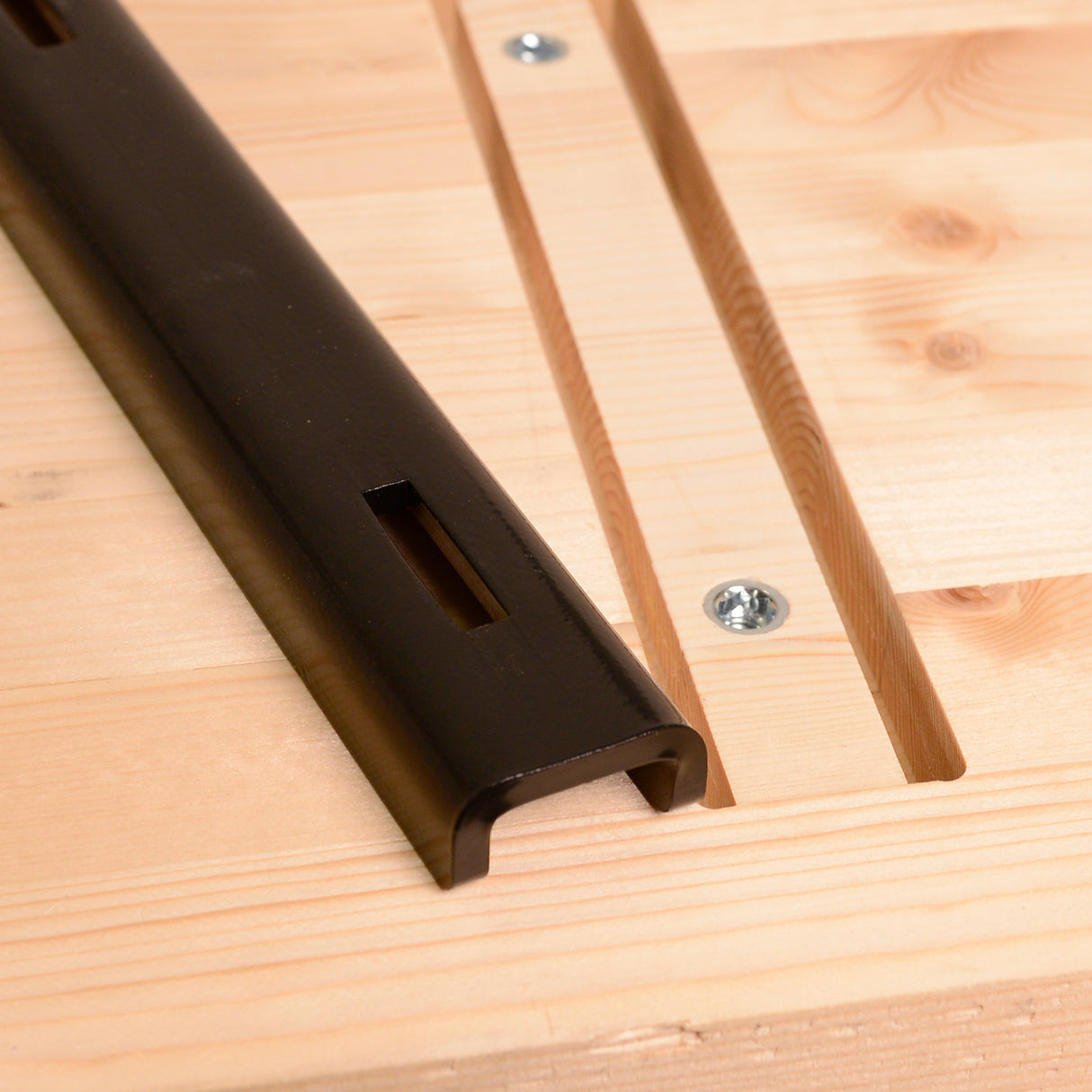

Installation -
- Min. Recess Depth 15-17mm (top flat bar exposed)
- Full Recessed Depth 22-24mm (flush/slightly below surface)
Number of Slots/Fasteners Required (per channel)
- 800mm & 900mm - 5
- 1000mm & 1100mm - 6
- 1200mm - 7
Channels are 6mm thick steel 40mm wide and 20mm high
