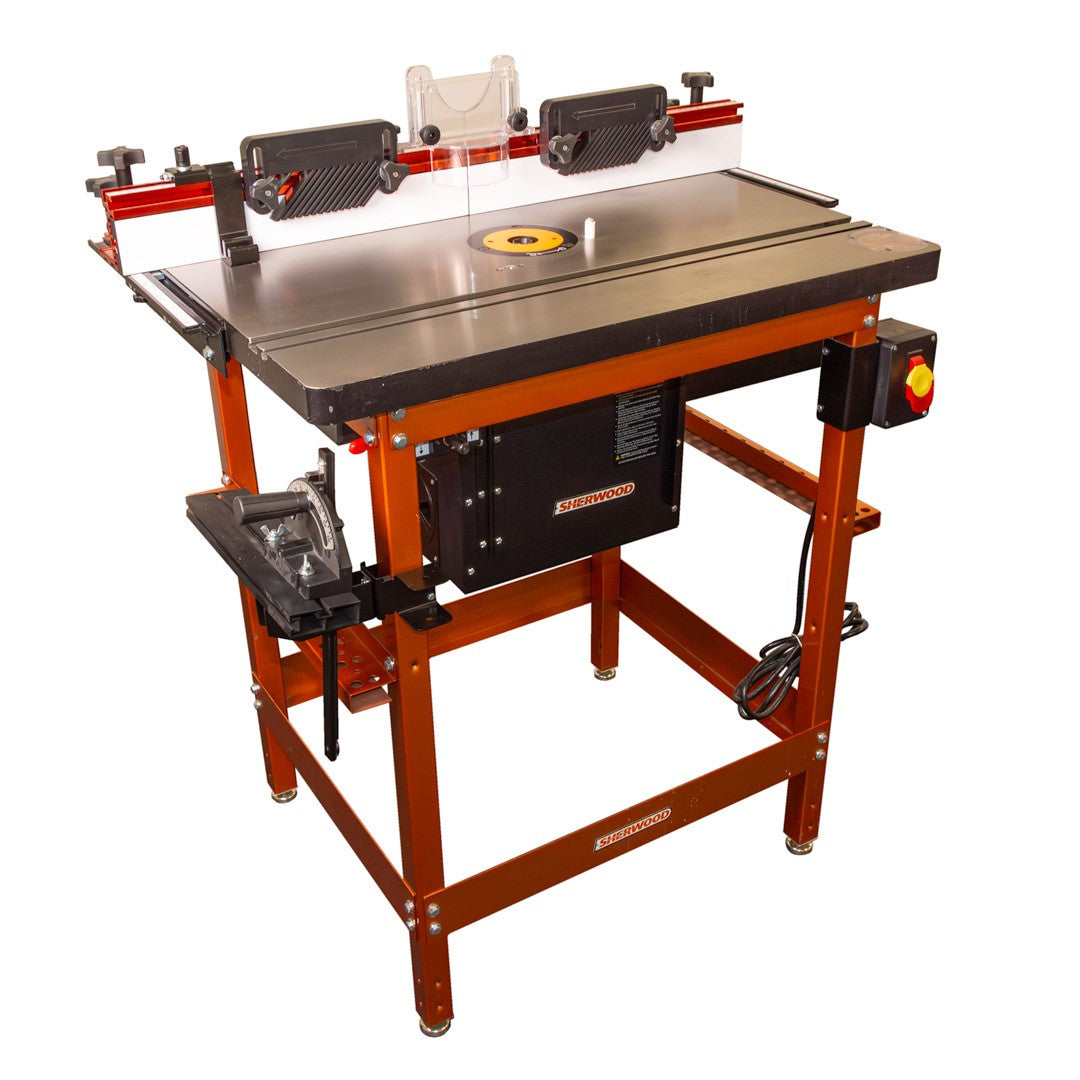

Sherwood Sidewinder Router Table Integrated Router Lift with Water-Cooled Motor

The first full-sized cast-iron router table with built-in lift assembly.

This really is the Sherwood difference! Delivering the very first full-sized cast-iron top with built-in lift assembly. The combination of cast-iron top and built-in lift assembly means you no longer have to worry with fiddly little adjustments when using aluminum or phenolic drop in plates and ensures a truly flat table top for smack bang accuracy! This quite possibly could be the most complete router table kit on the market today.

What's included in the RT-810-K1-CNC router table kit:

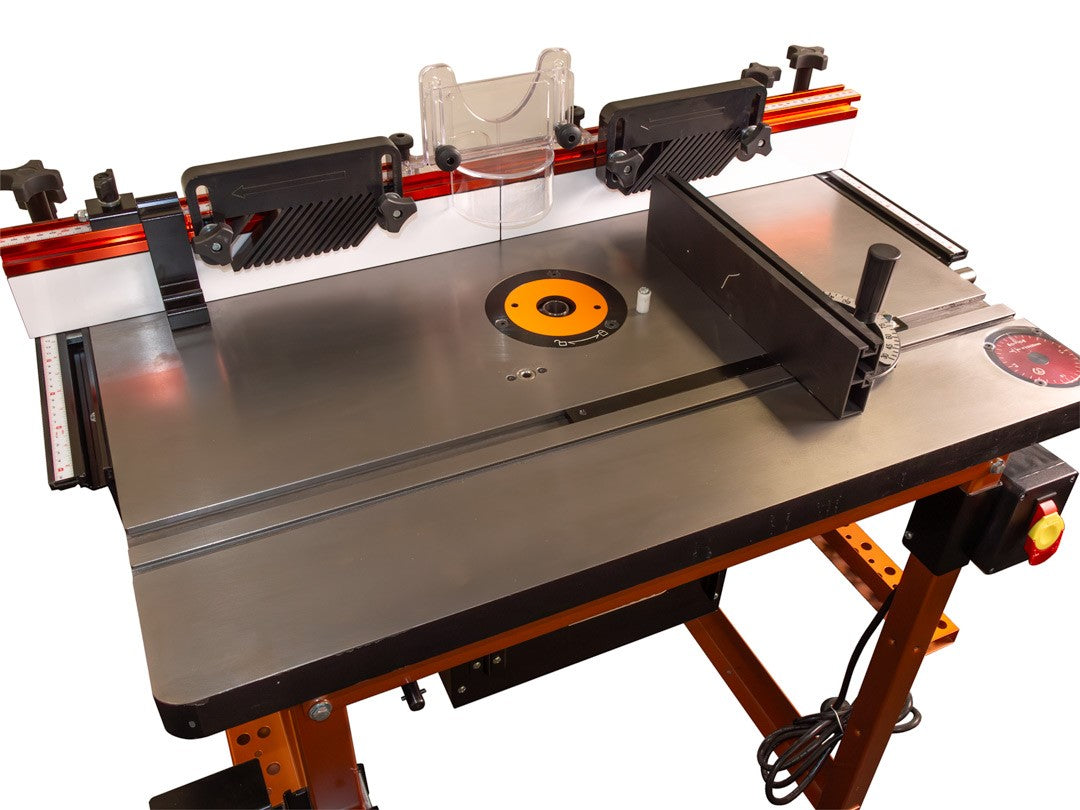

• 810 x 610mm Cast Iron Router Table Top with Built-in Lift Assembly (RT-810-CLRT)
• Sherwood Router Table Stand w/ Mitre Guide & Switch (RT-810-ST)

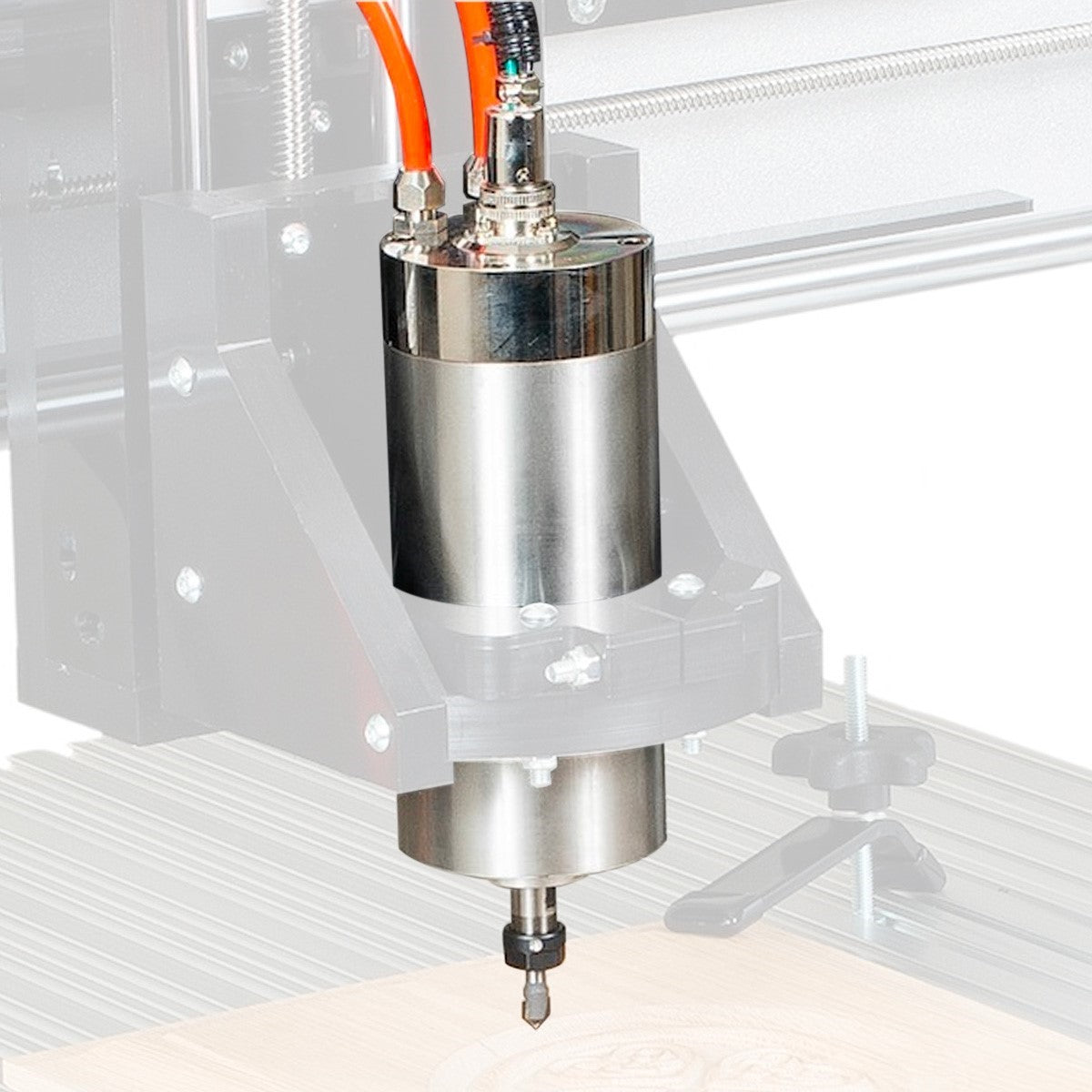

• Sherwood Water-Cooled Spindle & Inverter for Router Tables (CNC-2200-KIT)
• Router Lift Adaptor (RLIFT-4-ADP-80)

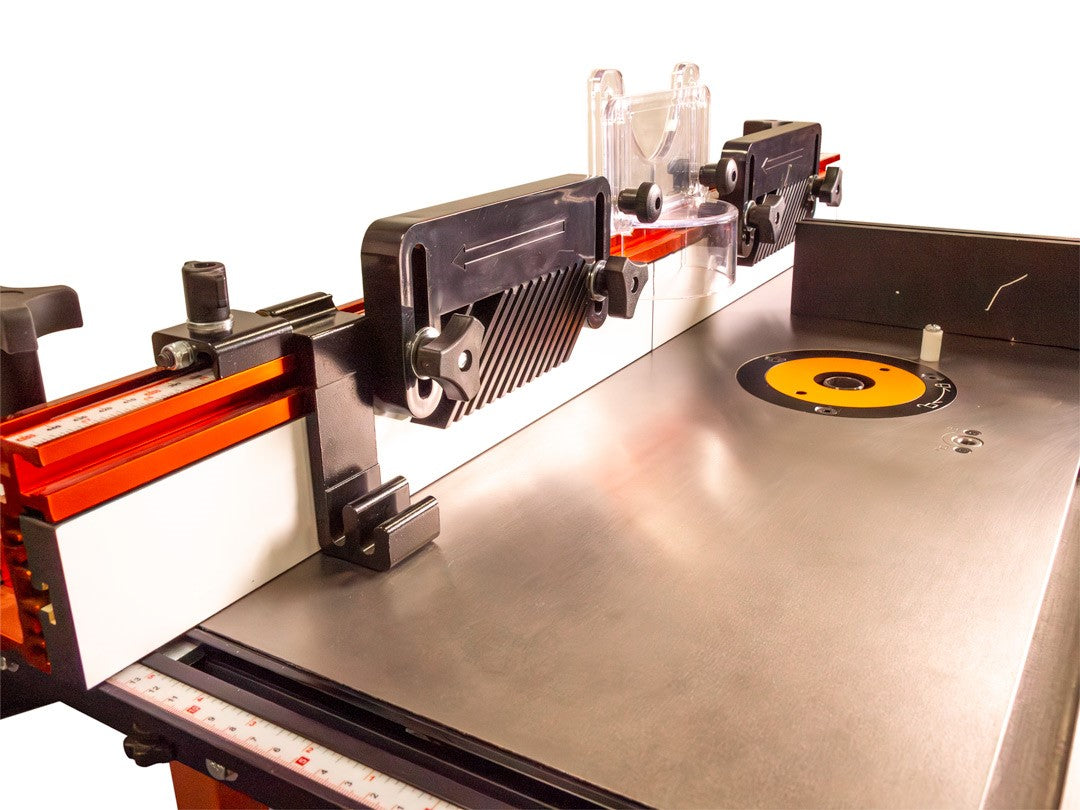

• 700-800mm Sherwood CNC-Machined Aluminium Router Table Fence (RT-3224-FNC)
• Sherwood Router Table Dust Collection Box (RTDCB-4)
• 2x Baladonia Universal Horizontal Featherboard (RTFBH)
• 2x Baladonia Universal Vertical Featherboard (RTFBV)
• Sherwood Router Table Fence Fine Adjustment Kit (RTFNCFAS)
• Sherwood Router Table Fence Flip Stop (RTFNCFS)

The cast-iron router table with built-in lift kits come in a number of options, choose from:

RT-810-K1: Sherwood Sidewinder Router Table Integrated Router Lift with Stand
RT-810-K1-SRM: Sherwood Sidewinder Router Table Integrated Router Lift with Round Body Router Motor

If you are building your own table then there is also the option to purchase the new cast-iron top only with the lift assembly. (RT-810-CRLT)

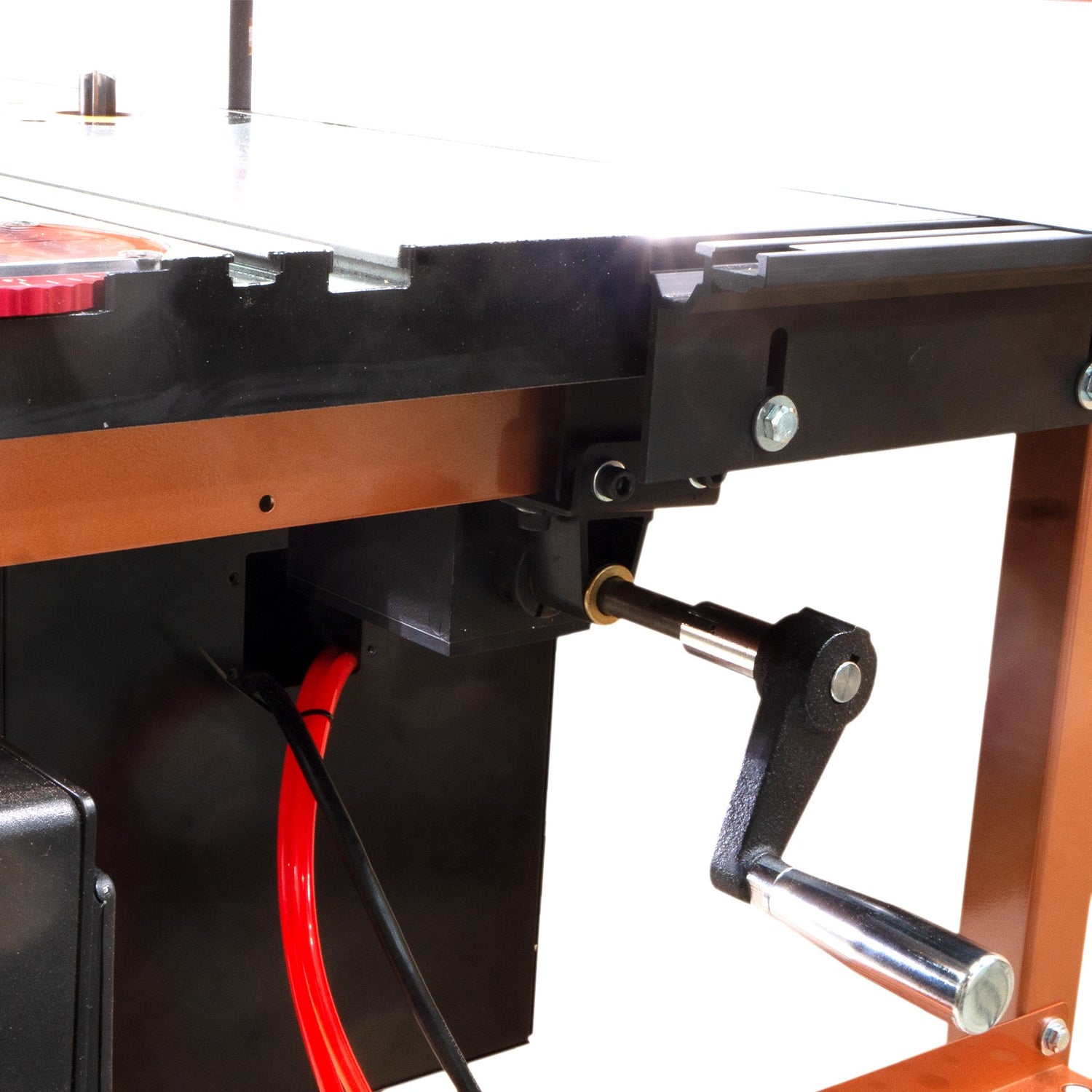

Router Lift Side-winding Handle and Height Adjustment

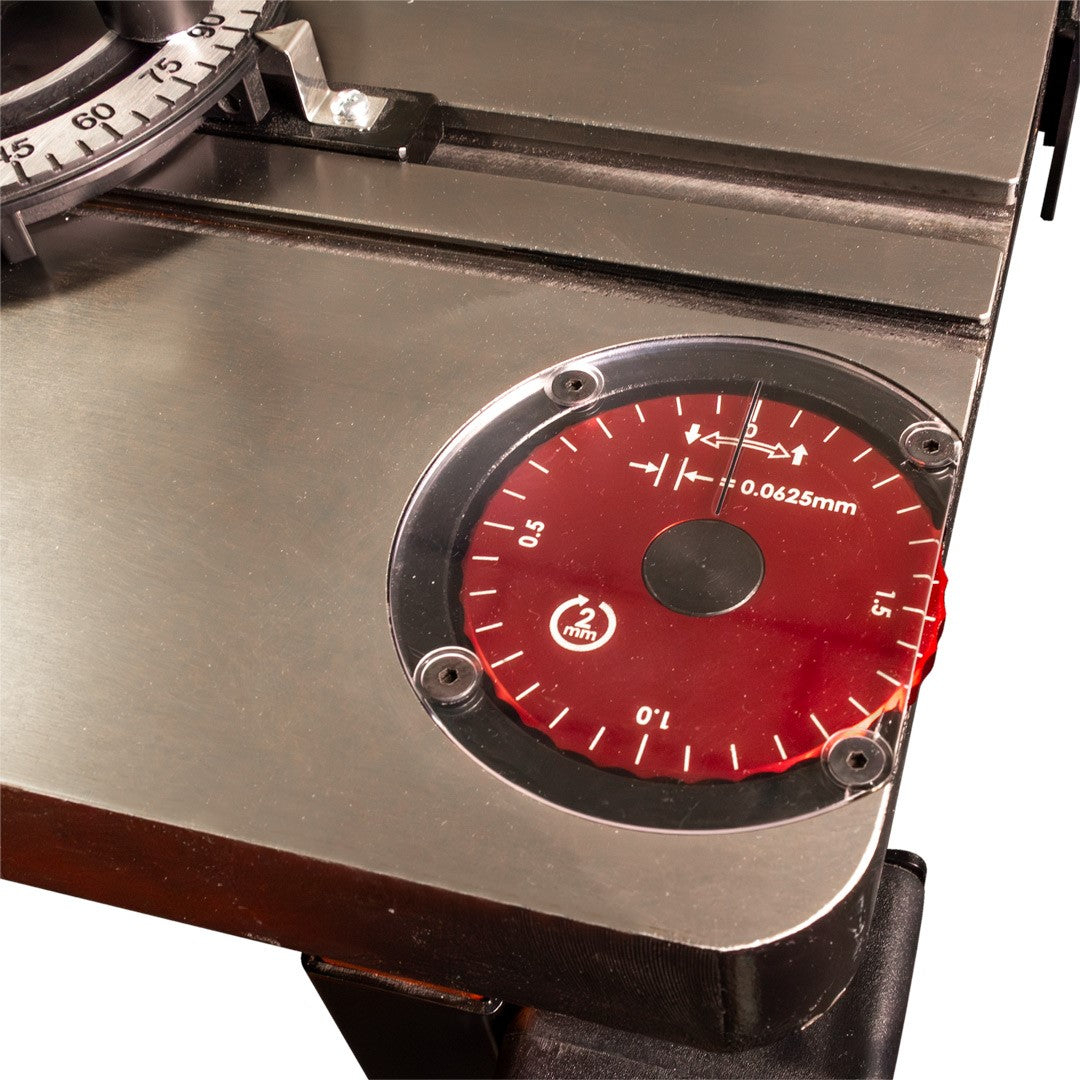

The router lift is operated by a side-winding handle on the right-hand side of the table. Height adjustment is coupled with an accurate dial on the top of the table that allows for very precise adjustments without the need to measure the router bit.

Integrated Dust Collection Box

The table has a unique dust box function and rather than be secured to the underside of the table the box can be easily lowered and raised on a winding cable operation.

Specifications
