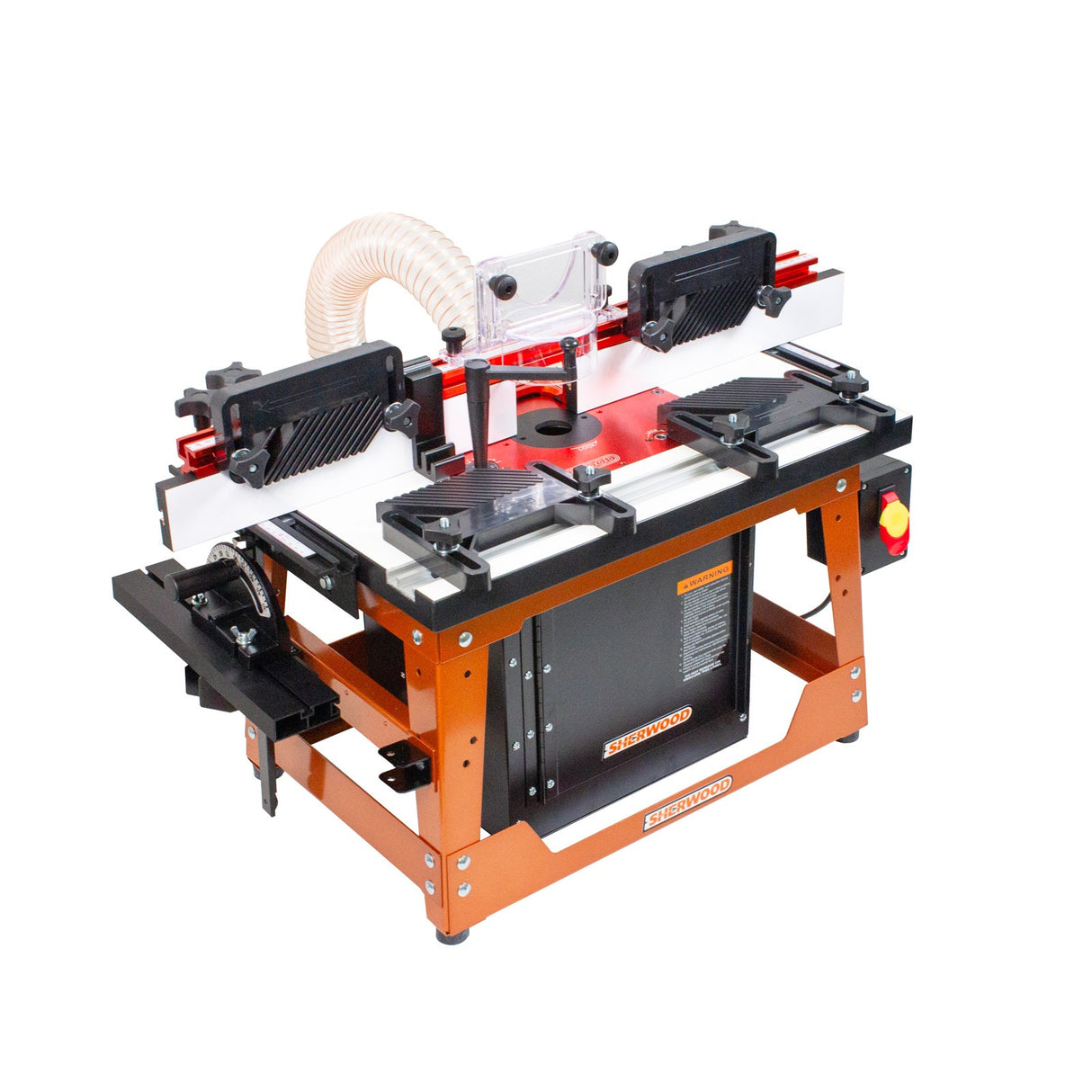

Sherwood Deluxe Benchtop Router Table with MDF/Phenolic Table and Round Body Router Motor & Lift

Sherwood Deluxe Benchtop Router Table with MDF/Phenolic Table and Round Body Router Motor & Lift.

Many woodworkers don’t want or need a big router table. Usually because they have a tiny workshop, or they need something more portable. If this is you, Sherwood has you covered. Sherwood Benchtop Router Tables offer you all the features of the larger router table setups, all in a compact benchtop ensemble.

A well-equipped router table is an invaluable addition to any woodworker’s workshop. And you don’t need a full-size setup to benefit from all the features a modern router table can offer.

Featuring an MDF/Melamine top, pressed metal stand, remote switch, a comprehensive fence setup, a range of accessories and a fixed router lift with an integrated 1800 watt round body motor - this Sherwood Benchtop Router Table is a woodworker’s dream. And because all Sherwood products are backed by a 5-year warranty, you can look forward to long stress-free days of guaranteed routing.

What’s in the kit

• 610 x 406mm router table MDF/Phenolic top with twin slot embedded mitre track
• Cast Iron Router Table Top - 685 x 420mm
• Benchtop Router Table Stand with Mitre Guide & Switch
• RLIFT-4-SRM Router Lift & Mounting Plate with Round Body Motor
• 685mm Aluminium Router Table Fence
• Fence Fine Adjustment Set
• Fence Flip Stop
• 2 x Universal Horizontal Featherboards
• 2 x Universal Vertical Featherboards
• Router Dust Collection Box

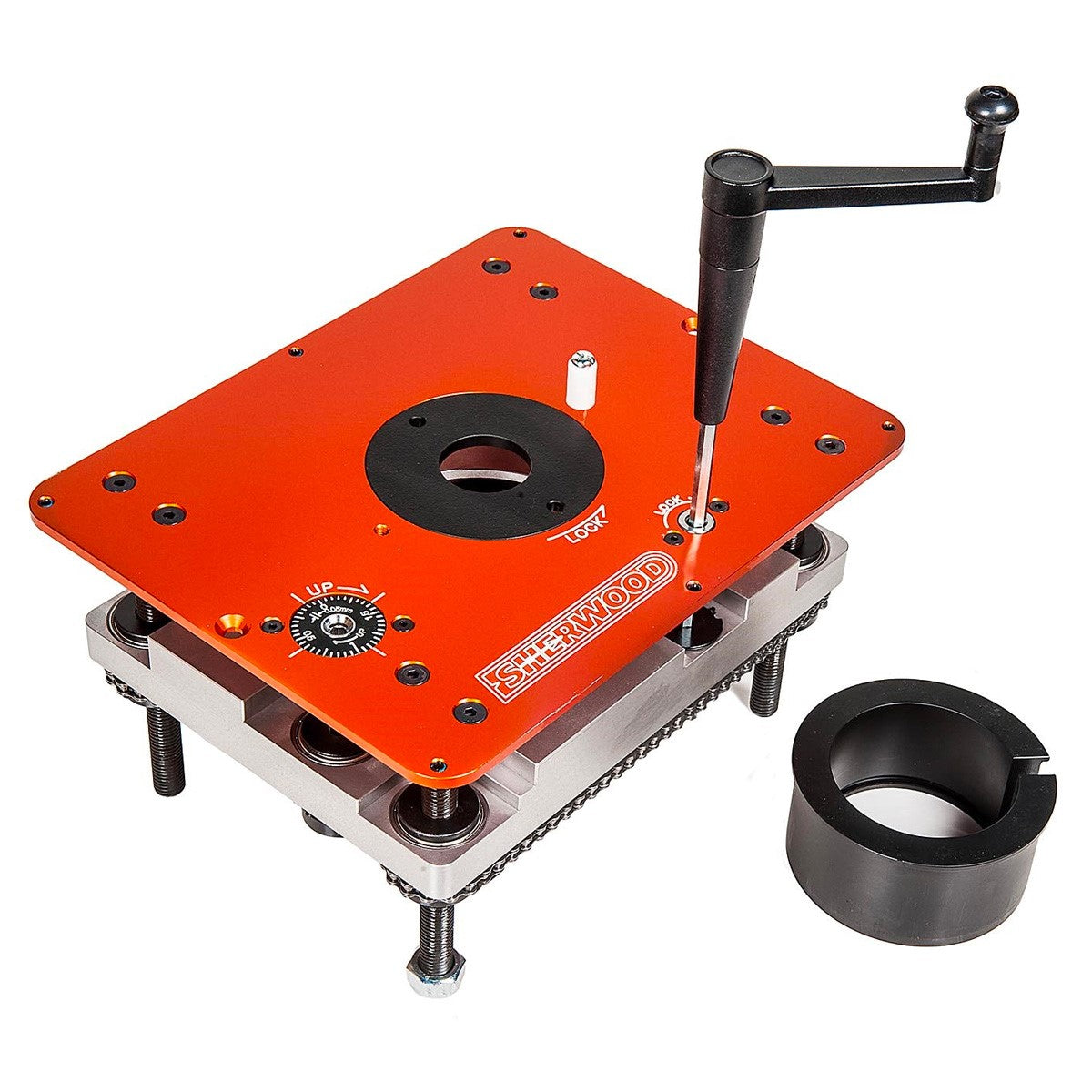

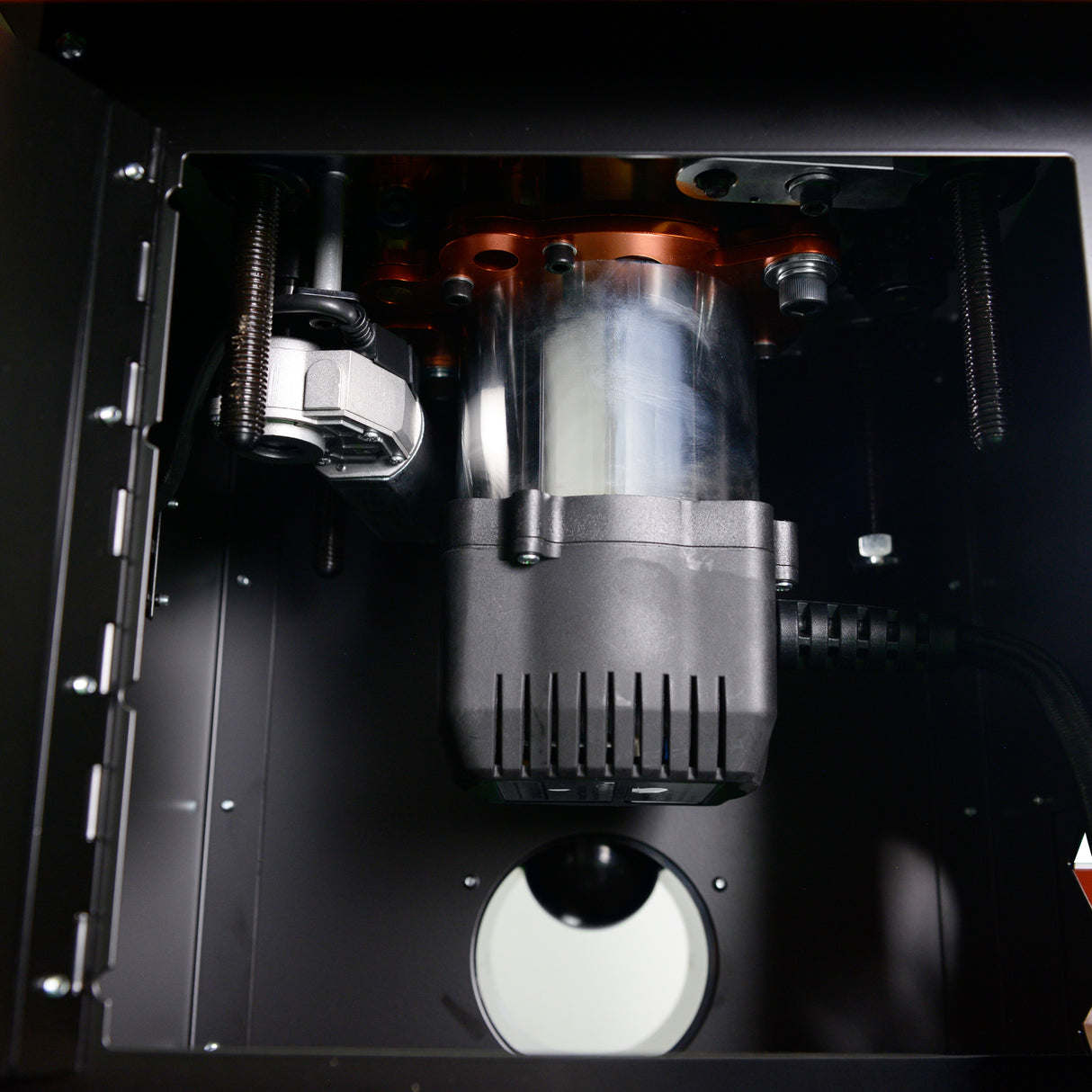

Fixed Base Router Lift with Sherwood Round Body Router Motor

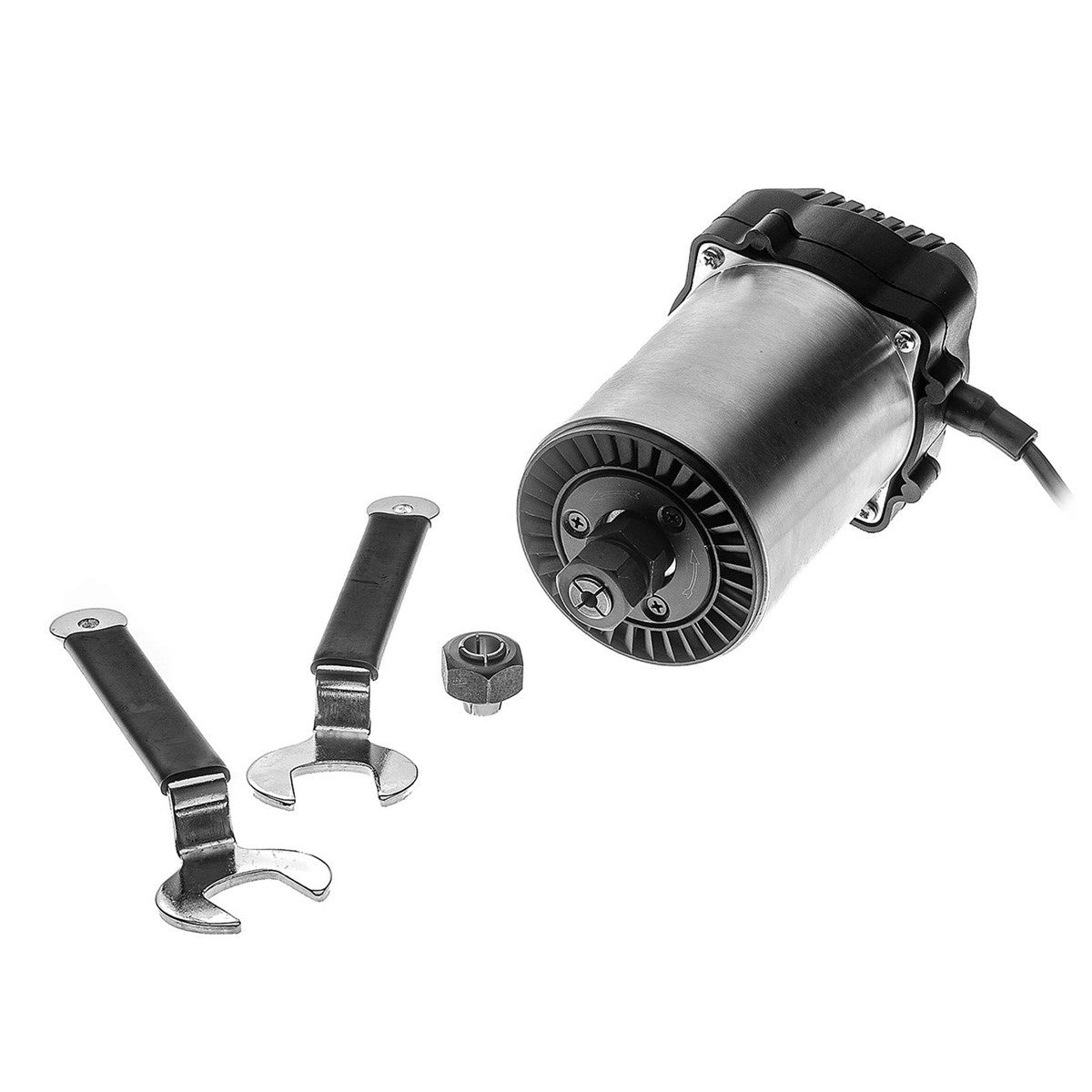

This benchtop router setup features a Fixed Base Router Lift (RLIFT -4) fitted with Sherwood Round Body Router Motor (SRM-1800). This router lift and motor are integrated into one mechanism. The Sherwood SRM-1800 is a powerful variable speed 1800-watt (2.4HP) router motor. All the grunt and finesse you need to complete a broad range of routing tasks. This router motor has a 10amp plug and features an easily accessible variable speed adjustment. This setup allows you to wind the router motor up to change the bit above the worktable.

Mounting plate insert rings

Your router lift can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the inserts rings to minimise the gap around your router bit to eliminate vibration and increase accuracy.  Insert spanner included. Use the SKU’s RTIRS-4 & RTIRB on the Timbecon website to learn more.

Compact yet robust

The Sherwood MDF/Melamine Deluxe Benchtop Router Table is compact. So, it is very easy to move around, store on a shelf or drop in the boot of your car. It is the perfect router setup for anyone working in a tiny workshop or who needs to take their router to site. It may be compact, yet this benchtop router ensemble is no waif. The sturdy metal base frame and dense MDF/Melamine top means your benchtop router is built for work. Enjoy years of vibration free use from this benchtop setup.

Professional grade fence

The Deluxe Benchtop Router Table has a professional quality fence. It is fully adjustable, has twin T-Tracks, safety guard, flip stop and a dust port. There is little more you really need. Route safely and precisely. Turn your router fence into a jointer. Your router fence is now even more versatile. Included with your fence are 2 x fence faceplate packing rods. Slide these in behind the outfeed faceplate to pack them out turning your router into a jointer.

Mitre guide

Your Sherwood MDF/Melamine Deluxe Benchtop Router Table is supplied with a mitre guide. Use to make angled cuts across the router bit. The benchtop router worktable features an embedded twin slot mitre track. One slot for the mitre guide, one T-Track for additional accessories such as feather boards.

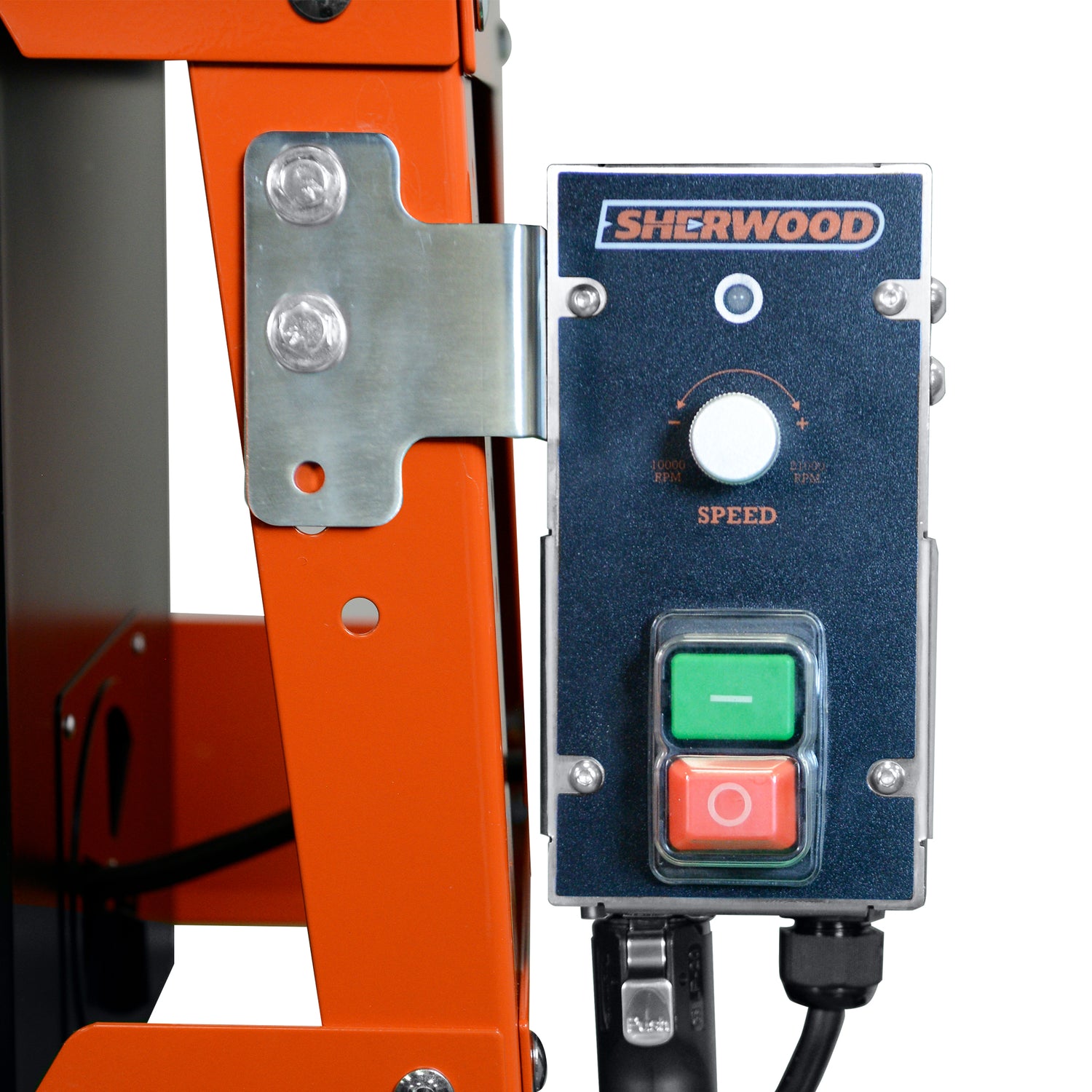

Safety switch

Plug your router motor into the switch, plug the switch into the workshop power point. You now have a safety on/off switch right at your fingertips. Cut the power super-fast if you get into trouble. The days of walking around or fiddling under the worksurface for the switch are over.

Multiple Featherboards

Nothing makes routing smoother or safer than a good set of feather boards. This benchtop router setup feature two pairs of feathers boards, two on the fence and two on the table. Eliminate kickback and vibration with these feather board accessories.

Fine fence adjustment

If you need to finely tweak your router fence, then Sherwood has you covered. Use the Fence Fine Adjustment Kit to take control of your routing by being able to wind the fence in to position by the millimetre. No more errors, no more wasted material.

Dust collection system

The dust collection system is made up of a dust collection box mounted under the table with a 102mm (4in) dust port. And a 63mm hose that links the fence dust port to the dust collection box outlet. You just need to attach the 102mm port to your dust collector and enter the world of dust free routing. Use SKU RTDCG-4 to learn more about the dust collection system on the Timbecon website.

Tool caddy

Keep the accessories handy with the integrated tool caddy. Everything is organised and ready to go when working in your own workshop or heading out to site. You won’t leave anything behind.

Save your knees

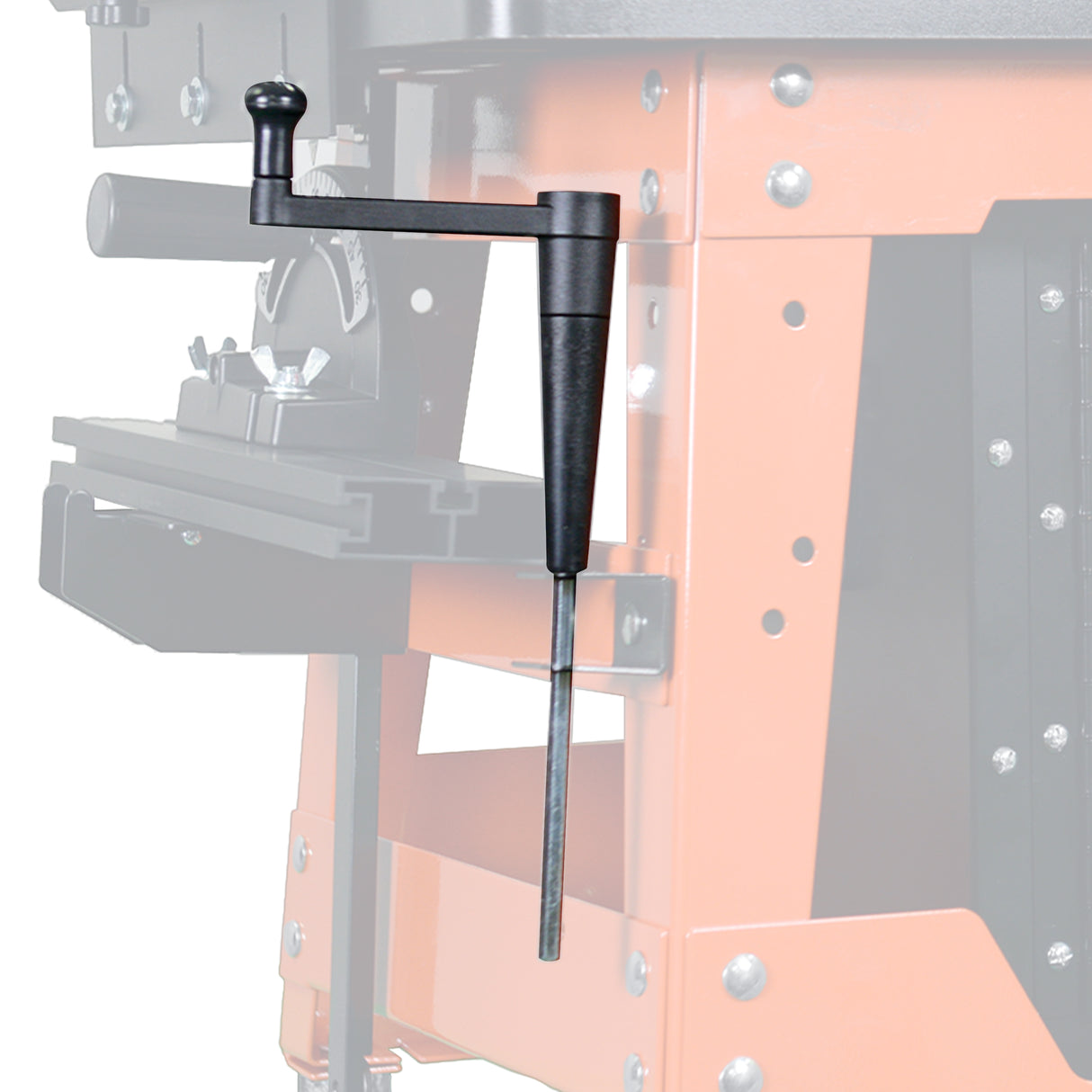

No matter what version of router lift you use, you now have proper kit to manage your router. Use the height adjustment winder to set the depth smoothly and accurately. Wind the motor up and change the bit above the worktable. Either way you won’t ever need to crouch down to access under the worktable.
