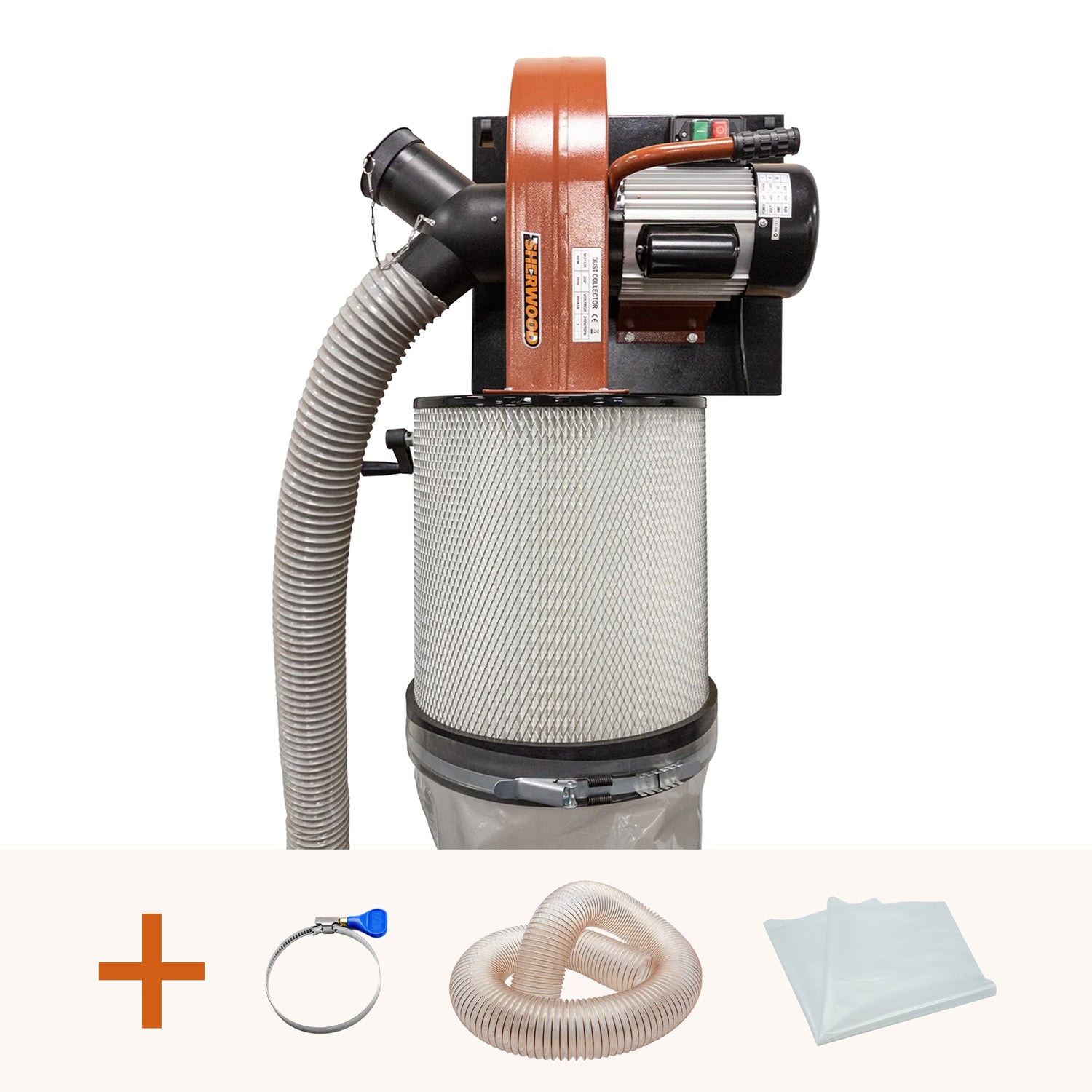

Sherwood 2HP Wall Mounted Single Stage Dust Extractor Plus Set Up Kit

Get your extractor off the floor and onto the wall without sacrificing power.

If you’re in a small workshop and find yourself drowning in shavings and dust, or if you need to augment your current extraction setup but you can’t find the floor space for another free-standing extractor, then this wall-mounted unit is just the ticket.

Rated at 1200cfm, the FM-300-MC moves some serious air, so it’ll even handle heavy thicknessing operations. You can also happily connect multiple smaller machines to it, keeping your workshop free of dust without sacrificing valuable floor space.

Included as standard is the pleated filter that removes particles down to 1 micron in size. Cleaning the filter is a breeze using the built-in agitator – simply turning the handle will dislodge caked-in dust and shake it down into the collection bag.

We’ve bundled…

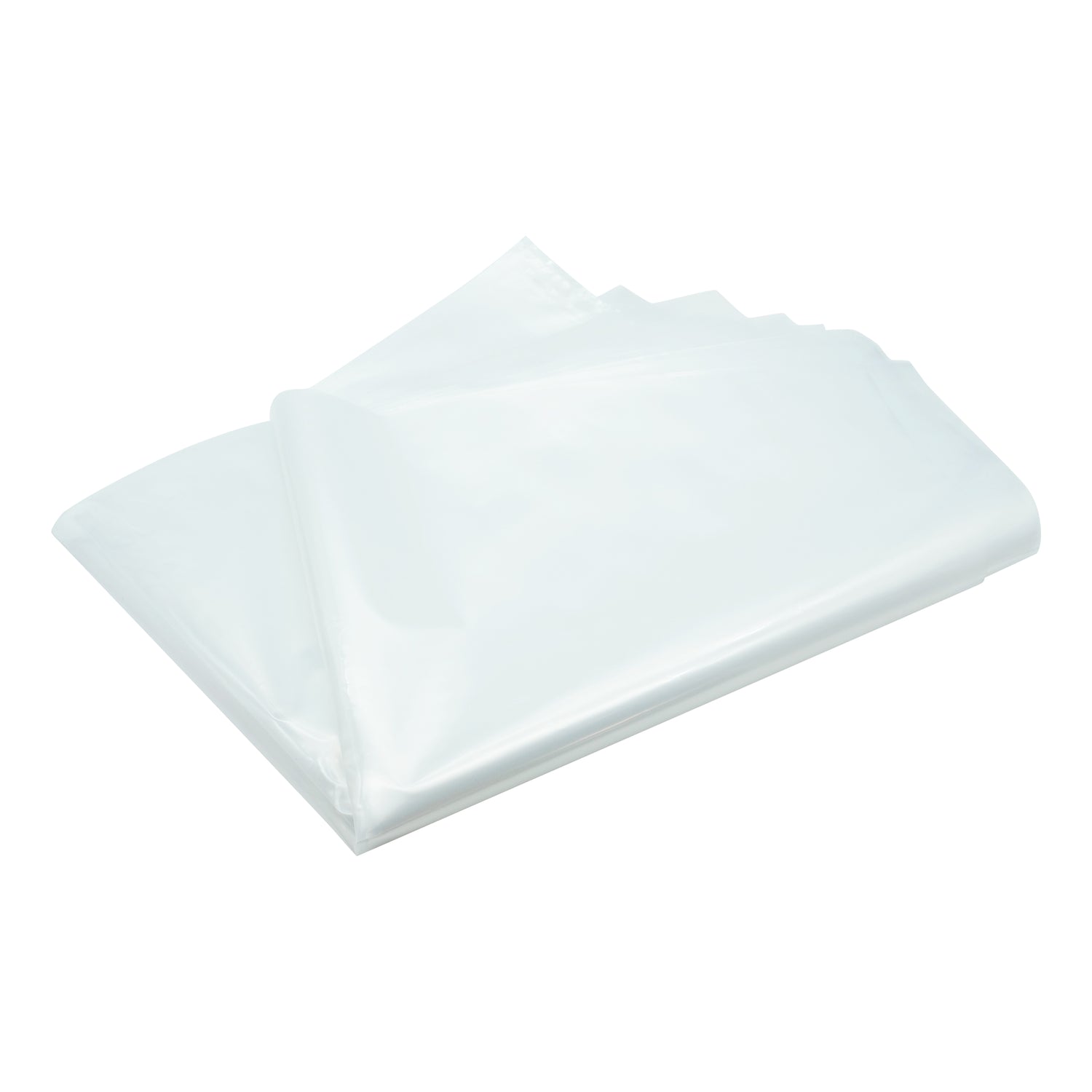

• PBAG-210 - Sherwood 370mm Diameter Plastic Dust Collection Bags: Sherwood's dust collector bags are made from reinforced, heavily durable plastic compounds. Available in a handy pack of 10, the plastic is designed to remain clearer over the course of its lifetime, meaning you won't struggle to see when the dust bag is full.
• DHPU-400-M-6 - Sherwood Heavy-Duty Polyurethane Dust Hose 4in Diameter: Sherwood Polyurethane Hose is constructed with 0.6mm heavy-duty walls and a copper wire helix to deliver tough, long-lasting performance. PU is significantly more abrasion-resistant than PVC, polyurethane displays superior resistance to flex-induced cracking.
• HC-102-K-10 - Sherwood 4in Dust Hose Winder Clamps Pack of 10: Automotive grade clamps will connect your hose to the inlet securely without any slippage or stretching. Now, rather than reaching for your screwdriver to use with these clamps, they feature an easy winder handle so you can clamp or loosen without any other tools necessary.

Specifications

Motor Power: 1500W (2HP)

Flow Rate: 1200cfm

Intakes: 2x 100mm or 1x 125mm

Plug: 10A

Filtration: 1 Micron

Sound rating: ~85dB @ 1m (without hose)

Bag Dimensions: 370mm Diameter x 720mm L

Overall Size (W x D x H): 600 x 560 x 1500mm (when wall mounted)
