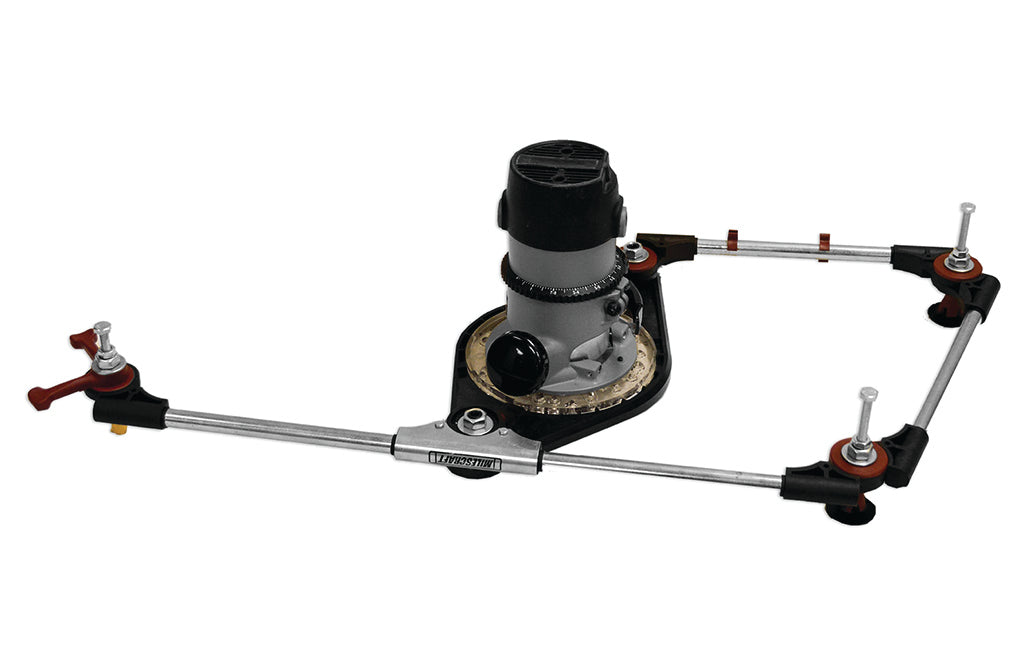

Milescraft PantographPRO Tracing Kit for Woodworking Routers Imperial

Enjoy Expanded 2D Sign/Design Making Capabilities without the Limitations of Router Templates

The Milescraft PantographPRO lets you expand your router’s capabilities with fingertip control. Quickly connect/disconnect your router through the TurnLock Base Plate. Anything you can print out, you can rout. The only Pantograph that comes mostly assembled right out of the box.

Mounts to any router with a 6in or smaller base. Template can be up to 610x305mm in size. Frame is adjustable to produce a finished product 50% the size of the source material, with height ranging from 81 – 122mm and unlimited length. Frame is made from high impact styrene resin, providing both strength and light weight.

This is a complete routing system; including 3 router bits, 3 stylus tips, 2 stencil fonts, and line drawings. All necessary hardware is included, all you need is your router and wood. Follow the design with your stylus and let the router do the work!

Features

PantographPRO

• Trace along any letter stencil or line drawing, while your router makes the same cut at a 50% reduction

• Easily controlled fingertip stylus

• Attaches easily to most routers using the included TurnLock BasePlate Technology and hardware

• Develop your own stencils using other sources such as a computer, coloring book or any other type of downloaded art
• Minimal assembly required

TurnLock BasePlate

• Clear base plate for visibility of work area

• Tough polycarbonate base plate can be modified with a drill or file to fit nonstandard routers

• Centring pin included for fast accurate base plate installation

• Includes common mounting screws for attachment to most routers

• Allows for fast tool-free guide bushing and router attachment exchanges

• Thumb-activated lock/release mechanism enhances speed and safety when changing tools

• The TurnLock base plate accepts all Milescraft® bushings

Specifications

Max. Board Height: 10in

Includes: 7in TurnLock BasePlate, 2 Font Stencil Sets and line drawings, 3 Router Bits
3 Stylus Tips, All necessary hardware

Router Bits: 1/4in V-Groove, 1/4in Straight & 3/8in Long Reach Core Box

Stylus Tips: Large Head, Small Head, Pointed

Fonts: Modern and Old English
