Milescraft JointPro Joinery Dowel Jig Metric

Versatility at its Best - Create Edge, Corner and Surface Joints with this Precise Doweling Jig

JointPRO quickly and accurately creates strong doweled joints. Interchangeable hardened steel bushing blocks allow you to drill up to six matching holes per set-up. The self-clamping jig securely holds workpieces in place. JointPRO™ includes two detachable clamps allowing for horizontal or vertical positioning. This doweling jig includes non-slip pads, preventing both slipping and marring. Don’t let your workpiece slip!

Features

• Self-clamping jig securely holds work pieces in place
• Clamp both boards for precise hole alignment with main body and auxiliary clamp
• Drill up to six matching holes per set-up
• Multiple joint capabilities
• Interchangeable hardened steel bushing blocks for accurate joints
• Detachable clamps allow for horizontal or vertical positioning
• Non-slip pads prevents slipping and marring

Specifications

Drill Guide Bushing Block Sizes: 6, 8, and 10mm

Max. Opening:
Side 1: 50mm
Side 2: 67mm

For use with: Materials from 12 to 38mm thick

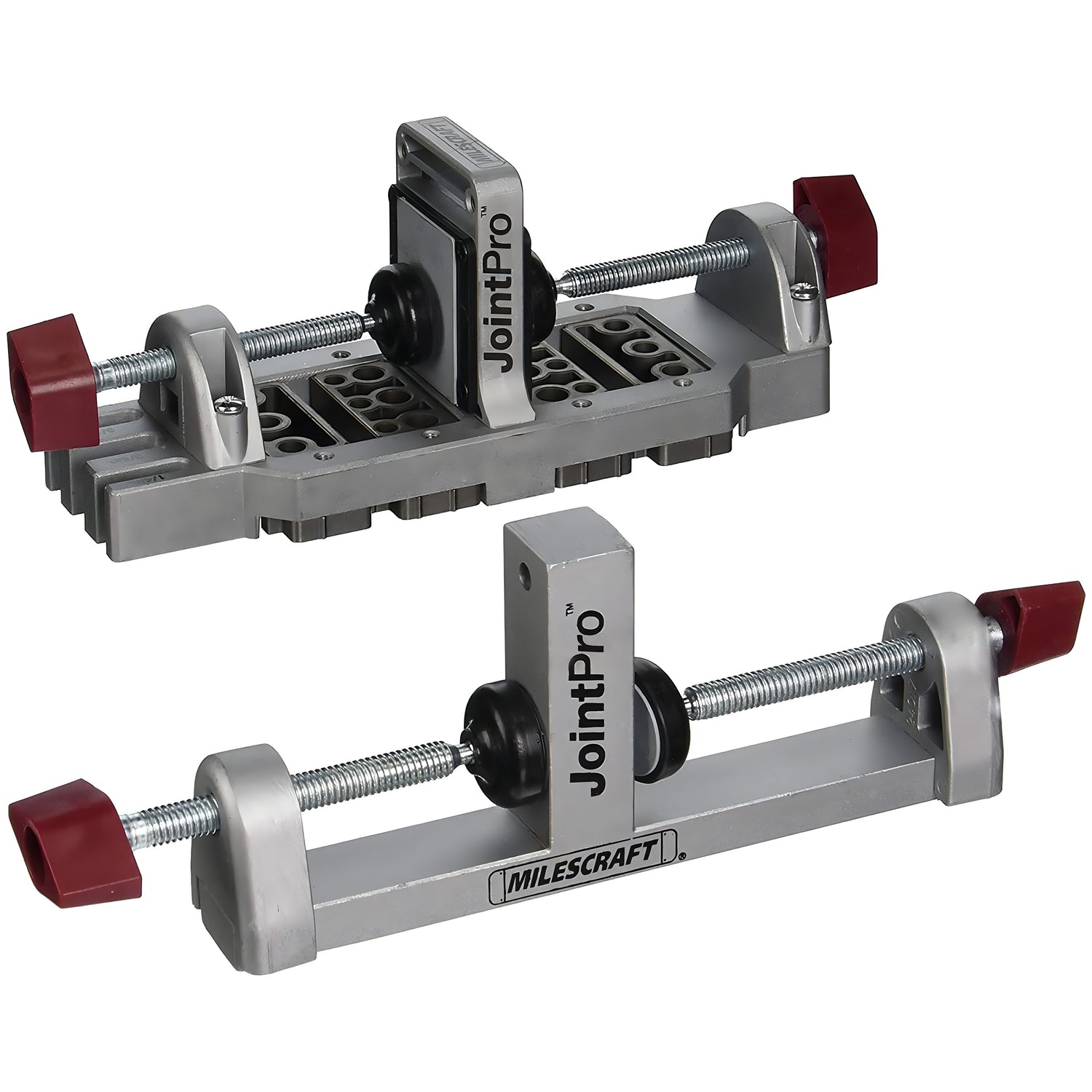

Includes: JointPRO Main Body & Offset Body, Allen Key and Manual

Main Body Material: Aluminium

Drill Guide Bushing Block Material: Hardened Steel
