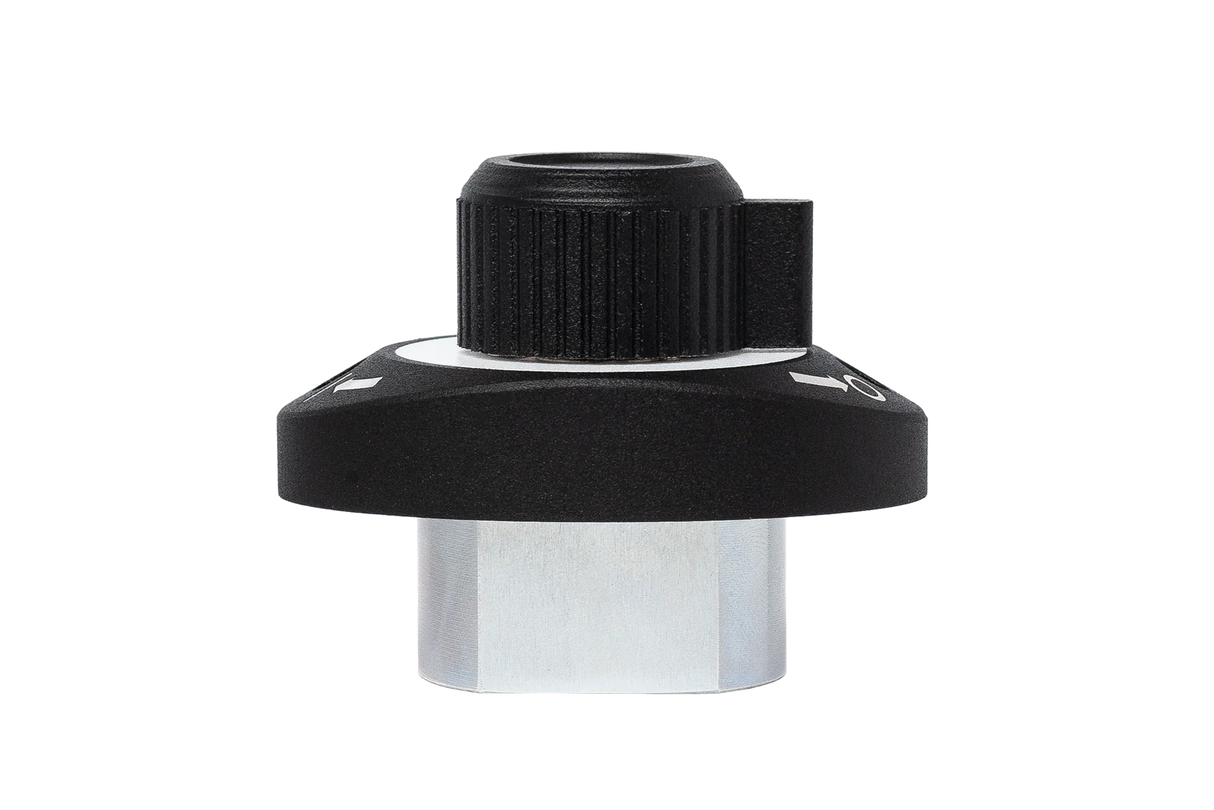

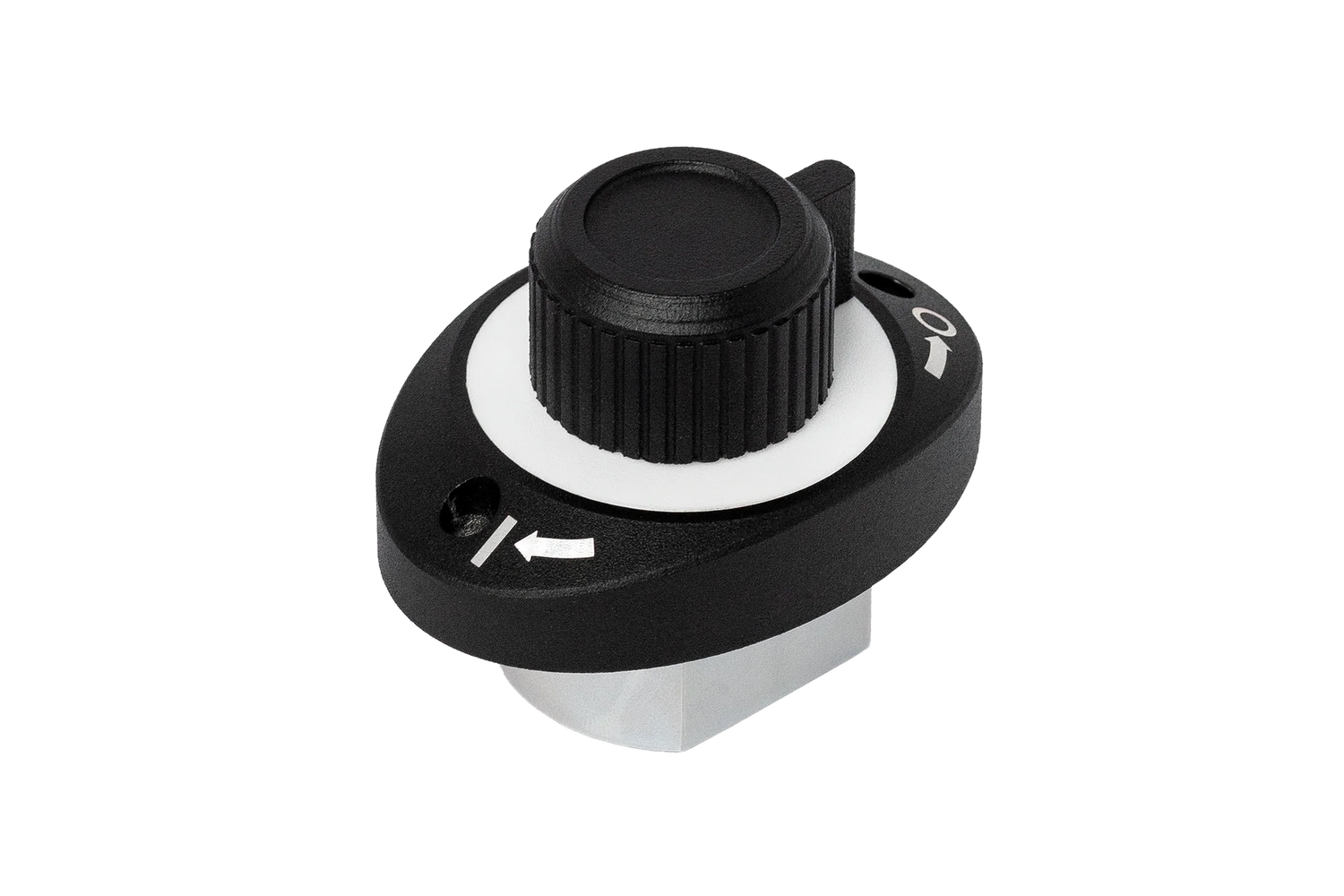

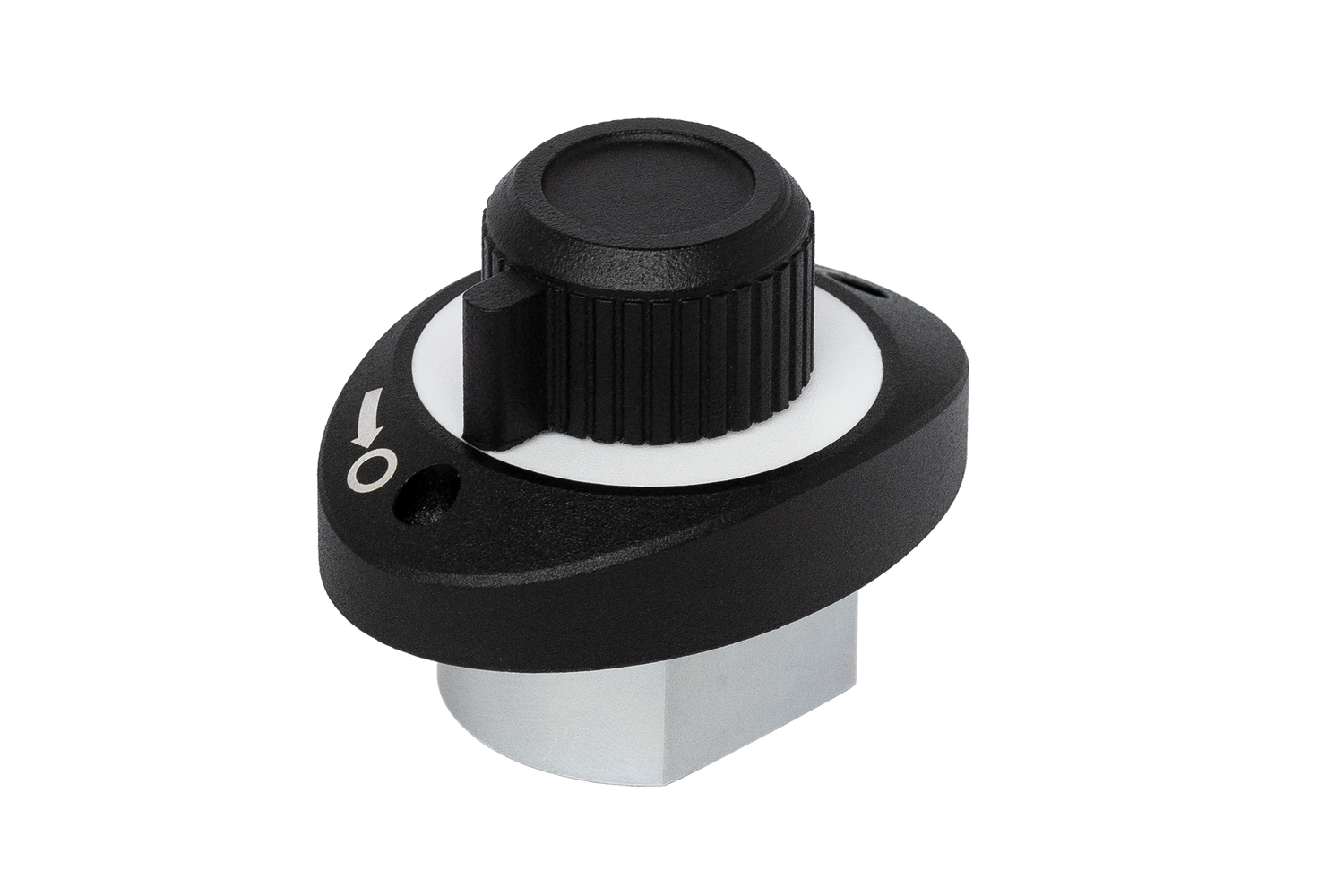

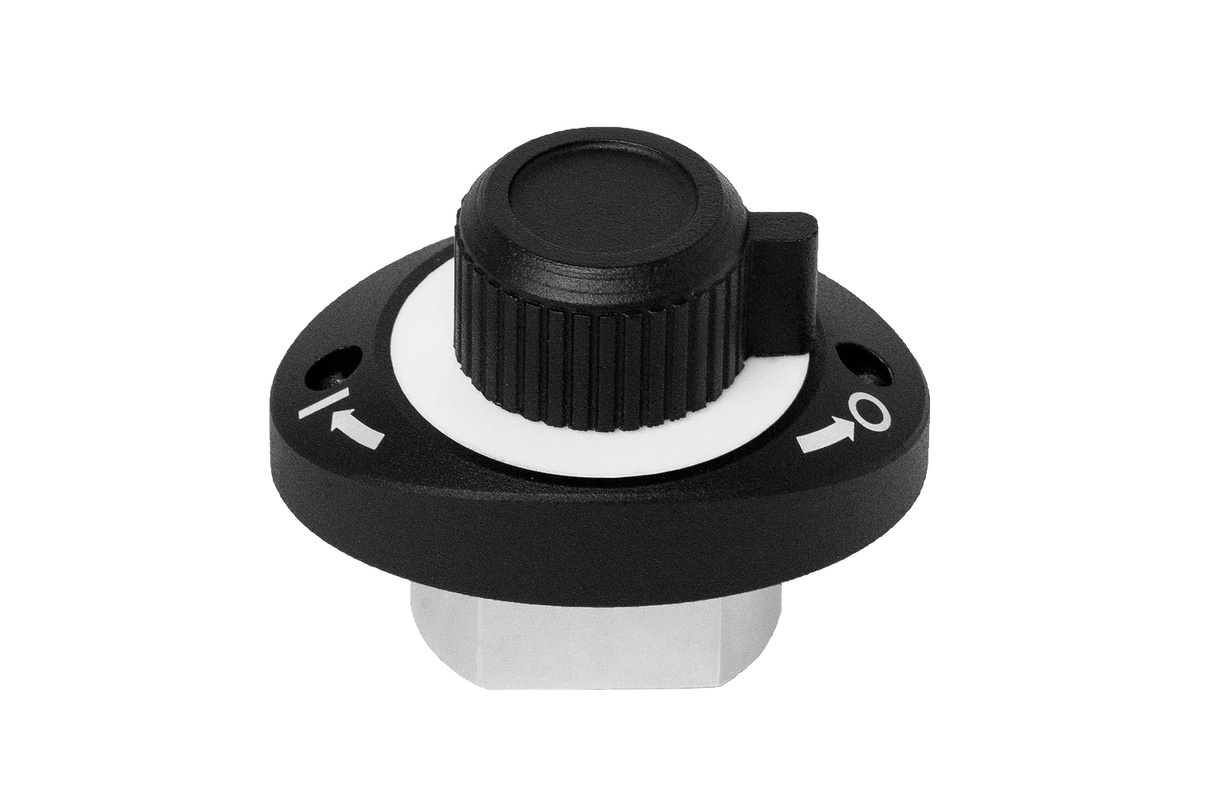

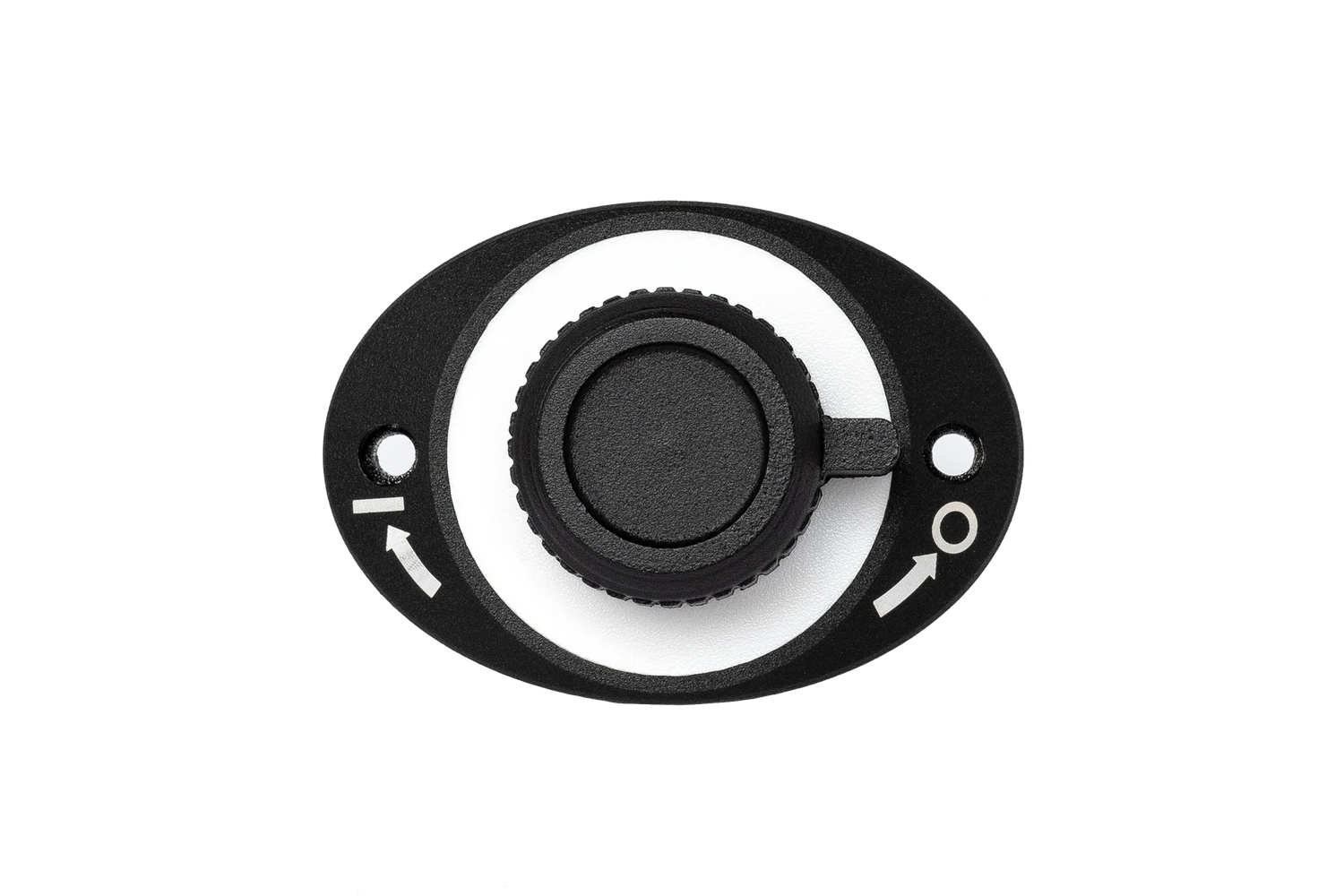

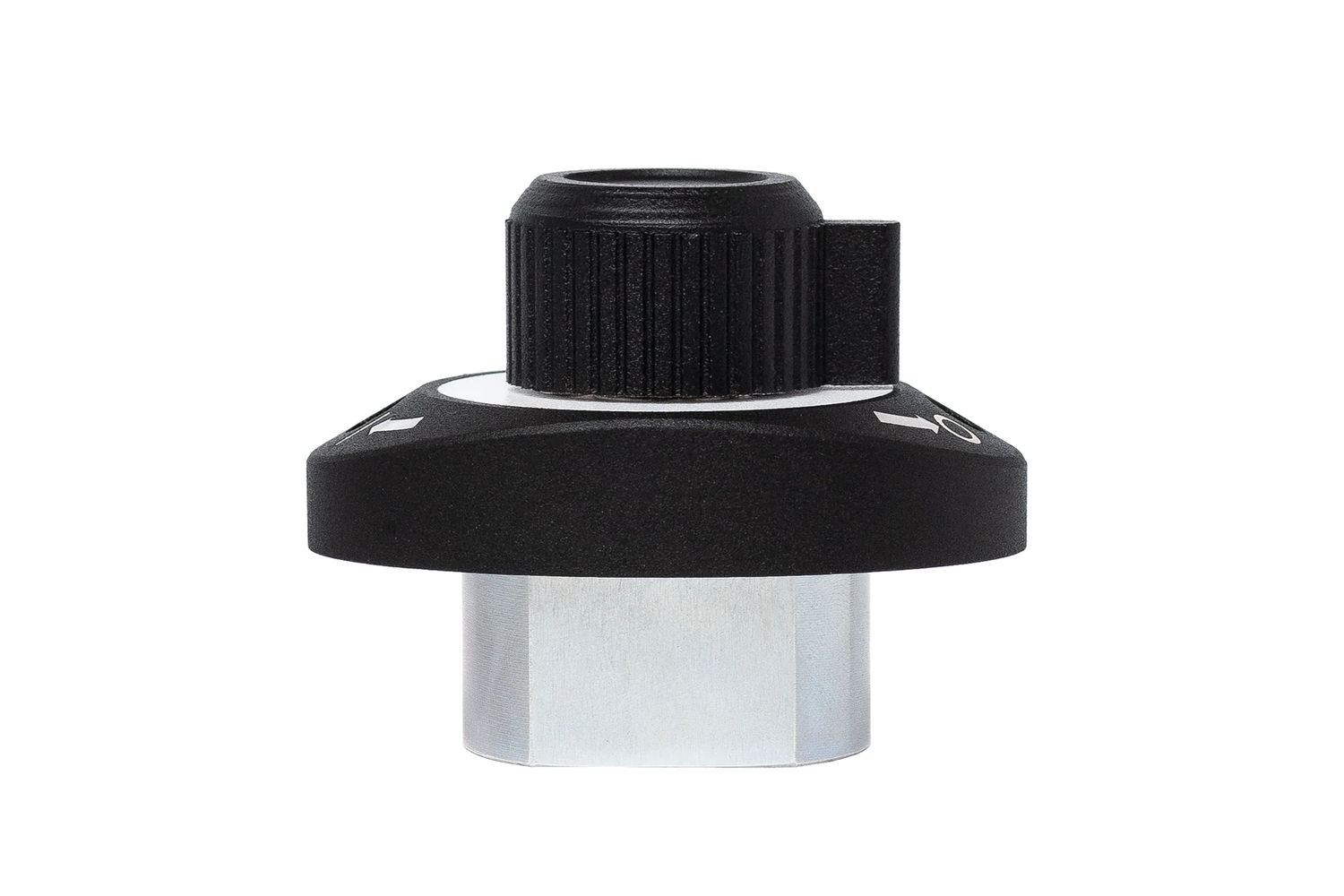

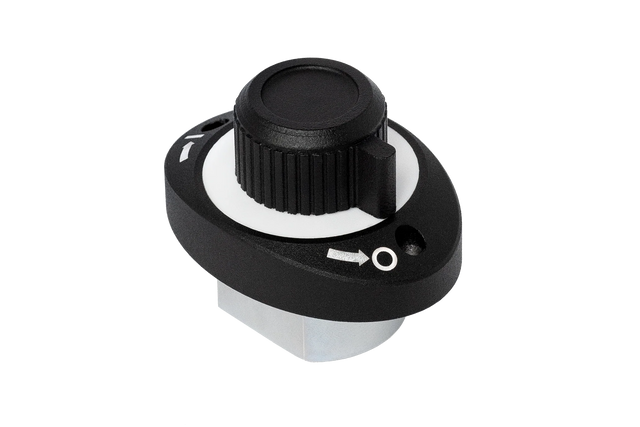

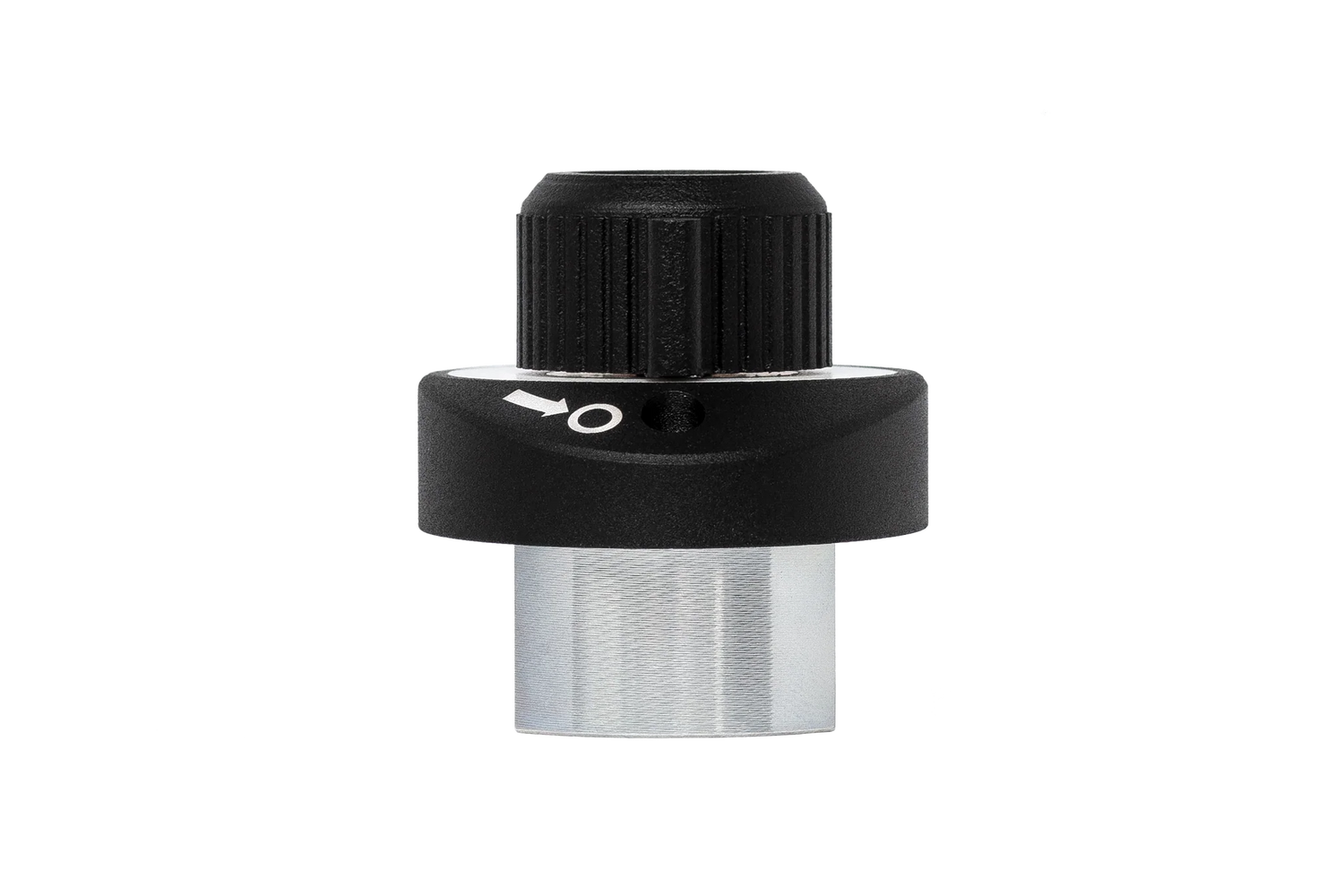

Magswitch Black Label MagJig 185

The Magswitch Black Label MagJig 185 magnetic jig has a sleek, contoured look, making it ideal in applications where a high-end appearance is essential, like showpiece workbench accessories, high-end cabinet latches, and studio furniture components.

The jig magnetic base size is the same as the Magswitch standard MagJig 150, allowing a 40mm Forstner bit to be used to recess the base.

Features

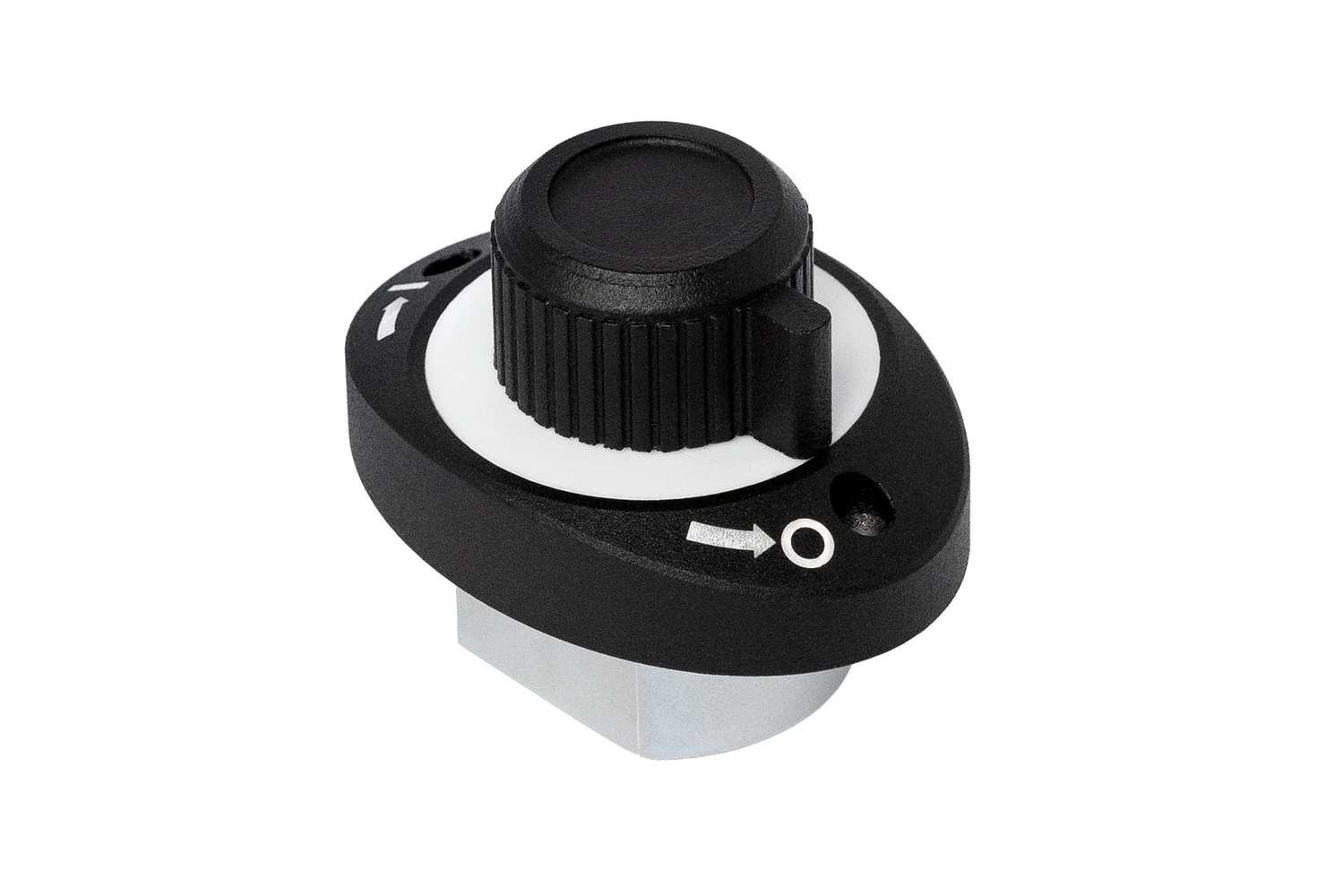

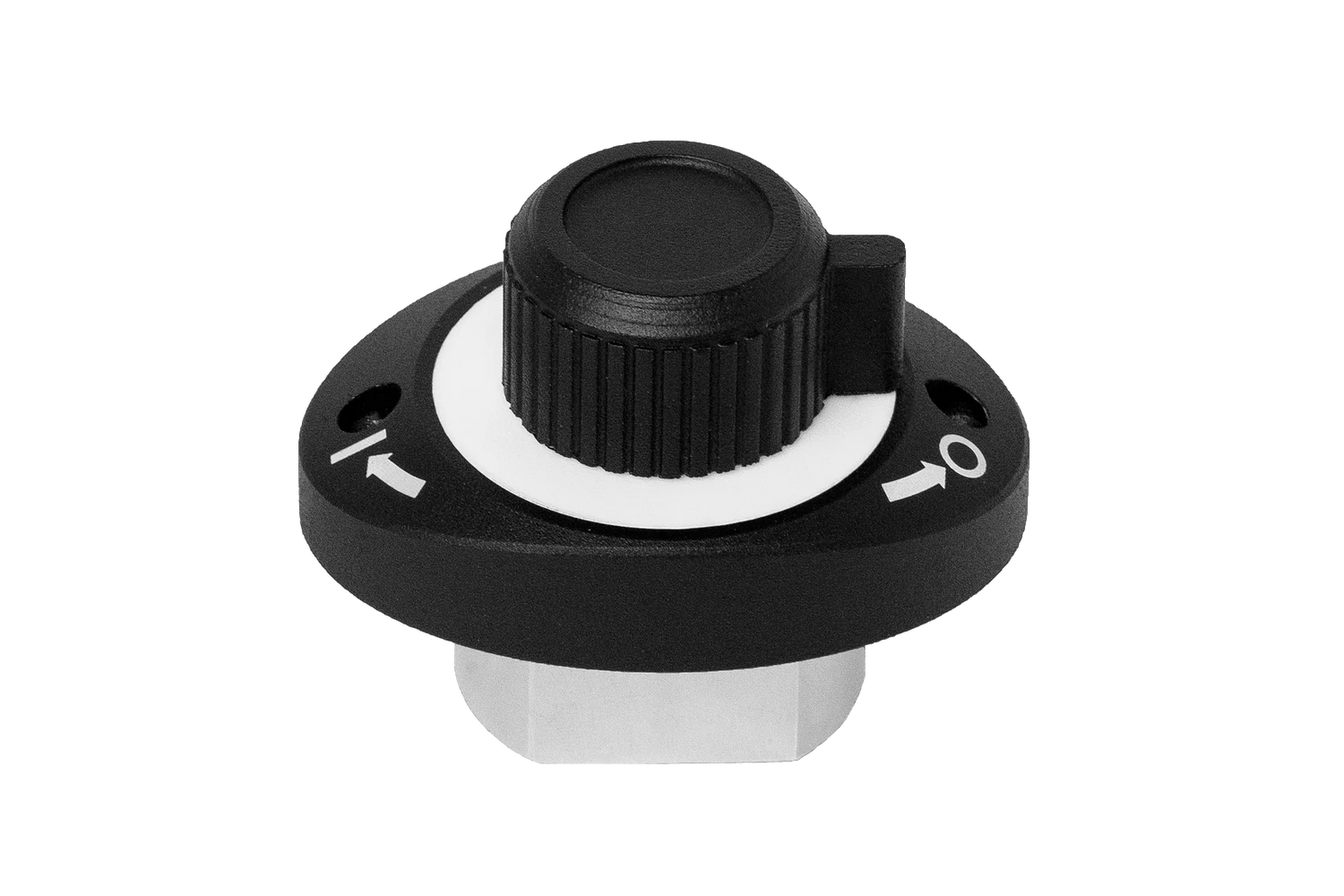

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• 3/4in standoff for flush mount.
• Designed with screw holes to add more security in a fixture.
• Excellent for woodworking, welding, and fabrication.

Specification

Maximum Breakaway Force: 63.6 kg
Maximum Shear: 20 kg
Net Weight: 0.34 kg
Full Saturation Thickness: 4 mm

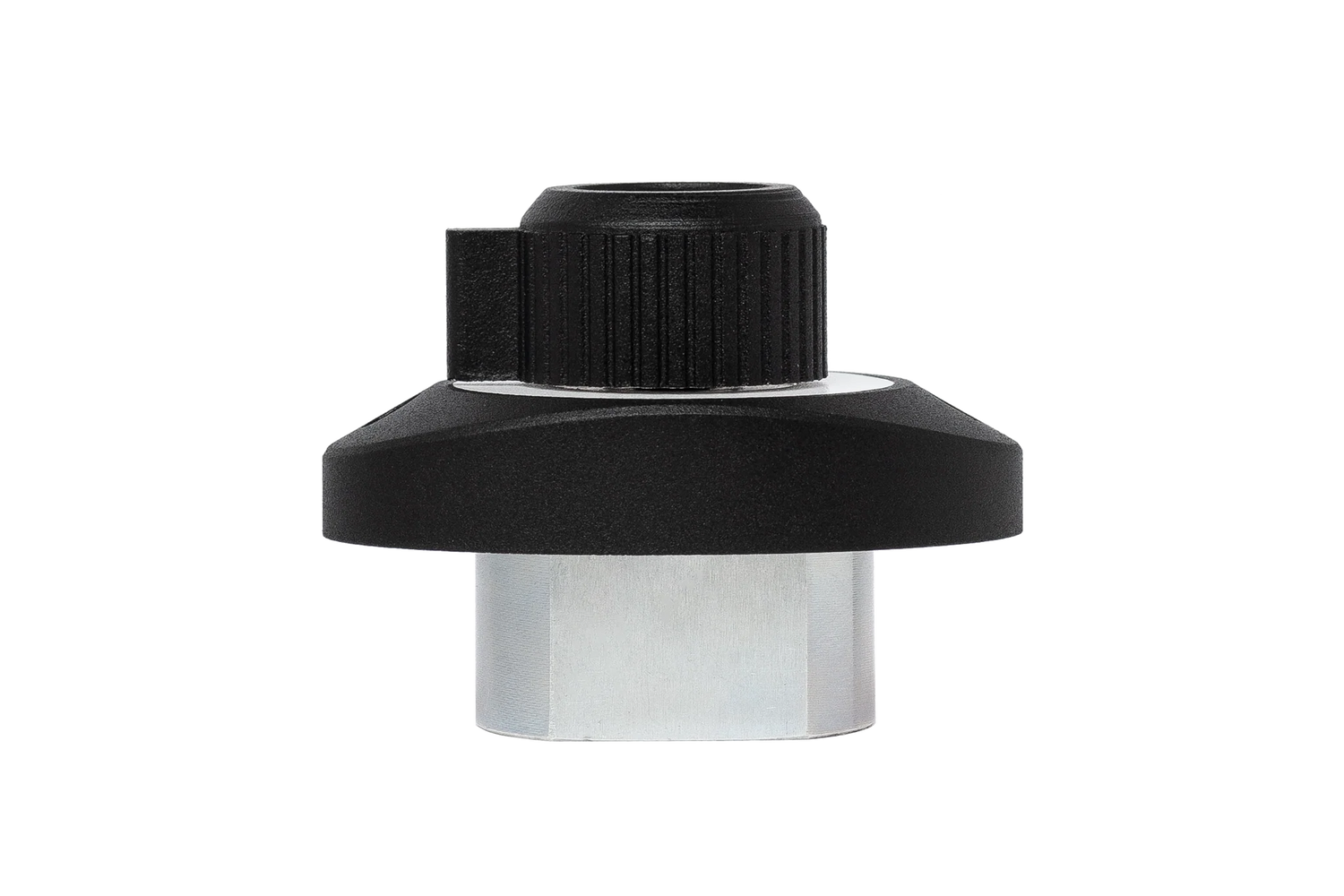

Overall Height: 53.6 mm
Overall Length: 70 mm

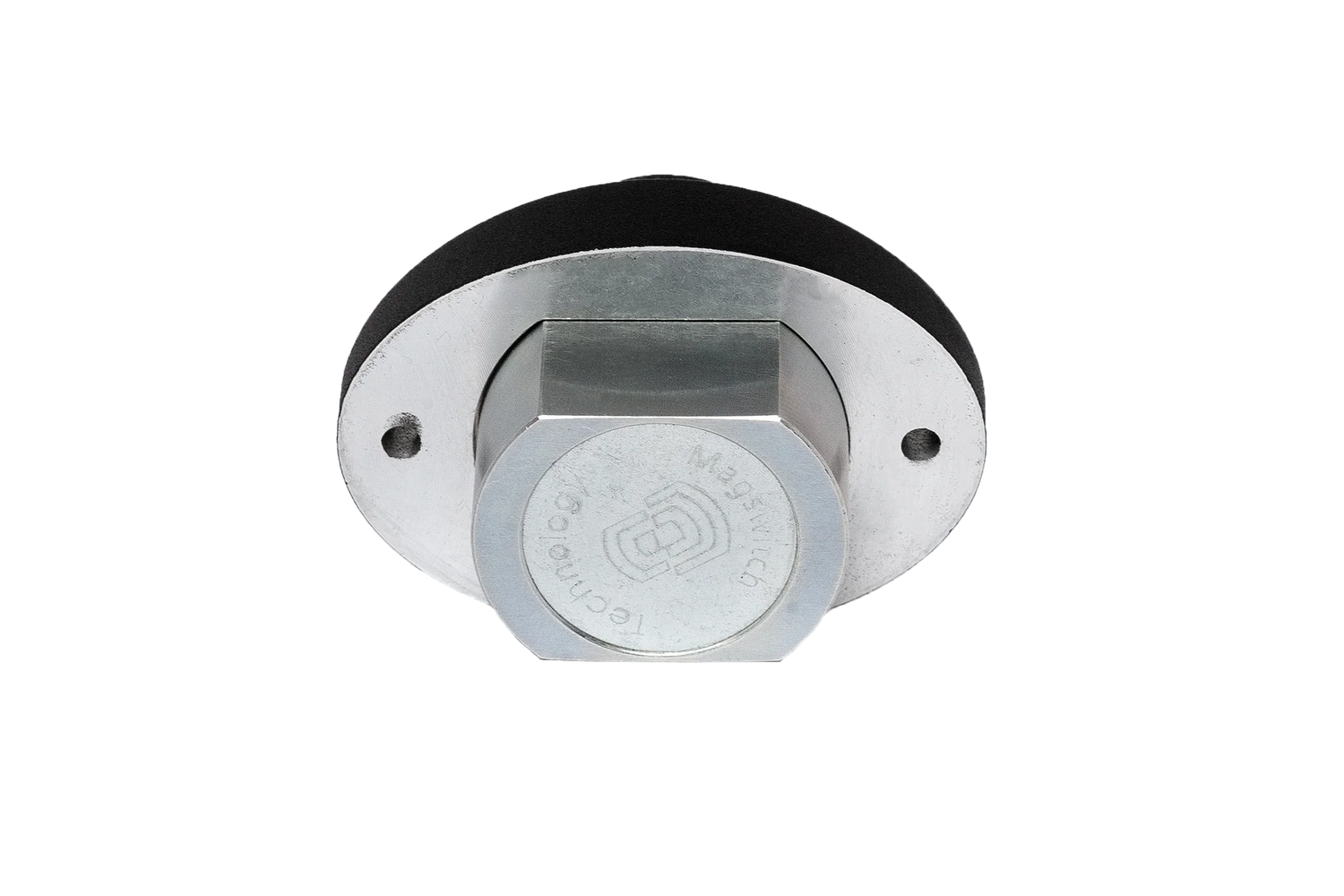

Magnetic Pole Footprint: 40 mm x 31 mm
