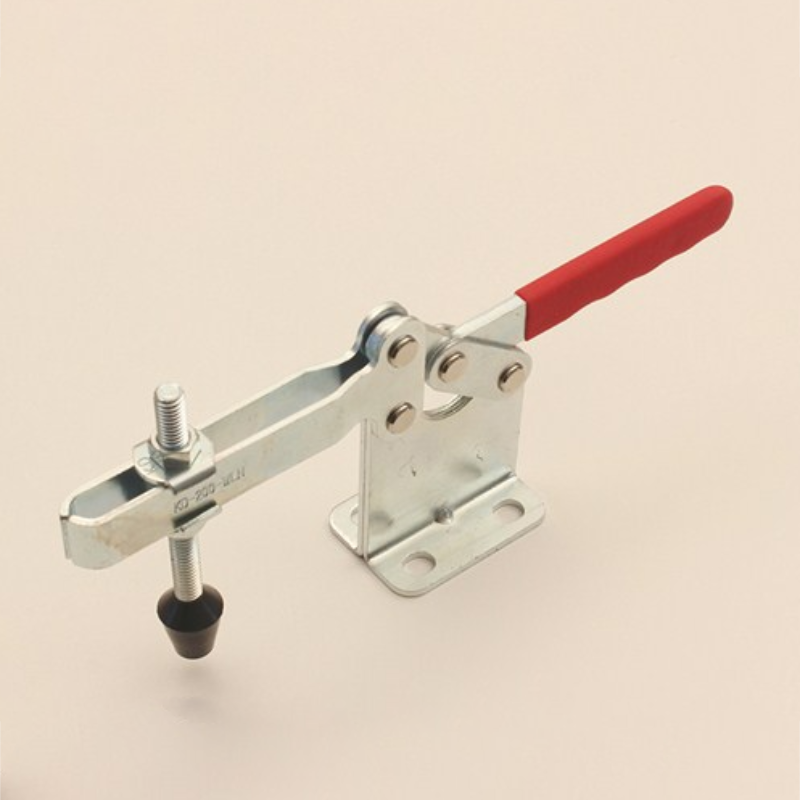

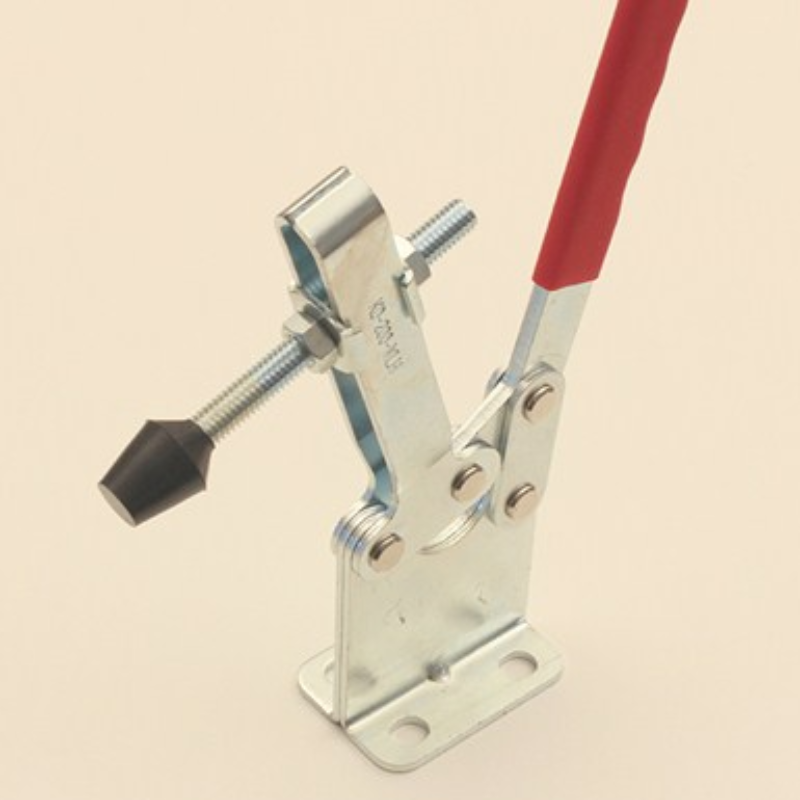

Large Horizontal Toggle Clamp Mountable 105mm Reach

A Horizontal Toggle Clamp, Welding Clamp and Jig Clamp!

For repetitive clamping in both woodworking and metalworking applications, toggle clamps are the go-to accessory to hold work pieces in place when working on them. Available in a range of sizes and configurations to suit practically all situations. The larger the overall size of the clamp, the greater the clamping strength.

These toggle clamps are produced from a longtime, quality manufacturer and can be relied on in all situations, from the home workshop right through to heavy-duty, industrial applications in manufacturing. All toggle clamps can be mounted in the 5/16in t-track by using either the standard 5/16in t-bolts and nuts or standard hex-head 1/4in bolts and matching nuts.

Specifications

Reach: 105mm

Maximum Clamping Thickness: 55mm (with bullet head)

Height Closed: 170mm

Length Closed: 285mm

Mounting plate size: 70.25 x 50.5mm

Weight: 703g
