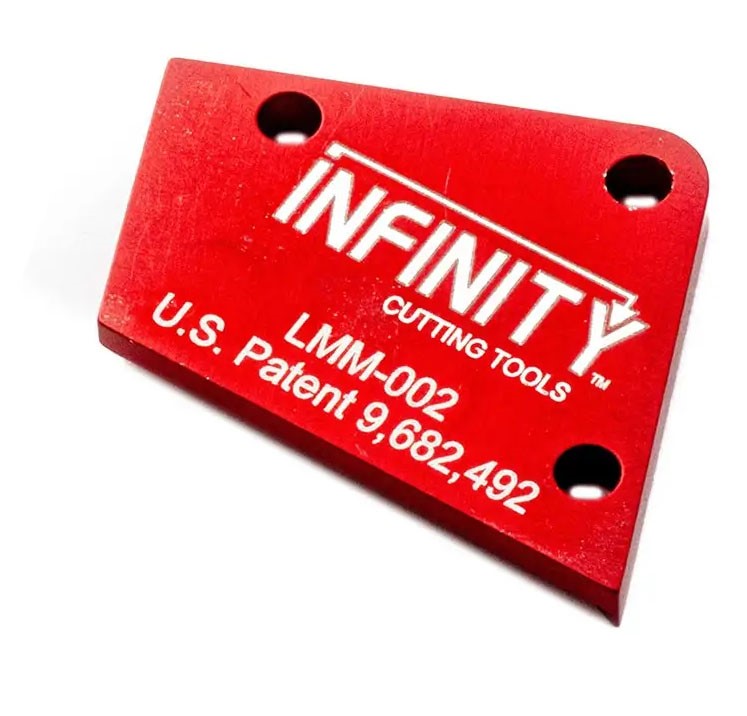

Infinity Setup Jig for Lock Mitre Router Bits Small

Lock Mitre Set Up Jigs make lock mitre joinery incredibly easy

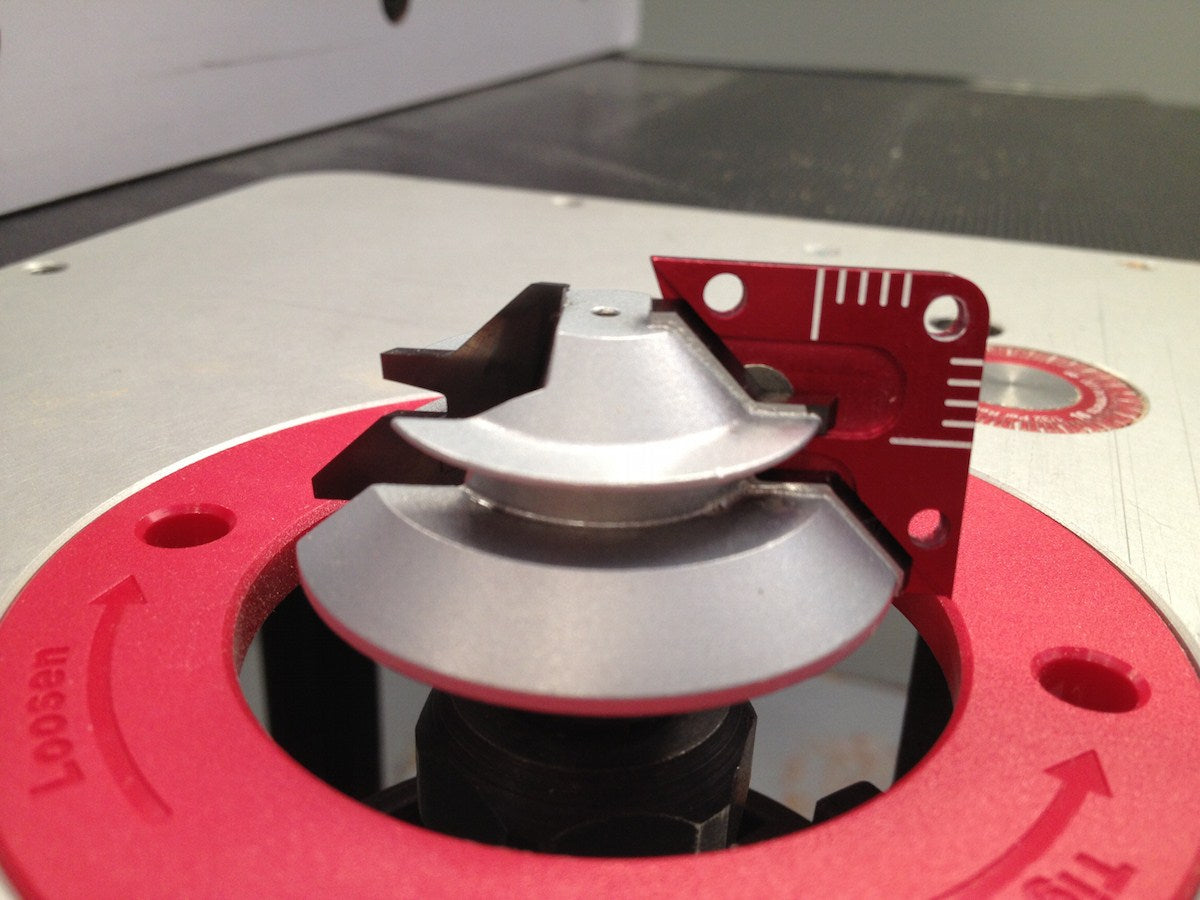

Please note: This is for the set up jig only. The Lock Mitre router bit is not included and is shown in photos for display purposes only.

The lock mitre profile is one of the few that requires precision in both the X and Y axis. The trick is to find the centreline of your material and match it up with the centreline of the profile, and for this the Infinity Lock Mitre Master is key.

This jig is a simple, yet precisely machined, setup-aid for use with lock mitre router bits (in table mounted routers only). Unlike other setup jigs or blocks, it's easy to use and opens up new locking mitre joint possibilities. It requires zero math calculations and virtually no trial and error cuts.

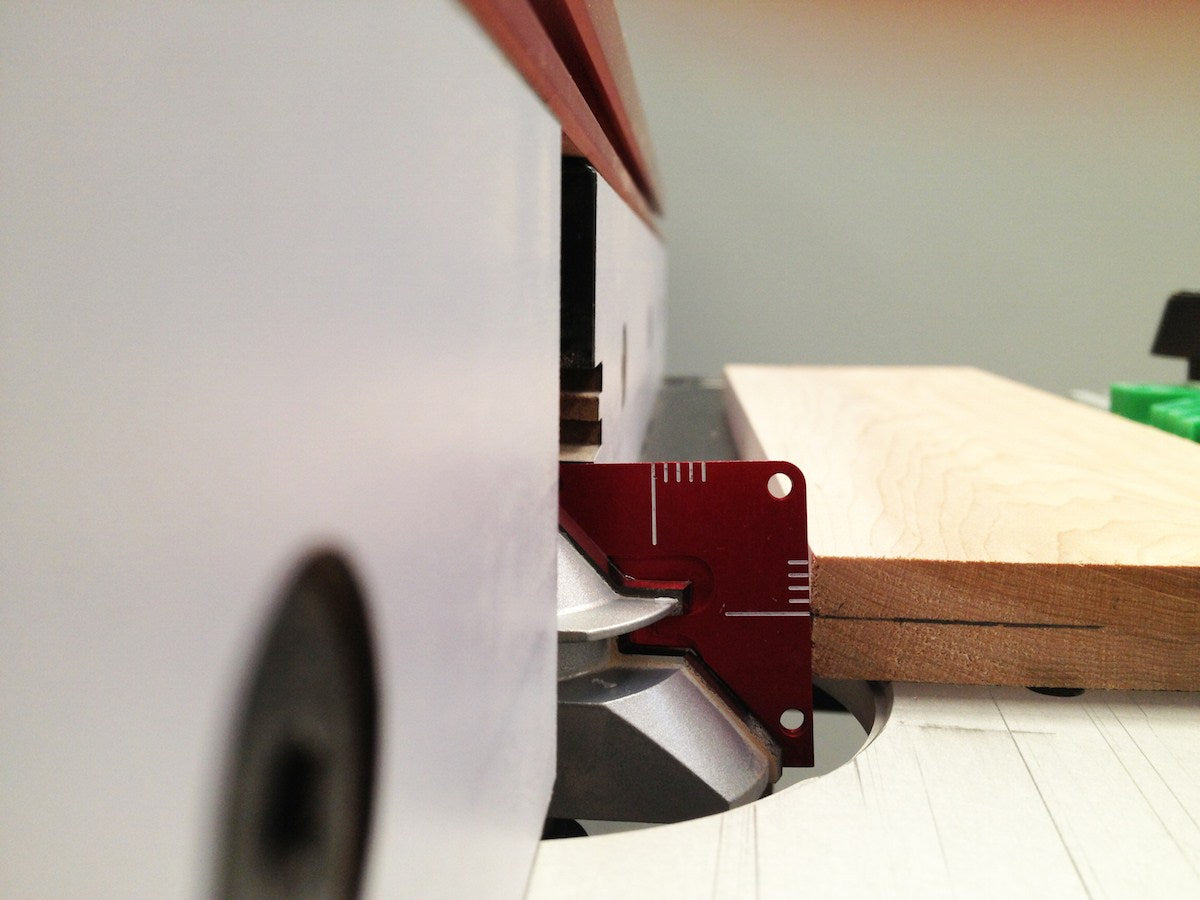

With these jigs you can quickly and easily set the proper bit height and fence position for precise-fitting standard and special case lock mitre joints. They attach securely to your router bit with rare earth magnets and are precision milled with engraved reference lines that make it easy to set-up flawless standard lock mitre joints as well as a variety of special lock mitre joints only possible with the Lock Mitre Master.

The Small Infinity Setup Jig suits material 9.5mm - 19.0mm thick.

Features include:

• Incredibly versatile, works with uneven stock thickness to make non-standard joints

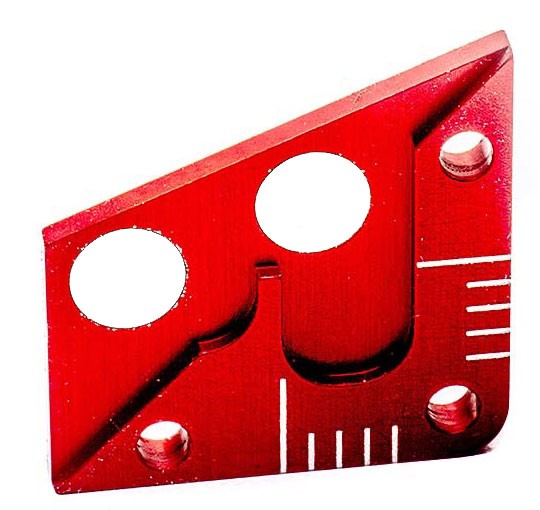

• Precision C.N.C. machined from billet aluminium
• Red anodised for durability and visibility
• Rare earth magnets attach the jig securely to the cutter
• Fast and easy to use - most first attempts will result in a perfect joint
• Works with most brands of locking mitre router bit (we haven't tried them all)

Click here to download the pdf instructions
