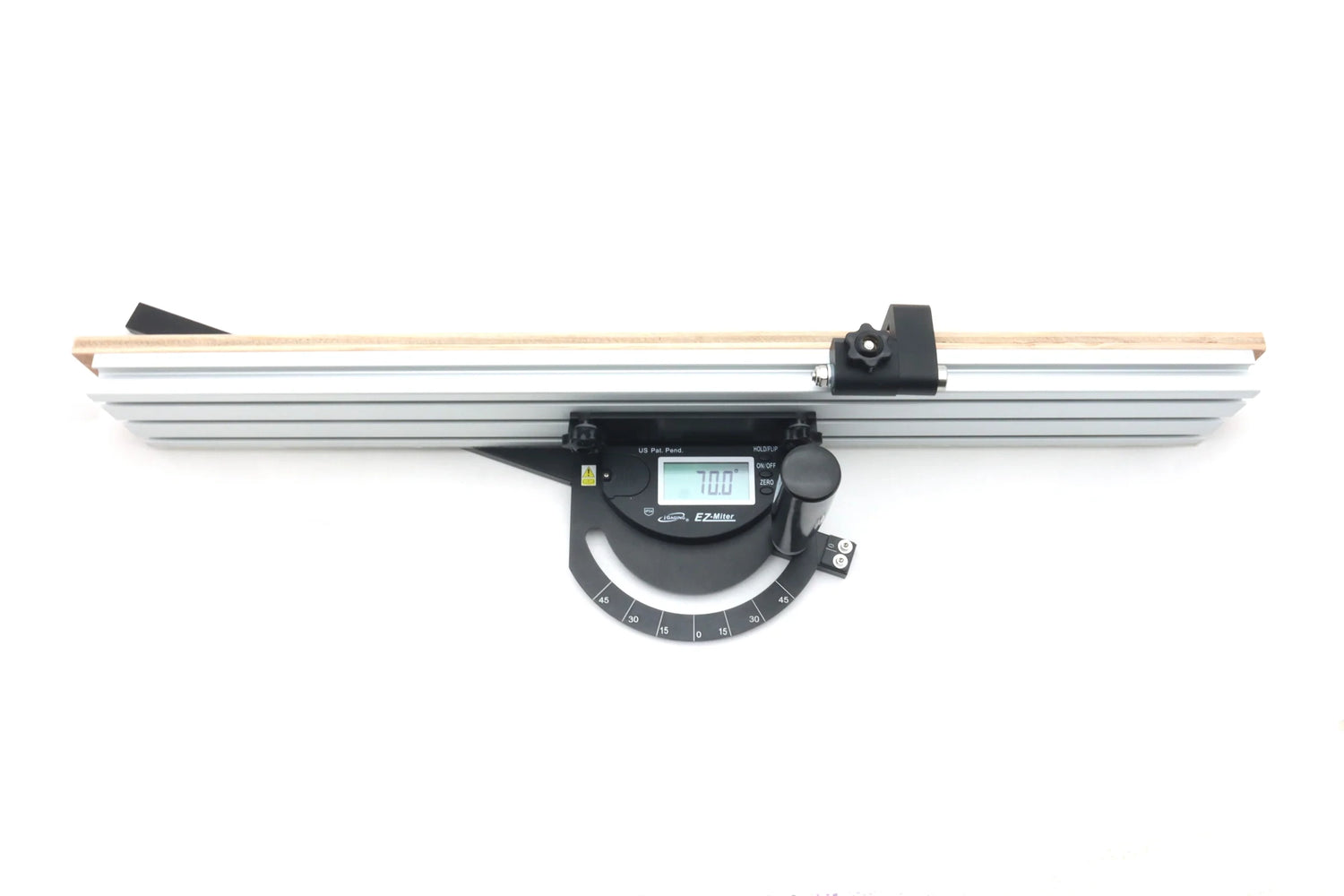

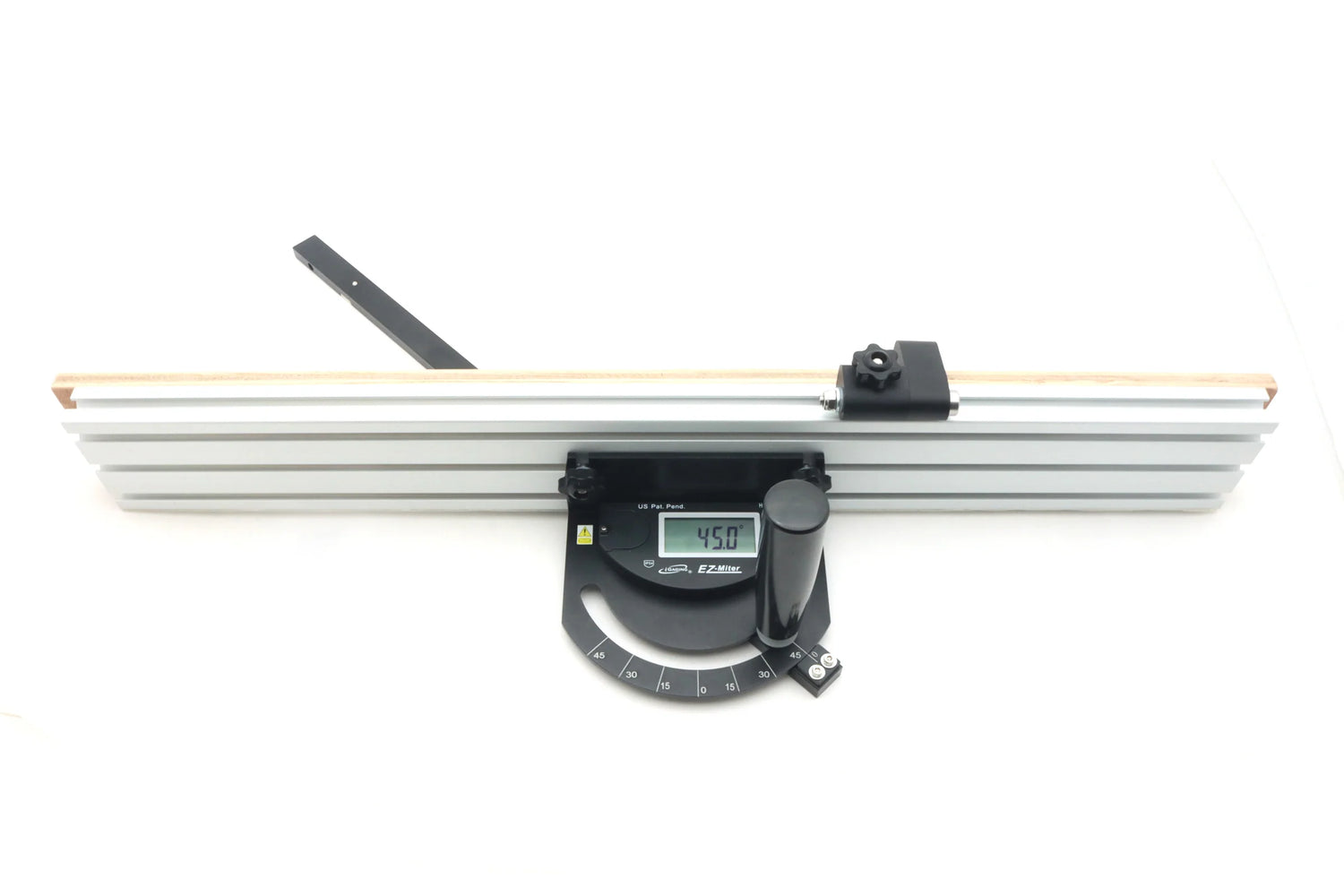

iGaging EZ Digital Mitre Gauge with 610mm Fence

Unmatched accuracy, unparalleled ease!

The iGAGING EZ Digital Mitre Gauge makes it super-simple to dial in your crosscuts, whether you are working on a table saw, router table or bandsaw.

Perfect Clarity

A clear digital display with large, easy-to-read numbers shows the gauge’s angle and allows you to see exactly where you’re at, before you cut. The built-in cursor helps you quickly locate the approximate angle, while the digital display delivers pinpoint accuracy to your fine adjustments.

Precision Construction

A lightweight high-grade aluminium body eliminates flex or vibration. Its 460 mm miter bar, featuring adjustable spring plungers, fits standard T-slots perfectly, ensuring a smooth, stable glide without any play. The fence features three 6.35 mm T-slots on the front and back, plus additional slots on the top and bottom. For breakout-free cuts, the fence includes a 620 x 12.7 mm sacrificial wood face, which mounts to the front T-slot for zero-clearance support.

Accurate Results

The iGAGING EZ Digital Miter Gauge delivers precision accuracy to 0.1°. It supports square crosscuts at 0°, as well as acute and obtuse angles up to 70°. A flip-down stop attaches to the top T-slot, allowing for precise, repeatable cuts. The semicircular miter gauge head includes a spring-loaded push handle that locks securely at the desired angle, eliminating slip in the cut.

Includes

2 x CR2032 Batteries

3 x Allen keys

Specifications

iP54 protective rating: Moisture and dust resistance

LCD Display Reads: 70°- 0°-70°

Resolution: 0.05°

Accuracy: 0.2°

Mitre Bar: 460 x 19 x 9.5mm

•Four Adjustable Spring Plungers for Standard U or T Miter Slots

•Locking Push Handle
