UJK Worktop Radius Jig for Plunge Routers

CNC machined from 12mm thick solid compact phenolic resin, this professional jig is very accurate, durable and stable.

This is the perfect companion to the UJK Worktop Jig, offering many more options for routing various radii both internal and external in worktops. It also includes options for straight, 45° cuts and cabinet door hinge recesses. This jig is equally useful in a cabinet or furniture workshop where there is frequent need to rout a particular radius.

Setting up is simply a matter of placing the locating pins in the appropriate holes and locating them on the edges of the workpiece. The only additional items required are a couple of clamps to hold the jig in place and a 30mm guide bush to fit your router.

This superbly made jig features 6 radii: 40mm, 60mm, 80mm, 100mm, 150mm and 250mm; both internal and external. It has a slot for straight cuts up to 820mm, and 26mm and 35mm cabinet hinge recess cutouts. The corners of the jig offer 50mm, 100mm and 150mm radii and a 45° option.

Please note: You will need 12.7mm(1/2in) x 50mm router bit, 30mm guide bush and 2 clamps.

Features

• Phenolic resin jig covers 6 radii both internal and external

• Fast and foolproof setup using locating pins

• 40mm, 60mm, 80mm, 100mm, 150mm and 250mm curves

• Includes straight cuts up to 820mm, hinge recess cuts and 45° cut

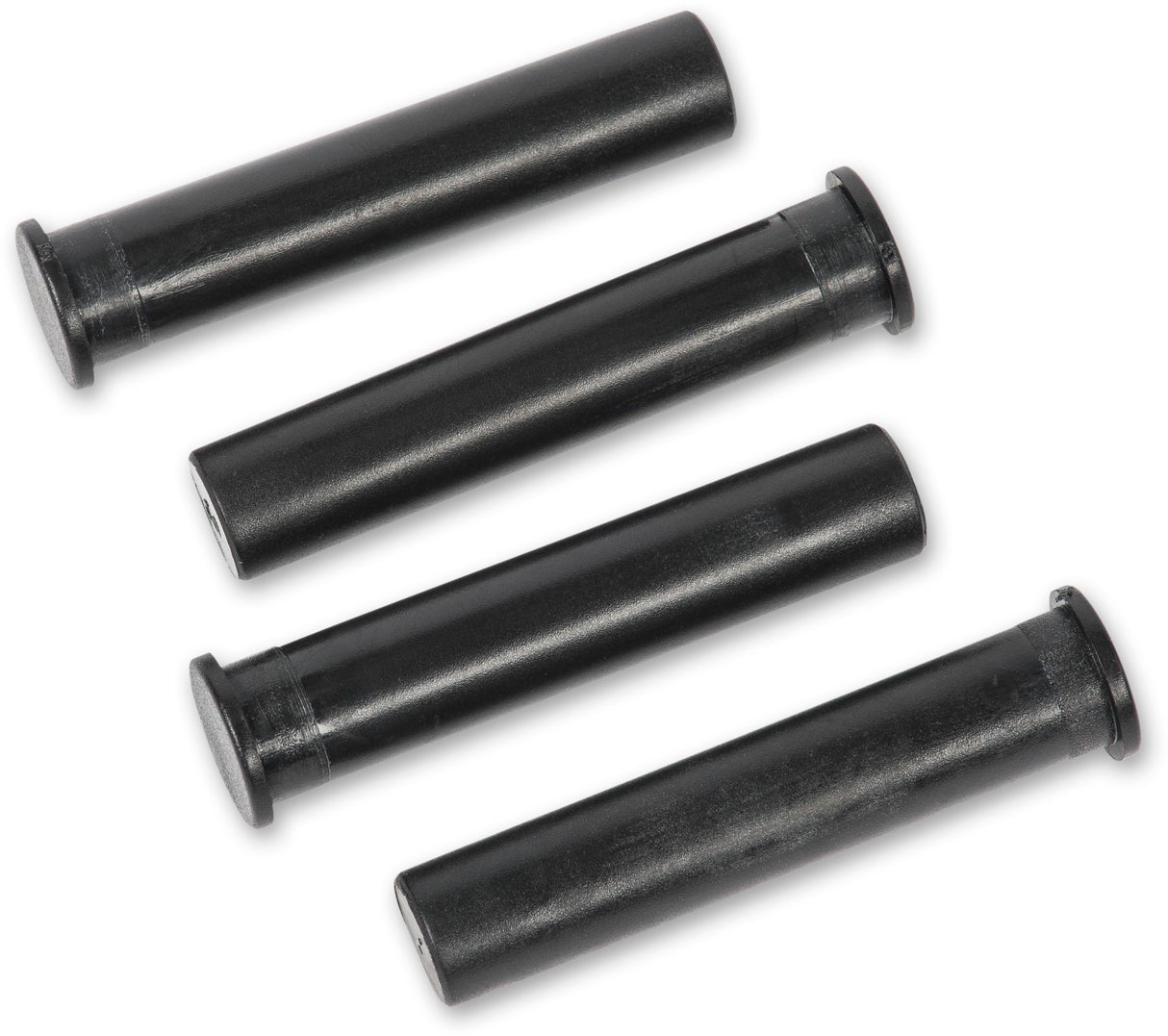

• Supplied with full and instructions and 4 locating pins
