Sherwood | SKU: SWL-1824-VF

Sherwood Maxi Wood Lathe 460mm Swing Multi-Format 1500W 2HP Variable Speed Three Phase

$2,499.00 ~~$3,399.00~~

Check store availability

Melbourne, VIC

In stock

0
Balcatta, WA

In stock

0
Canning Vale, WA

In stock

1

Sale ends in:

00 : 00 : 00 : 00

Hours

Request Further Information

Sherwood Maxi Wood Lathe 460mm Swing Multi-Format 1500W 2HP Variable Speed Three Phase

Name: Contact Phone Number: Email Address: Comment:

Estimate your Shipping:

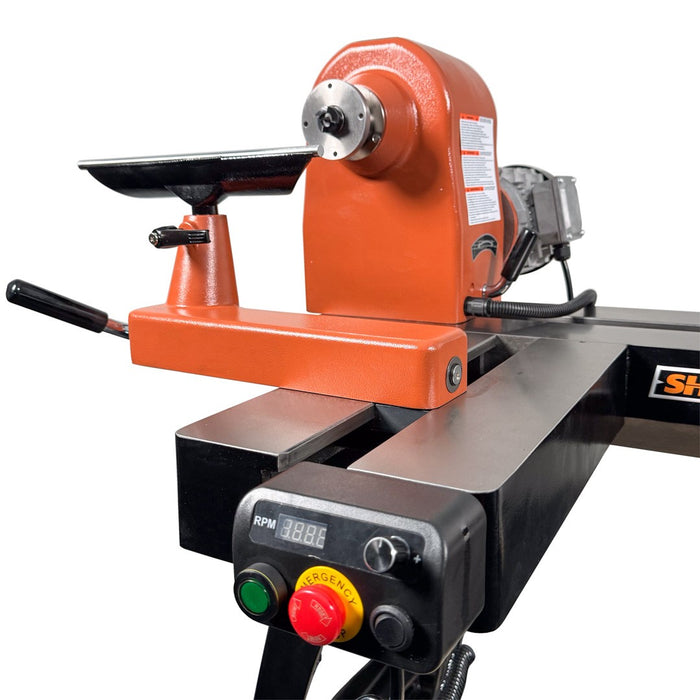

Experience the perfect marriage of flexibility and power with Sherwood’s Maxi 460mm Swing Lathe.

With its innovative approach to outboard turning, it is the ideal machine for turners who perform a wide variety of techniques in their wood turning.

Description

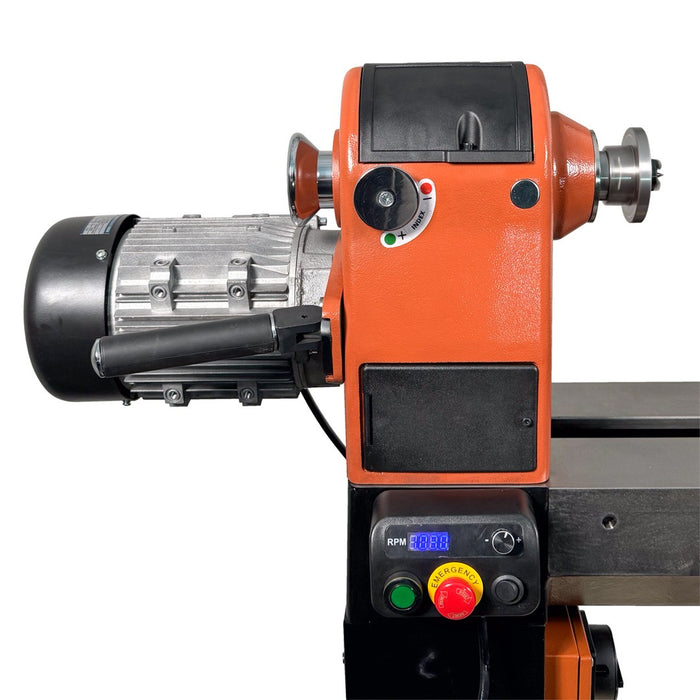

The Sherwood 460mm Maxi Wood Lathe features a 2HP three-phase induction motor, a full 460mm swing over bed, front-mountable bed extension and a swivelling headstock, giving it capacity for outboard turning of large diameter work. Its massive cast-iron body ensures safe and precise turning without movement or vibration. The #2 Morse Tapers at the head and tailstock ends, ensure that it’s compatible with all your favourite centres. A switch on the headstock allows for quick switching between indexed and non-indexed turning. And, the handy magnetic, moveable switch-box gives you the ultimate versatile work station – no more stretching for that switch.

Features

Three-phase 1500W (2HP) induction motor
Electronic Variable Speed
Forward and reverse settings
Front-Mountable 405mm Bed Extension
Swivelling Headstock
Quick repositionable lever
Includes: live and spur centres, face plate, knock-out bar, alignment test bar and tool rest
5-year warranty

Specifications

Motor	3-Phase 1500W 2HP Induction Motor Note – this machine has single-phase 15A plug (VFD converts to three-phase)
Spindle Speed	50-3850 RPM
Swing	460mm
Working Length	620mm between centres 1025mm between centres with extension
Bed Height	865mm
Thread Size	M30
Taper	#2 Morse Taper
Face Plate	80mm
Tool Rest	305mm/12in
Tool Rest Stem	1in ø x 130mm L
Workshop Footprint	1300 L x 625 W x 1195mm H 1705 L x 625 W x 1195mm H (with bed extension at end) 1300 L x 1030 W x 1195mm H (with bed extension at front)
Shipping Dimensions	1467 L x 668 W x 752 H mm
Weight	170kg

Three-Phase Variable Frequency Drive Induction Motor

The three-phase 1500W (2HP) induction motor delivers huge efficiency, performance, and reliability gains. The main benefit of using an induction motor is high torque at low speed. Speed is controlled by the VFD, which converts your single-phase household power supply into three-phase for the motor.

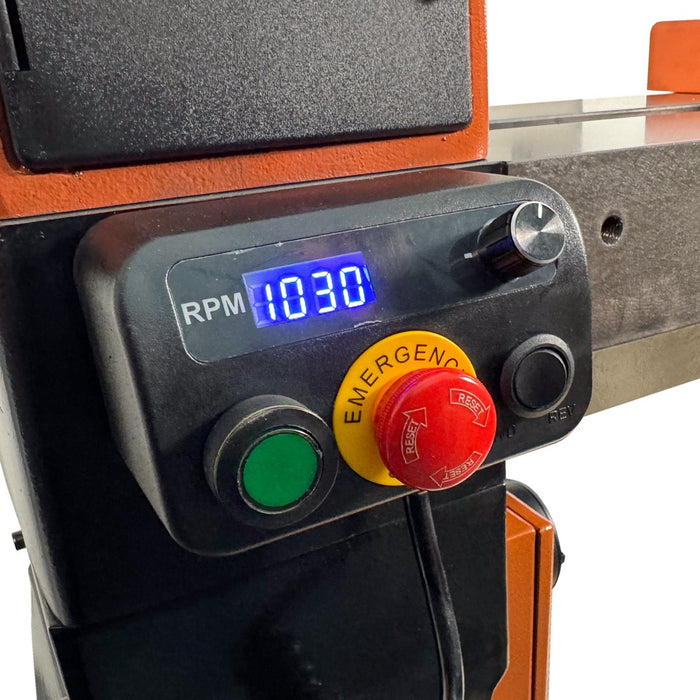

Electronic Variable Speed

When you need the best possible level of control to optimise your accuracy and eliminate speed-related tear-out and chatter, then EVS is essential. Go up to 3850rpm for fast, clean shaping of thinner stock, or slow things down as low as 50rpm for removing large quantities of materials and rough cuts with maximum torque.
Front-Mountable Bed Extension

The Sherwood Maxi 460mm Wood Lathe is supplied with an 405mm extension bed which can be mounted either end of the bed, or perpendicular at the headstock. This allows for stable turning directly on the front of the lathe when the headstock is turned. When mounted at the tailstock, the working length is increased to 1025mm.
