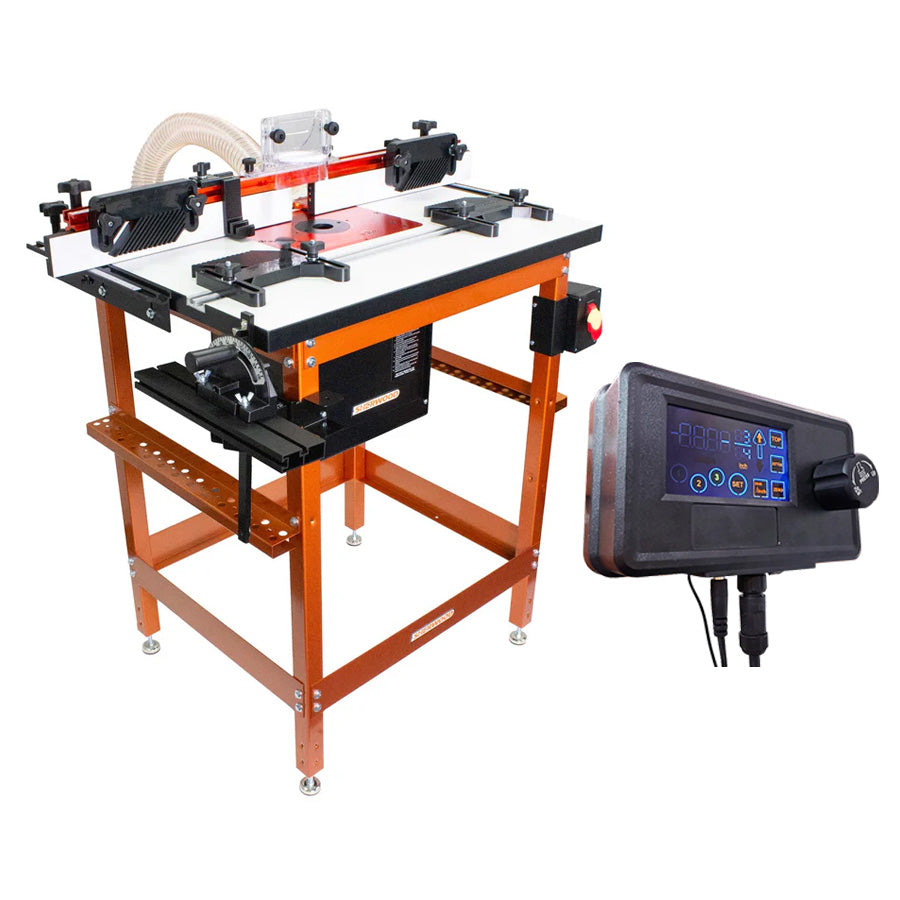

Sherwood Deluxe Router Table MDF/Phenolic Top with Motorised DRO Router Lift & Water Cooled CNC Spindle

Need a full-size router table that is a bit more portable?

The Sherwood Router Table MDF/Phenolic Top with Motorised DRO Router Lift combines precision and functionality in a set up that is easy to handle. Once assembled, the total set up (minus the router) weighs in at a 62kg. While this unit forgoes the premium cast-iron top, it will still provide decades of precision performance when maintained and stored correctly.

Packed with some of our most popular components, it features a heavy-duty stand and Super-Flat rock-solid fence with a Fine Fence Adjustment Kit. The Sherwood Difference continues with a Remote Switch, Fence Flip Stop, Dust Collection Box and 4-Piece Featherboard Kit – all included for a reduced price! With the standard Five-year Warranty Sherwood is famous for, this is the Industrial Router Table you can always rely on.

Motorised Lift with Digital Readout

Get digital accuracy and easy height adjustment with the motorised lift and digital read out. The simple design of the control box features an on/off switch at the base, an easy-to-use height adjustment knob, and inset magnets at the rear, allowing it to mounted wherever suits best on your router table set up.

Intuitive on-screen settings allow for quick adjustments to the highest and lowest points, switching between metric and imperial scales, and snapping to a custom zero point. Default adjustment increments are 0.5mm and 0.02in respectively, with an additional six default settings: 2, 4 or 6mm for metric, and 1/8, 1/4 or 1/2in for imperial. Simply turn the knob left or right to your desired height shown clearly on the display, and then press once to let the lift do the rest for you.

The Sherwood CNC Spindle & Inverter Kit

The Sherwood Water-Cooled Motor will make an impressive upgrade to the standard router set up. The external inverter converts standard single-phase 240V to three-phase 415V 2.2kW power - to handle ANY routing cut with maximum torque. This handy feature also means that you can turn it on and off, and adjust the speed remotely, anywhere from 0 – 24,000 RPM. The motor uses industry-standard ER20 collets.

The Sherwood CNC Spindle & Inverter Kit is a plug-and-play solution and includes the following items -

• Water-Cooled CNC Spindle
• Electronic Inverter
• 2m loom to attach inverter to spindle
• 3m AUSNZ 240V 15-Amp lead to plug into wall
• Pump to run coolant
• 10m of 6mm hose tubing to create coolant system
• 12 - 13mm & 6 - 7mm ER20 collets & nut
• 21mm & 30mm spanners to suit spindle and nut

What's Included

Click on the links below for more information about each component.

• MDF/Melamine Router Table Top - 800 x 600mm
• Standalone Router Table Stand with Mitre Guide & Switch
• RLIFT-8 Motorised DRO Router Lift & Mounting Plate
• SRM-1800-N Round Body Motor
• 810mm Aluminium Router Table Fence
• Fence Fine Adjustment Set
• Fence Flip Stop
• 2 x Universal Horizontal Featherboards
• 2 x Universal Vertical Featherboards
• Router Dust Collection Box

Specifications
