Deep Reach Pipe Clamps for Wide and Demanding Woodworking Glue-Ups

Deep reach pipe clamps combine the adjustable capacity of a traditional pipe clamp with jaws designed to extend farther over the workpiece. This additional throat depth is particularly useful when clamping pressure needs to be applied away from the edge of a panel or assembly. Applications can include furniture making, cabinet construction, wide panel glue-ups, doors, workbenches, frames and other projects where conventional shallow-reach clamps cannot position their pads close enough to the required area.

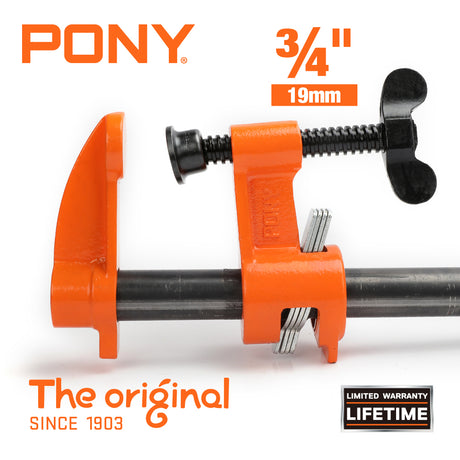

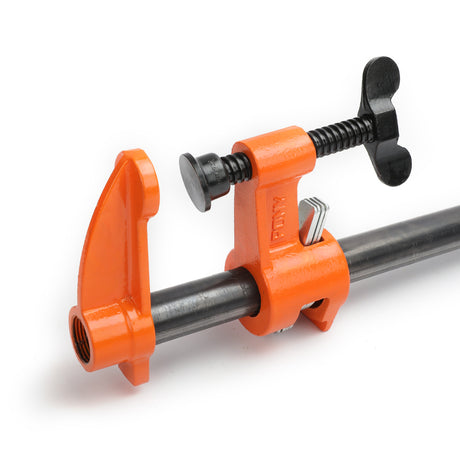

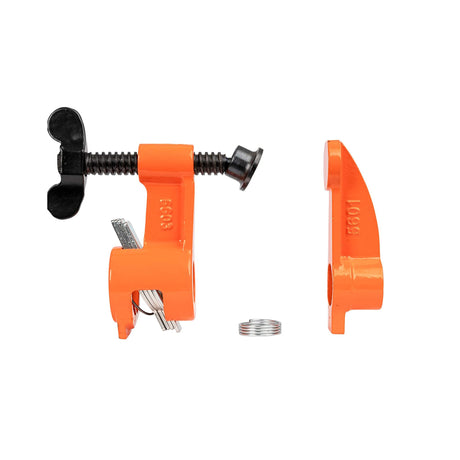

A typical pipe clamp uses a fixed screw head and an adjustable tail stop mounted on a compatible length of pipe. Because the pipe effectively forms the clamp bar, its length can be selected to suit different projects, while the deeper jaws provide greater access across the workpiece. This combination can make deep reach pipe clamps a versatile option for workshops producing assemblies in a variety of dimensions.

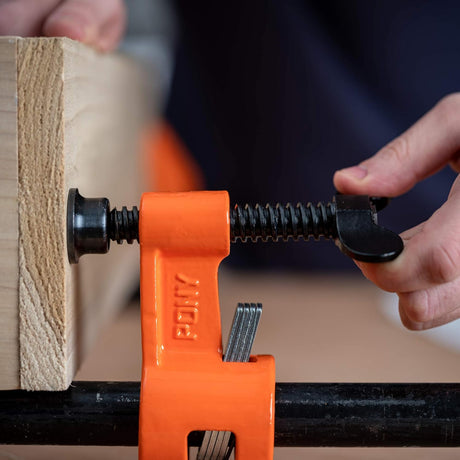

Extra reach also increases leverage on the clamp and pipe, so good clamping technique is important. Position the jaws squarely against the work, keep the load as balanced as practical and tighten progressively rather than immediately applying maximum pressure. Clamps are intended to hold correctly fitted components together while adhesive cures; excessive pressure can distort an assembly, mark the timber or cause unnecessary deflection in the clamping system.

FAQs

What is a deep reach pipe clamp?

A deep reach pipe clamp is a pipe-mounted clamping system with jaws that extend farther from the pipe than those of a conventional pipe clamp. This greater throat depth allows clamping pressure to be applied farther in from the edge of a workpiece, making the clamp useful for wide panels and assemblies where standard jaws cannot reach the required position.

When should I use a deep reach clamp instead of a standard pipe clamp?

A deep reach clamp is useful when the point requiring pressure is too far from an edge for the jaws of a standard clamp to reach. Examples include securing components towards the centre of a wide panel, laminating larger workpieces or assembling furniture and cabinetry with recessed clamping locations. For ordinary edge clamping, a standard pipe clamp may provide all the reach required.

Do deeper clamp jaws affect clamping force?

Deeper jaws create greater leverage because the clamping point is positioned farther from the pipe or main body of the clamp. This can increase deflection compared with applying the same load closer to the clamp body. For that reason, deep reach clamps should be positioned carefully and tightened only enough to secure properly fitted components rather than being subjected unnecessarily to maximum force.

How can I prevent deep reach clamps from marking timber?

Place suitable protective pads or scrap timber between the clamp faces and the workpiece where necessary. This spreads the load and prevents hard clamp components from directly contacting delicate surfaces. Avoid excessive tightening, particularly with soft timbers, veneers and finished components, as high point pressure can leave indentations even when a protective pad is used.

How do I stop a large glue-up from bowing while clamping?

Prepare mating surfaces accurately, position clamps at sensible intervals and tighten them gradually so pressure remains balanced across the assembly. Depending on the project, alternating clamps above and below the work can help counter opposing forces. Straight cauls placed across a panel are another useful way to maintain alignment while the adhesive cures.
