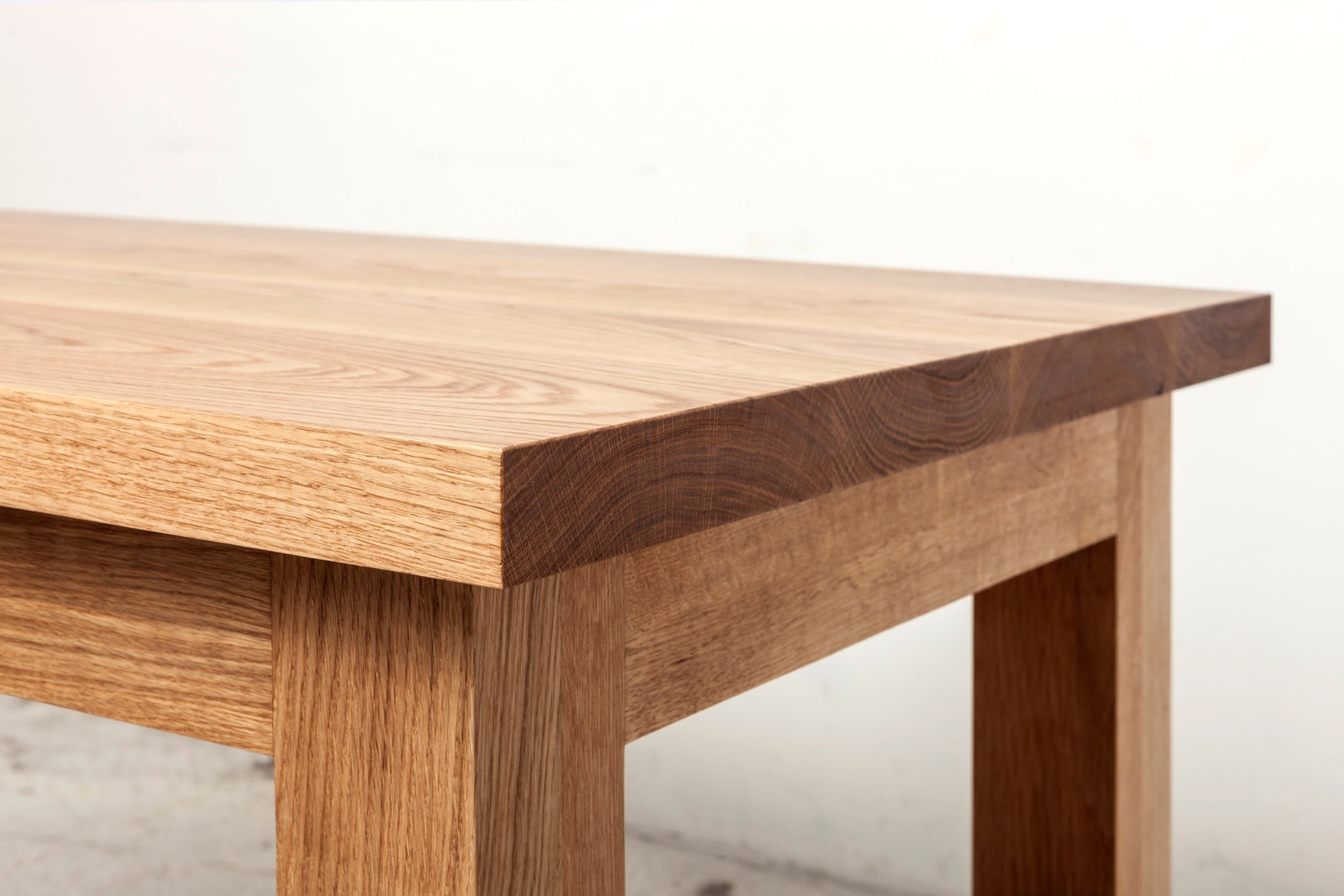

Flat, stable panels are the foundation of high-quality furniture. Whether it’s a dining table, cabinet door, benchtop or sideboard, a warped panel can compromise both function and aesthetic. Bowing, cupping or twisting are common issues woodworkers encounter — particularly in wide, solid wood panels — and these distortions can develop even after a piece is completed. Once warped, a panel might not close properly, may rock on its base, or simply look unprofessional. Understanding the cause of these issues and knowing how to control them is essential for long-lasting craftsmanship.
Understanding Timber Movement and Panel Deformation
Timber is a natural, hygroscopic material (absorbs moisture from the air) that expands and contracts with changes in humidity and temperature. Even kiln-dried timber, carefully selected and prepared, will move over time. The most common distortions are:
- Cupping – where the board curves across its width
- Bowing – where the board curves along its length
- Twisting – where corners lift in opposing directions
These movements are especially noticeable in thinner panels or wide glue-ups. They’re often exacerbated when one side of the timber is exposed to more moisture than the other — such as in tabletops, shelves or doors. It's also common in repurposed or reclaimed timber, but even freshly milled stock isn't immune. Rather than trying to eliminate movement entirely, a better approach is to build in allowances for it — and that’s where timber battens come into play.
Using Timber Battens to Control Warp and Cupping
A timber batten is a structural support installed beneath a panel to help keep it flat. Battens resist deformation by applying opposing force against any natural movement in the timber. They are especially effective on wide panels like dining tables, drop-leaf extensions, cabinet doors, and workbenches. The concept is simple: attach a stiff, stable piece of timber perpendicular (or diagonally) to the grain of the main panel to hold it in place.
Battens can be made from solid timber (preferably stable species) and should be sized appropriately — thick and wide enough to resist bending under tension. They’re typically fixed using screws, bolts, or hardware like insert nuts. For visual consistency, battens can be shaped to match the form or aesthetic of the overall design.
Some woodworkers glue battens, but this is only viable if the grain direction and movement pattern match perfectly. In most cases, mechanical fastening with allowances for movement is preferred. This ensures the batten holds the panel flat while still allowing for seasonal expansion and contraction.
Designing Battens to Allow for Movement
The most critical element in effective batten installation is allowing for timber movement. Simply screwing a batten directly to a panel without considering expansion will eventually lead to stress fractures, warping, or outright failure. Here's how to avoid that:
- Slotted Holes: Drill elongated slots in the batten where the screws or bolts go through. This allows the panel to move slightly across the grain as humidity changes.
- Insert Nuts & Bolts: Using threaded insert nuts and bolts gives a stronger, more reliable fixing — especially on thinner panels. Pre-drill carefully to avoid blowout, and ensure bolt lengths don’t puncture the top surface.
- Countersinking: When using bolts, sink the head below the surface of the batten to avoid interfering with surrounding structures or the user’s hands.
Placement also matters. Fix the centre of the batten firmly, and allow the outer fixing points to slide within the slotted holes. This approach balances stability with freedom of movement and prevents stress building up at the ends of the panel.
Adding Controlled Tension: Using Cambered Battens
Sometimes, panels are already bowed or cupped — especially in reclaimed or older timber. In such cases, you can use cambered battens to gently pull the panel flat. This involves shaping the batten with a slight curve that applies inward pressure when fastened. By introducing a calculated camber (even just 1–2mm), you create opposing force that counteracts the panel’s warp.
This method is especially useful on panels with noticeable deviation across the width. You can determine the camber needed by temporarily using shims at the ends of the batten to pre-load the curve, then shaping it with a bobbin sander, spokeshave, or jointer. The goal is to encourage the panel back to flat without forcing it unnaturally.
Finishing Touches and Design Considerations
Timber battens don’t need to be clunky or visually distracting. When thoughtfully shaped and integrated into the design, they can complement the overall aesthetic — or even become a subtle design feature. Choose timber that matches or contrasts nicely, echo existing curves or angles, and keep joinery clean. In high-end work, even hidden components deserve attention.
