UJK Parf MK II Guide System

Do you want to create a custom-made bench top? Or a portable cutting board? Perhaps a replacement MFT top? With the award winning UJK Parf Mk II Guide System, you can do all of this and more.

The versatile jig system allows you to make a simple configuration in less than 30 minutes whenever the need arises. It may appear complicated at first sight; in reality, it is quite straightforward with highly accurate results easily achievable.

Based on Pythagoras' theorem, it guarantees accuracy and eliminates any chance of cumulative error. It helps produce a bench top with a truly accurate pattern of 20mm holes. When used with a set of UJK Super Dogs, a guide rail and a track saw, it guarantees perfect, quick and easy 45° and 90° cuts every time. The UJK Parf Mk II Guide System is an invaluable tool for professional trades and home workshops.

The MK II guarantees drilling accuracy overtime. It allows you to create a tighter grid format at 32mm or 48mm spacing giving you more options when cutting, assembling or clamping. It's also supplied with a centrotec bit holder for your 3mm drill bit resulting in easier operation.

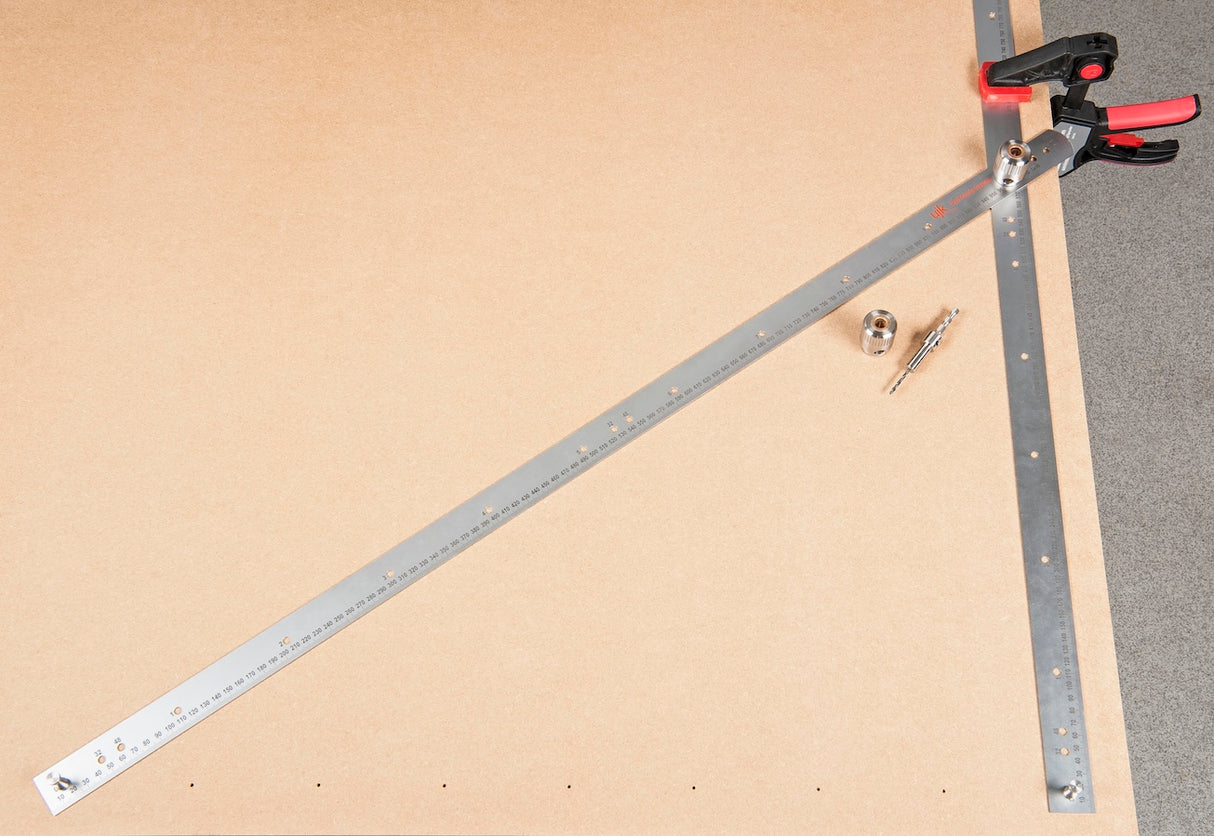

The Parf Mk II Guide System uses 2 x Mk II Parf sticks along with a drill guide and a special 3mm drill bit to create rows and columns of holes at perfect right angles. Once the pattern of 3mm holes is complete, use the Parf guide block and 20mm boring bit to enlarge the holes and your bench top is finished and ready to take bench dogs. The Parf sticks have a metric scale along one edge so that they may have other uses in the workshop.

The design of the UJK Parf Mk II Guide System preserves and guarantees the long-term accuracy of the jig as well as improving the ease of use. The accuracy of the system is dependent on the very tight tolerance of the holes in the Parf stick. The Mk II drill guides locate positively into holes in the UJK Mk II Parf Stick. The guides feature an oilite bush to guide the Mk II 3mm drill bit. This design prevents any possibility of wear or elongation of these vital holes as a result of repeated use. Additional holes in the Mk II sticks offer the possibility of drilling intermediate holes at 32mm or 48mm centres or holes at predetermined angles other than 90°.

Please note: 3/4in cutter is not supplied.

Features

• Build a portable workstation, replacement MFT (multifunction table) top or multiple cutting boards in as little as thirty minutes or less
• Produces a precise pattern of 20mm holes and guarantees perfect 45° and 90° cuts, every time
• Based on the Pythagoras' theorem for infallible accuracy
• Eliminates chance of cumulative error
• Use with a host of 20mm dog fitting and accessories
• Straightforward to use, for a host of guiding and clamping tasks
• Guaranteed long-term accuracy for professional and home workshops
• All components made, checked or assembled in Axminster for UJK
• Developed by UJK and Peter Parfitt, a joint development with Axminster Tools

What's Included

• 2 x 1m long Mk II Parf sticks, with holes along their length at 96mm centres
• 2 x Mk II drill guides
• 1 x 3mm drill bit
• 3 x Mk II guide pins
• 1 x Extractor outlet
• 1 x Guide block
• 2 x Low profile dogs and a special
• 1 x 20mm TC drill bit with a 3mm centre guide

Who is UJK?

UJK is designed, developed and created by woodworking experts, with over 50% of the tools British Made. UJK offer exciting additions that'll liven up any workshop and take your creations to a higher level. Precisely engineered with jaw-dropping accuracy, the beauty is truly in the detail when it comes to UJK. Each product features tweaks, developments and new technologies that you won't find elsewhere. No-one is more passionate or knowledgeable about woodworking than UJK.
