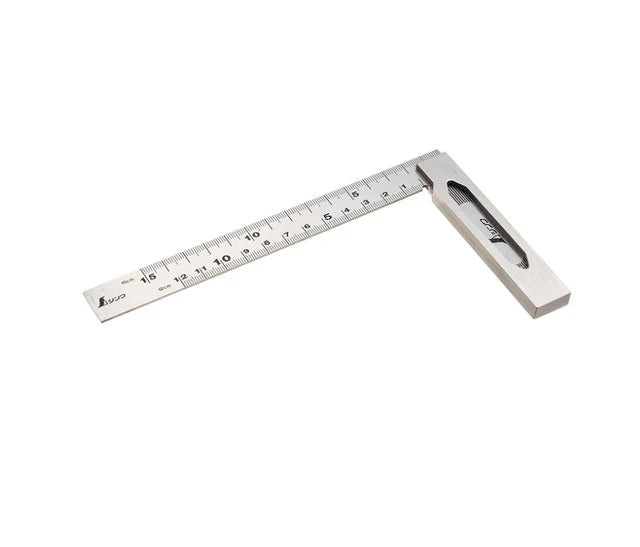

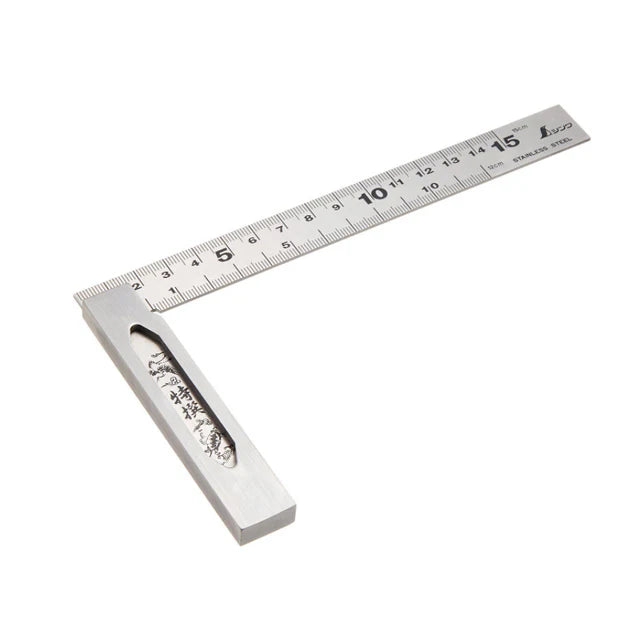

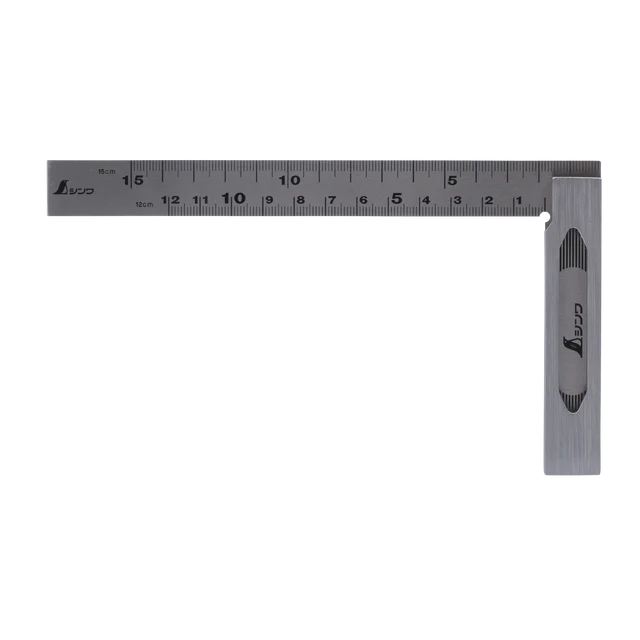

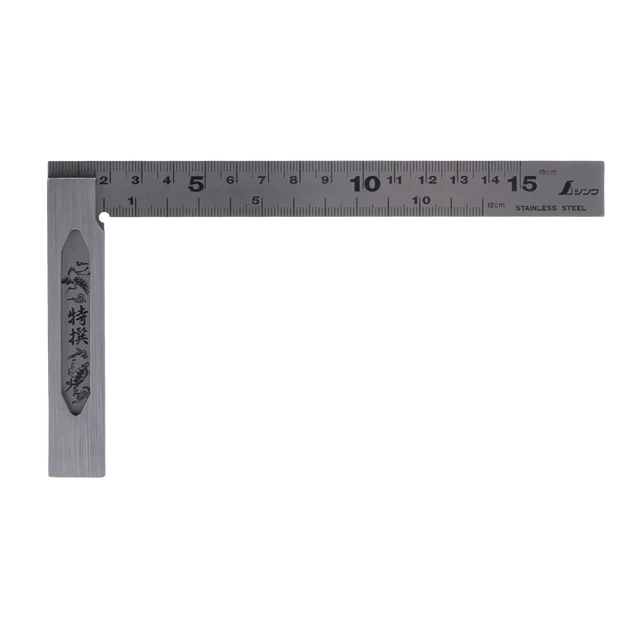

Shinwa Try Square 15cm Stainless Steel Metric

This 15cm All-Steel Try Square is a straightforward and incredibly precise tool, designed for reliable accuracy in all your measuring and marking tasks.

Constructed entirely from stainless steel, it boasts exceptional durability. The blade features clear millimetre markings on both edges of both sides: the outside edges read from 0 at the outside of the square, while the inside edges read from 0 at the reference edge, offering versatile measurement options.

For enhanced accuracy, the inside reference edge includes a small circular relief, ensuring the square sits flush against your workpiece and preventing uneven corners from interfering with precise measuring and marking.

Features

• All-Steel Construction: Ensures exceptional durability and long-lasting accuracy.
• Dual-Sided Millimetre Markings: Reads from 0 on both outside and inside edges for versatile use.
• Precision Squareness: Manufactured to be precisely 90 degrees, with an angle accuracy of 0.1 mm or less per 100 mm.
• Circular Reference Relief: Prevents uneven corners from affecting accurate measurements and marking.
• Made in Japan

Specifications

Base Dimensions: 94 x 18 x 8mm
Ruler Dimensions: 177 x 18 x 1.5mm
Angle Accuracy: 90 degrees: ±0.1 mm or less per 100 mm
Length Tolerance: ±0.3 mm
Material: Stainless steel
