Sherwood 110 x 6in Oscillating Belt Sander 2200W Edge Sander with Cabinet Stand

Name: Contact Phone Number: Email Address: Comment:

Estimate your Shipping:

The perfect sanding solution for larger industrial workshops.

For all-around versatility in a sanding machine, you can't beat an Oscillating Edge Sander.

Description

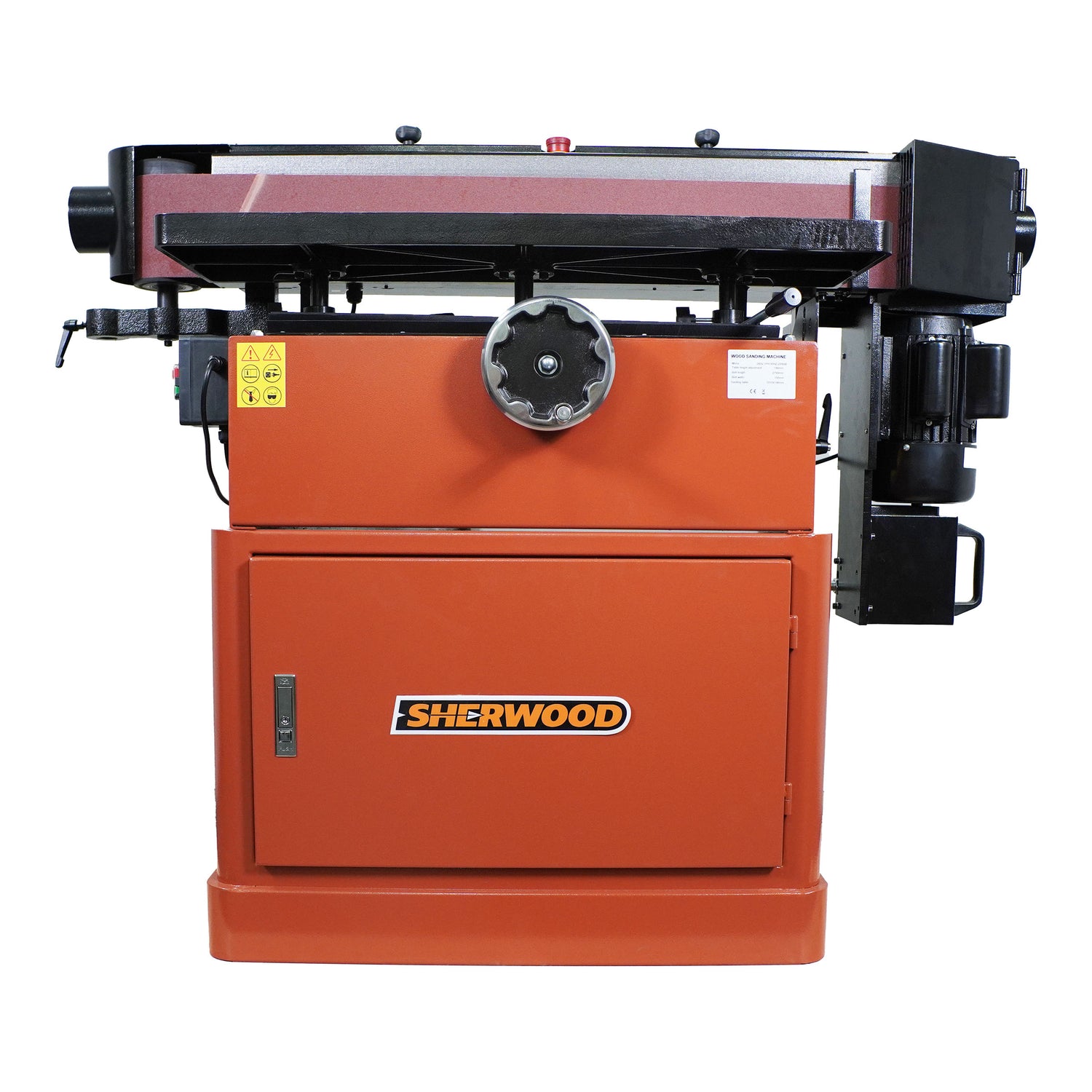

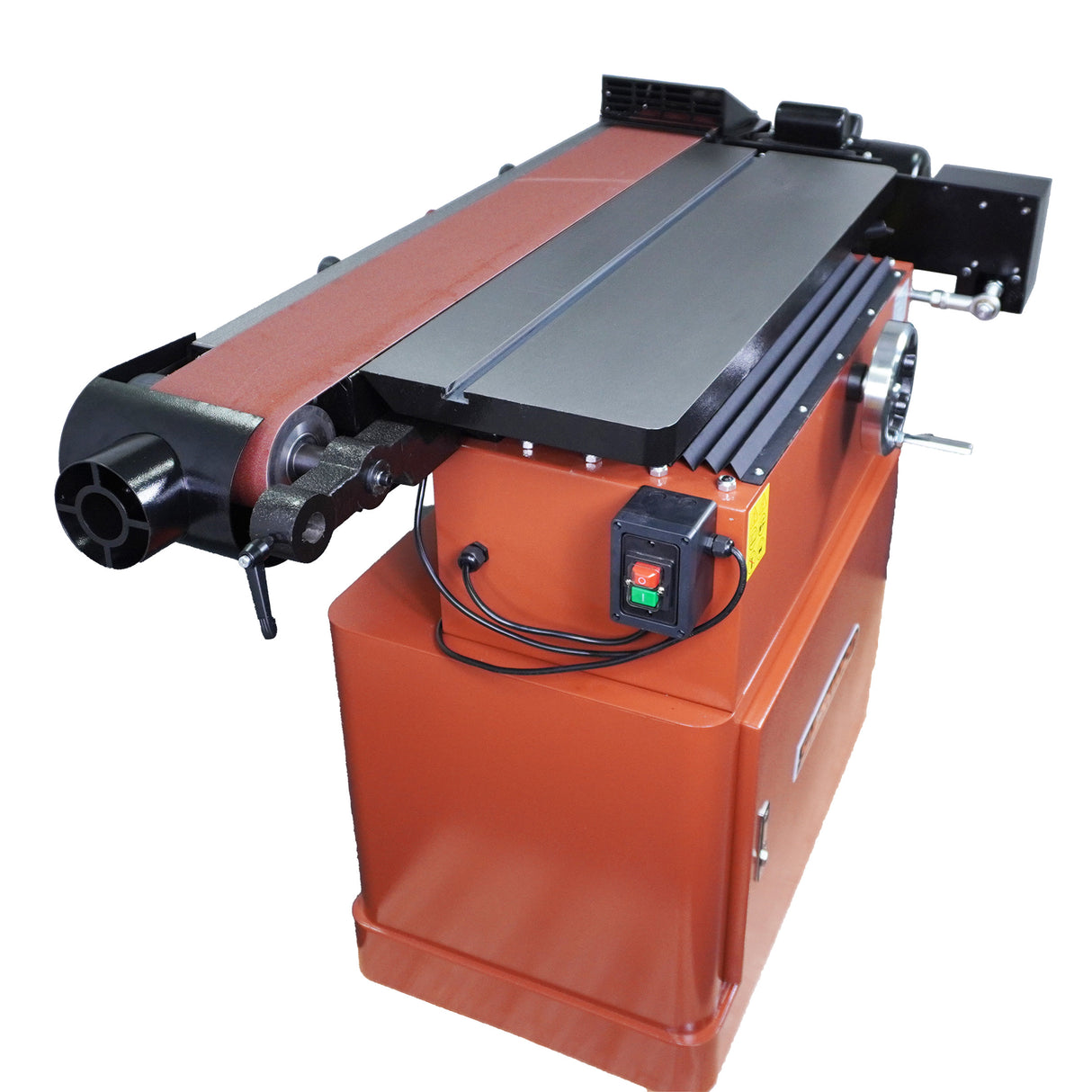

The Sherwood SOB-6-X-110 delivers a large sanding surface combined with an oscillating belt and a large precision-ground cast-iron table for efficient edge-sanding. There is plenty of power on tap: the belt is direct driven by a high-torque 2HP four-pole induction motor, which make it almost impossible to bog down.

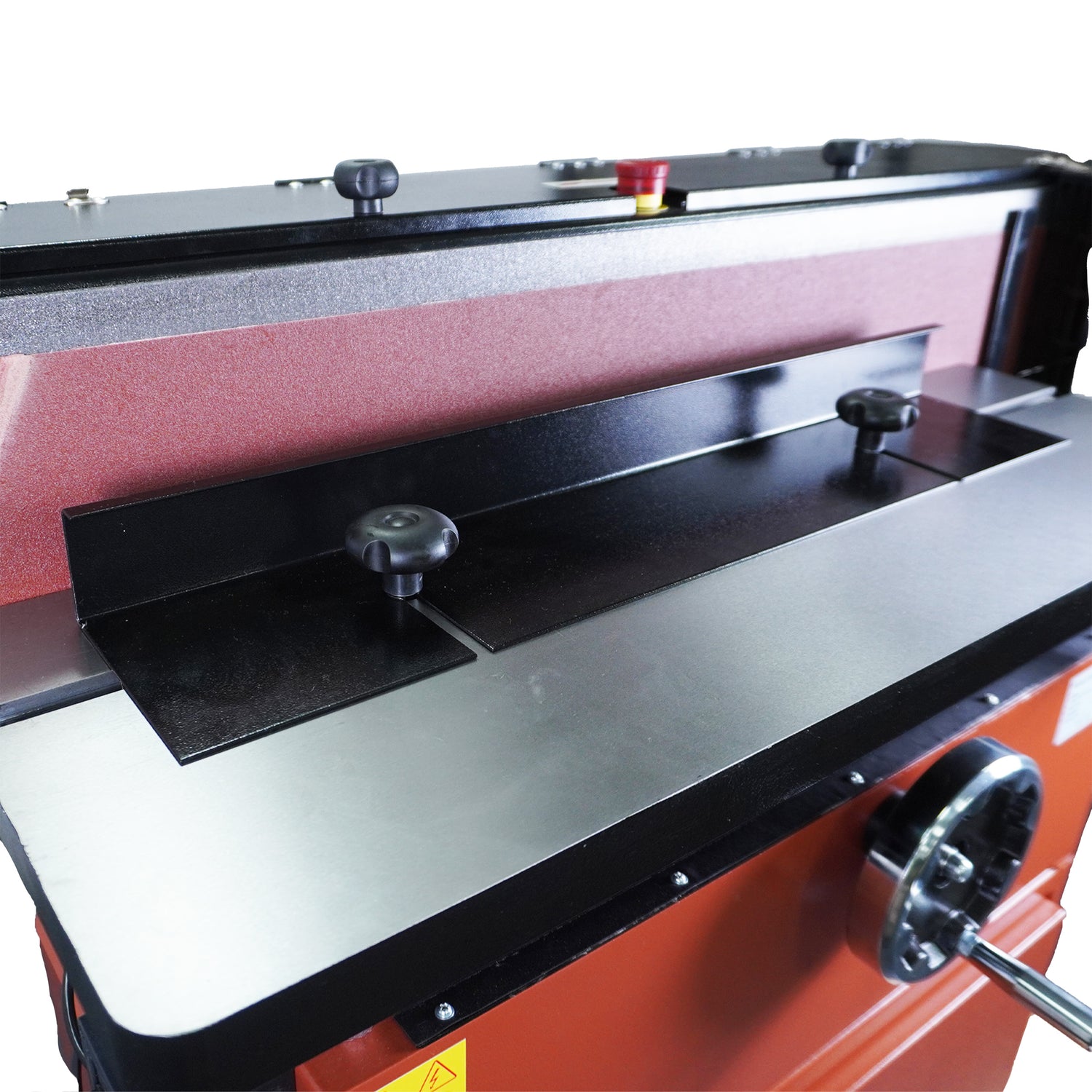

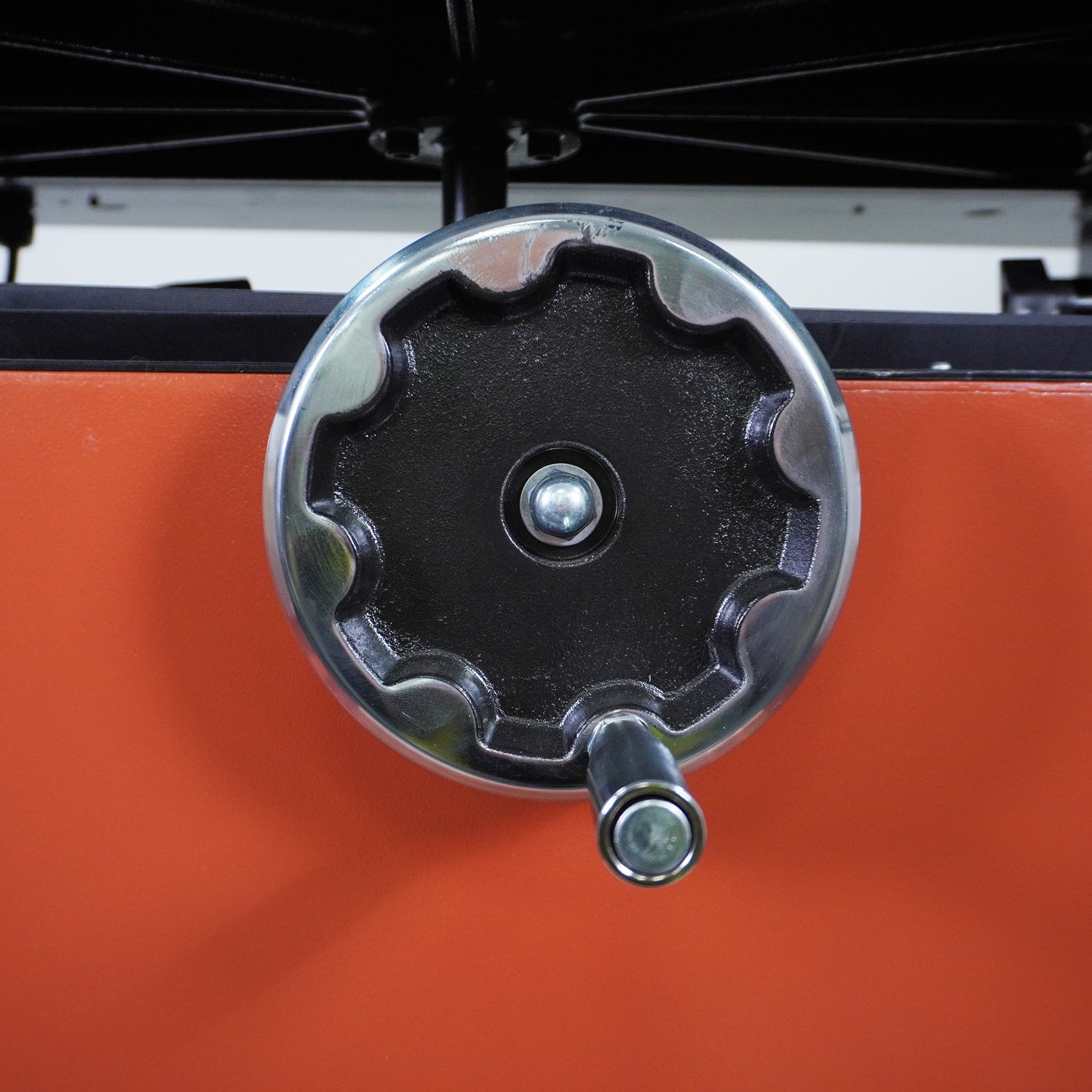

The edge-sanding table is handwheel-controlled for vertical adjustment and angle sanding is much easier to manage since the sanding belt tilts instead of the table. And when the sander is flipped to face upwards the fence can be extended over the sander to give you the ultimate level of control over your workpiece.

The sander can be fitted with the extra end table to become a spindle-style sander and allow inside curves to be sanded. Three spindles are included: 76mm, 52mm, and 40mm. This extra capability means that the SOB-6-X-110 replaces your oscillating spindle sander, saving your precious workshop floor space!.

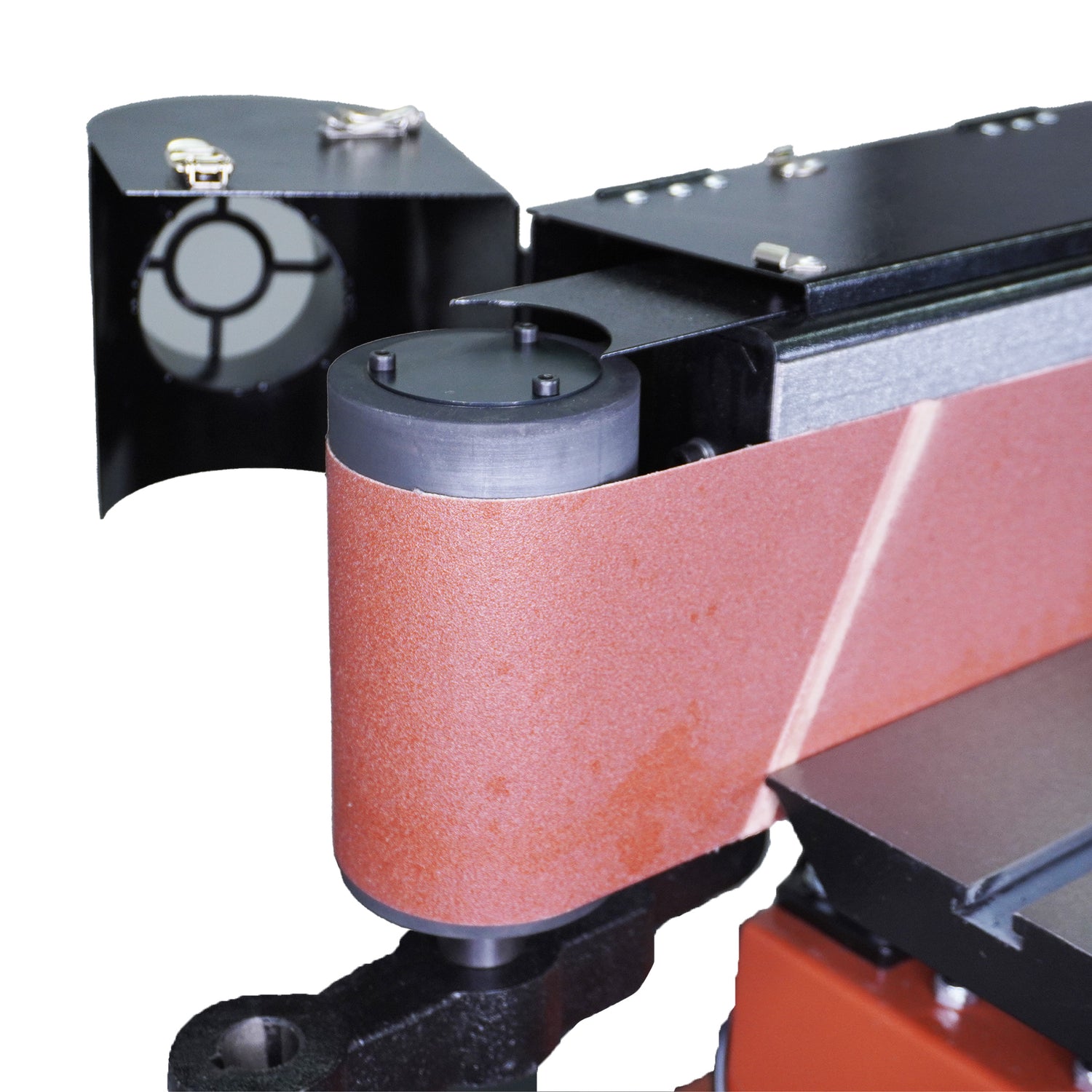

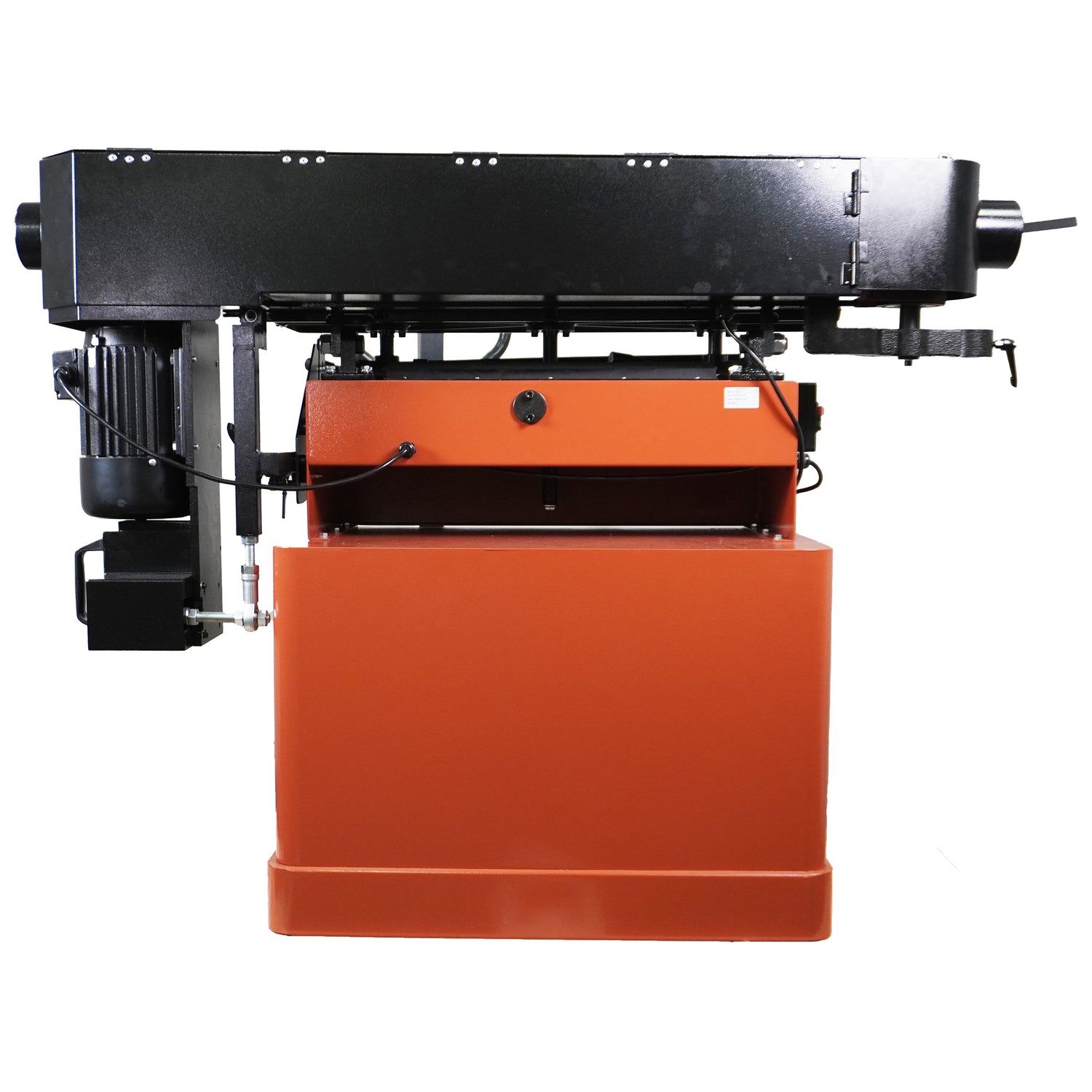

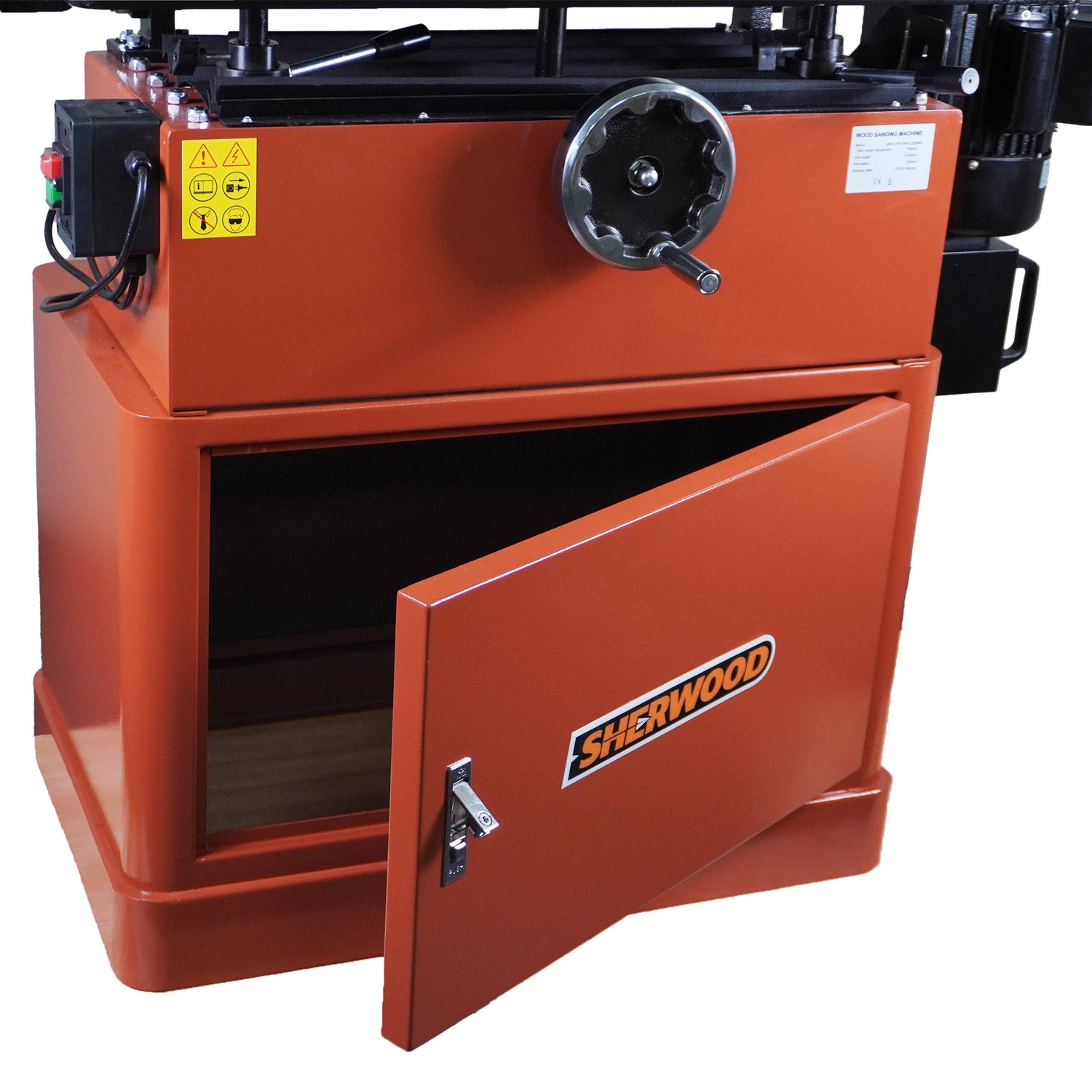

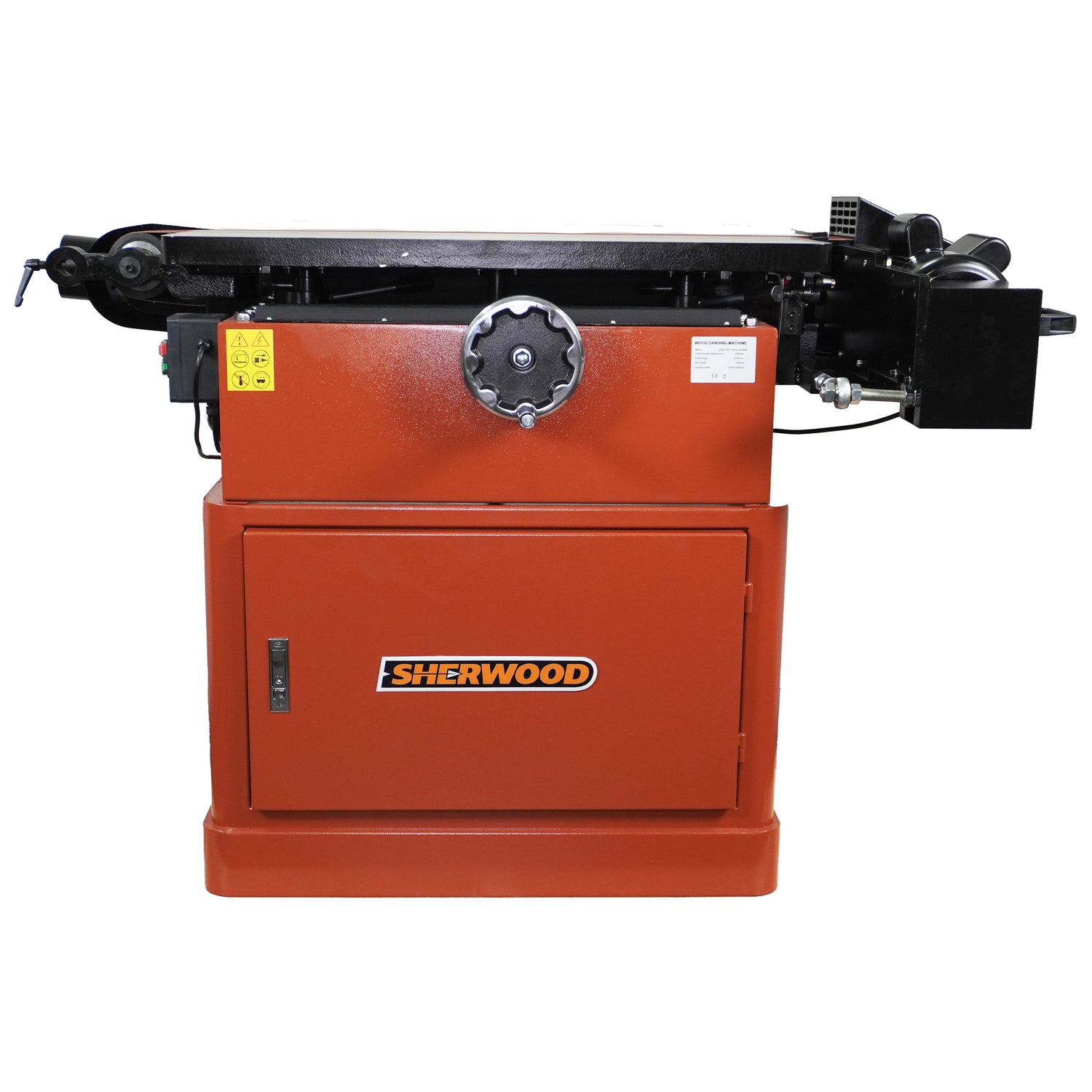

The whole unit sits on top of a steel cabinet that provides a safe space to store your end table and spindles. Excellent dust control is achieved through the two 4in dust ports connected to close-fitting dust manifolds at either end of the belt.

Features

3 x spindles for internal curve sanding (7 6mm, 52mm &40mm)
T-Slot table & mitre gauge

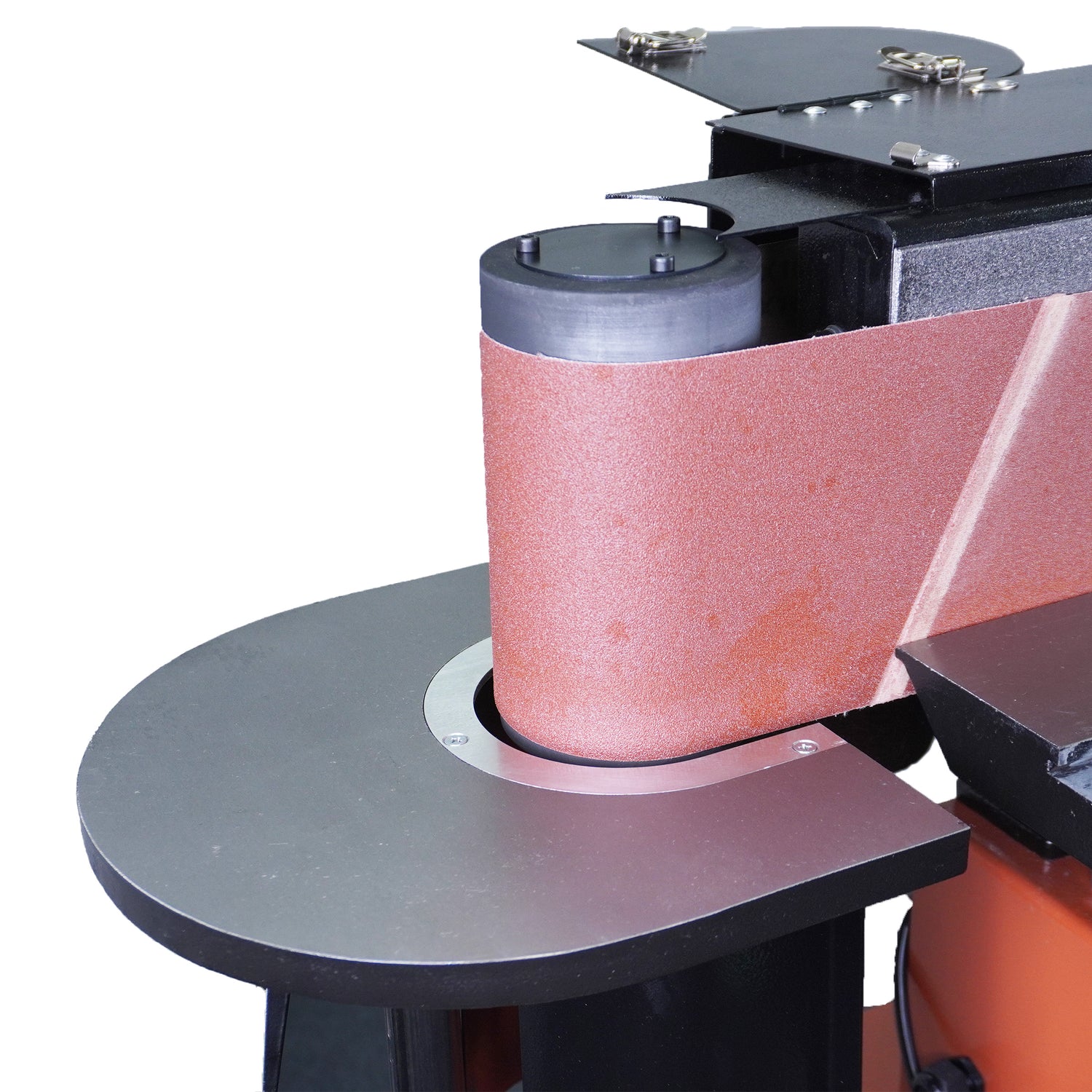

Cast Iron end table for rounded sanding
Adjustable platen angel from 0 to 90 degrees
Two 4in dust ports
Quick-release belt tension lever
Graphite-coated platen
Oscillating sanding belt
Shielded & permanently lubricated ball bearings
Precision-ground cast-iron tables

5-Year Warranty

All Sherwood products feature a standard 5-Year limited warranty. No other belt & disc sander in its class is more supported than the 110in Sherwood Oscillating Belt Sander.

Specifications

Motor: Single Phase 4-pole 2200W 3HP 10A, 1400RPM
Table size: 895 W x 305mm D
Aux Table Size: 290 W x 260mm D
Table travel: 115mm
Aux. table travel: 375mm
Sanding belt size: 150mm (6in) x 2260mm (90in)
Sanding belt speed: 2520 FPM
Sanding belt oscillation stroke: 10mm
Drive drum diameter: 175mm (7in)
Idler roller diameter: 54mm (3-7/8in)
Platen tilt: 0° through 90° (5° scale)
Approx. shipping weight: 225kg

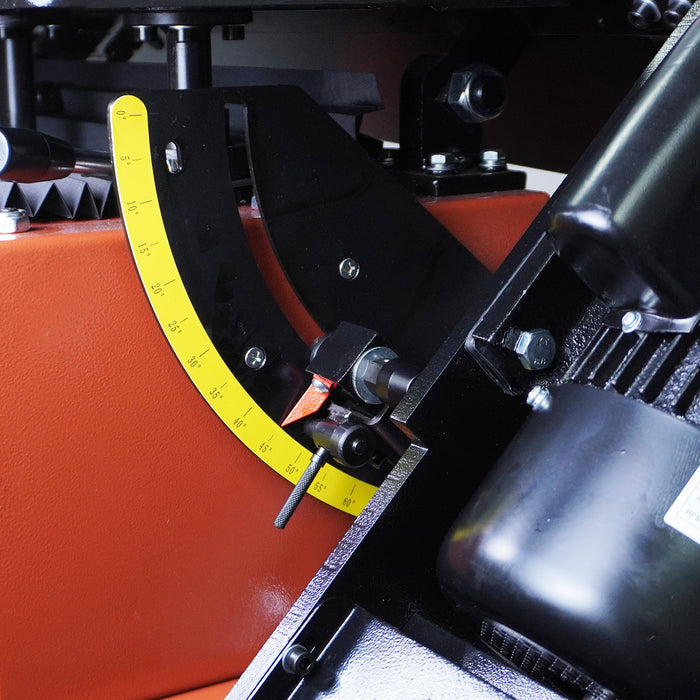

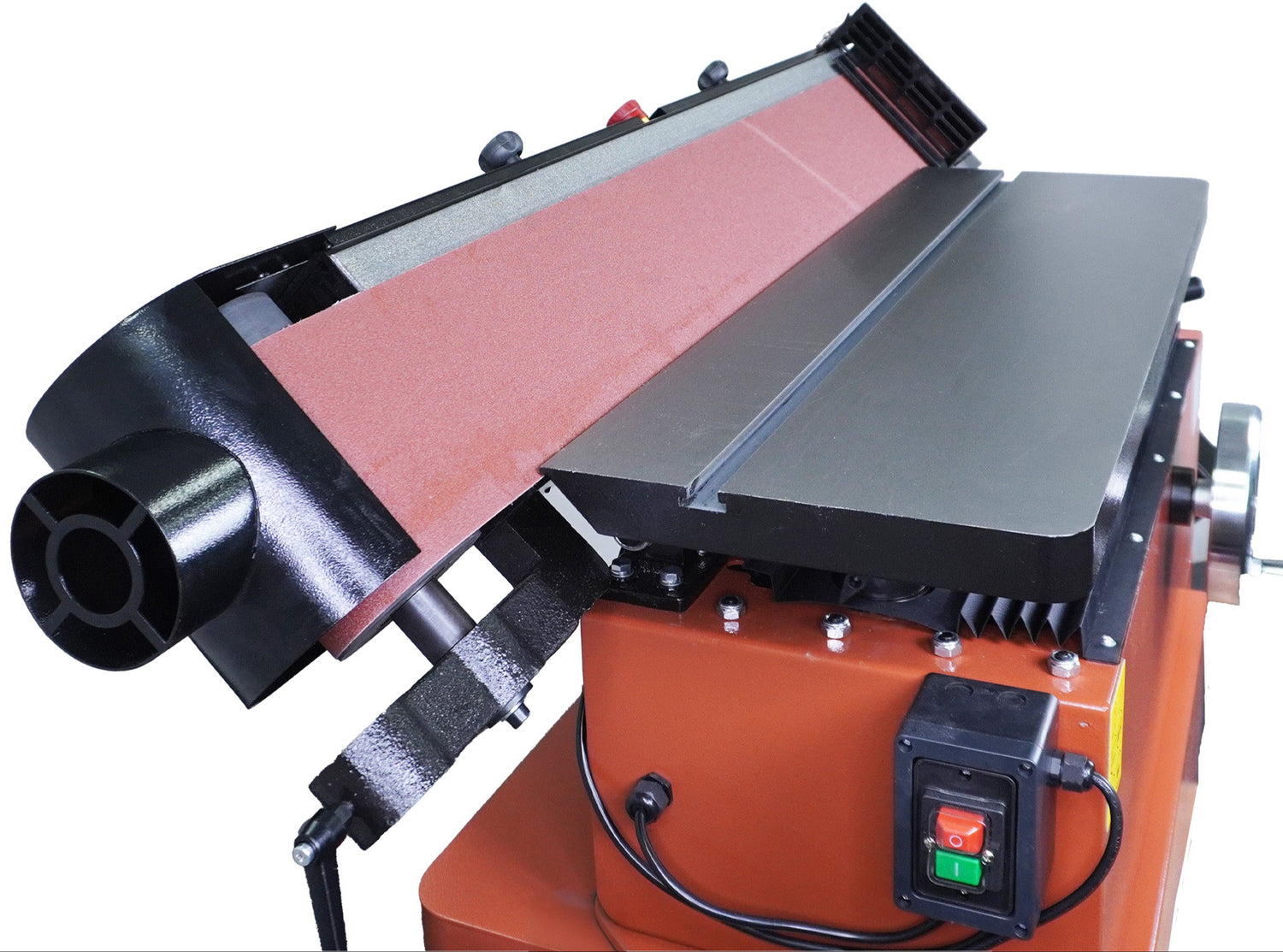

Fully Adjustable Platen Angle

Continuous adjustment of the platen to any angle between 0 and 90 degrees gives you total control for precise results. Three indents at 0, 45, and 90 degrees keep the platen steady while you dial in the exact angle.

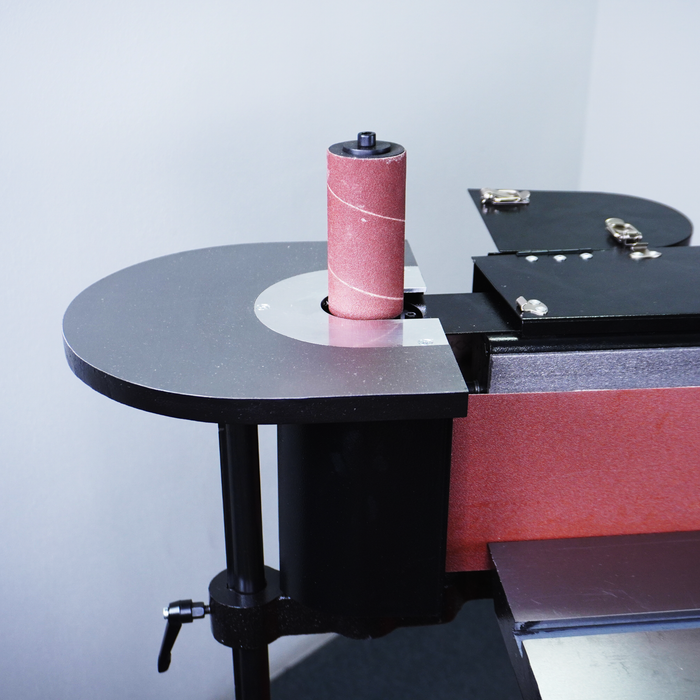

Spindle Sanding Attachment

Convert the SOB-6-X-110 to a high-power spindle sander quickly and easily - free up your floor space!

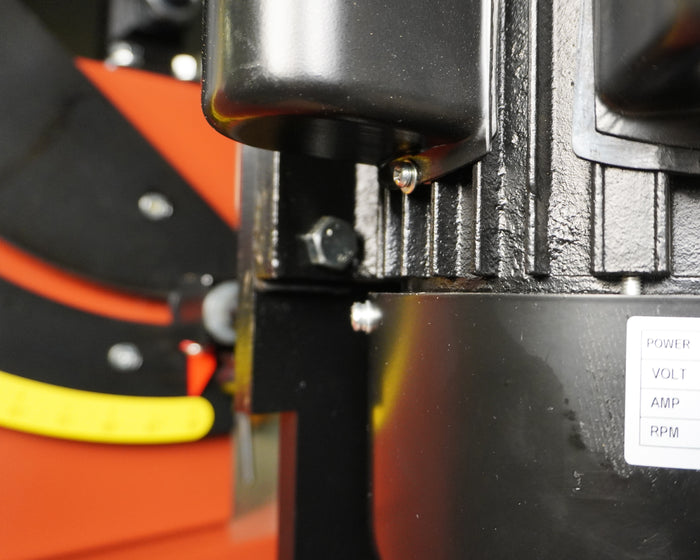

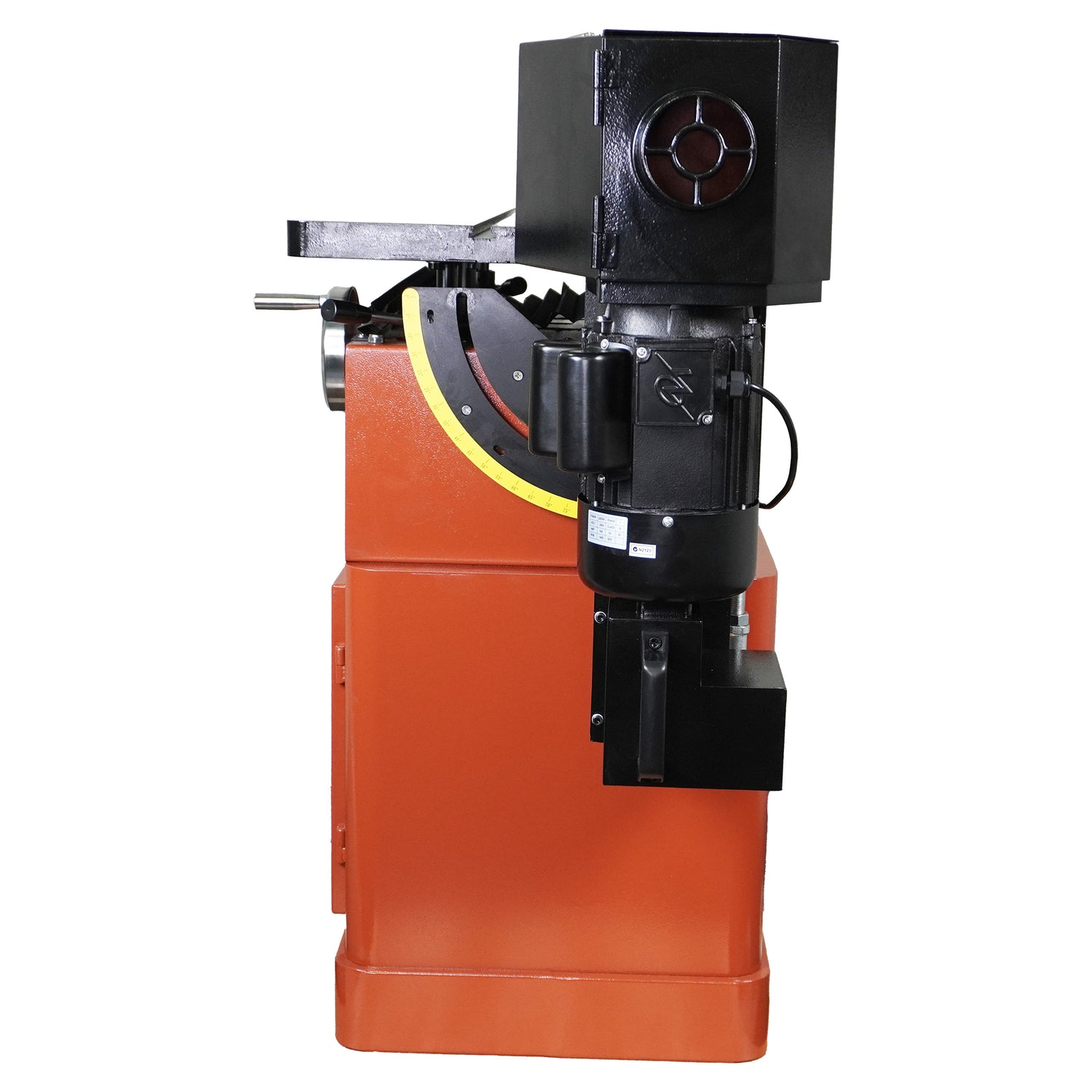

3 Horsepower, 4-Pole Induction Motor

Powered by a beefy 4-pole 2200W motor, the SOB-6-X-110 makes short work of the hardest timbers - even on end grain!

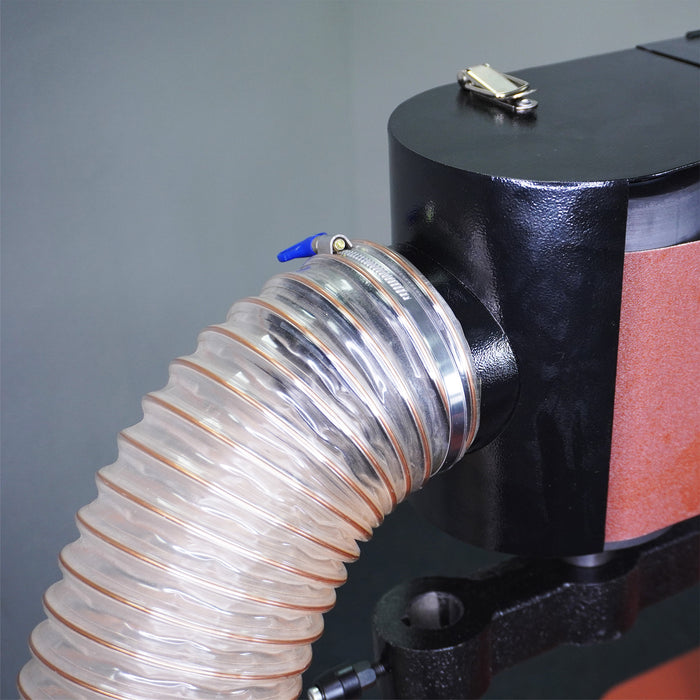

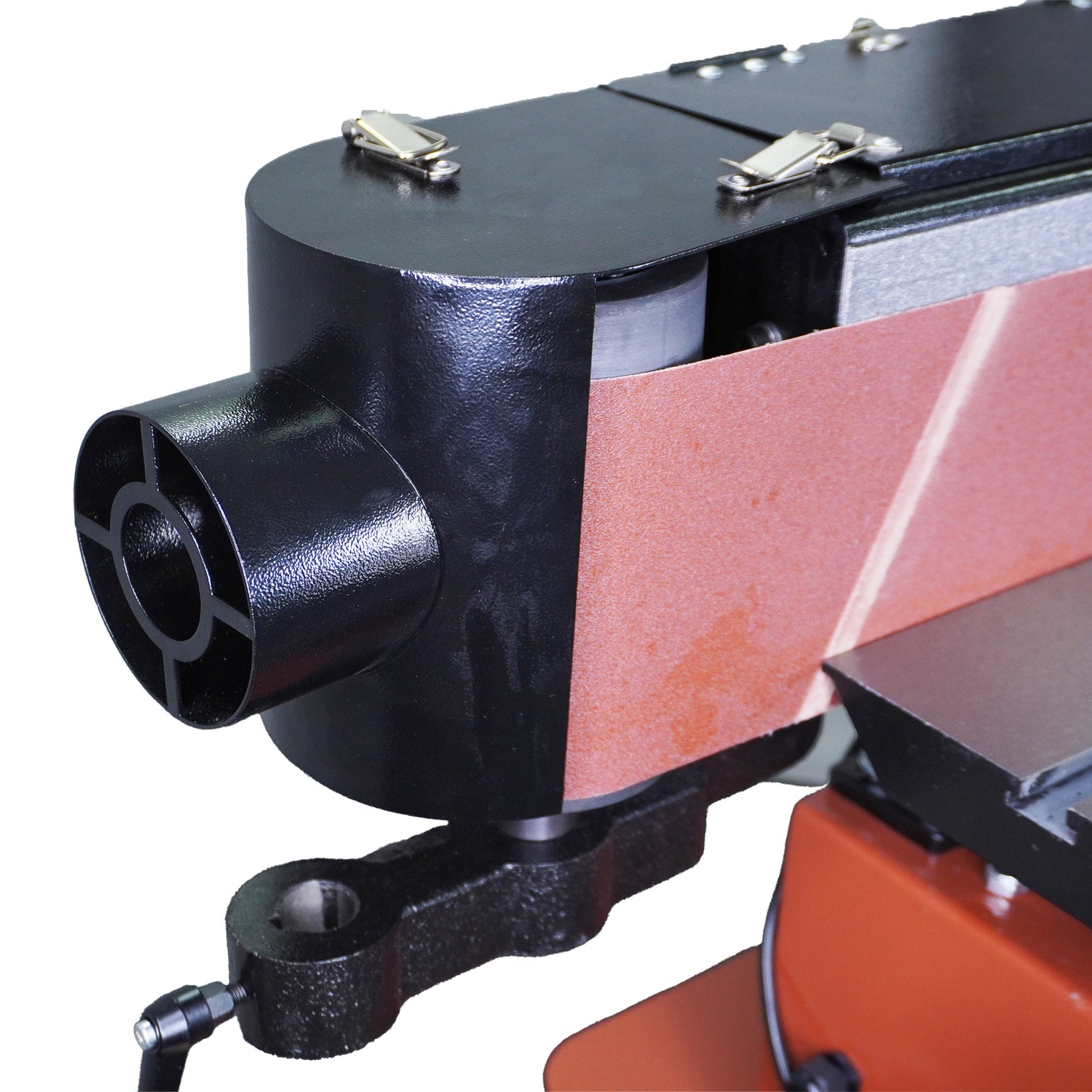

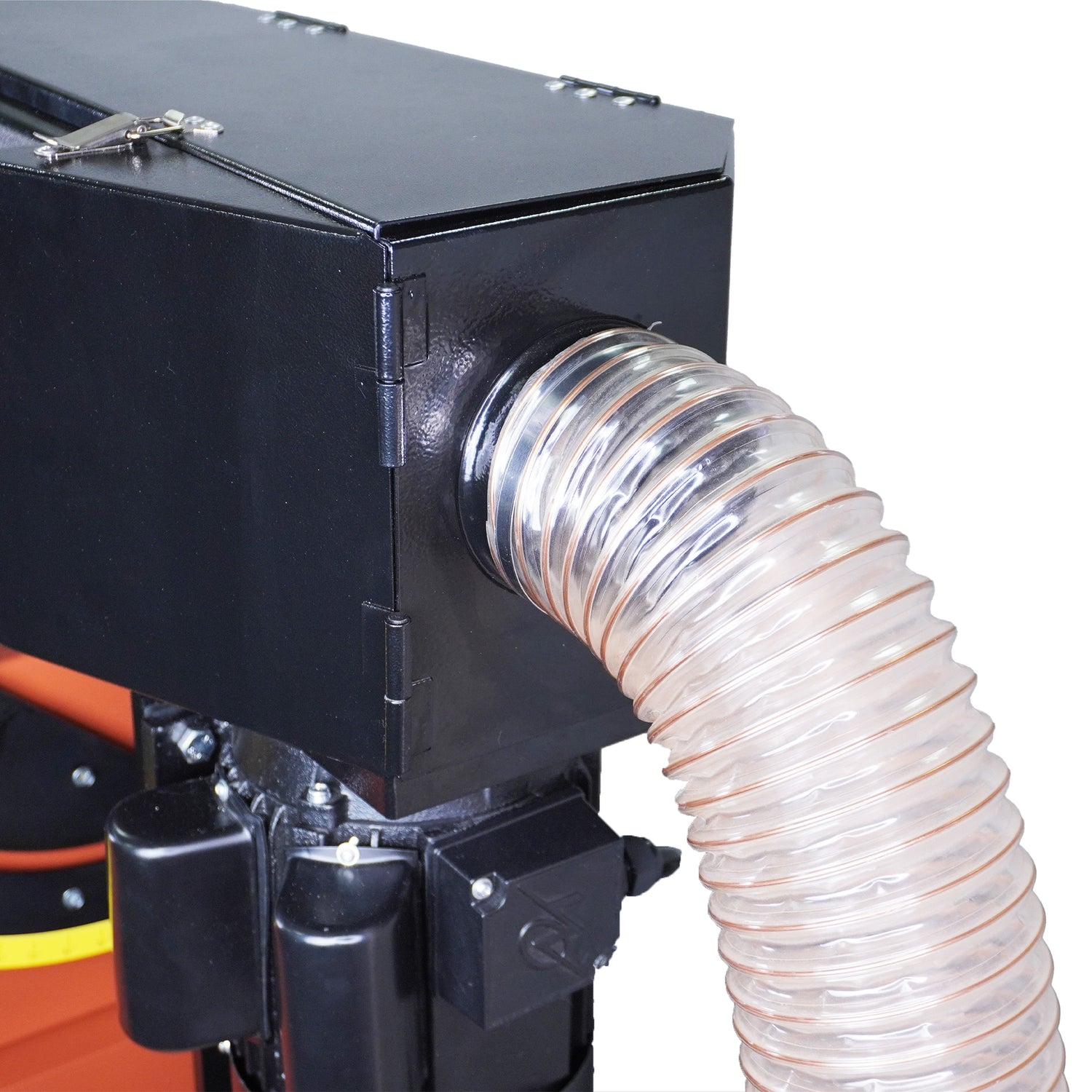

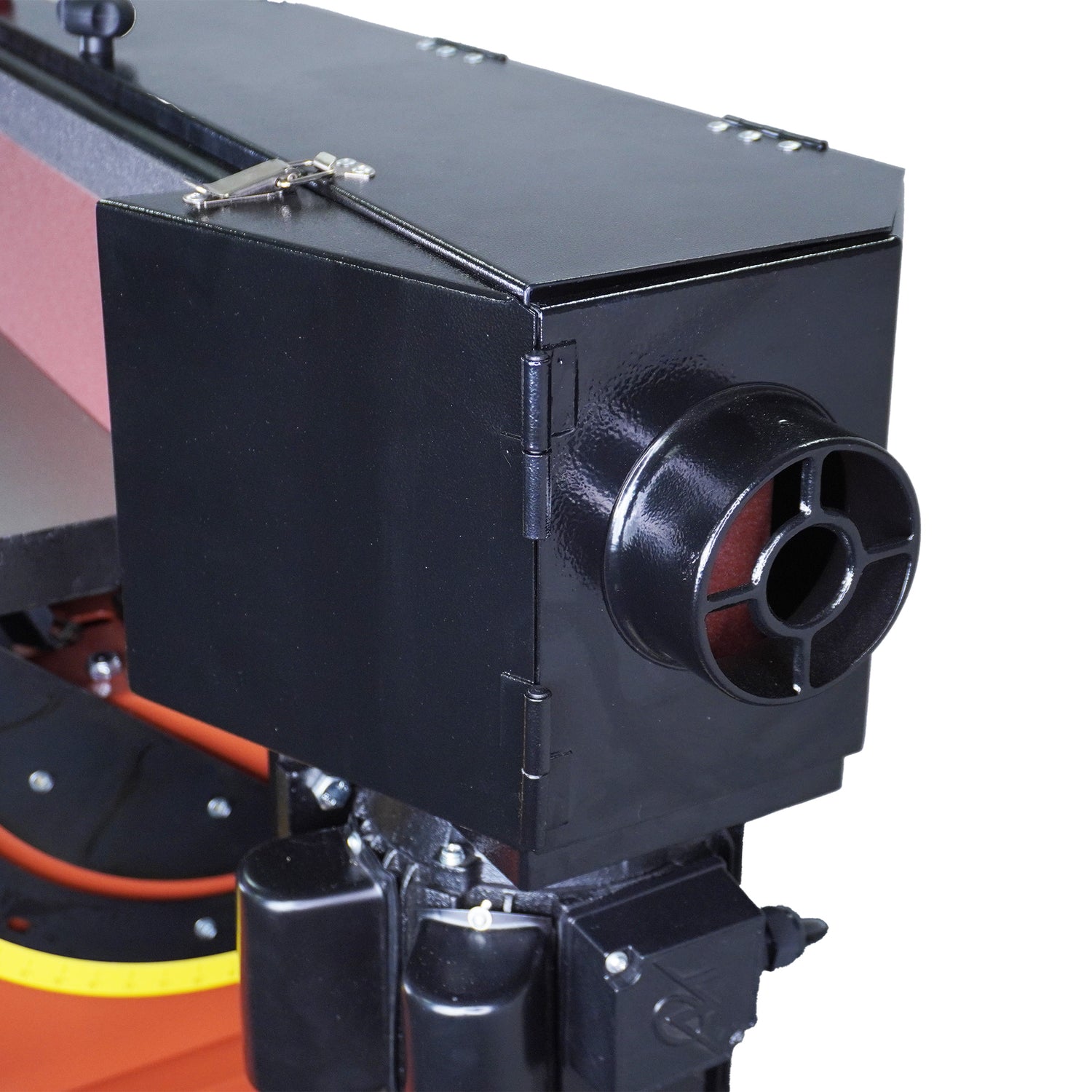

Superior Dust Management

You'll create a lot of dust with this machine. Luckily, it features excellent dust management architecture, with a 4in duct port attached to a close-fitting manifold around each drum.

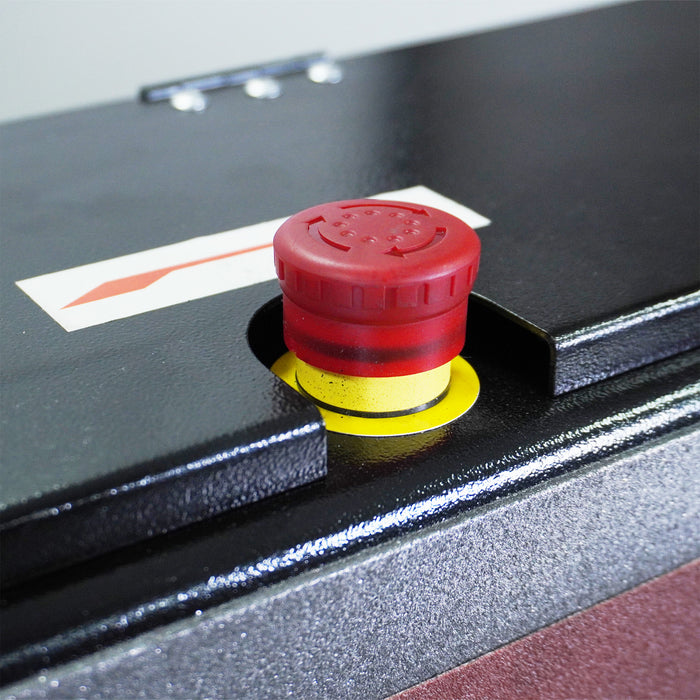

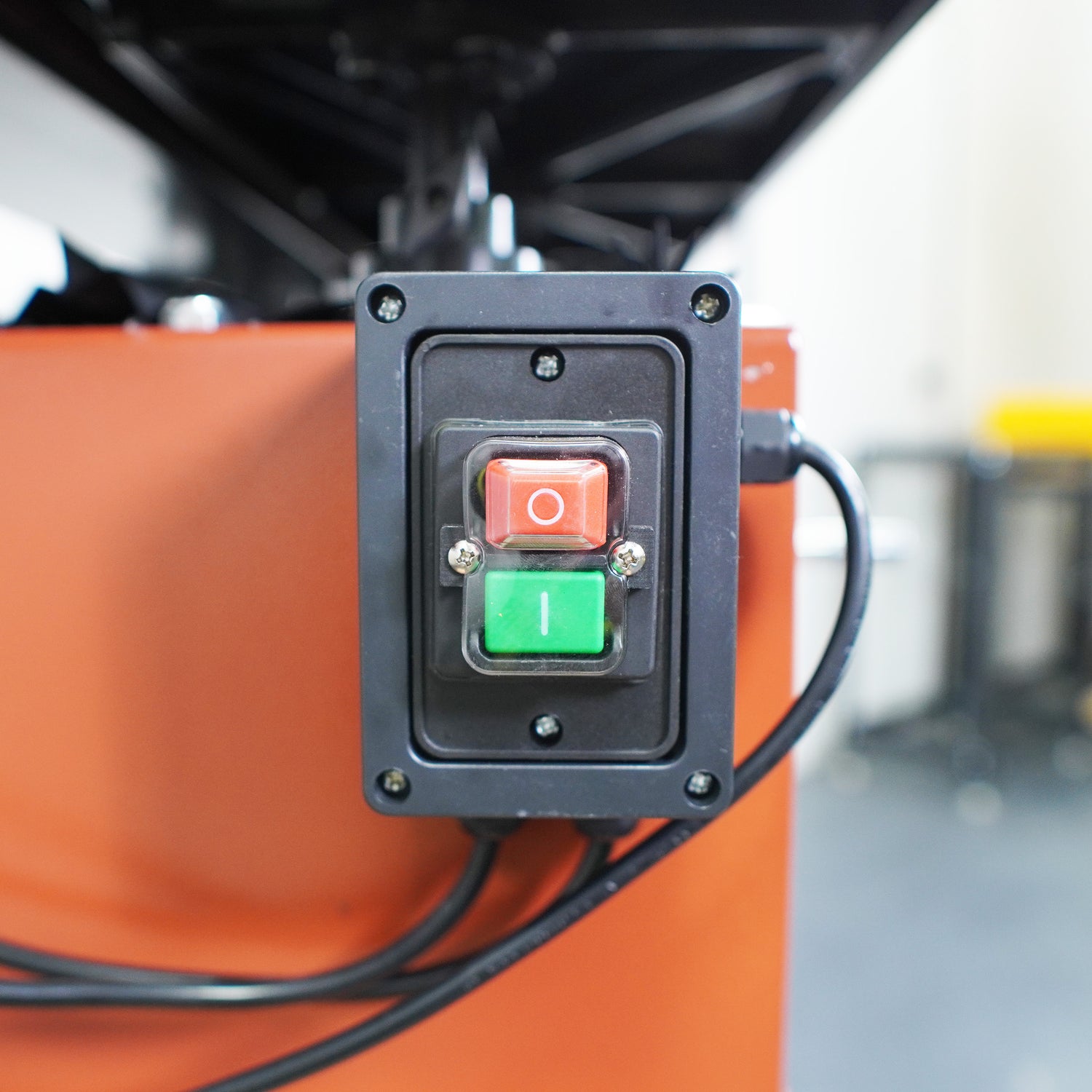

Safe, Reliable Sanding

An emergency stop is located within easy reach on the top of the machine, while guards under the auxiliary table and around the drums minimise the chance of any unwanted contact.
