Sherwood Router Motor 1000W Round Body ER20 Variable Speed

Sherwood Round Body Router Motors are a professional grade variable speed motor suitable for use in your Sherwood or compatible router table lift.

A little more petite than the SRM-1800-N, this 1000W Sherwood Round Body Motor is perfectly suited to benchtop router setups. Using the included lift adaptor, it easily fits into router table lifts such as the Sherwood RLIFT-4-B, RLIFT-8 and any other router lift that accepts a 106.7mm round body. Once fitted you can use the router lift controls to adjust the router's height. Take control of your routing with a Sherwood Round Body Motor and router lift.

Variable speed

The Sherwood Round Body Motor offers an easily adjusted, broad speed range of 10000 to 22000RPM. Tune your routers RPM to suit any kind of machining job with the simple twist of a dial. Variable speed control is ideal for machining tricky shaped pieces, working to minimise the chance of kick back at slow speeds. And when routing long, straight lengths of predictable moulding - let her rip!

Portable and functional

This round body motor is perfect for benchtop router table setups. Weighing in at just 3.5kg, this motor is easy to move and install. Build a custom cradle for the 88mm body, or simply use the provided 106.7mm adaptor to fit your motor in a Sherwood router lift.

The ER-20 collet system

Increase the versatility of your router setup with the ER-20 collet system. Rather than being limited by a router chuck that only accepts 1/4in and 1/2in shanks, the ER-20 system allows your router to accept a broad variety of different bit shank sizes from 1mm up to 13mm.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other round body motor in its class is more supported than the Sherwood 1000W Round Body Motor.

Features

• 1000W (1.4hp output)
• Variable speed 10000 – 22000RPM
• Includes 1/4in and 1/2in chuck collets
• Accepts the ER20 Collet system
• Bare motor body diameter 88mm
• Motor body diameter with included lift adaptor fitted 106.7mm
• Suits Sherwood RLIFT-4 & RLIFT-5 with lift adaptor fitted
• Easily accessed controls

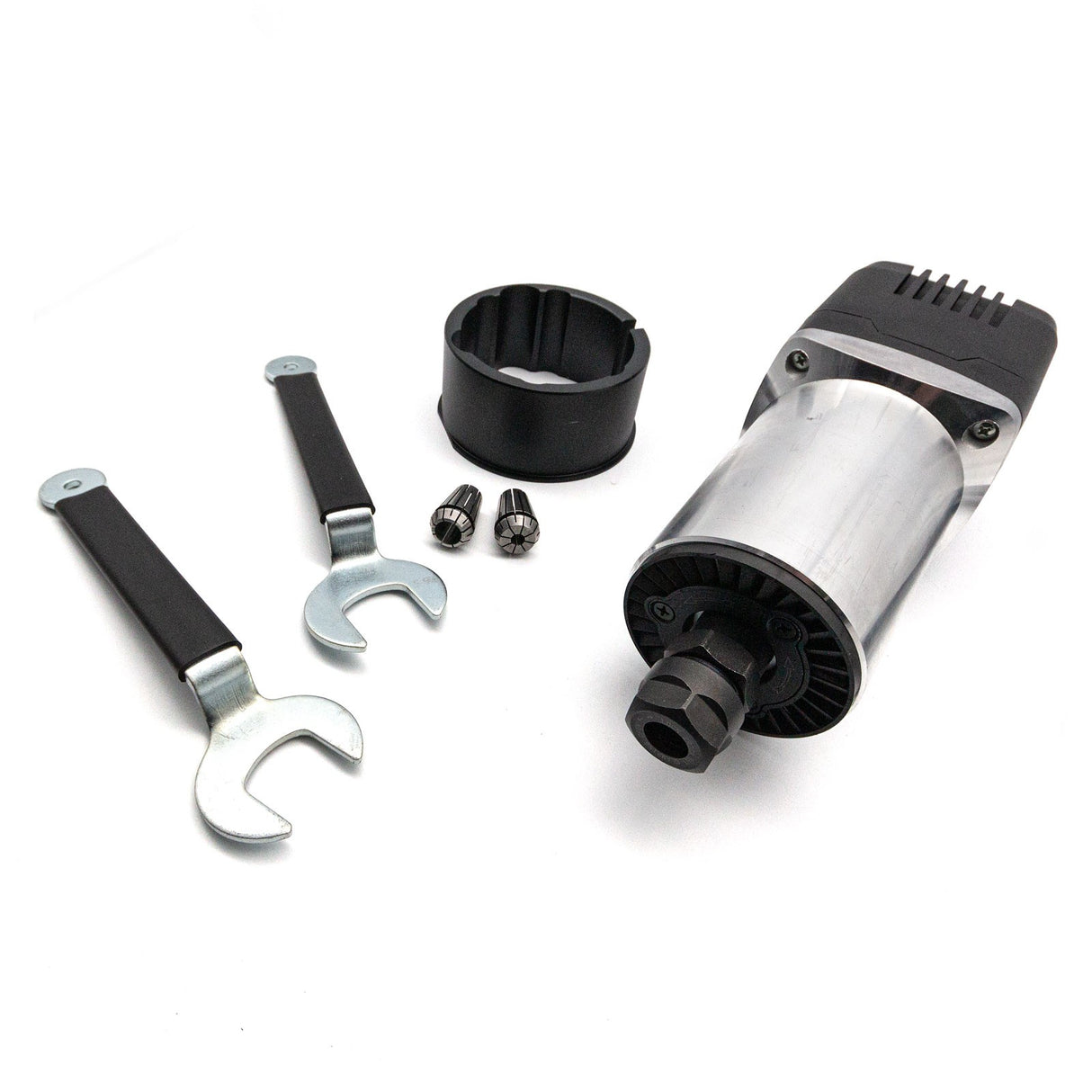

• Includes spanner set and user manual

Specifications
