Milescraft PocketJig200ST Pocket Hole Jig

Simple, Quick, Precise Pocket Hole Jig Kit

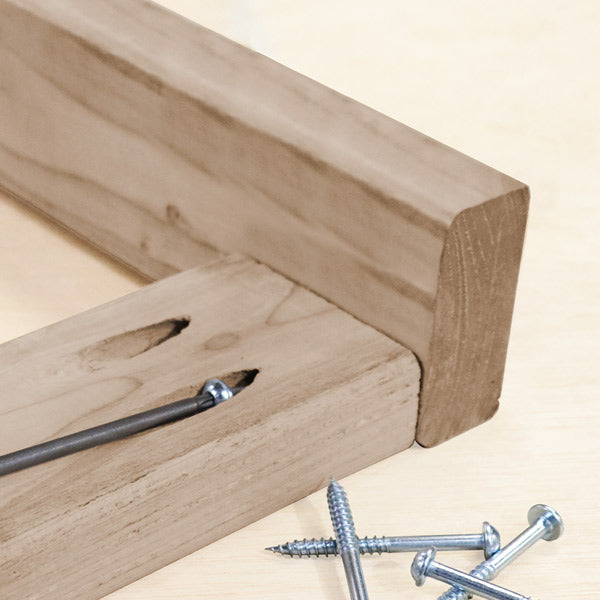

The Milescraft PocketJig200ST allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, mitre joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.

Features

Designed To Make Repairs Simple: Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

Built-In Imperial And Metric Scales: The built-in scales allow you to easily measure the thickness of your workpiece

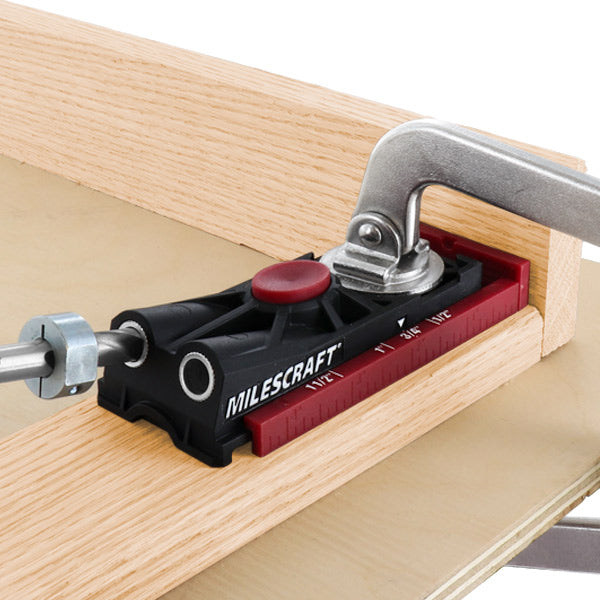

Board Thickness Settings:

• There are four common board thickness settings built into the pocket jig: 1/2in, 3/4in, 1in and 1-1/2in (12, 19, 27, 38mm)
• Easy readout arrow to help define your board thickness setting
• Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings:

• For precise and accurate pocket holes every time using the Milescraft PocketBit
• Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

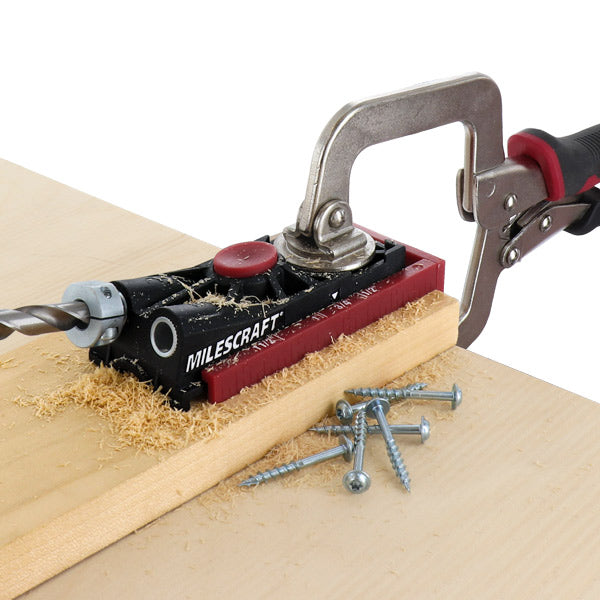

Recessed Clamp Pocket with Magnet

• Helps to keep the clamp in the same position as you move to different locations
• With the stronger rare earth magnet, you can easily clamp the jig from one location to another
• For speed and accuracy, use the Milescraft FaceClamps

Convenient Built-In Depth Setting: Easily set your bit for the correct drilling depth

3/8in HSS Step Drill Bit: Made from high-speed steel the PocketBit is designed to reduce clogging and provide smooth and precise holes

3/8in Stop Collar: Precise drilling depth, includes hex key for tightening

6in Magnetic T20 Torx Driver: For maximum torque settings without stripping. Allows pocket screws to align with maximum precision.

Storage Case: Small design for compact storage

Specifications

Drill Guide Bushing Spacing: 1in (25.4mm)

For use with: Wood Materials for 1/2in to 1.5 thick (12-38mm)

Drilling Angle: 15°

Screw and Driver Style: T20 Torx

Screws: 10 of each: 1in (25mm), 1.25in (32mm) coarse and fine, 1.5in (38mm), 2in (51mm), 2.5in (64mm)

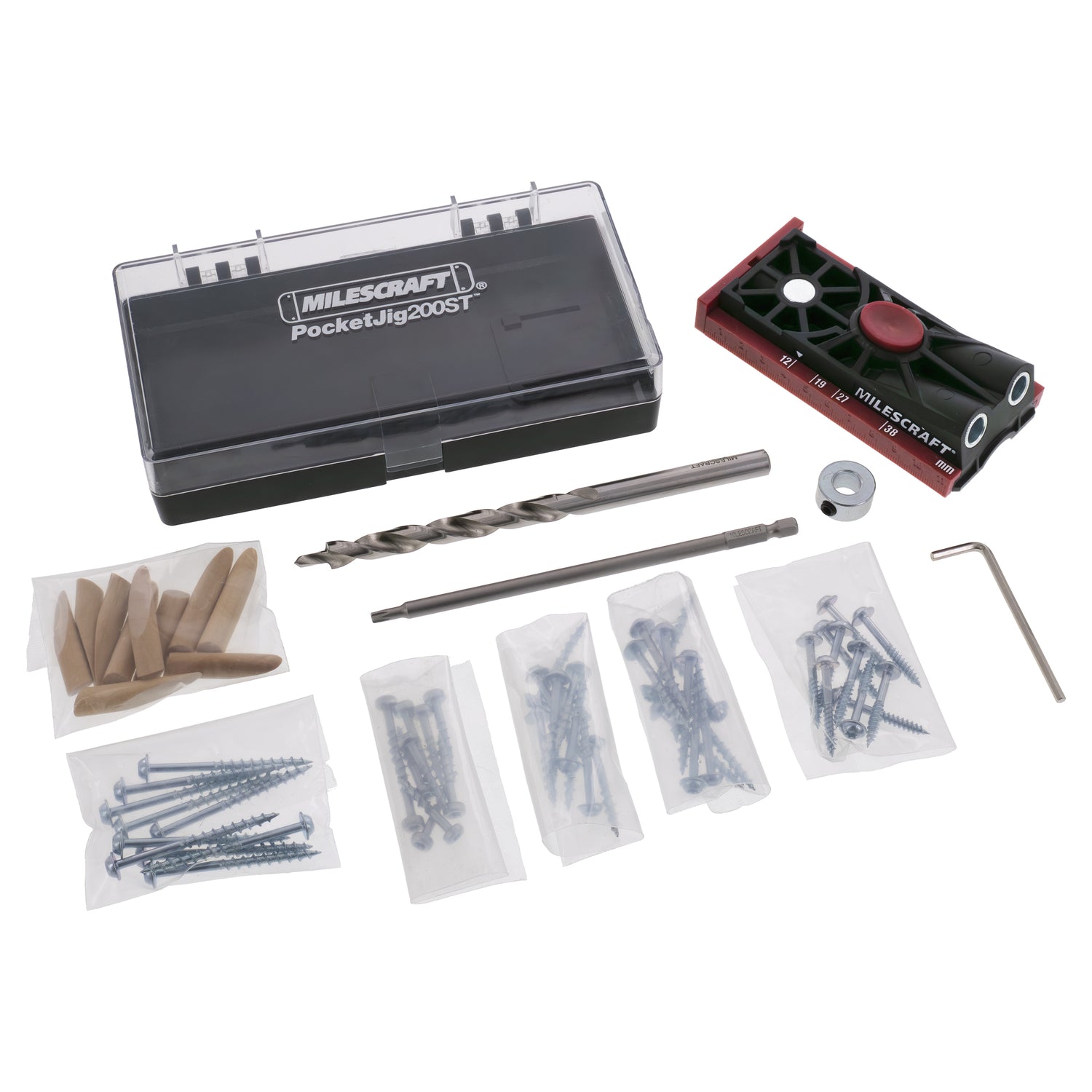

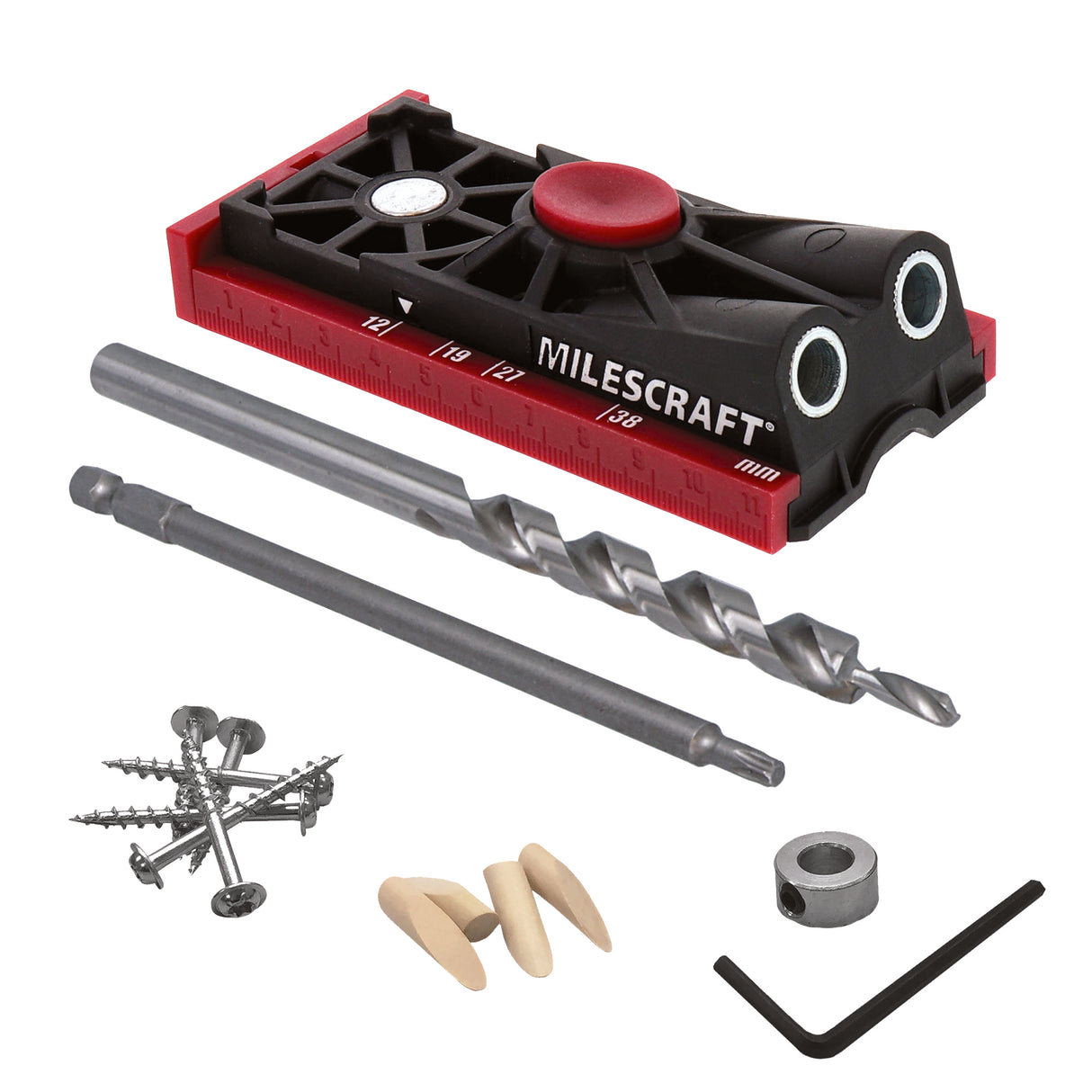

Includes: Double Barrel Pocket Hole Jig, 6in T-Star Driver Bit, 3/8in HSS PocketBit, 60 Piece T20 Pocket Hole Screws, 10x Pocket Plugs, 3/8in Stop Collar with Hex Key and Instruction Manual
