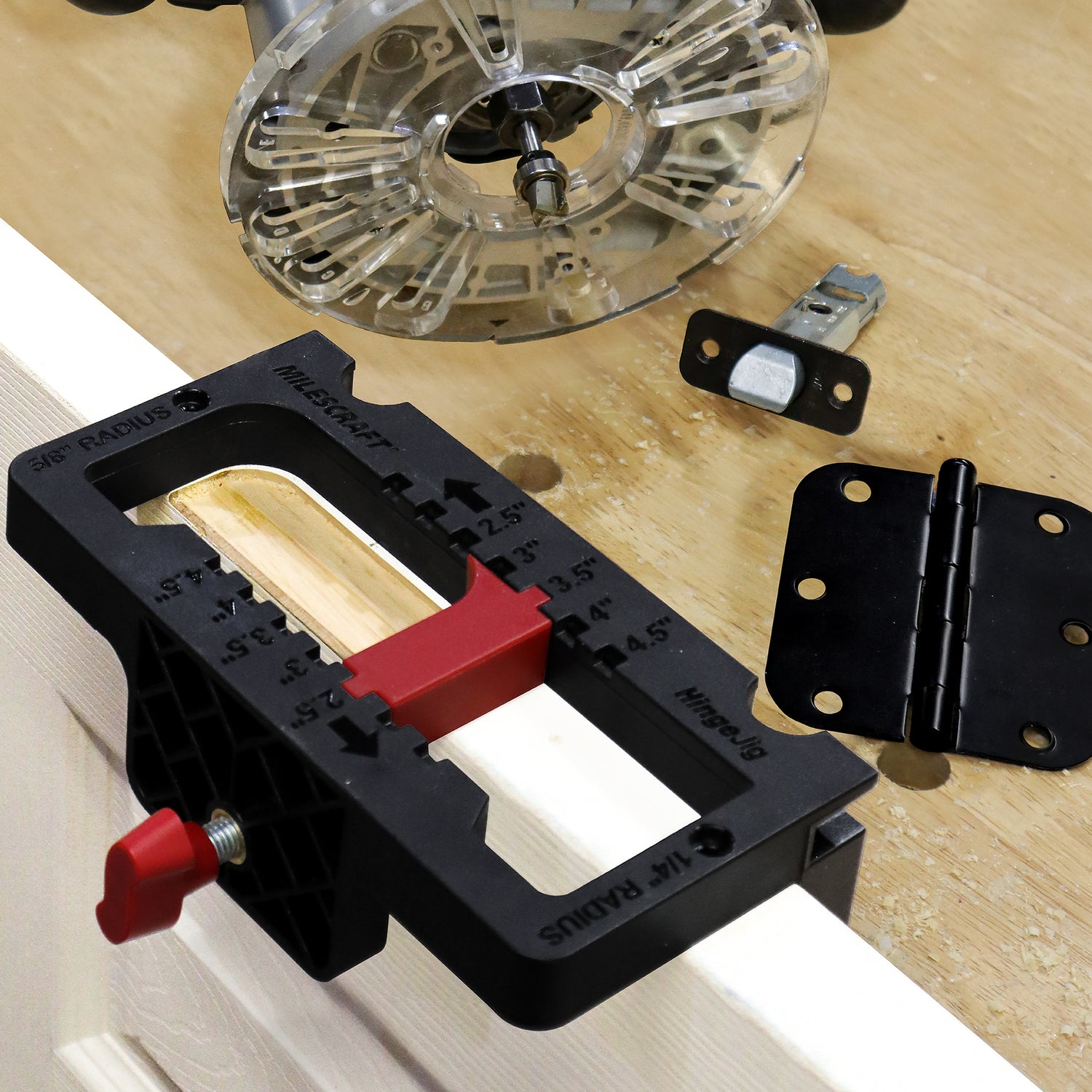

Milescraft HingeJig Self-Clamping Door Hinge & Latch Router Jig

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig.

This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig in place while routing without the use of screws or nails that can leave holes in a finished door.

The design of the HingeJig eliminates the need for multiple inserts to rout different hinge corner radiuses. The padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails.

Features

• Self-Clamping: Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
• Fits All Doors: Adjustable settings allow door hinge jig to be used on all standard size 1-3/8in and 1-3/4in thick doors
• Unique Design: Design of the HingeJig eliminates need for multiple inserts to rout different hinge corner radiuses

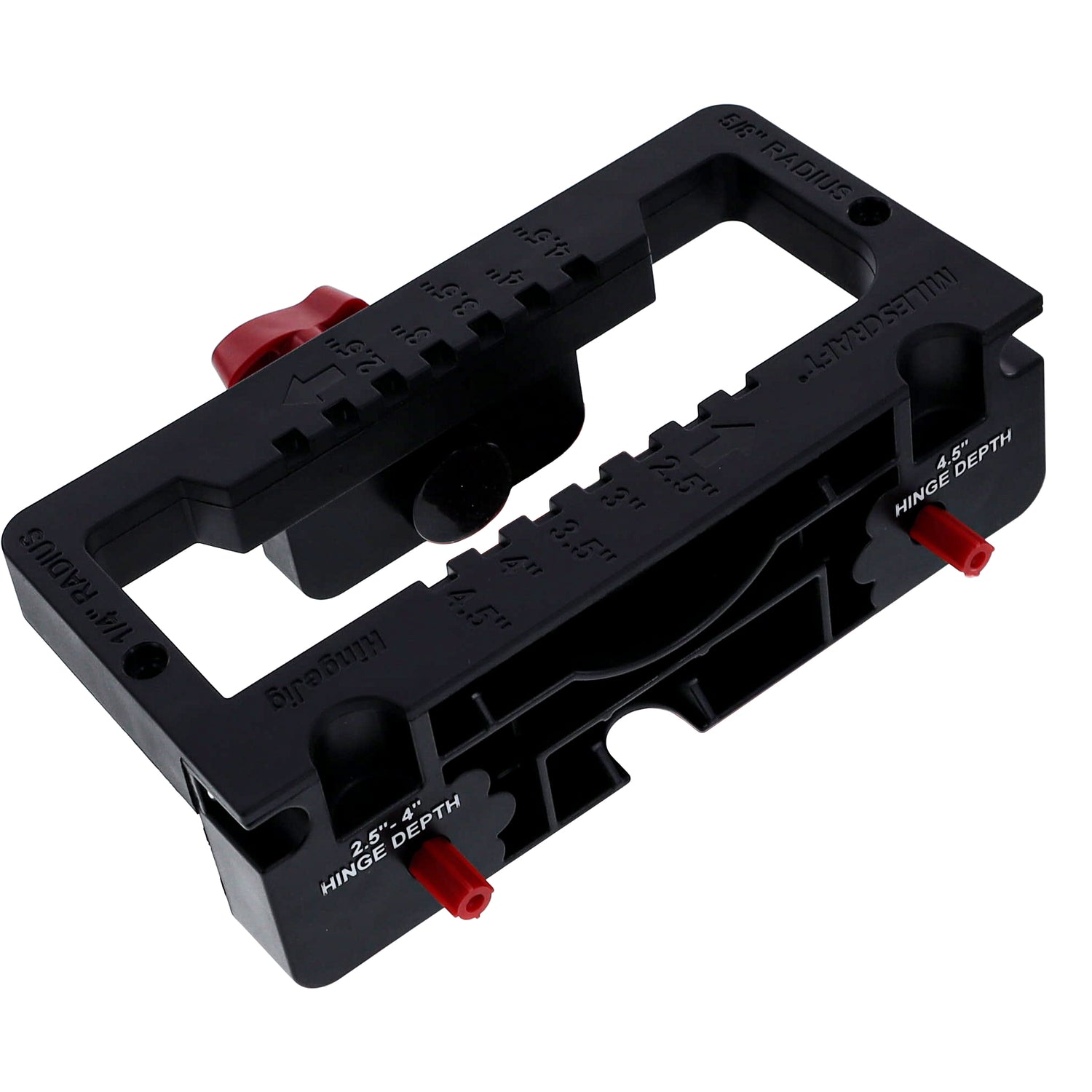

• Built in Depth Setting: Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
• Self-Guided Router Bit: Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises
• Built-in Storage: Contains built in storage compartments for router bit and available self-centring hinge bit (not included) for convenient retrieval
• For Doors Only: Not for use when routing door hinges on jamb / frame

Specifications

Compatible Door Thickness: 1-3/8in and 1-3/4in thick doors

Latch Sizes: 1in x 2-1/4in , 1-1/8in x 2-1/4in , and 1-1/8in x 2-3/4in

Door Hinge Sizes: 2-1/2in, 3in, 3-1/2in, 4in and 4-1/2in hinges

Hinge Corner Radius: 1/4in, 5/8in, or square corners. (Chisel Required)

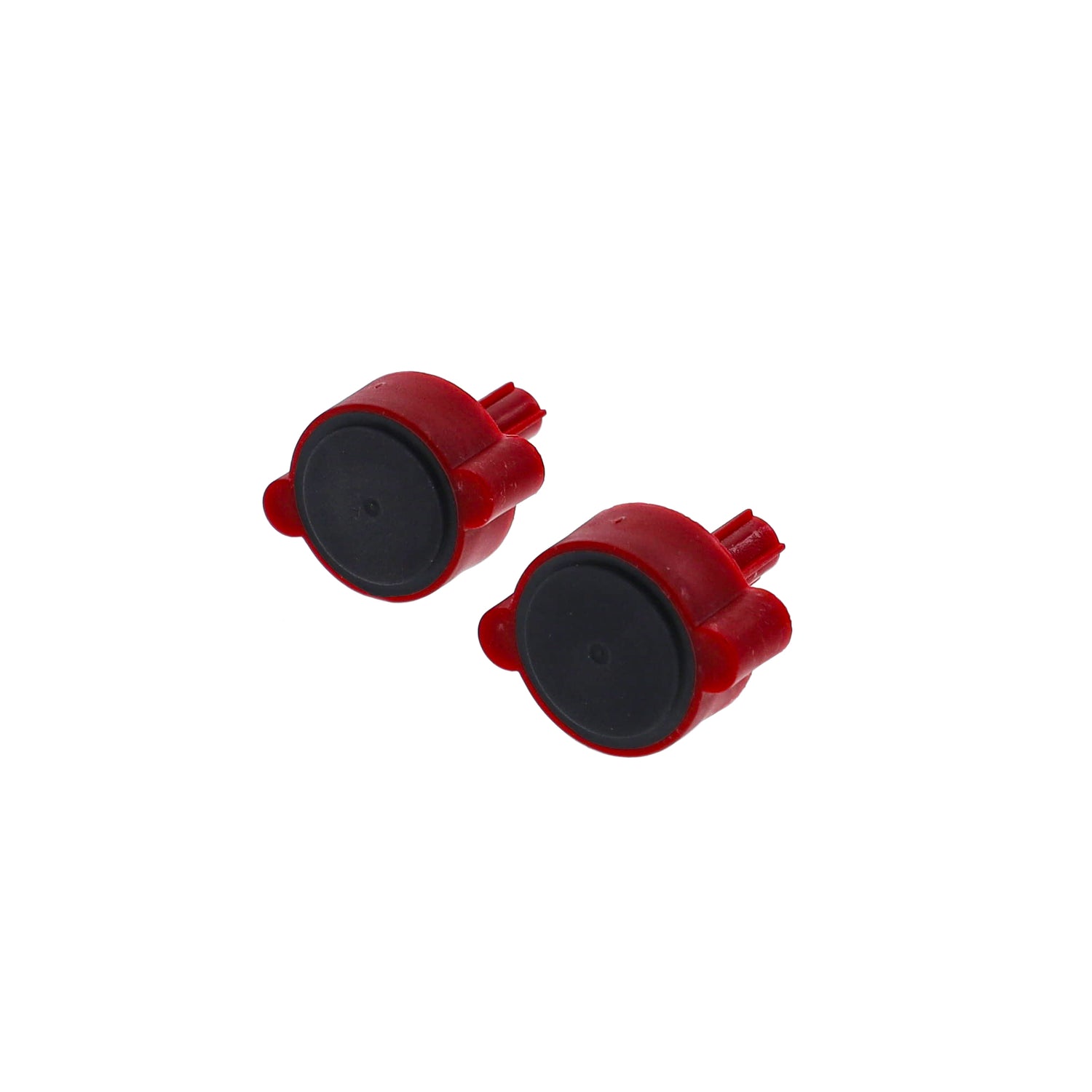

Adjustable Backset Plugs: Adjust for Door Hinge Routing, 1-3/8” Latch, and 1-3/4” Latch

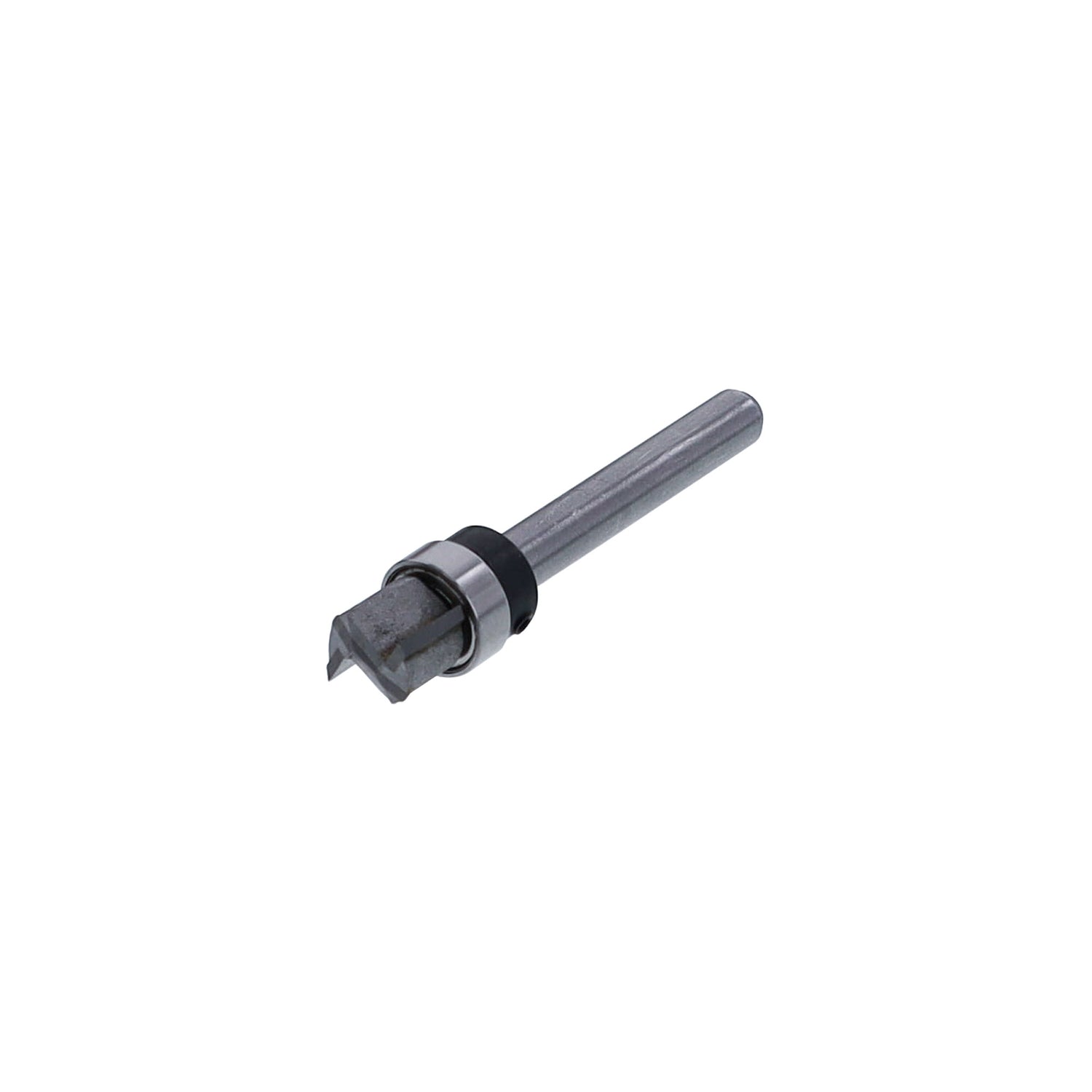

Guided Router Bit: 12mm Cutting Head with 1/2in Ball Bearing
