Sherwood 6in Cabinet Jointer Planer Helical Cutterhead 1HP

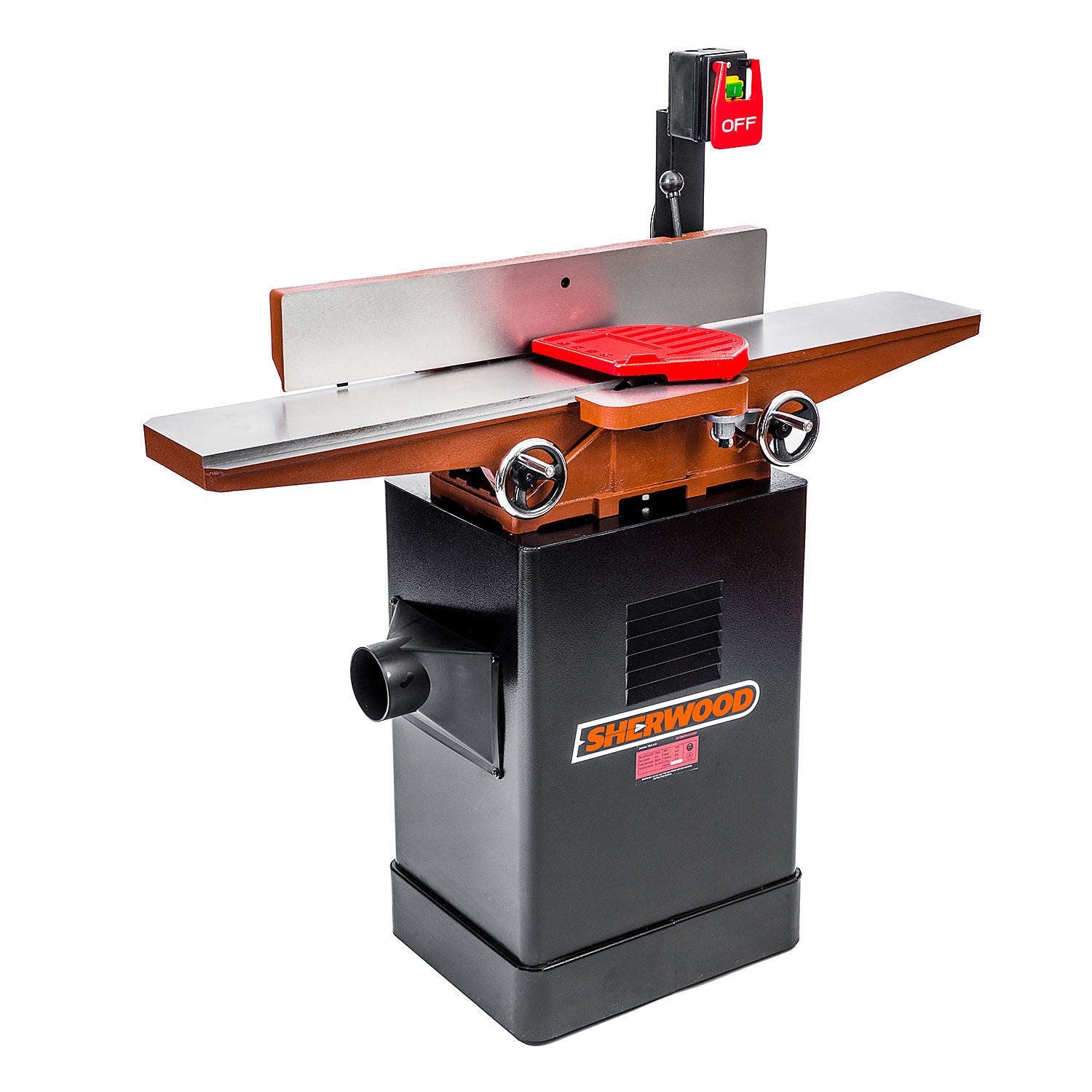

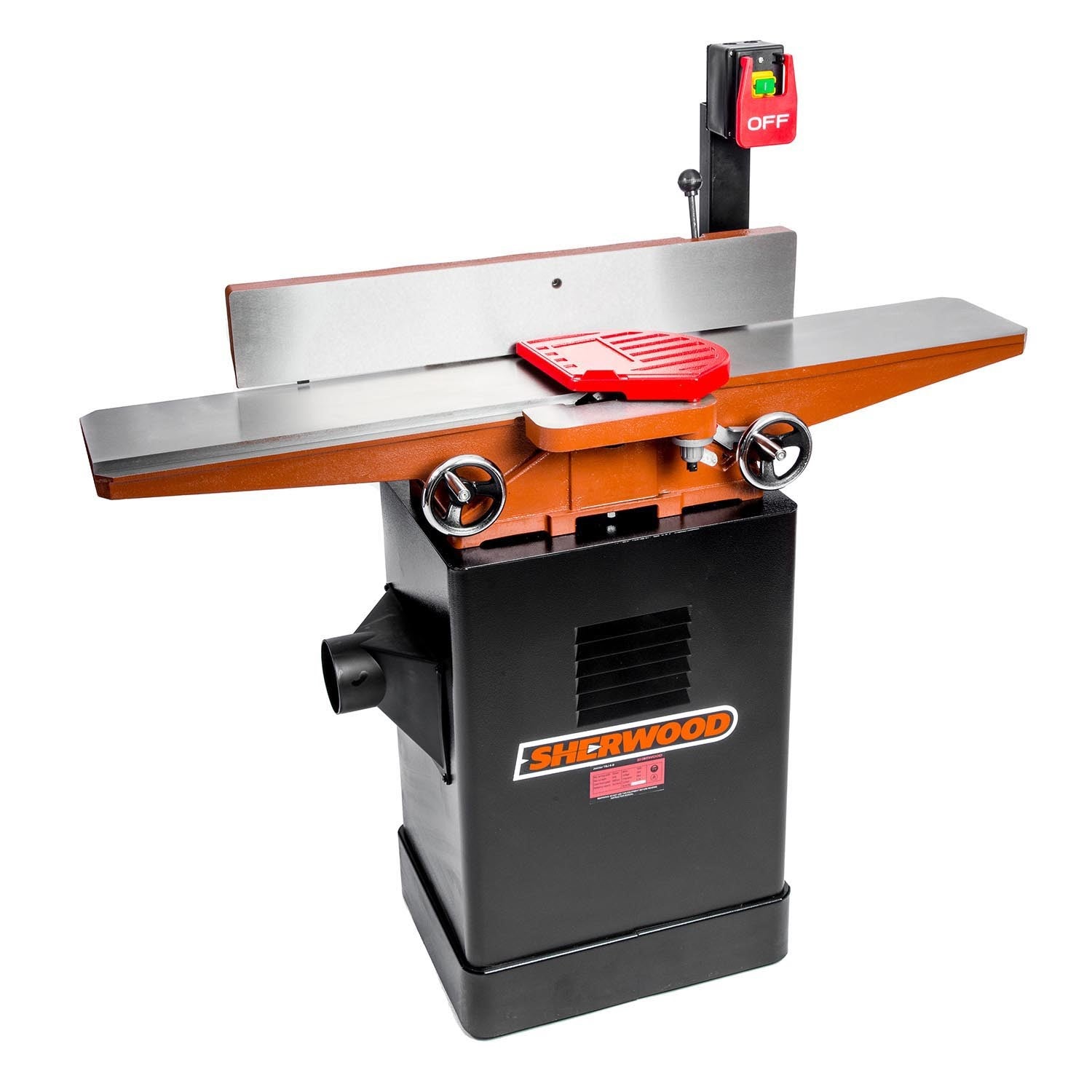

The Sherwood 6in Standard Bed Cabinet Stand Jointer is a reliable and refined machine, perfectly suited for the serious home workshop.
Also available in a Straight blade version.
Taking key design cues from the larger 8in model—such as a solid welded cabinet base, front-mounted cast-iron handwheels, and an elbow-height quick-stop paddle—this jointer brings professional-level performance into a more compact footprint. With a precision-machined wedge-bed table, premium SKF bearings, and Sherwood’s trusted camlock fence design, it delivers smooth, accurate jointing with minimal vibration. Built to handle regular use with confidence, this jointer offers exceptional fit and finish, all backed by the Sherwood Five-Year Warranty.

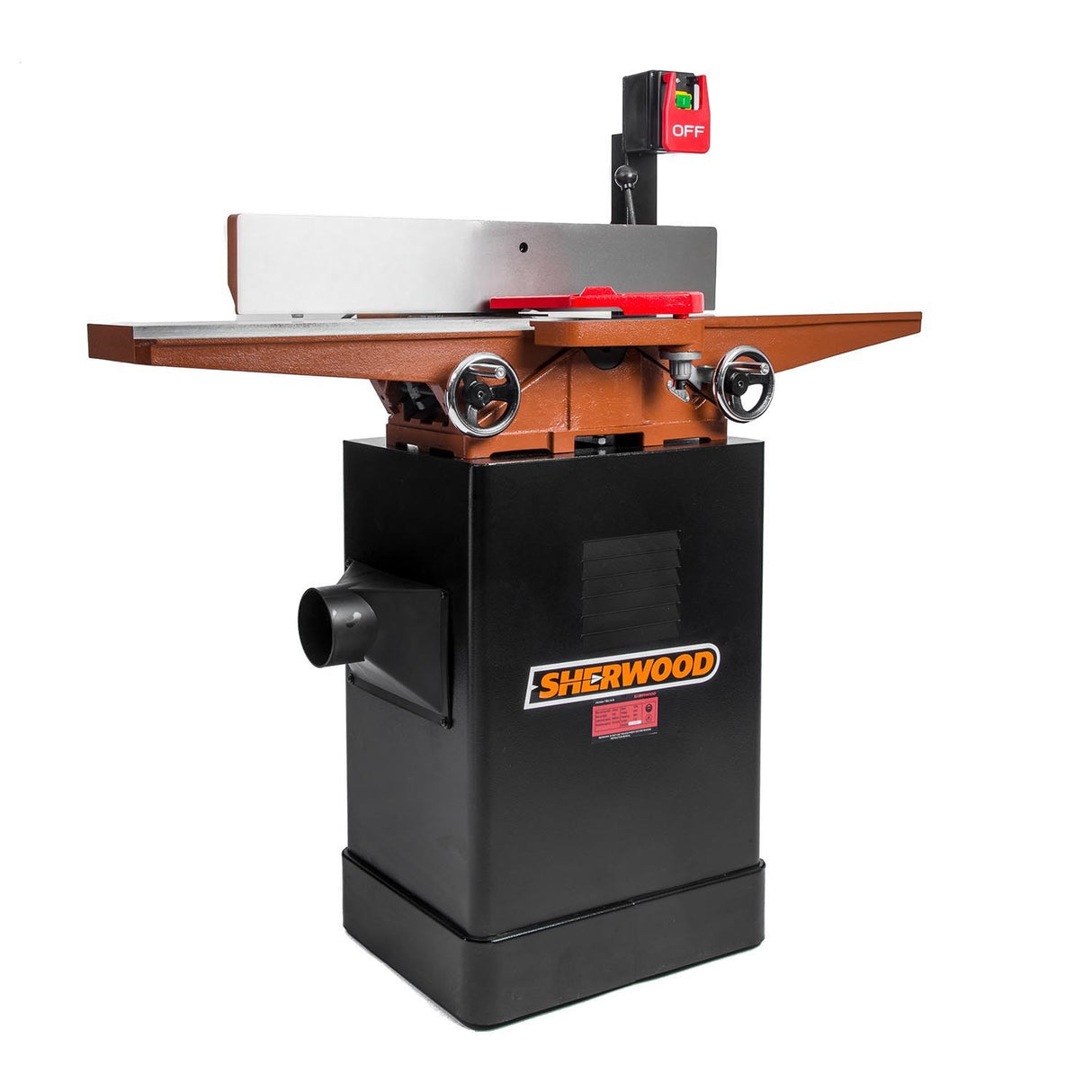

Heavy-Duty Cabinet Base for Enhanced Stability
Unlike open leg stands, the welded one-piece cabinet base provides a rigid and stable foundation, essential for accurate cuts. This robust design eliminates flex and keeps the jointer securely planted on the workshop floor.
1HP Induction Motor
The upgraded 1HP (750W) induction motor delivers increased torque and reliability, providing the cutting power needed for larger and harder timbers. Housed inside the cabinet, it runs smoothly and quietly, making it ideal for continuous use.
Premium SKF Bearings for Cutterhead Support
Sherwood-specified Japanese SKF bearings ensure smoother rotation, reduced friction, and quieter performance—helping extend the cutterhead’s service life and maintain consistent results over time.
Precision Wedge-Bed Table Design
The classic wedge-bed system, used by major jointer brands for decades, is retained for its proven dependability. Infeed and outfeed tables are precision-machined and polished over several days, ensuring flatness and alignment for flawless operation. The 1200mm bed length comfortably supports workpieces up to 2400mm long.

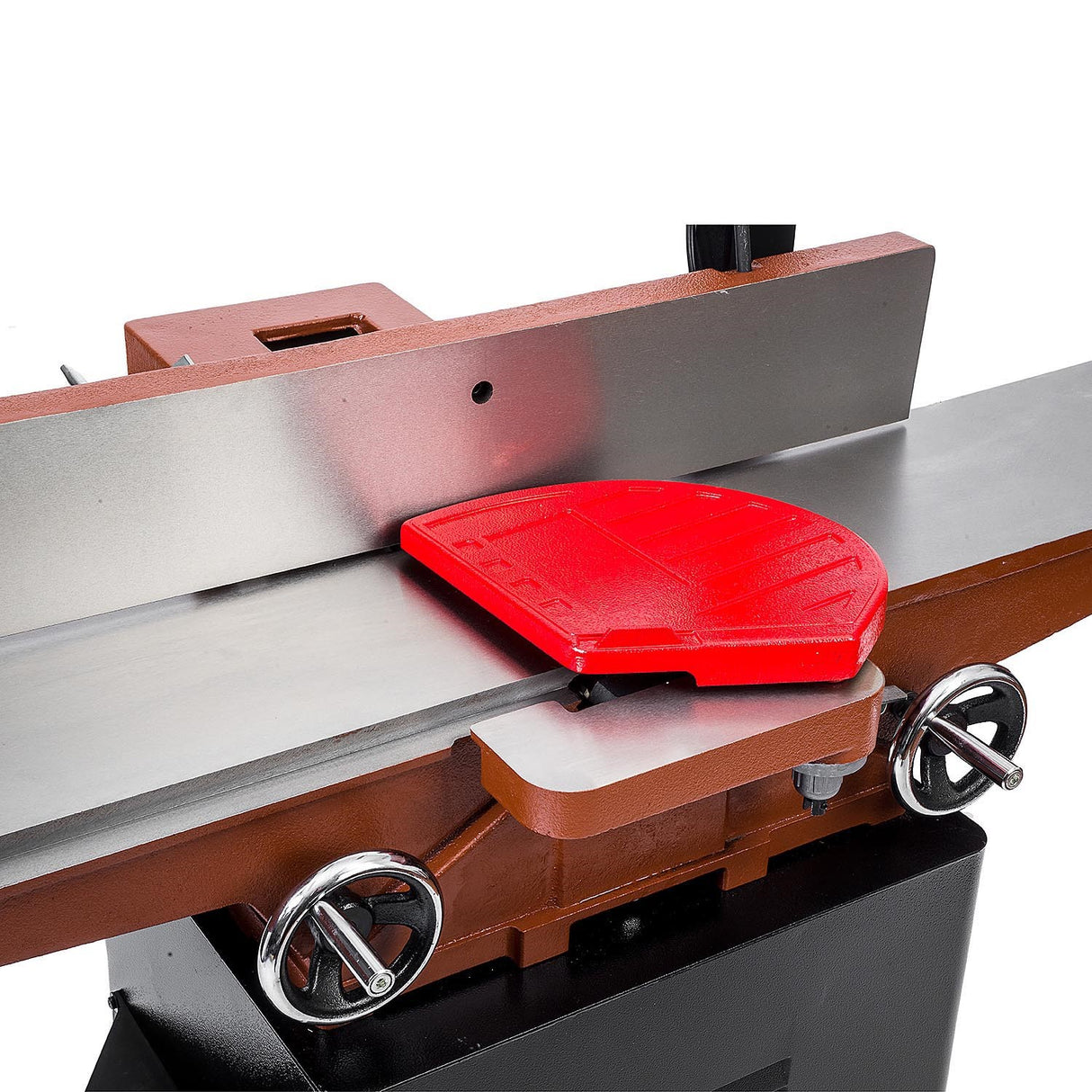

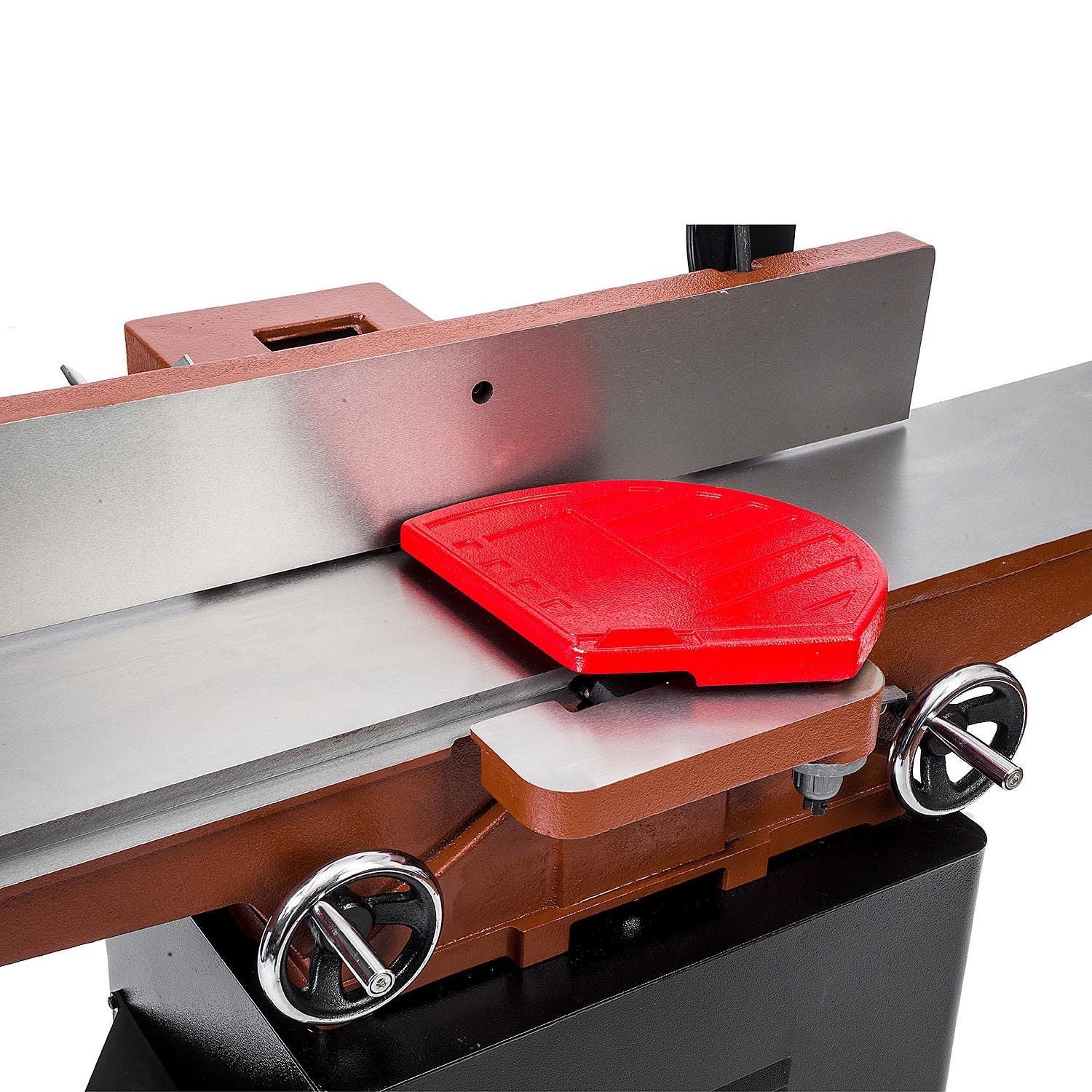

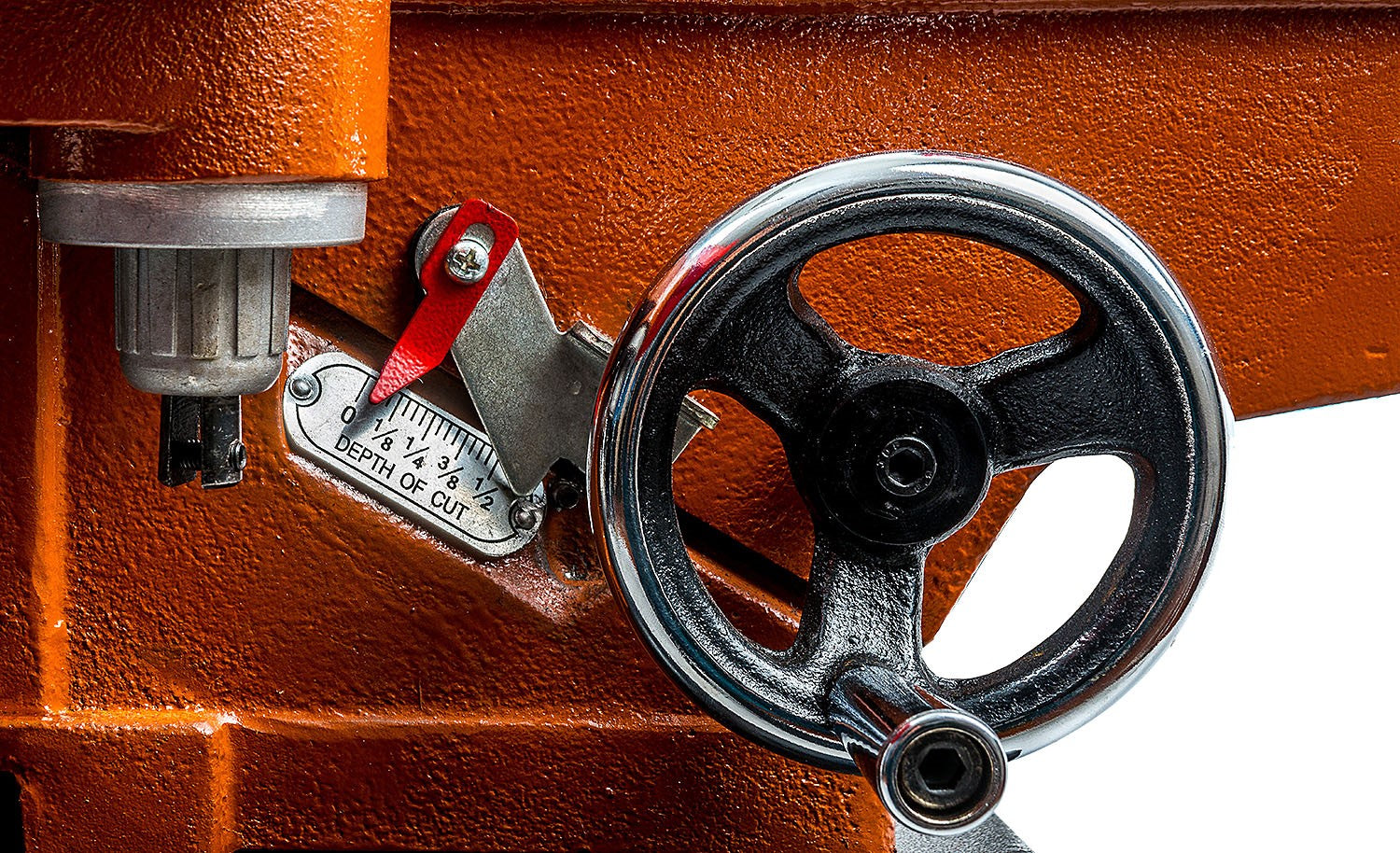

Front-Mounted Cast Iron Handwheels
Polished and painted cast iron handwheels are now located at the front of the machine, improving ergonomics and ease of adjustment. Users can fine-tune table height without reaching underneath the jointer.

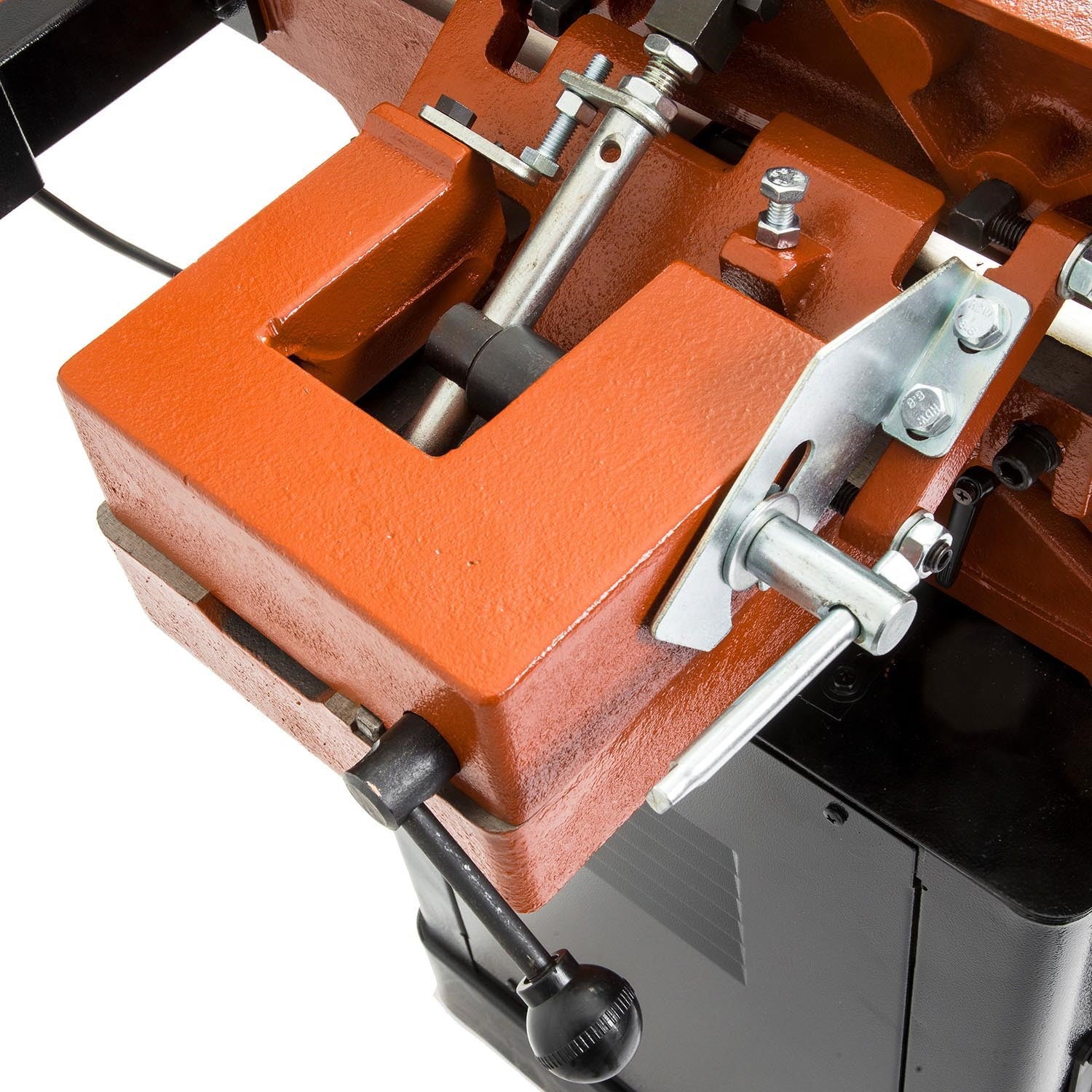

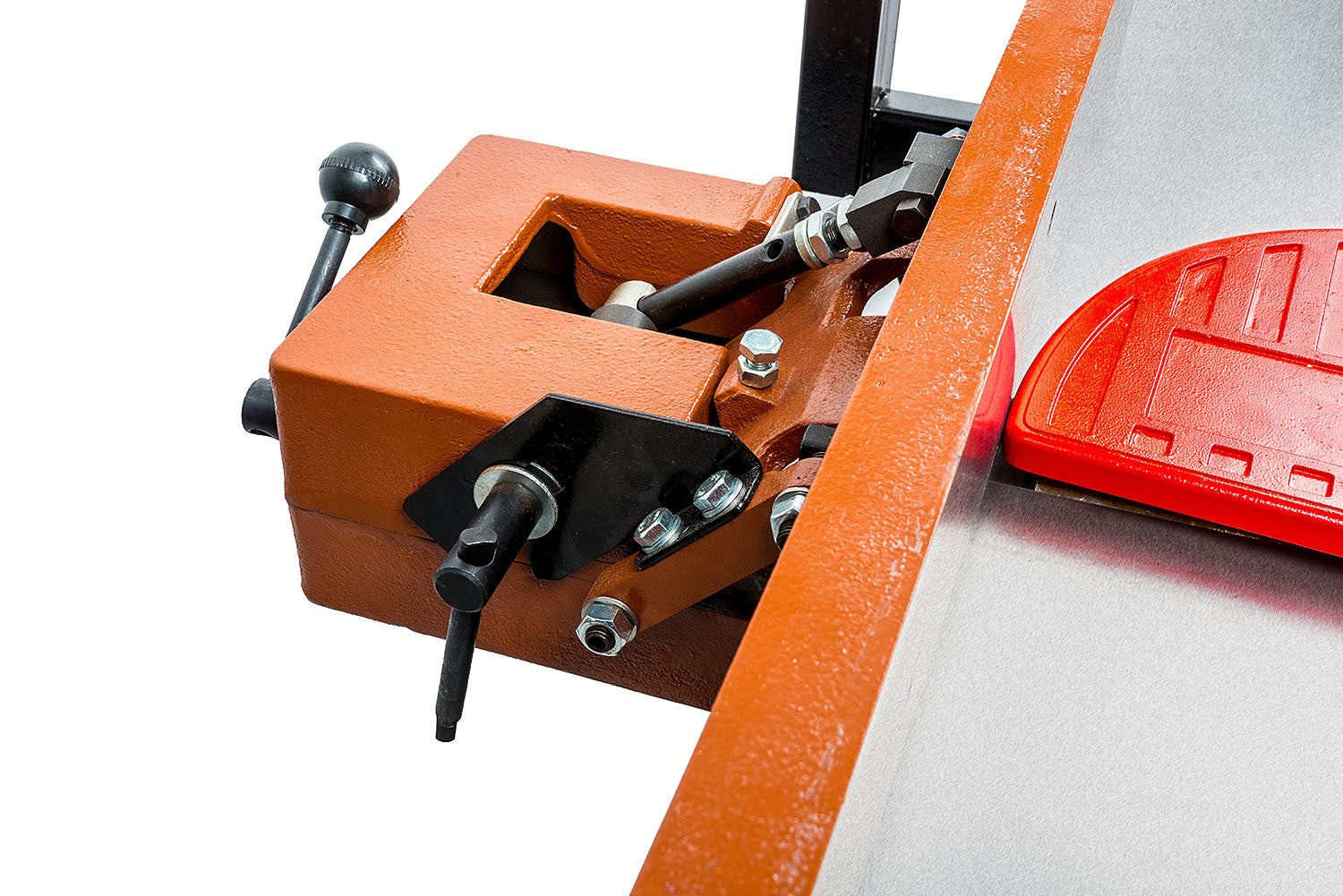

Camlock Block-and-Key Fence System
The fence is secured with Sherwood’s traditional camlock block-and-key design, offering strong locking with quick-release functionality. Lighter than the 8in model’s fence, it’s easy to reposition and features 45° and 90° stops for efficient bevel planing.

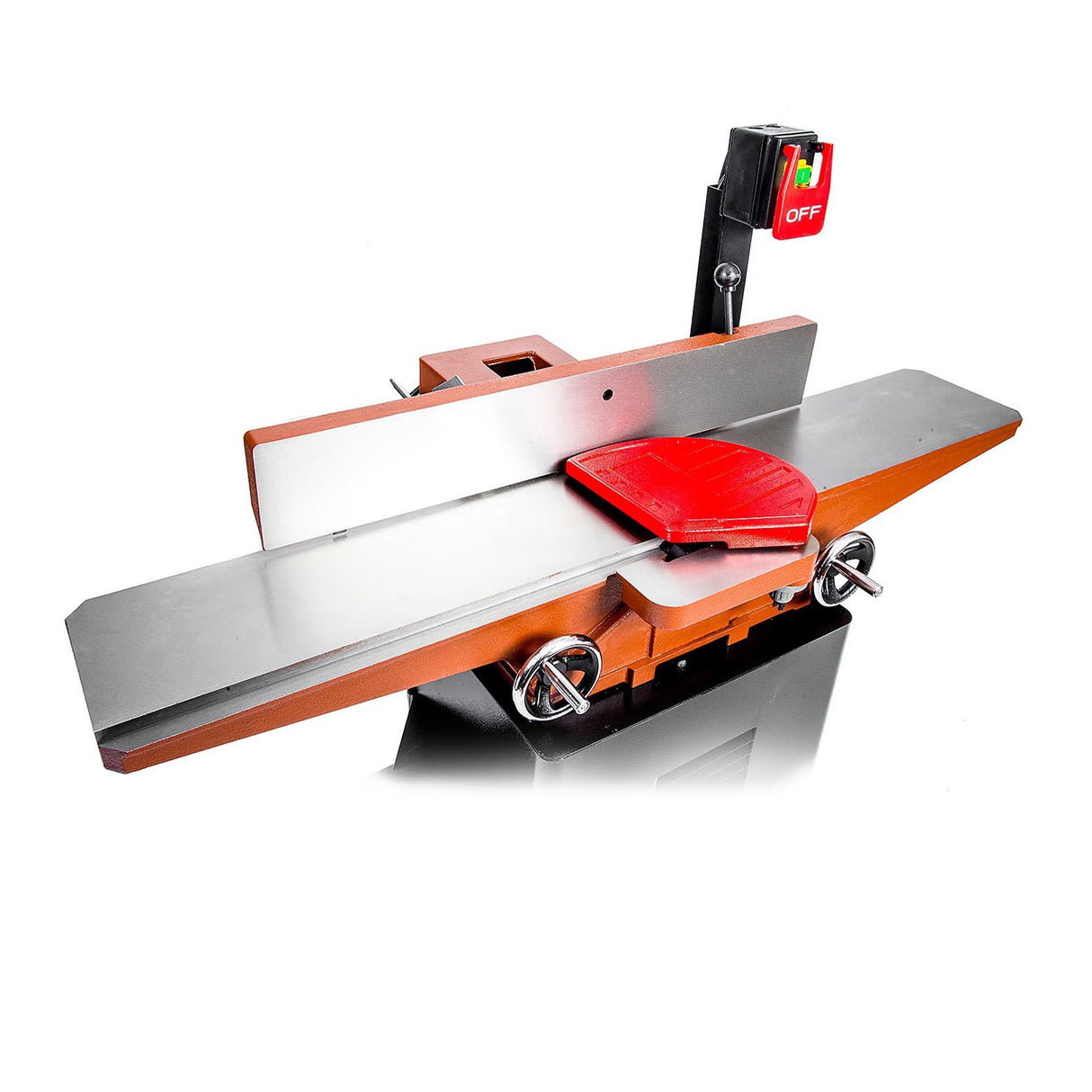

Convenient Elbow-Height Quick-Stop Switch
The safety switch is positioned at elbow height for quick access. A large paddle allows for immediate shutoff—even when both hands are occupied—improving safety and workflow continuity.
Integrated Dust Port
A built-in 100mm (4in) dust port allows efficient waste extraction during operation, maintaining a cleaner and safer work area.
5-Year Warranty
Engineered for long-term reliability, this jointer comes with the peace of mind of Sherwood’s Five-Year Warranty, affirming its build quality and workshop suitability.
Specifications
| Motor Size | 750W (1HP) |
|---|---|
| Motor Type | Induction |
| # of Belts | 1 |
| Cutterhead Speed | 4800rpm |
| Blade Type | Helical Cutterhead |
| Table Dimensions | 1175 x 190mm |
| Fence Dimensions | 730 x 125mm |
| Max Planing Capacity | 155 x 3.2mm |
| Rebating Capacity | 16 x 13mm |
| Bed Height | 830mm |
| Dust Port Diameter | 102mm (4in) |
