Milescraft Dowelling Jig Kit Self-Centering Metric Dowel Set
Check store availability
-
Melbourne, VICIn stock10+
-
Balcatta, WAIn stock0
-
Canning Vale, WAIn stock10+
Sale ends in:
Milescraft Dowelling Jig Kit Self-Centering Metric Dowel Set is available for pre-order and will ship as soon as stock arrives.
Request Further Information
Milescraft Dowelling Jig Kit Self-Centering Metric Dowel Set
Eligible for FREE Shipping*

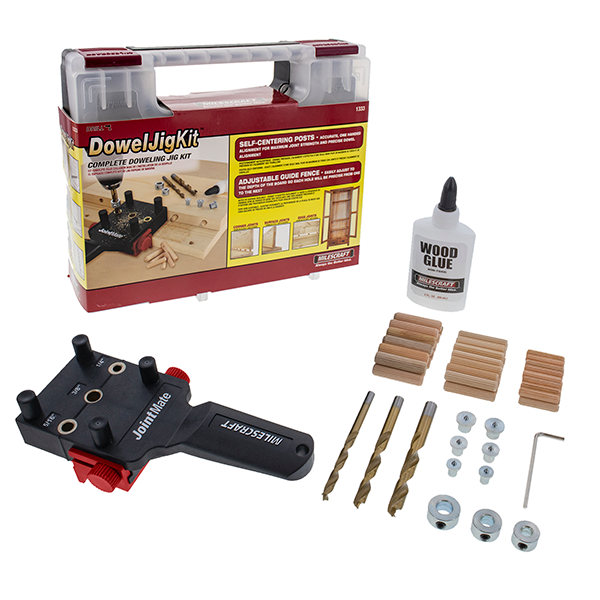

The Milescraft DowelJigKit contains everything you need to get started creating strong and accurate doweled joints.
Please note: Images may show Imperial model - MC-1383 is in metric.

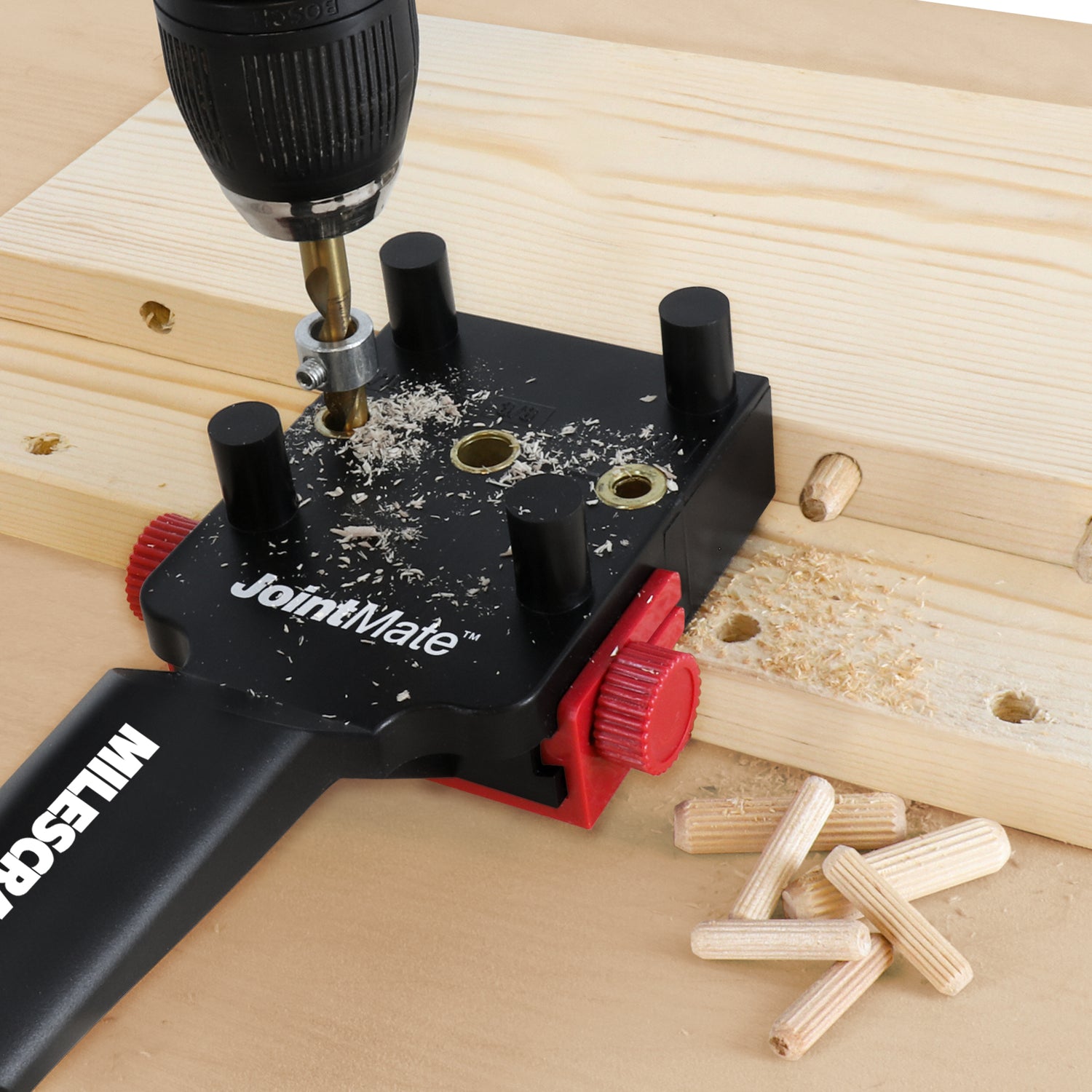

Perform one-handed alignment and remove the hassle of measuring and marking when drilling corner or edge joints with Milescraft JointMate. Minimal set-up, and no exposed or covered mechanical fasteners, the Milescraft JointMate makes doweling easy.
Features
Self-Centering Post: Accurate, one-handed alignment for maximum joint strength and precise dowel alignment
Hardened Steel Bushings: Ensure accurate alignment when drilling for perfectly positioned dowels for longer doweling life
Adjustable Guide Fence: Easily adjust to the depth of the board so that each hole will be precise from one to the next. Removable without taking off the guide knobs. Compatible with 1/2in - 1 1/2in stock.
Specifications
|
Board Thickness |
Dowel Pin/Drill Bit |
|
12 – 15mm |
6mm |
|
15 – 19mm |
8mm |
|
19 – 38mm |
10mm |
|
Drill Bushings, Stops, Bits, and Pin Sizes |
6mm, 8mm, 10mm |
|
Minimum Board Width (not thickness) for 6mm & 8mm bushing |
50mm |
|
Minimum Board Width (not thickness) for 10mm bushing |
82mm |
|
Closest distance for dowel from board end (for 6mm and 8mm bushing) |
28mm |
|
Closest distance for dowel from board end (for 10mm bushing) |
40mm |
|
Includes |

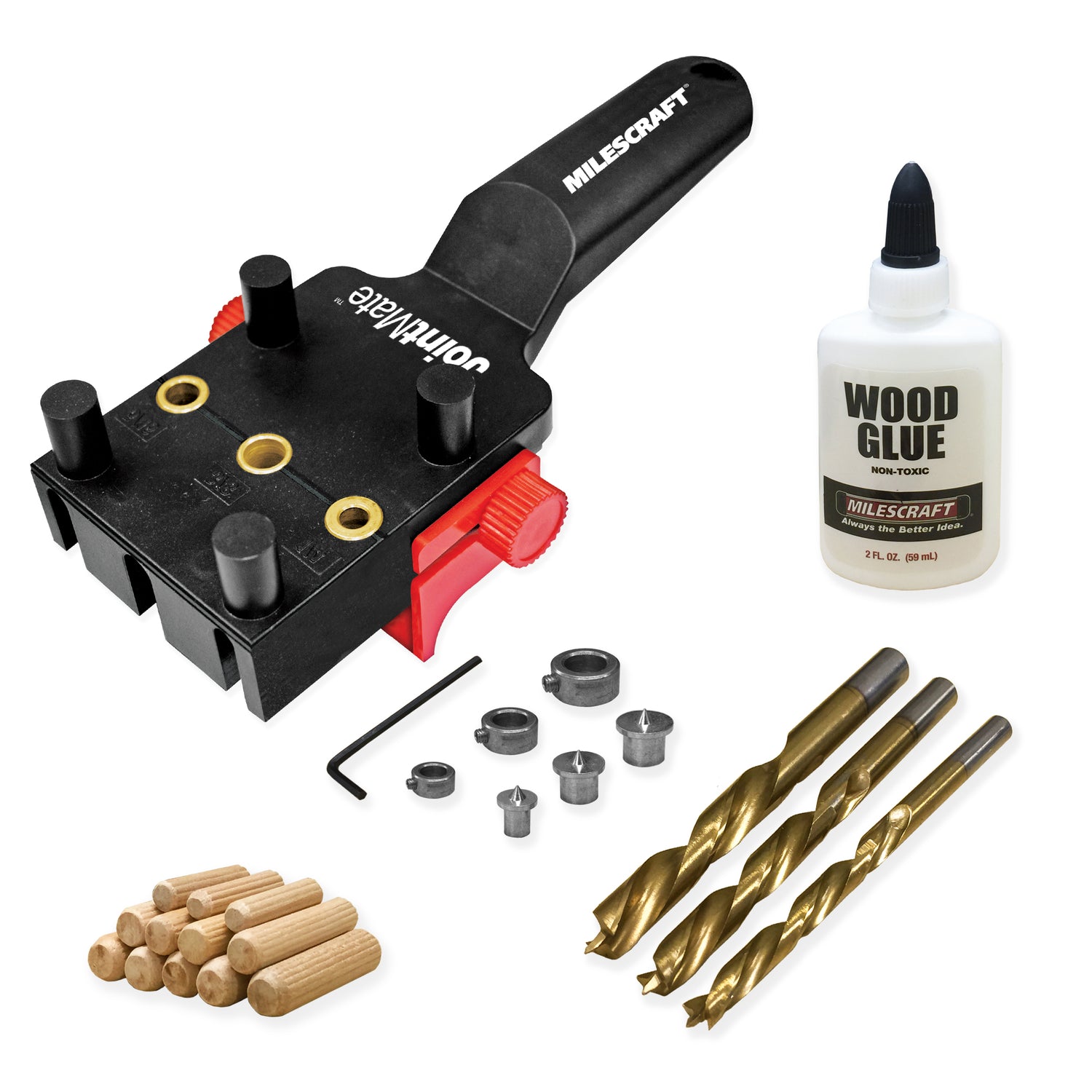

JointMate, Dowel Pins, Dowel Centers, 3 Brad Point Bits, 3 Drill Stops, Allen Wrench, Wood Glue, Storage Case |
