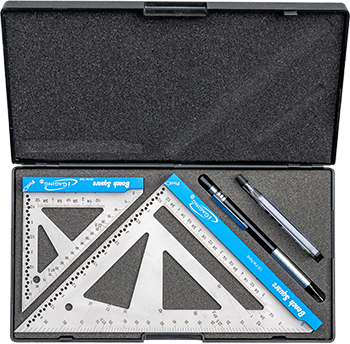

iGaging Set of 2 Bench Squares Metric Stainless Steel

Taking carpenter's squares to the next level.

Please note: These are metric. Pictures may display imperial.

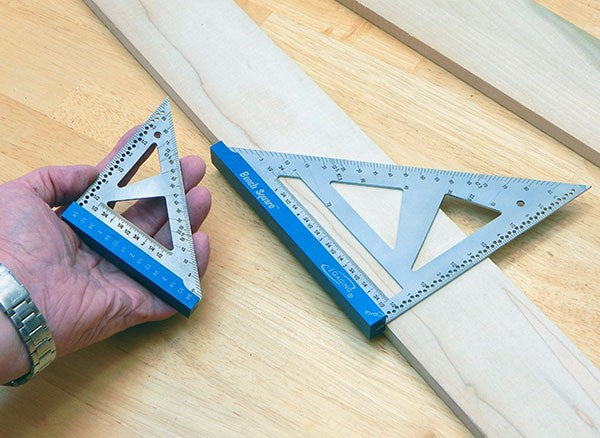

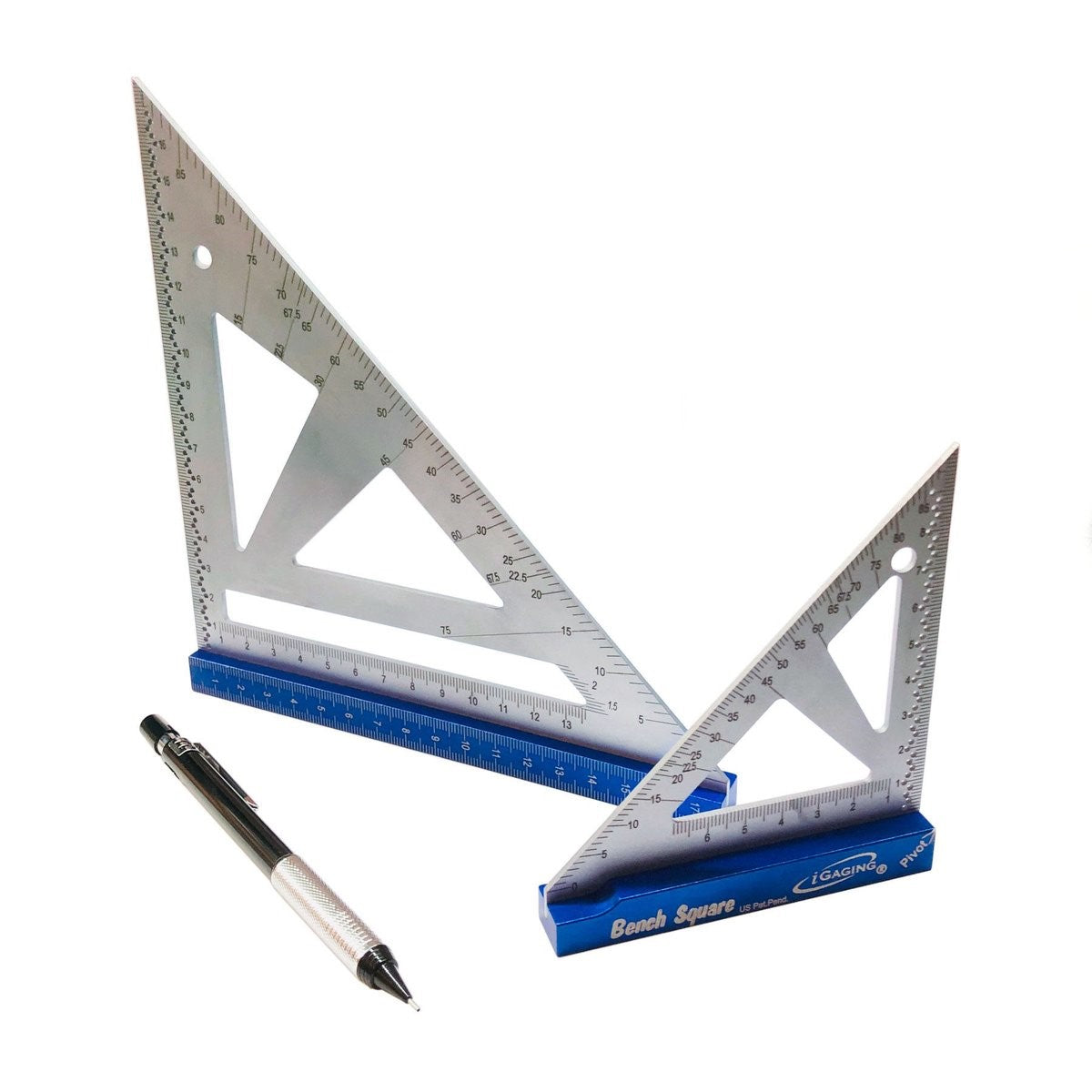

These Bench Squares have a thin stainless-steel body, precise easy-to-read markings, and other features that woodworkers will appreciate. Available in both 100mm and 175 mm size, you will be amazed at how many practical uses these masterfully crafted squares have in your shop including:

• Joinery Layout
• Machine Setup
• Try Square, Mitre Square or Protractor
• Measuring and Marking

The squares are CNC machined, laser engraved and loaded with great features including:

• Thin 2mm stainless steel body
• Matte non-glare finish
• Blue anodised aluminium base
• Inch rules on both the square and base
• 1 mm graduations
• 1° angle graduations + 22.5° and 67.5°
• Multiple-reference points for angles
• Complementary angles on the 175 mm

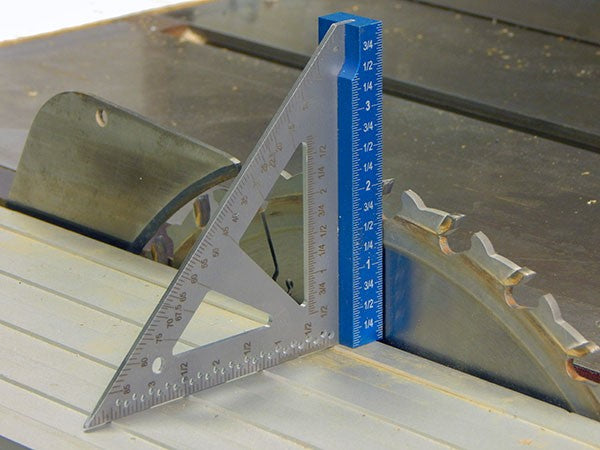

Of course, the right triangle of the Bench Square can be used to set your saw to a perfect 90° or 45° setting.  But you can also stand the triangle on its straight edge and use the ruler markings to make height adjustments on the table saw and depth-of-cut adjustments on the router table. Use the base and straight edge to quickly check for squareness or to lay out a straight line 90° to an edge.

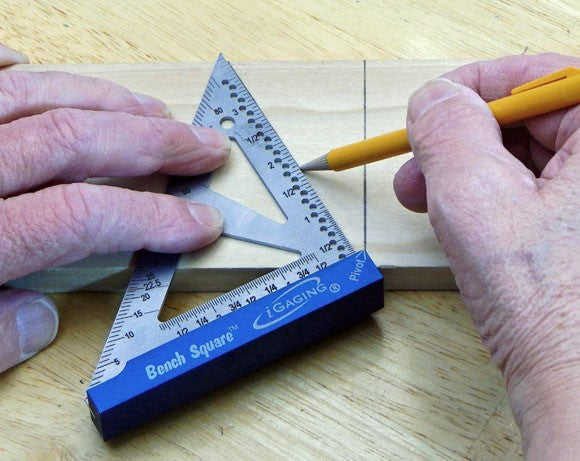

You can easily layout a 45° mitre along the triangle's hypotenuse. The hypotenuse edge has lines marked in 1° increment allowing you to layout angled cuts by tilting the base at the pivot point to the desired angle. There are also extra lines at 22.5° and 67.5° for octagonal construction. Plus, common angles are marked both on the hypotenuse and at the cutouts providing 2 references.

With the base offset you can scribe lines on adjoining faces as with a saddle square.  All the squares have a ruler with drilled holes either every 2 mm along the straight edge.  With the point of a mechanical pencil in a hole, you can smoothly slide the square along an edge to layout lines parallel to the edge.

Using the 45° cutouts in the squares you can quickly find the centre of round (or square) stock by aligning the inside of the base and the straight edge of the square with the edges of the round stock.  A mark along the 45° cutout will go through the round stock centre.  Do this twice so the lines cross to find the centre.  Use the 100 mm square to find the centre on stock from 1.5" to 4.5" diameter and the 175 mm square on larger stock up to 8" diameter.

The bottom cutout on both squares is a ruler that can be used to mark an offset distance from the straight edge.  You can also find the centre of a board by pivoting off the base to an easily divisible measurement on the straight edge then dividing by 2.
