Milescraft Drilling Jig for European Door Hinge Installation

The Milescraft Euro Hinge Jig makes Concealed Hinge Jig Cabinet Door Installation Easy!

The Milescraft Euro Hinge Jig takes the guesswork out of installing European style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

Features

• Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom

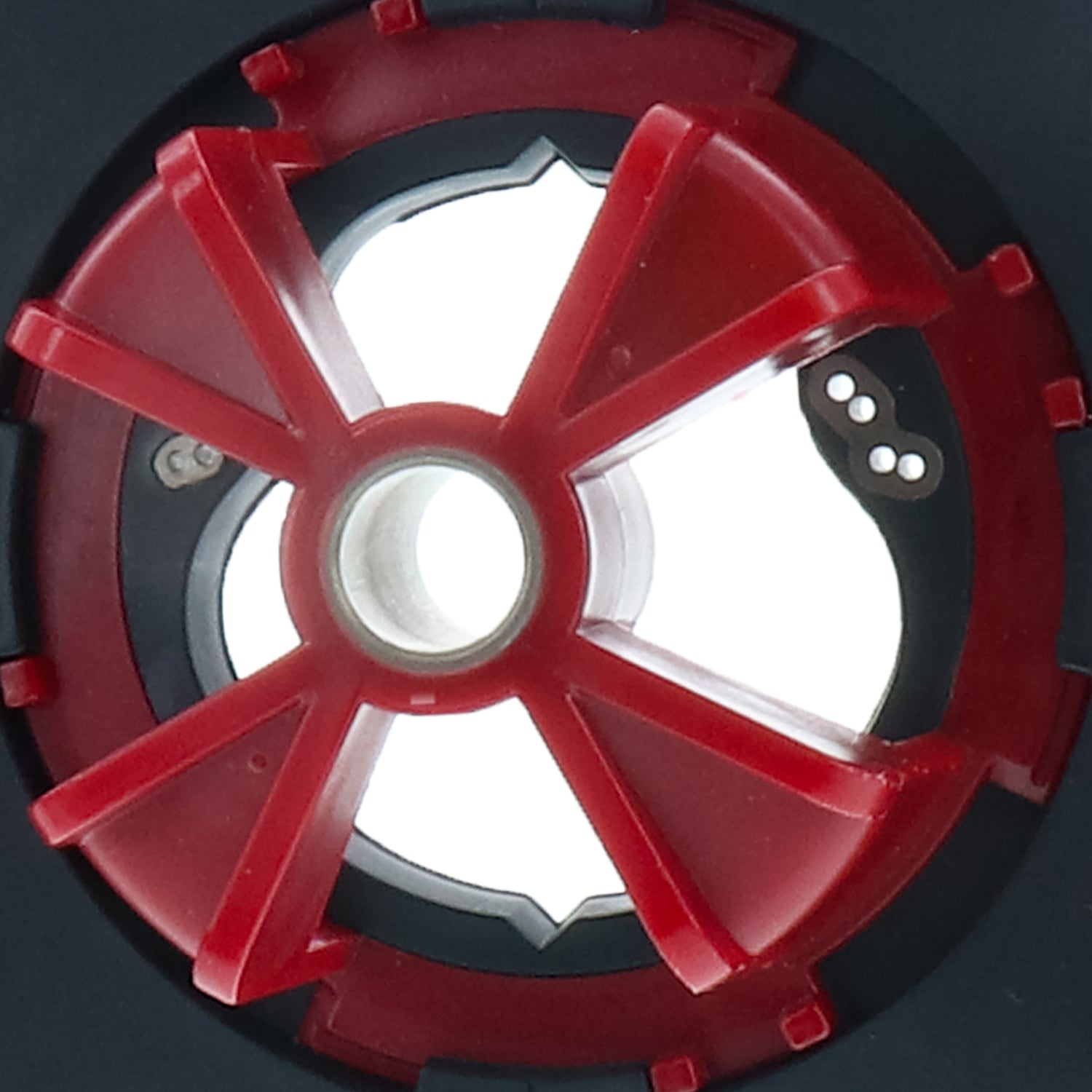

• The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole

• Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true

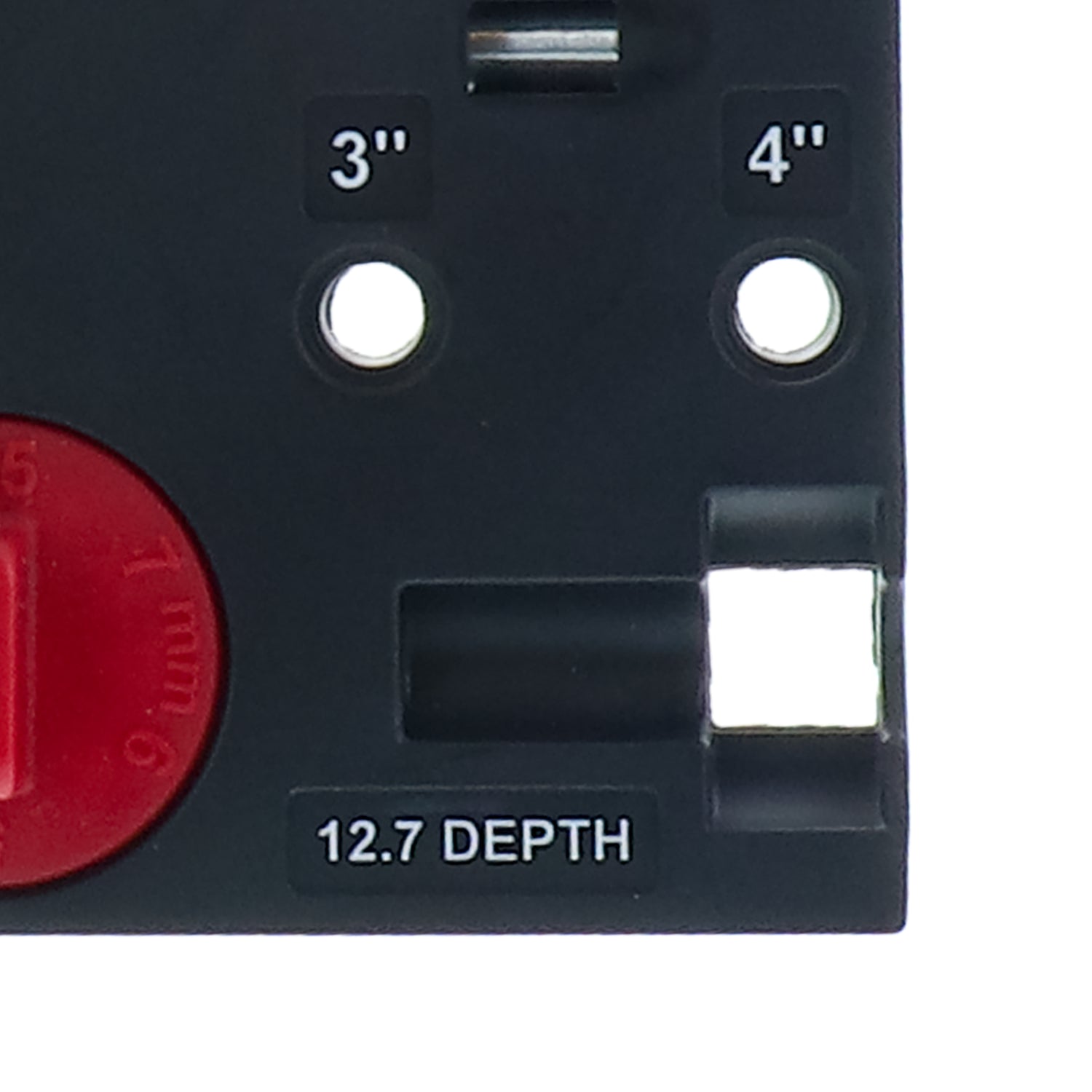

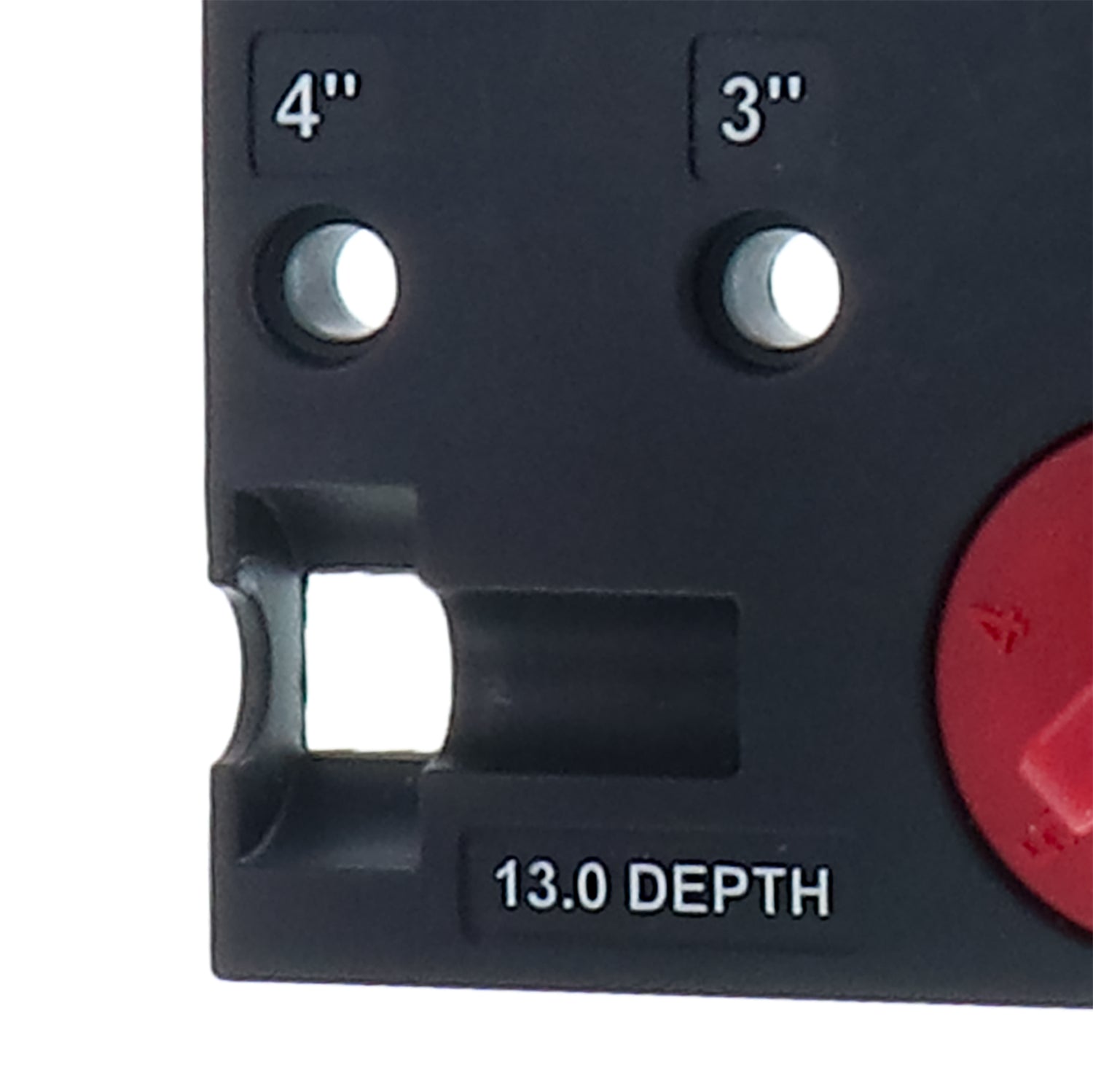

• Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures

• The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

What’s Included

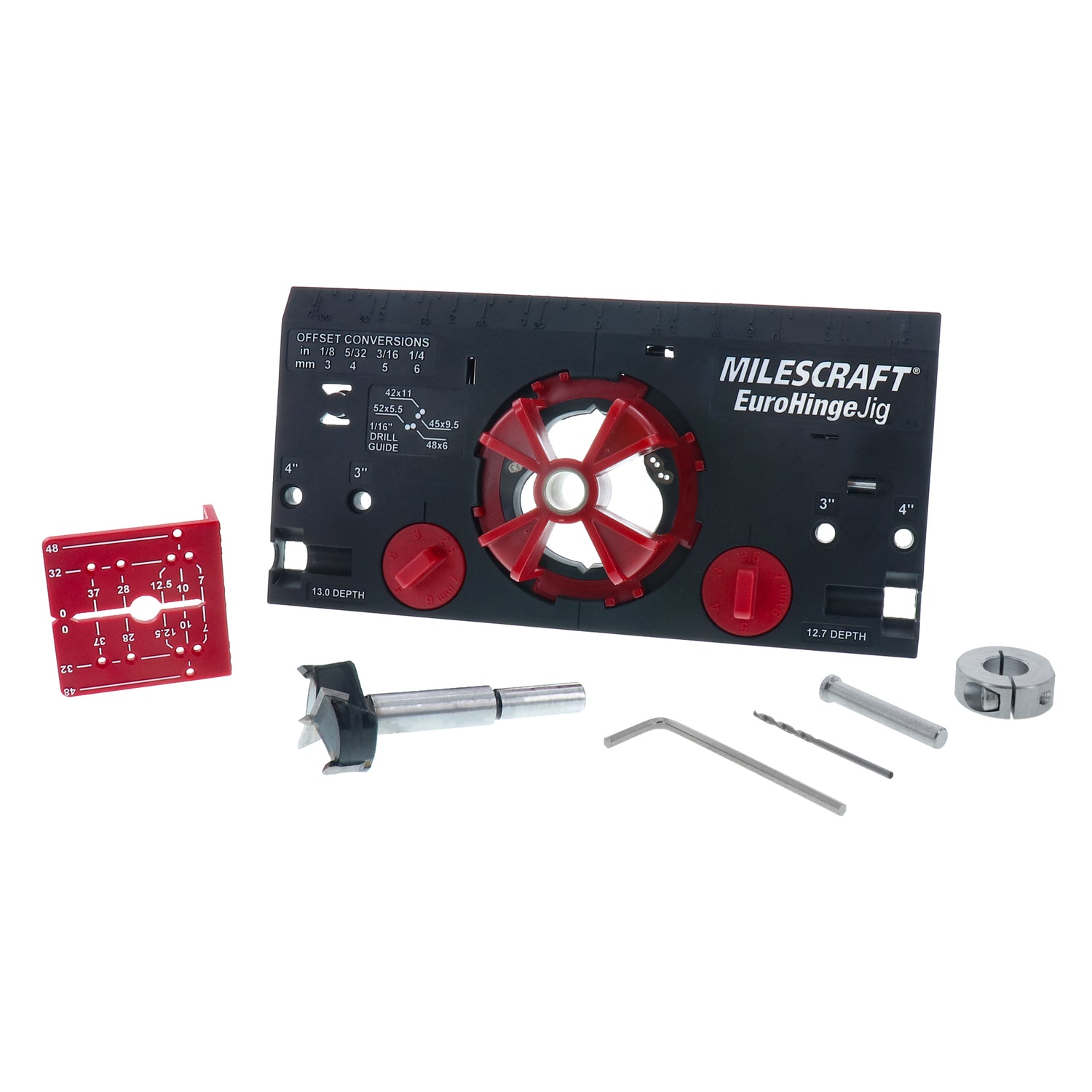

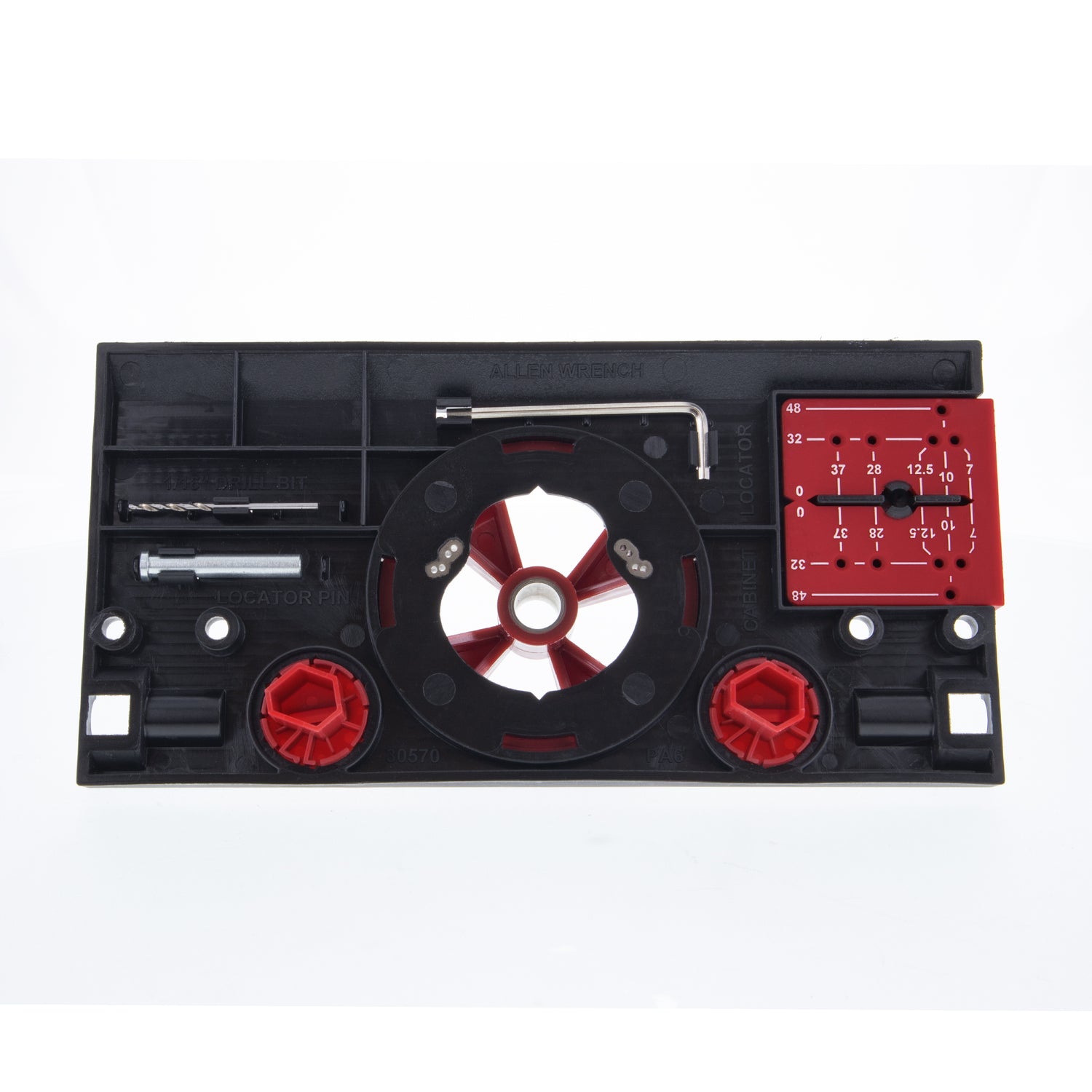

• Euro hinge jig with locator pins and drill bushing guide
• Marking out guide
• 35mm Euro Hinge boring bit
• 1.6mm pilot bit
• 3.0mm Allen wrench
• Instructions


Specifications

Edge offsets: 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm

Locator pin offsets: 3in & 4in

Bit: 35mm Euro Hinge Boring Bit

Bit shank: 3/8in

Depth stop: 3/8in Split

Depth settings: 12.7mm, 13mm

Who is Milescraft

Proudly engineered in the USA, every Milescraft product is developed and manufactured with the user in mind at every step. Make elegant wooden signs with confidence. Drive screws in awkward spaces. Install new doors in your home. Install crown moulding and trim, drill precise holes or build cabinets. Whatever the project, Milescraft solutions are here to help you complete your projects quickly and accurately.
