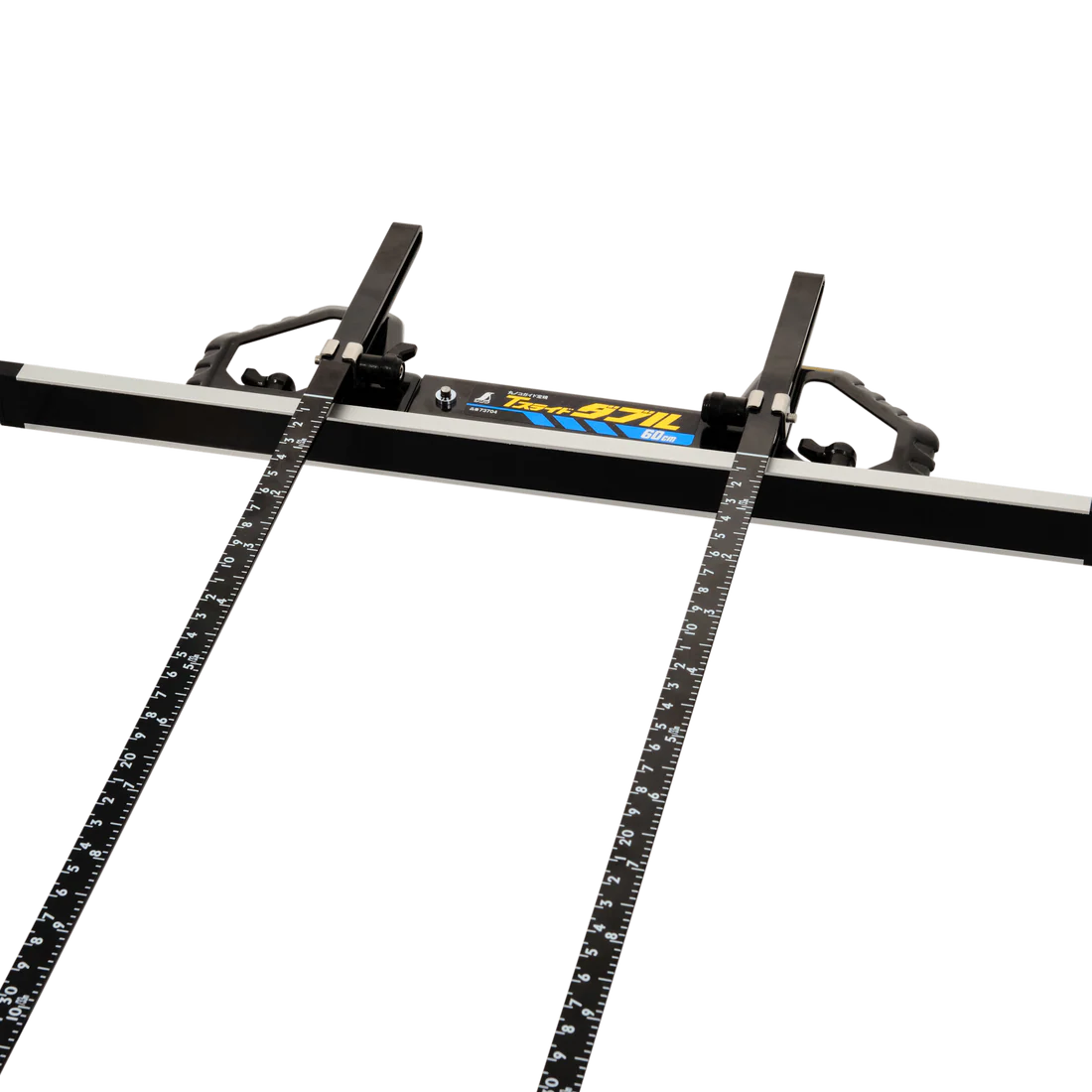

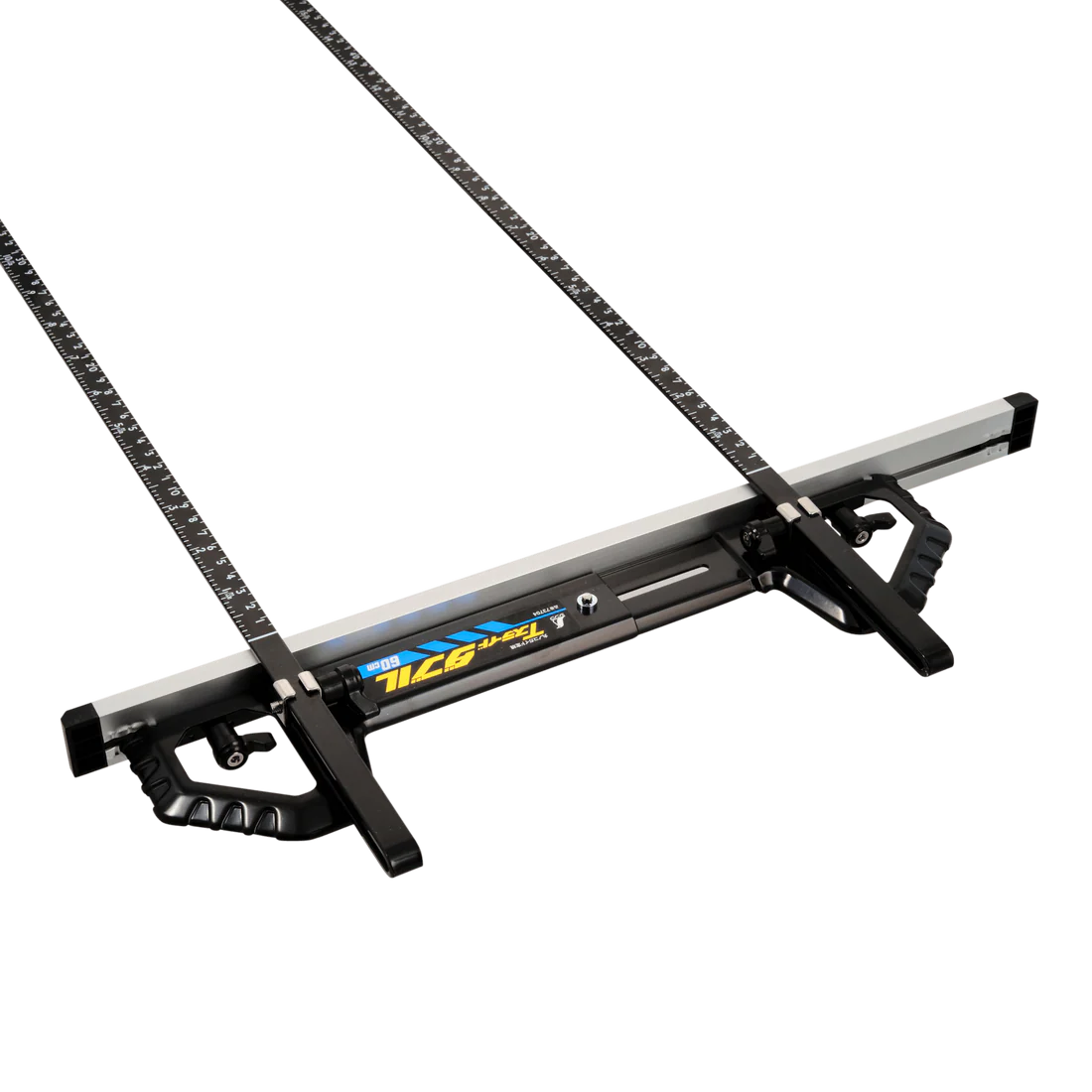

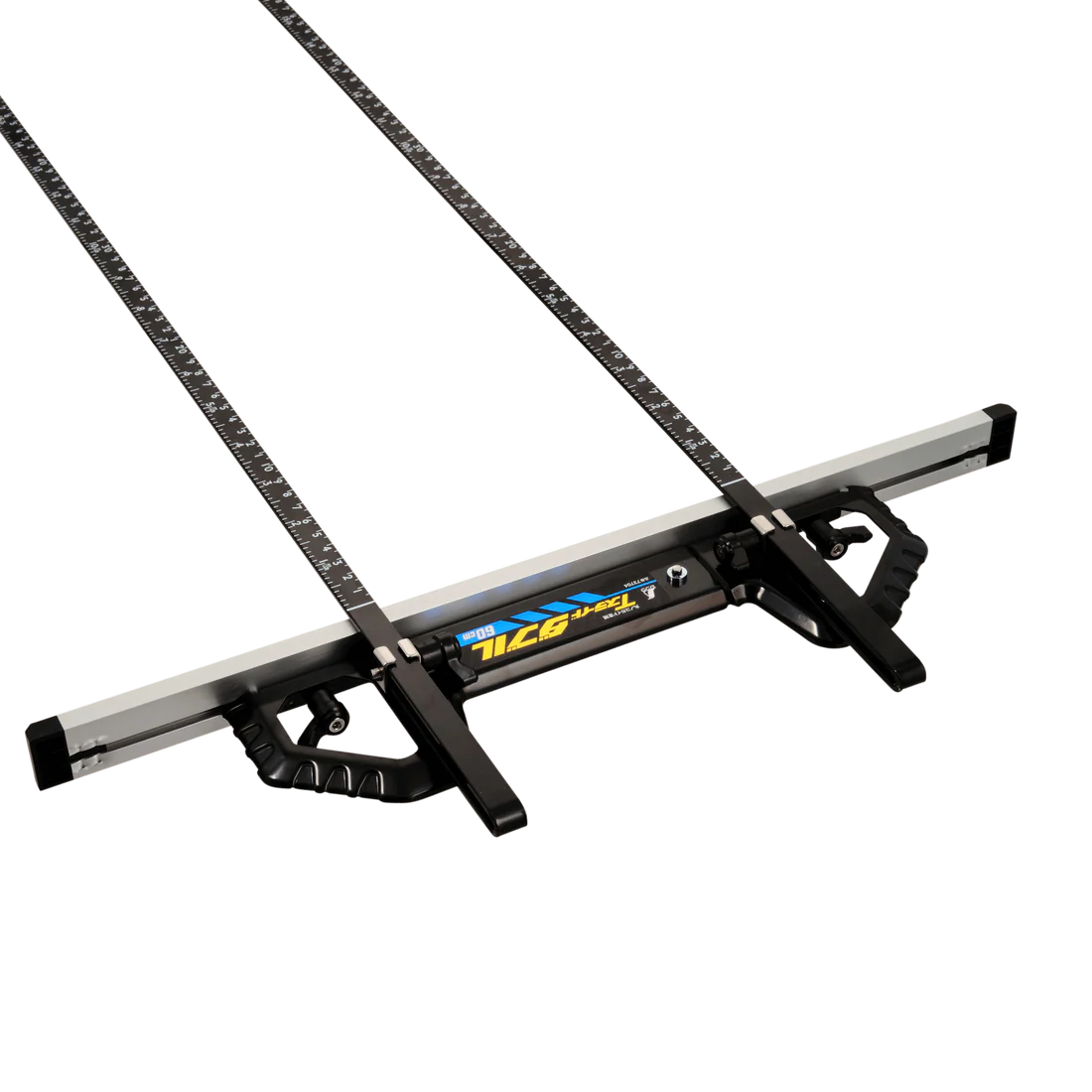

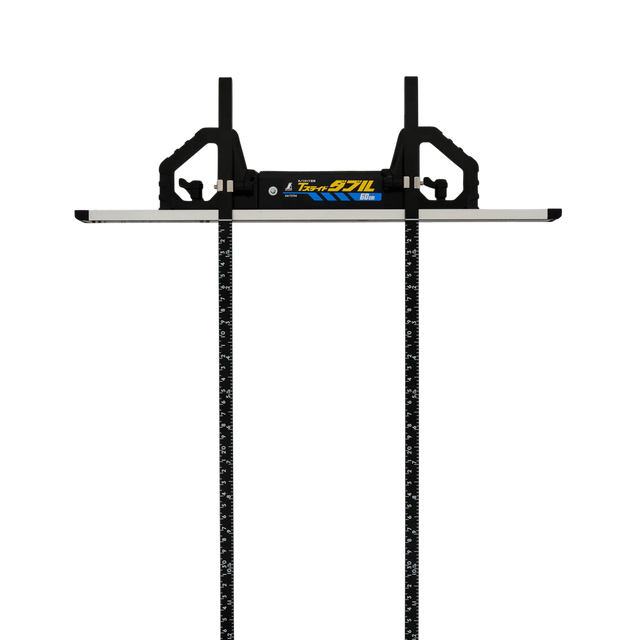

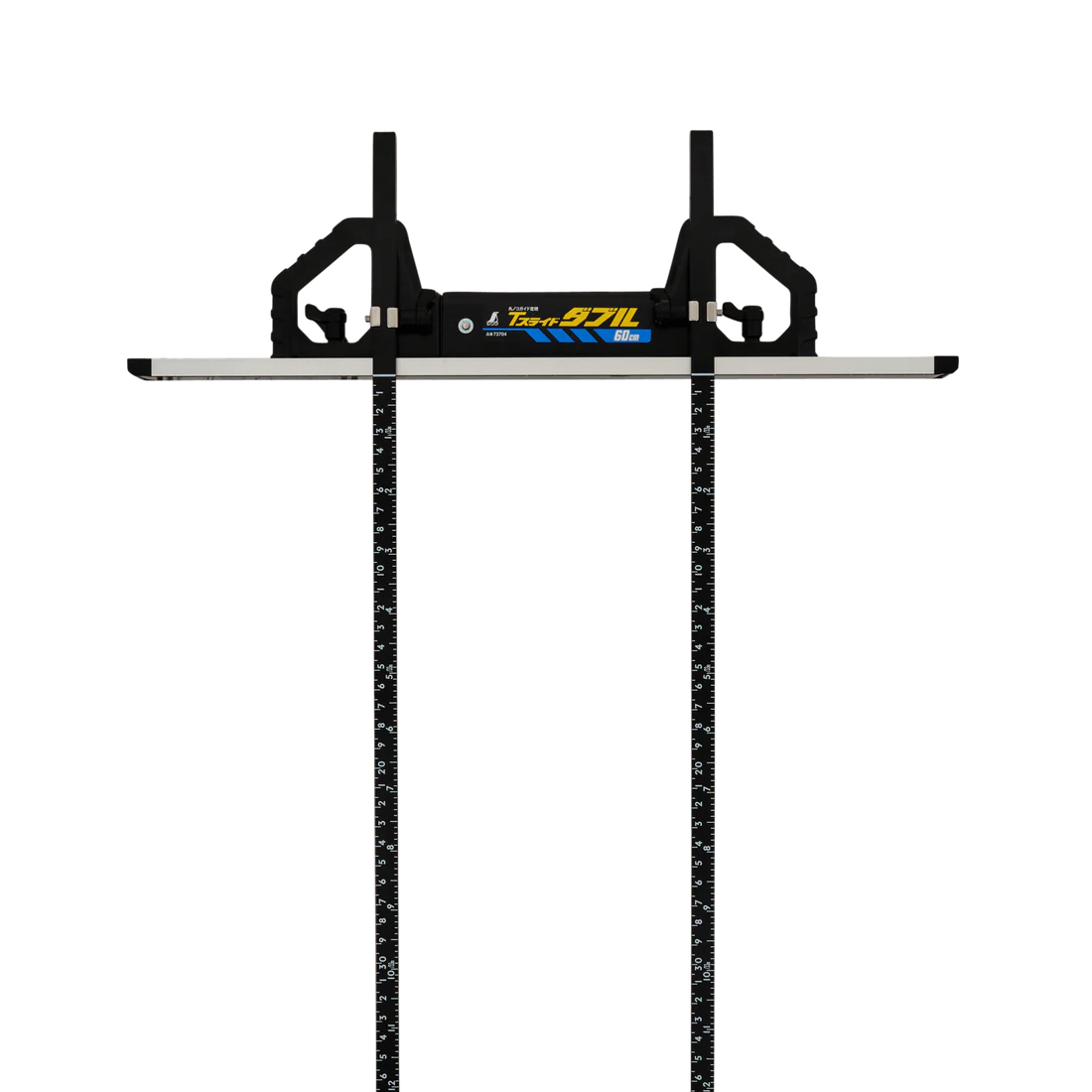

Shinwa Double T-Slide Parallel Circular Saw Guide 60cm

The Shinwa 60cm T-Slide Double Circular Saw Guide is a precision tool designed for use with hand-held circular saws, offering the cutting accuracy of a track saw while retaining the portability of a standard circular saw systems.

This guide features dual blade slots with a 12 mm x 3 mm cross-section compatible with most circular saws. The distance between the two blades can be independently adjusted via the sliding fence, which is engineered to move both forwards/backwards and up/down.

Built-in stabilisers reduce blade deflection and flex during operation, enhancing accuracy and user control. A low-friction UHPE lining on the fence ensures smooth movement and minimal resistance, making repeat cuts easier and more reliable.

It is ideal for applications involving sheet materials and structural timber, delivering clean, controlled cuts across a wide range of woodworking and construction projects.

Specifications

Min distance between arms: 165mm (centre to centre)
Max distance between arms: 240mm (centre to centre)
Max Extension of Guide: 60 cm
Abutting Height: 25 mm
Body Size: 762 x 425 x 30mm
Weight: 920 g
Body Materials: Iron
