Shinwa Next Foldable Circular Saw Guide

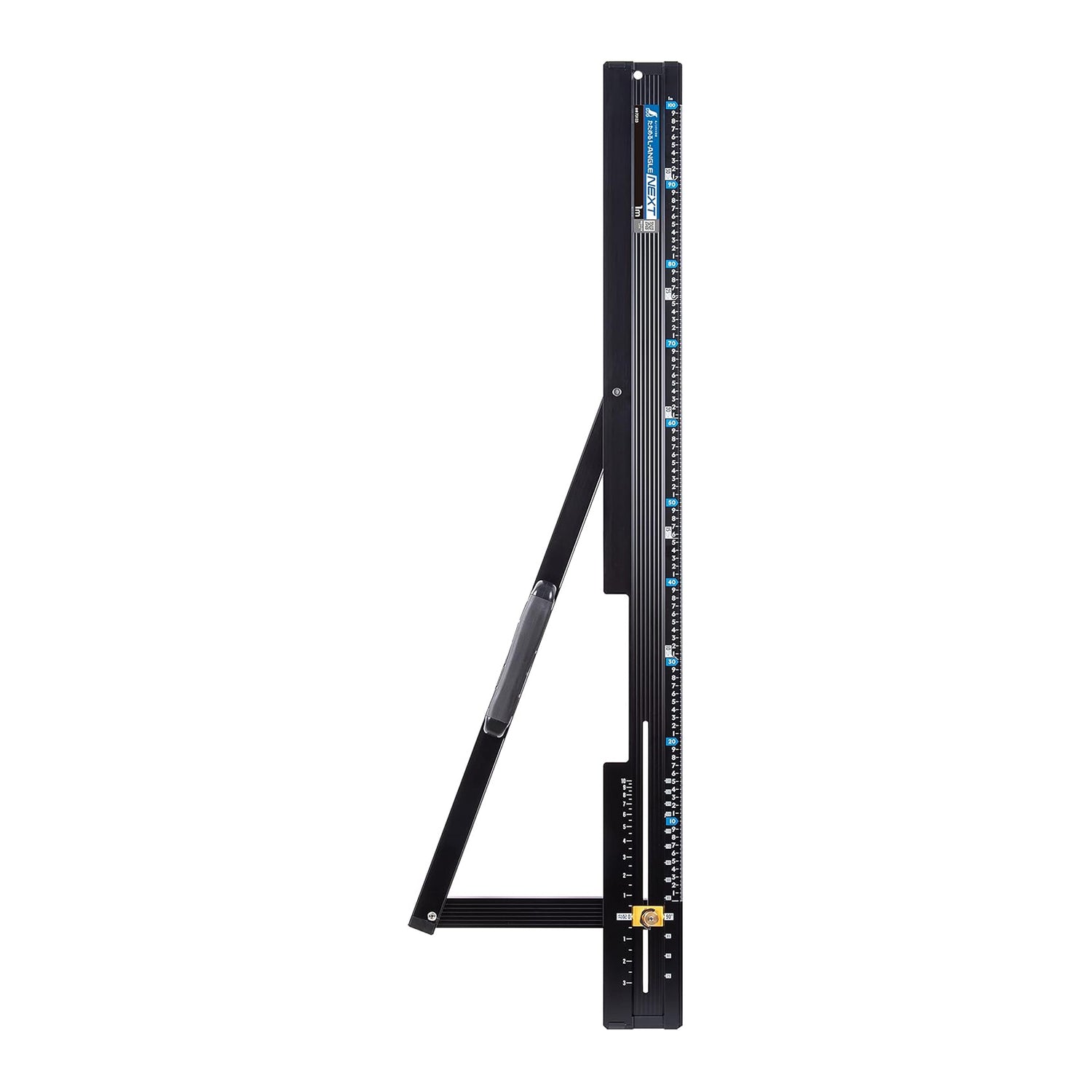

The Shinwa Next Foldable Circular Saw Guide is a professional-grade tool built for both portability and precision.

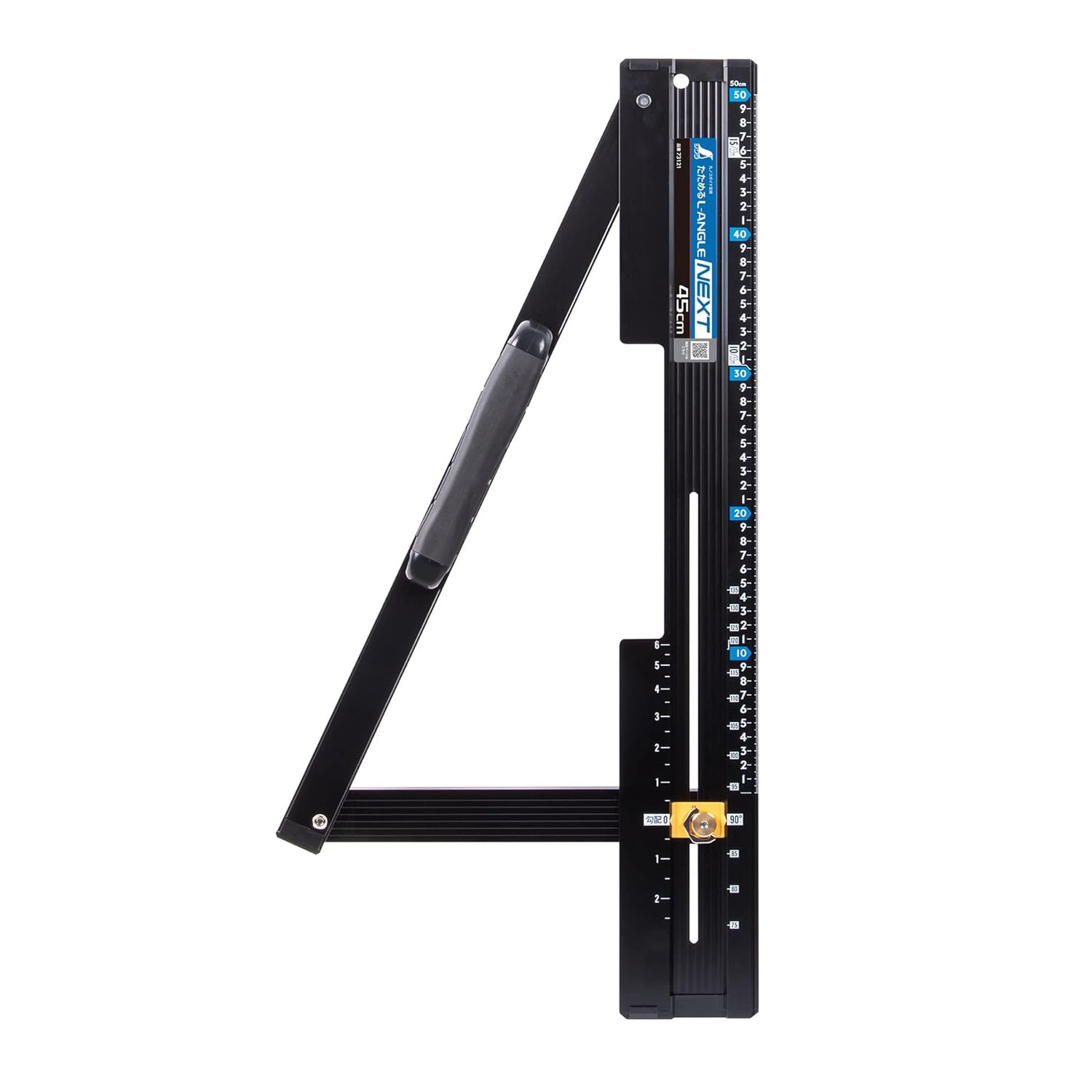

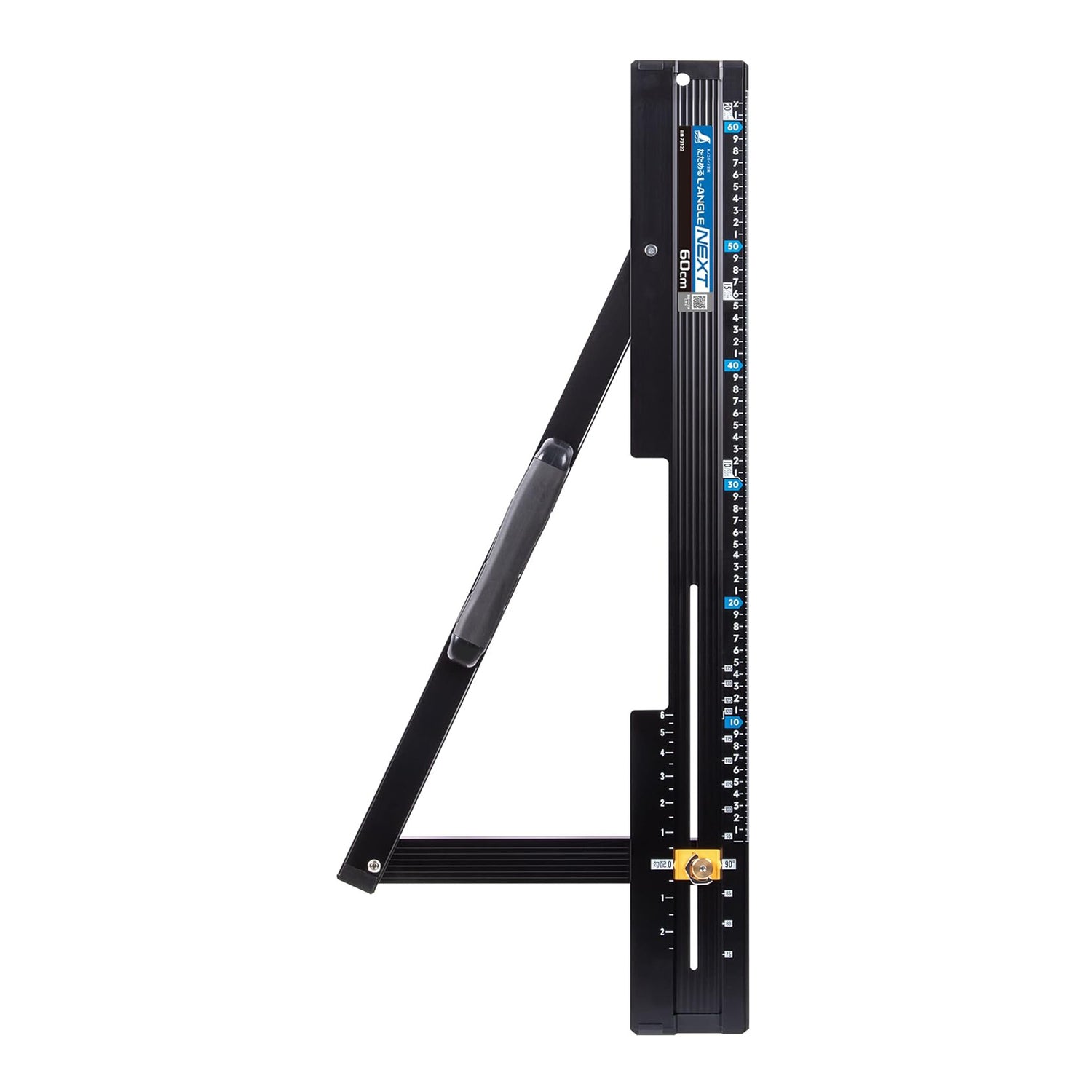

Available in three different sizes, please select your preferred option.

Please Note: Circular saw guide slider is sold separately.

This versatile guide can be fixed at a 90 degrees angle using a screw along the slit, or easily adjusted between 75 and 135 degrees by changing the angle of the butt.

Its innovative foldable butt allows for compact storage, while the body remains lightweight and easy to handle, making it ideal for large-format cutting tasks whether you're in the workshop or on-site.

It features both an angle scale and a reverse slope dimension scale to support a wide range of cutting applications. A thin stainless steel plate on the guide surface, paired with a protective cap, helps prevent damage to your materials during use.

Engineered for exceptional accuracy, it maintains a squareness tolerance of ±0.1mm per 100mm at 90 degrees, making it perfect for framing, cabinetry, and other precision cuts.

Made in Japan

Features

• Foldable Design: Allows for compact storage and easy transport.
• Adjustable Angles: Can be fixed at 90 degrees or adjusted between 75 and 135 degrees
• Dual Scales: Features both an angle scale and a reverse slope dimension scale for versatile cutting.
• Material Protection: Thin stainless steel plate on the guide surface with a protective cap prevents material damage.
• High Accuracy: Maintains a squareness tolerance of ±0.1mm per 100mm at 90 degrees
• Lightweight & Portable: Easy to handle for large-format cuts.

Specifications

Squareness Accuracy: ±0.1mm per 100mm (at 90 degrees)
Pole Size: 1217 x 100 x 7mm
Angle Adjustment Range: 75 to 135 degrees
Hitting Height: 15 mm
Body Size: 1217 x 345 x 73 mm (100 mm width when folded)
Weight: 1.2kg
Materials:
Body: Aluminium
Guide Surface: Stainless Steel
