Achieve Precision with Cabinet Hardware Installation Jigs

Cabinet hardware installation jigs are essential for anyone working with cabinetry, whether building new units or retrofitting existing furniture. These tools simplify the often fiddly process of aligning handles, knobs, hinges, and drawer slides, helping woodworkers achieve professional-quality results with speed and accuracy. For projects involving multiple drawers or doors, jigs are particularly useful for maintaining uniform spacing and alignment.

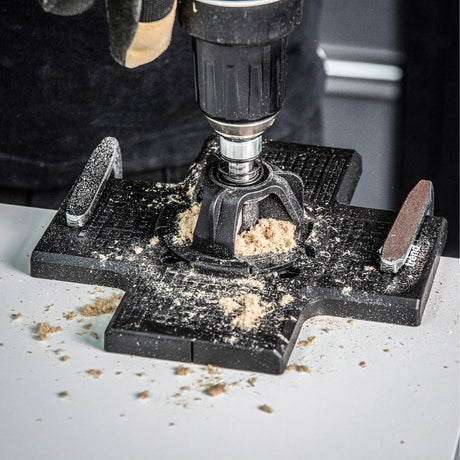

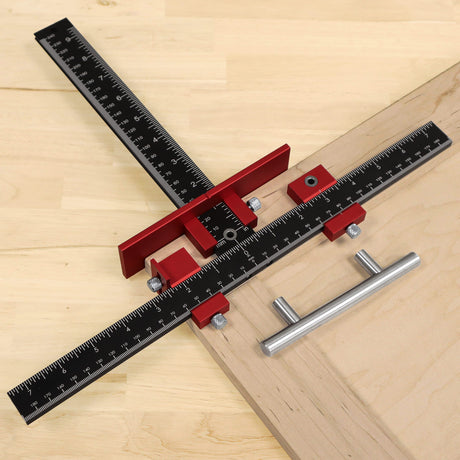

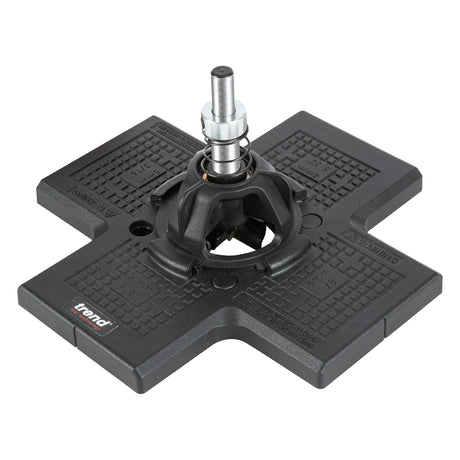

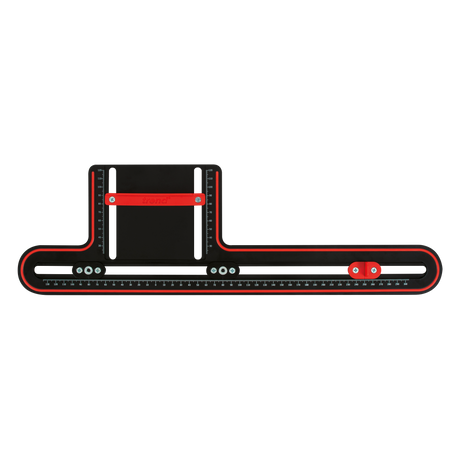

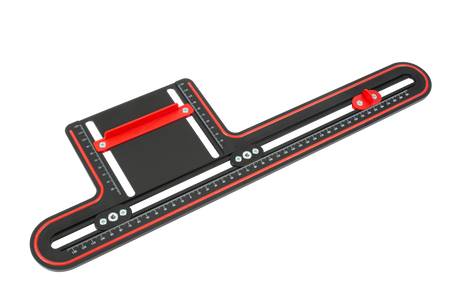

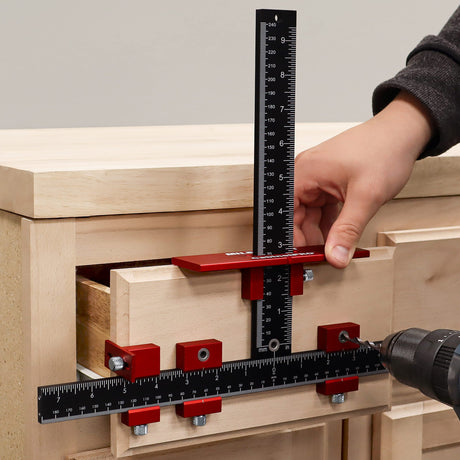

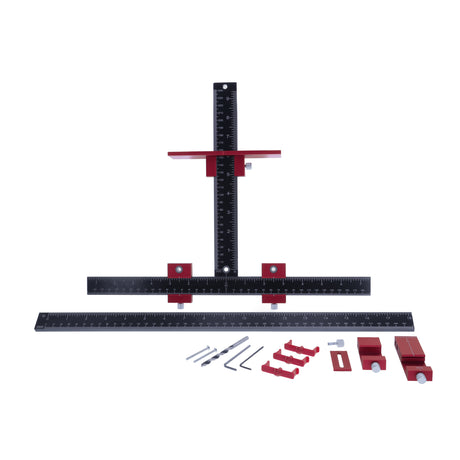

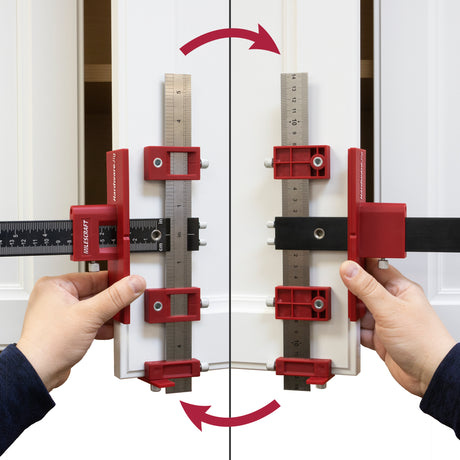

Most jigs are adjustable, allowing them to suit a variety of cabinet sizes and hardware styles. Handle and knob jigs typically feature calibrated guides and centring scales to position drill holes consistently. Hinge jigs assist with precise boring and alignment, especially for concealed European-style hinges, reducing the need for repeated measurements or templates.

Drawer slide jigs offer hands-free support to position slides at the correct height and depth while fastening them in place. This helps avoid sagging or misalignment that could cause drawers to bind or operate unevenly. Some models include clamping systems or built-in levels to improve installation speed and reduce errors during assembly.

FAQs

What is a cabinet hardware jig used for?

A cabinet hardware jig helps accurately position and drill holes for cabinet knobs, handles, hinges, and drawer slides. It ensures uniform placement, saving time and reducing errors during installation.

Can I use one jig for different hardware sizes?

Yes, most cabinet hardware jigs are adjustable and designed to accommodate a range of hardware dimensions. Look for models with sliding guides, centring scales, or multiple hole templates to suit varied layouts.

Are hinge jigs compatible with all types of cabinet hinges?

Many hinge jigs are specifically designed for European-style concealed hinges but some also support face-frame or traditional butt hinges. Always check the jig's specifications for compatibility with your chosen hardware.

How accurate are cabinet hardware jigs?

High-quality jigs offer excellent precision, typically within fractions of a millimetre. Accuracy depends on correct setup and calibration, but most jigs are far more consistent than manual measuring and marking methods.

Do I need power tools to use a cabinet hardware jig?

You’ll generally need a drill to use with the jig. The jig positions the bit accurately, but it doesn't drill for you. Some jigs also require a Forstner bit when boring holes for concealed hinges.
