Successfully creating curved laminations isn't just about cutting accurate veneers or building a precise form. The glue-up is where all that preparation is put to the test. A well-planned process removes the stress from clamping, ensures consistent glue lines and produces stronger, more accurate laminations with minimal waste.
Start with a Complete Dry Fit
Before opening the glue, perform a full dry run using the actual veneers and form. This simple step allows you to confirm that everything fits correctly and gives you the opportunity to identify any problems before time becomes critical.
Check that the veneers sit neatly in the form, the form closes fully without binding, and all required clamps are within easy reach. It's also worth rehearsing the clamping sequence so you know exactly where each clamp will be placed.
During the dry fit, inspect for gaps between veneers and ensure the form remains properly aligned as pressure is applied. Any issues are far easier to solve now than once the veneers are covered in epoxy.
Prepare Your Veneers Before Gluing
If possible, keep the veneers in the same order and orientation that they were cut from the board. This becomes increasingly important as veneer thickness increases, as random orientation can introduce inconsistencies that affect springback and the final shape.
Before the glue-up, make sure the veneers are clean, flat and free from dust. Keeping them clamped between flat boards until required helps prevent moisture changes or temperature differences from causing them to curl before use.
Calculate and Mix the Right Amount of Epoxy
Rather than estimating, calculate the total surface area that requires glue and use the manufacturer's recommended coverage rate as a starting point. In many cases, particularly with smooth, well-sanded hardwood veneers, you'll find that less adhesive is required than the maximum recommended amount.
Apply glue to only one face of each joint. Coating both surfaces simply wastes adhesive without improving the bond.
When using a two-part epoxy, follow the manufacturer's mixing instructions carefully. If measuring by weight rather than volume, ensure you use the correct weight ratio specified for the product, as the resin and hardener often have different densities. Accurate measuring is essential for achieving full strength and consistent curing.
Apply Glue Evenly
One of the simplest ways to improve consistency is by using a notched glue spreader. Unlike a flat scraper, which deposits varying amounts of glue depending on hand pressure, a notched spreader leaves a uniform adhesive film across every veneer. This not only produces more consistent glue lines but also reduces waste and helps ensure every joint receives the correct amount of adhesive.
Because epoxy generates heat as it cures, avoid leaving large quantities sitting in a mixing container. After mixing, spread the adhesive onto a flat palette or board to dissipate heat and extend its working time. For larger glue-ups, mixing multiple smaller batches is often more efficient than trying to use one large batch before it begins to cure.
Clamp Methodically
Once all veneers have been coated and stacked, carefully transfer the assembly into the form while maintaining the correct face orientation.
Before applying full pressure, ensure the form is free from dust or debris that could affect the finished surface. Initially apply only light clamping pressure so the veneers can still be adjusted if they have shifted during assembly.
If necessary, use a flat block or light mallet taps to shift any veneers back into alignment before fully tightening the clamps. Applying pressure gradually helps prevent veneers from sliding out of position.
Depending on the design of your form, a quick-action squeeze clamp can make it easier to bring the form together initially before replacing it with heavier F-clamps for the final clamping pressure.
Allow Proper Cure Time
For epoxy systems with longer cure times, leaving the work in the form overnight is generally sufficient, although longer curing periods provide additional peace of mind. Faster-curing adhesives may allow the use of a secondary resting form, enabling the main clamping form to be reused for multiple glue-ups throughout the day.
When removing the cured lamination, release the clamps gradually and watch for excessive springback. If the form has bonded slightly due to epoxy squeeze-out, use soft wedges or timber blocks to gently separate the components without damaging the form.
Before the next glue-up, remove any cured epoxy residue and apply a light coat of paste wax or another suitable release agent if required. Keeping the form clean ensures each subsequent lamination remains accurate.

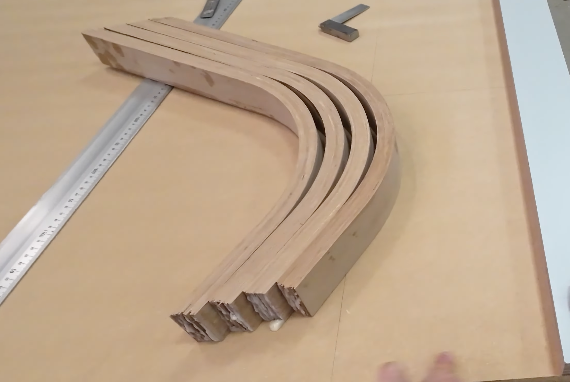

Machine the Lamination to Final Size
After removing the component from the form, begin by sanding away loose glue residue. The flattest face, typically the side where excess glue has settled, can then be jointed to establish a reliable reference surface.
Once the glue squeeze-out has been removed, trim the opposite face on a bandsaw, removing excess timber and leaving a clean surface ready for final machining.
A router sled provides an effective method for bringing each curved component to an identical thickness. With the work securely supported on a stable reference surface, the router can accurately flatten the top face and machine the piece to its final dimensions.
Mark Final Cuts from a Layout Jig
Although it may seem logical to transfer reference lines directly from the form, slight springback and minor dimensional changes during glue-up can reduce accuracy.
A more reliable approach is to work from the original design dimensions. By creating a simple layout jig with fixed reference points, each curved component can be positioned consistently and marked accurately before trimming. This ensures repeatable results across multiple laminations and helps maintain precision throughout the project.
