Effective dust extraction is not just about keeping a workshop tidy. It directly affects air quality, machine performance and long-term health. Fine airborne dust is the real hazard — far more so than the chips that end up on the floor. A well-designed system prioritises airflow management, minimises friction and concentrates suction where it is needed most. The following practical improvements are drawn from a working professional shop using a cyclone-based extraction system, and they focus on realistic, achievable upgrades rather than theoretical perfection.
1. Start with a Thoughtful System Design

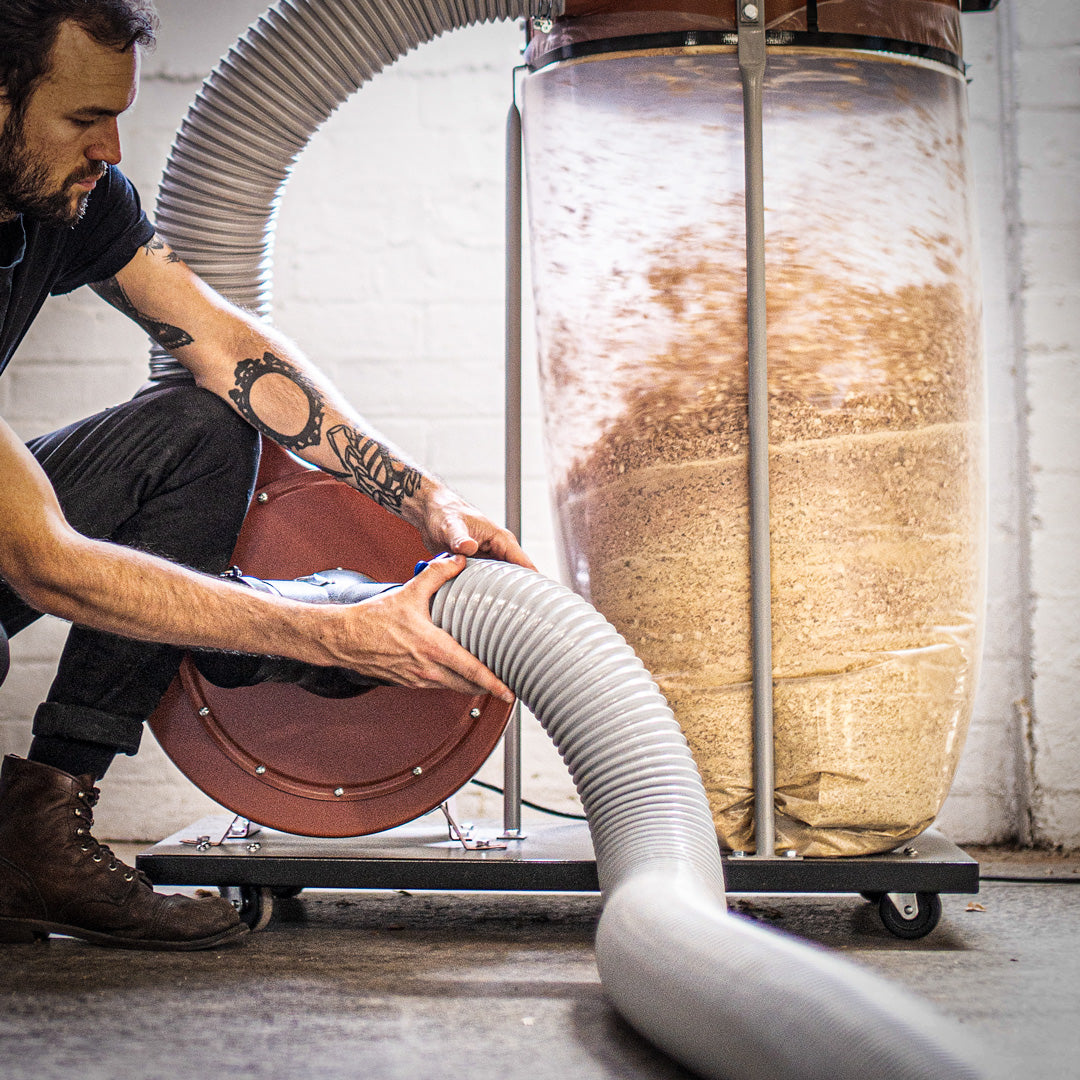

The workshop setup in question uses a cyclone extractor with dual pleated filters and a 150 mm PVC ducted system. The cyclone separates the bulk of chips before they reach the filters, improving efficiency and reducing maintenance. PVC pipe is used instead of galvanised ducting because it is affordable, widely available and easy to install solo. Flexible polyurethane hose connects directly to machines, while automated IVAC blast gates control airflow to each tool.
It is not a flawless system, but it is functional, cost-conscious and designed around airflow efficiency rather than appearance.
2. Seal Every Joint
Even minor air leaks significantly reduce performance. If each joint loses just a small percentage of airflow, the cumulative effect across the entire system can be substantial.
Taping or sealing every connection is simple, inexpensive and highly effective. The goal is to preserve static pressure and maintain maximum suction at the machine. Dust extraction systems are only as strong as their weakest connection, and unsealed joints quietly undermine performance.
3. Minimise Flexible Hose
Flexible hose is convenient, but its ribbed interior creates friction. That friction slows airflow and reduces extraction efficiency. Wherever possible, use smooth-walled ducting for long runs and reserve flexible hose only for the final connection to machines. Reducing turbulence and resistance helps maintain higher air velocity, which is critical for transporting chips effectively, especially over longer duct runs.
4. Use Sweeping Bends Instead of Tight Turns
Sharp 90-degree bends introduce turbulence and resistance. Replacing them with two 45-degree fittings or large-radius sweeps significantly improves airflow. Smoother transitions reduce the likelihood of debris catching in corners and help maintain consistent velocity through the system. Over multiple junctions, these small improvements compound into noticeably better performance.
5. Improve Extraction at the Machine Itself
System performance is not only about ducting, it is also about how effectively each machine directs airflow. Using materials such as Kaizen foam to block unused openings and close off escape paths dramatically improves suction where it matters. On machines like band saws and mitre stations, shaping foam inserts can funnel air toward the cutting zone rather than allowing it to dissipate inside the cabinet.
Targeted airflow often delivers better results than simply increasing extraction power.
6. Concentrate Suction with Blast Gates
Trying to extract from every machine simultaneously results in poor performance everywhere. Blast gates ensure suction is directed to only one active tool at a time. Automated systems, such as IVAC gates, open when a machine powers on and close others automatically. While these are more expensive, they save time and ensure gates are never accidentally left open. In smaller workshops, manual blast gates remain a perfectly viable and cost-effective option.
7. Automate Start-Up Where Possible
If your extractor does not automatically activate with your machines, remote-controlled power switches are an easy upgrade. Mounting magnetic remotes near workstations makes it far more likely the extractor or auxiliary fans will be used. The easier it is to switch extraction on, the more consistently it will be used.
8. Consider Machine Proximity
Distance from the extractor matters. Machines closer to the unit generally receive stronger extraction due to reduced pressure loss. High-dust tools such as drum sanders, thicknessers and table saws ideally sit nearer to the extractor. While workshop layout constraints often limit perfection, thoughtful positioning can noticeably improve performance.
9. Not Every Tool Belongs on the Main System
One of the most overlooked improvements is recognising that different machines require different extraction strategies. Attempting to connect every tool to a single large extractor can reduce overall system efficiency and add unnecessary complexity.
Router tables, bobbin sanders and similar tools often perform perfectly with smaller dedicated extraction units. Mitre saws are notoriously difficult to capture effectively and may benefit from a combination of a small dust collector for ambient capture and a high-velocity shop vacuum connected to the built-in dust port.Drill presses, which eject fast-moving chips, are typically better suited to a shop vacuum with strong, concentrated suction positioned close to the bit.
10. Manage the Dust That Escapes
No system is perfect. Even with a cyclone, well-sealed ducting and controlled airflow, fine dust will settle on surfaces.
Opening large doors, using high-volume fans to create cross-ventilation and periodically blowing down surfaces with compressed air (while exhausting air outside) helps clear lingering particles. Personal protective equipment, such as a quality mask when cutting large volumes of timber, remains an important final safeguard.
Ultimately, effective dust extraction is about layered control: good system design, thoughtful layout, targeted machine improvements and active air management. Perfection may be unrealistic, but meaningful improvement is always achievable, and in a professional workshop, it makes a measurable difference.
